1U Rackmount LCD Monitor Keyboard Drawer and Rackmount KVM Switch :
Part # LCD1U15-06-n / RKP1015e / RKP1015-801e / RKP1015-1601e

                       DUAL SLIDES 1U Rackmount 15" SAMSUNG TFT LCD Monitor Keyboard Drawer
                                                Optional 8 port / 16 port PS2 or USB KVM switch
                              Optional KVM Over IP Remote Access or CAT.5 Extender Remote Access

Space saving design : Dual Slides enable viewing through closed glass doors of cabinet

General Information

Form Factor

1U Rack mounting, separate sliding screen and keyboard

Compatibility

Multi-platform - Mix PCs, IBMs, HPs & DELLs

Server Side Interface

No KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
PS2 KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
USB KVM :	HD15 VGA, USB Type A for KB/MS

Options

KVM with IP remote or CAT. 5 Remote &
DC power

Rack Mounting

Adjustable ranges from 15.6" to 35.1"
(395 to 890mm) Dimension Diagram

LCD Screen

LCD Type

Samsung Grade A 15" Industrial
Active Matrix TFT LCD Panel

Display Size

15 inch diagonal

Resolutions

1,024 x 768 with 60 / 70 / 75Hz

Response time

Tr=3 / Tf=13 ms

Contrast ratio

450 : 1

Brightness

Min. 250 cd/ m2

Pixel pitch

0.297 (H) x 0.297 (V) mm

Panel color

16.2 million display colors

Viewing angle

130 / 110 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

S-video & Composite

LCD MTBF

50,000 hrs

Keyboard & Pointing Device

Model n / e

Notebook type KB w/ 2-button Touchpad

Keyboard Details

Integrated KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status LED

Cascade Expansion

Up to 128 ports/servers

PS2 Type Interface More Details

New!
IP Remote

TCP/IP access from anywhere around the
world (with IP KVM)

New!
Cat. 5 Remote

500 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

PS/2, with microprocessor support
hot-plugging

Server Side Interface

VGA HD15, analog RGB and 2 x 6-pin mini
DIN

Support Platform

MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS

KVM cable

PS/2 cable with 6, 10 & 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet option

USB Type Interface More Details

New!
Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

VGA HD15, analog RGB, USB type A, support
hot-plugging

Support Platform

MS Windows 2000/XP, Solaris and SCO Unix

KVM cable

USB KVM cable with 6, 10, 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet
option

Power Supply

-Remote adapter : 110V - 220 V AC Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /
10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V DC
input

Rear I/O Connector

Integrated KVM

8 or 16 KVM ports   : HD15 female
IP console port       : RJ45 type (IP KVM
                             model )
Remote console port: RJ45 type (2-
                             console model )
Serial port              :DB9 (IP KVM model)
Virtual Device port   :USB type B (IP
                             KVM model)
PS/2 cascade port   :2 Mini DIN & HD15
                             female
USB cascade port    :HD15 female
DC power input       :Plug-round type

Without KVM

Console port : HD15 female
DC power input : Plug-round type

Separate Sliding screen & keyboard using
unique double slides

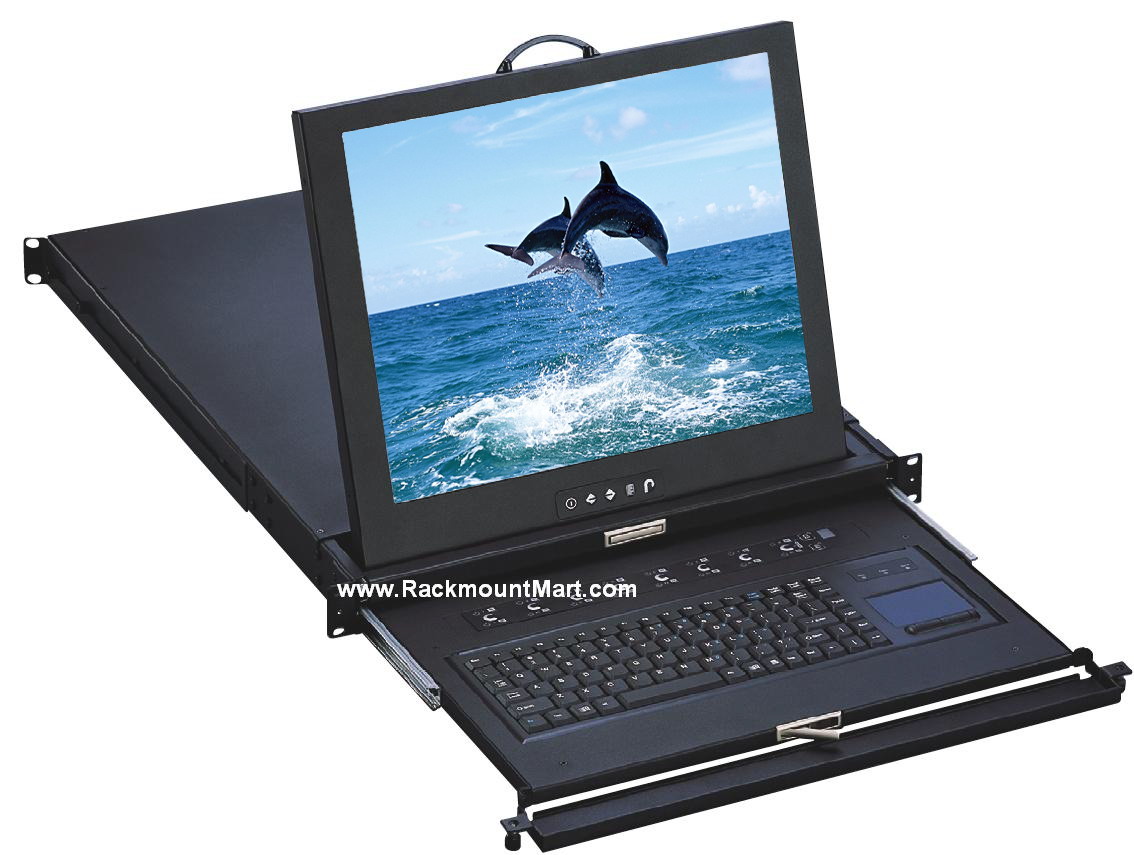

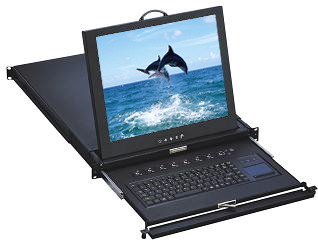

Front View of LCD1U15-06 / RKP1015

*click on photo for enlarged view

Dimension

*click on above picture for enlarged views

User Manual Download

KVM SUPPORT

PS/2 , NO KVM

PS/2 , KVM w/
1 Console

PS/2 , KVM w/
2 Consoles

USB , NO KVM

USB , KVM w/
1 Console

Drawing

Free Ground Shipping *Click for details
Environmental
Temperature	0 to 50 Degree Celsius (Operation) -25 to 65 Degree Celsius (Storage)
Relative Humidity	90%, non condensing
Shock	50G peak acceleration (11ms, half since wave)
Vibration	58~500Hz/ 0.98G (11min/ cycle)
Mechanical
Product Dimension	17.3"(W) x 1.75"(H) x 25.6"(L) / 43.9(W) x 4.45 (H) x 65(D)cm
Product Weight	Approximately 33 lbs / 15kg
Relative Humidity	90%, non condensing
Regulatory Approval
	FCC , CE , VCCI
Optional Accessories & Peripheral
	Details
Package Content
Package Content	LCD Monitor drawer x 1 , upgradeable 6-ft KVM cable(s), 110 / 220 V DC Power adapter x 1 , Power cord x 1, Rear Mounting Bracket x 1 pair, Fasteners x 4 , User Manual x 1

FEATURES :

SAMSUNG LCD Panel
Unique mechanical design to maximize rack mountable space
Adjustable mounting bracket from 15.6"(395mm) to 35.1"(890mm) and suitable for 29.6"(750mm) or 39.4"(1000mm) deep 19" Cabinet
Black Anodized aluminum front panel
Lock out rails to prevent movement of the keyboard
Auto Shut down mechanism when LCD is in locking positions
Large wrist rest area
Built in on screen display controlled by integral membrane switches
Power saving feature for prolonging the lift of LCD panel
Standard D-sub 15-pin VGA input connector
VGA, keyboards & mouse all in one by 15 pin HDB connector
Supplied with 12V 5A remote power adapter (single power source)
Build in slide rail and mounts easily in any 19" cabinet
EMC shielding around the monitor housing to minimize interference
Rear rackmount mounting bracket included
One 6-ft long KVM cable included for single port model and Eight 6-ft KVM cables included for 8-port KVM model and Optional Eight or Sixteen 6-ft KVM cables included for 16-port KVM model ( KVM cable length of 10-ft or 15-ft options available. More details )

With KVM Switch Only

•	Cascade for use up to 128 servers.
•	Name servers up to 16 characters long.
•	Scan mode – Monitor servers at intervals 5 to 99 seconds.
•	New keep alive feature safeguards server for power loss to the switch
•	High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
•	Built-in microprocessor emulation for each port boots up process.
•	Support eight characters password protection and search PC server name.
•	VGA, keyboard & mouse all-in-one by 15pin HDDB connector at switch side.
•	Multi-platform – mix PCs, IBM compatibles, HPs, Compaq and Dell.
•	Hot Pluggable - Add PCs or Remove Connected PCs for Maintenance without powering down the PS2KVM switch or PCs.
•	No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.

KVM OPTIONS

	Single Console PS2 KVM Switch 8 Port KVM Details 16 Port KVM Details		2 Consoles PS2 KVM Switch 8 Port KVM Details 16 Port KVM Details
	Single Console USB KVM Switch 8 Port KVM Details 16 Port KVM Details		2 Consoles USB KVM Switch 16 Port KVM Details
			2 Consoles IP KVM Switch 8 Port KVM Details 16 Port KVM Details

Back to top

Optional Accessories	Optional Peripheral
S-Video and Composite video input -Supports Pal & NTSC	Single User (Console) PS2 KVM switch - 4 Port / 8 Port / 16 Port Details
48V / 24V / 12V DC Power Input Range : 10~36V (DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection	Single User (Console) USB KVM switch - 8 Port / 16 Port Details
New Options - DVI Input - Internal Power Supply - LCD Membrane - Front Panel *** Please contact us for details	2 User (2 Consoles ) PS2 KVM switch - 8 Port / 16 Port Details
KVM & Cascade Cables with various length Details	2 User (2 Consoles )USB KVM switch - 8 Port / 16 Port Details
Cat.5 PS2 KVM Extender Details	2 User (2 Consoles )IP KVM switch - 8 Port / 16 Port Details
LCD-A1001 PS2 to SUN /iMac USB adapter Converting PS/2 to USB with SUN translating special keys stroke Details

Back to top

Ordering information :

KVM Support Keyboard Type Part # Description

NO KVM

Single Port in PS/2
version Notebook KB w/ Touchpad LCD1U15-06-n / RKP1015e
1U 15" Samsung Panel w/ Notebook KB & touchpad & 1 x 6-ft 3-in-1 PS/2 KVM cable

Single Port in USB
version Notebook KB w/ Touchpad LCD1U15-06-n-u / RKP1015eu
1U 15" Samsung Panel w/ Notebook KB & touchpad & 1 x 6-ft 2-in-1 USB KVM cable

Single User KVM ( 1 User KVM)

1 User 8 Port PS/2 KVM Switch Notebook KB w/ Touchpad LCD1U15-06-8KVM-n / RKP1015-801e
1U 15" Samsung Panel w/ Notebook KB & touchpad & 1 User 8 port PS/2 KVM switch & 8 x 6-ft 3-in-1 PS/2 KVM cable

1 User 8 Port USB KVM Switch Notebook KB w/ Touchpad LCD1U15-06-8KVM-n-u / RKP1015-S801e
1U 15" Samsung Panel w/ Notebook KB & touchpad & 1 User 8 port USB KVM switch & 8 x 6-ft 2-in-1 USB KVM cable

1 User 16 Port PS/2 KVM Switch
Notebook KB w/ Touchpad LCD1U15-06-16KVM-n / RKP1015-1601e
1U 15" Samsung Panel w/ Notebook KB & touchpad & 1 User 16 port PS/2 KVM switch & 16 x 6-ft 3-in-1 PS/2 KVM cable

1 User 16 Port USB KVM Switch
Notebook KB w/ Touchpad LCD1U15-06-16KVM-n-u / RKP1015-S1601e
1U 15" Samsung Panel w/ Notebook KB & touchpad & 1 User 16 port USB KVM switch & 1 User 16 x 6-ft 2-in-1 USB KVM cable

2 User KVM ( 2 Consoles, Local & Remote )

2 Users 8 Port PS/2 KVM Switch Notebook KB w/ Touchpad LCD1U15-06-8KVM2-n/ RKP1015-802e
1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 User 8 port PS/2 KVM switch & 8 x 6-ft 3-in-1 PS/2 KVM cable

2 Users 16 Port PS/2 KVM Switch
Notebook KB w/ Touchpad LCD1U15-06-16KVM2-n/ RKP1015-1602e
1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 User 16 port PS/2 KVM switch & 16x 6-ft 3-in-1 PS/2 KVM cable

2 Users 8 Port
IP KVM Switch w/ PS2 interface Notebook KB w/ Touchpad LCD1U15-06-8KVM2IP-n/ RKP1015-IP802e
1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 User 8 port IP Over KVM switch w/ PS2 interface & 8 x 6-ft 3-in-1 PS2 KVM cable

2 Users 16 Port
IP KVM Switch w/ PS2 interface
Notebook KB w/ Touchpad LCD1U15-06-16KVM2IP-n/ RKP1015-IP1602e
1U 15" Samsung Panel w/ Notebook KB & touchpad & 2 User 16 port IP Over KVM switch w/ PS2 interface & 16 x 6-ft 3-in-1 PS2 KVM cable
