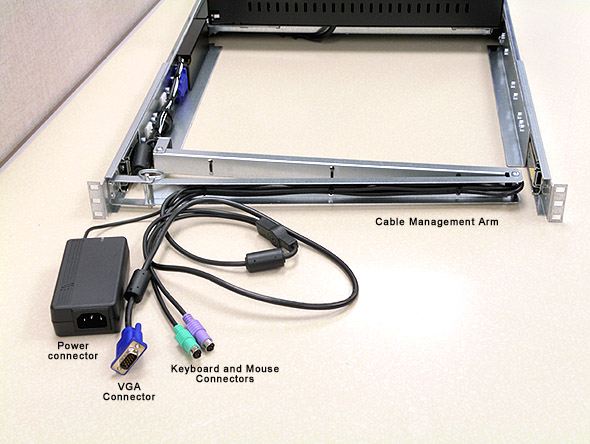

Click on photos for enlarged views

                                                               Made in U.S.A.

15" TFT LCD Panel

Dimensions	19.0" (W) x 1.75" (H) x 23" (D)
Environment	Temperature	Operating: 0 to 50 degrees C Storage: -20 to 60 degrees C
Humidity	Operating: 10% to 85% non-condensing
DISPLAY SPECIFICATIONS
Display Type	Active matrix TFT LCD, 16.7 million colors.
Resolution	1024 x 768 maximum
Frequency	Horizontal:  31.47 to 68KHz Vertical:     60 to 85Hz
Response Time	25 ms typical.
Brightness	250 cd/m2 typical.
Contrast Ratio	400:1 typical.
Viewing Angle	Horizontal: -80 / +80 degrees Vertical: -80 / +80 degrees
Input Signal	Video: Analog RGB Sync: H/V Separate (TTL)
Video Connector	Signal: 15-pin mini D-sub, detachable
On-Screen Controls	Brightness, Contrast, Position (Vert.  & Horiz.), Auto Adjust, OSD Horiz. & Vert. position, Load and Save values.
Power	AC Input	90-260VAC
	Frequency	50/60 Hz
	Power Consumption	60 Watts Maximum
Plug & Play	DDC1 and DDC2B
KEYBOARD SPECIFICATIONS
Compatibility	IBM AT, PS/2, DOSV
	Key Layout	88/89 keys
	Travel distance	3.0  0.3mm
	Travel to peak	1.0  0.2mm
	Peak force	50  10 gm
	Operating temperature	-20 to 65oC
	Storage temperature	200mA
	Operating humidity:	10% to 95% RH
	Switch life:	5 million life cycles
	Electronic data	+5VDC  5% 250mA
Compatibility with KVM	TBA

 -One rack unit high (1.75")
 -KVM drawer that allows users to store and use a mouse
 -Wide 160 degree horizontal and vertical viewing angles
 -Wide viewing angle, Sunlight LCD and contrast ratio
 -Ball bearing rack mount slides
 -available in both PS/2 and USB models
 -PS/2 model is compatible with all PS/2 and UNIX computers (PS/2 model
  keyboard has 4-foot attached cable with female 6 pin miniDIN keyboard
  connector for connecting to host.).
 -USB model is compatible with all USB-enabled PS/2, SUN or MAC computers.
  (USB model keyboard has 4-foot attached cable female USB Type B connector
  for connecting to host.)

Ordering information :

Part #	Description
LCD1U15-08         Price:$783	1U Rackmount 15"  LCD Monitor Keyboard Drawer with  mouse area in PS/2 model
LCD1U15-08-u      Price:$803	1U Rackmount 15"  LCD Monitor Keyboard Drawer with  mouse area in USB model
Add "-M" to end of part number	Optical Mouse for LCD1U15-08
Add "-V" to end of part number	Composite Video & S-Video Input
Add "-L" to end of part number	Lock
Add "-R" to end of part number	Retainer
