1U Rackmount LCD Monitor Keyboard Drawer and Rackmount KVM Switch :
Part # LCD1U17-02

                         DUAL SLIDES 1U Rackmount 17"SAMSUNG LCD Monitor Keyboard Drawer
                              Optional 8 port / 16 port DB-15 KVM Switch / KVM Over IP / CAT5 KVM
Optional 16 port / 32 port High Density CAT5 KVM or CAT.5 KVM Over IP for Local / Remote Access
                                    **** Built-in Combo PS/2 & USB interface for selected versions ****

Space saving design : Dual Slides enable viewing through closed glass doors of Rack

General Information

Form Factor

1U Rack mounting, separate sliding screen
and keyboard

Compatibility

Multi-platform - Mix PCs, SUNs, IBMs, HPs
& DELLs

Server Side Interface

No KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
PS2 KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
USB KVM :	HD15 VGA, USB Type A for KB/MS
Combo Interface KVM:	Either PS2 or USB by cable / dongle selection

Options

KVM with IP remote or CAT. 5 Remote &
DC power

Rack Mounting

Adjustable ranges from 15.6" to 35.1"
(395 to 890mm)

LCD Screen

LCD Type

Samsung Grade A 17" Industrial
Active Matrix TFT LCD Panel

Display Size

17 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr=1.3 / Tf=3.7 ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.264 (H) x 0.264 (V) mm

Panel color

16.2 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

S-video & Composite (RCA) / S-Video & BNC /
DVI-D More Details

LCD MTBF

50,000 hrs

Keyboard & Pointing Device

Model n / e

Notebook type KB w/ 2-button Touchpad

Keyboard Details

Integrated High Density CAT.5 KVM Switch Option

KVM port

16 port or 32 port

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM) via RJ-45 connection

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM) via RJ-45 connection

Cascade Expansion

Up to 256 ports/servers by 8 level cascade

More Details

Cost efficient Integrated DB-15 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status LED

Cascade Expansion

Up to 128 ports/servers

PS2 Type Interface More Details

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM)

Cat. 5 Remote

500 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

PS/2, with microprocessor support
hot-plugging

Server Side Interface

VGA HD15, analog RGB and 2 x 6-pin mini
DIN

Support Platform

MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS

KVM cable

PS/2 cable with 6, 10 & 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet option

USB Type Interface More Details

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

VGA HD15, analog RGB, USB type A, support
hot-plugging

Support Platform

MS Windows 2000/XP, Solaris and SCO Unix

KVM cable

USB KVM cable with 6, 10, 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet
option

Power Supply

-Remote adapter : 110V - 220 V AC Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /
10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V DC
input

Rear I/O Connector

Integrated KVM

8 or 16 KVM ports :	HD15 female
IP console port :	RJ45 type (IP KVM model )
Remote console port:	RJ45 type (2-console model)
Serial port :	DB9 (IP KVM model)
Virtual Device port :	USB type B (IP KVM model)
PS/2 cascade port :	2 Mini DIN & HD15 female
USB cascade port :	HD15 female
DC power input	Plug-round type

Separate Sliding screen & keyboard using
unique dual slides

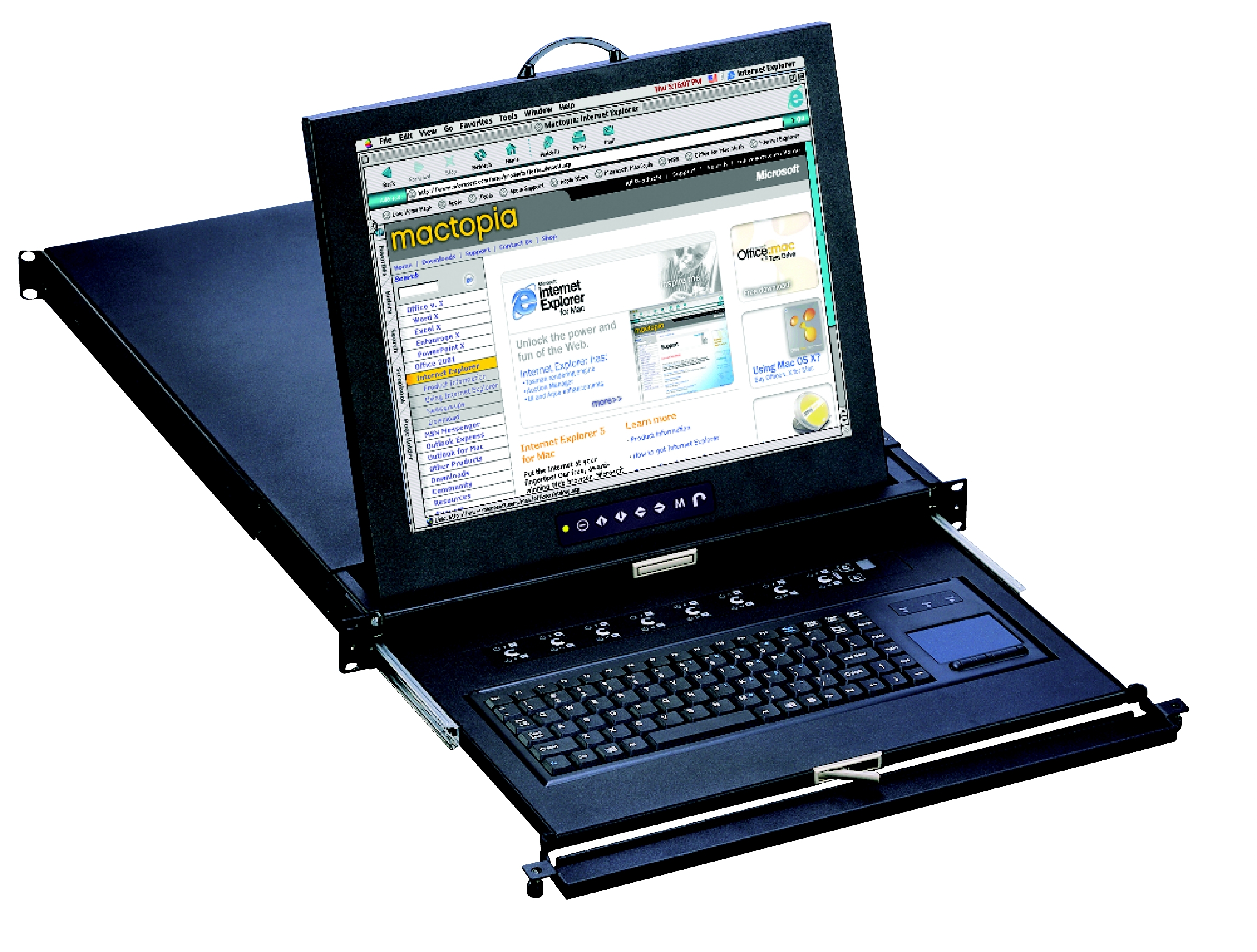

Front View of LCD1U17-02

*click on above picture for enlarged view

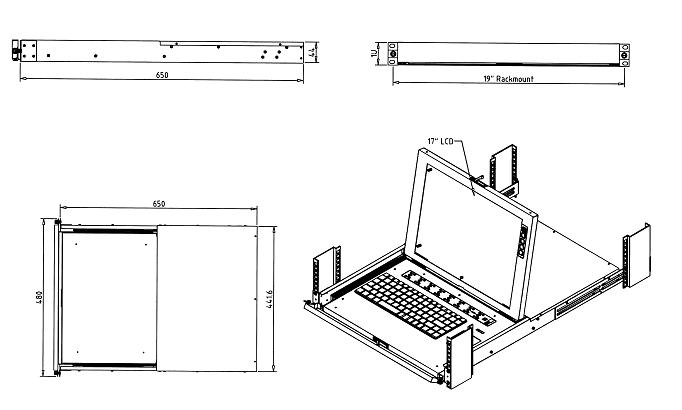

Dimension Construction

*click on above pictures for enlarged views

Rear Views for various versions of LCD1U17-02



       *click on above picture for enlarged view

     User Manual Download

KVM SUPPORT

PS/2 , NO KVM

PS/2, Local Console
DB-15 KVM

USB , NO KVM

USB, Local Console
DB-15 KVM

PS/2, Local + Remote Console, DB-15 CAT5 Extender KVM

Local Console, High Density CAT.5 KVM

Local + Remote Console, High Density CAT.5 KVM

Local + IP Console, High Density CAT5 IP KVM

      Free Ground Shipping *Click for details



Without KVM

Console port  : for VGA PS/2 KB/MS, , HD 15 female

DC power input : Plug-round type

                                  Environmental

   Temperature 0 to 50 Degree Celsius (Operation)
-25 to 65 Degree Celsius (Storage)

Relative Humidity 90%, non condensing

   Shock 50G peak acceleration
(11ms, half since wave)

   Vibration 58~500Hz/ 0.98G
(11min/ cycle)

                                  Mechanical

Product Dimension

17.3"(W) x 1.75"(H) x 25.6"(L) /
43.9(W) x 4.45 (H) x 65(D)cm

Product Weight Approximately 35.2 lbs / 16kg

Relative Humidity 90%, non condensing

                              Regulatory Approval

       FCC , CE , VCCI

                       Optional Accessories & Peripheral

Details

                             Package Content

Package Content

See user manual of the respective version listed above

                                           Remarks

For SUN Solaris Compatible
version , click this Link

LCD Drawer & KVM Benefits :

Separate sliding LCD & keyboard allowing LCD to remain open when the rack door is closed
High Density Cat5 KVM with either 16 or 32 ports in 1U of rack space
Cost efficient DB-15KVM integration
Mix PS/2 , USB & SUN with Multi-Platform switch capability
Secure remote user access across the web wide web via optional IP console

Features :

1U rackmount drawer with SAMSUNG Grade A 17" LCD Panel
Built-in Combo PS/2 & USB interface ( for selected versions only , see ordering information below for details ) :
user can have either PS2 or USB input to the LCD by connecting the combo PS2 & USB interface of the LCD with the respective type of PS/2 or USB KVM cable / dongle
Slide rails with fixed positions to prevent keyboard movement while typing
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
Adjustable mounting bracket from 15.4"(390mm) to 33.2"(845mm) and suitable for 29.6"(750mm) or 39.4"(1000mm) deep 19" Cabinet
Separate sliding LCD & keyboard allowing LCD to remain open when the rack door is closed
Black Anodized aluminum front panel
Lock out rails to prevent movement of the keyboard
Auto Shut down mechanism when LCD is in locking positions
Large wrist rest area
Built in on screen display controlled by integral membrane switches
Power saving feature for prolonging the lift of LCD panel
Standard D-sub 15-pin VGA input connector
VGA, keyboards & mouse all in one by 15 pin HDB connector
Supplied with 12V 5A remote power adapter (single power source)
Build in slide rail and mounts easily in any 19" cabinet
EMC shielding around the monitor housing to minimize interference
Rear rackmount mounting bracket included

Integrated wiith Standard DB-15 KVM Switch Only

Cost efficient DB-15 KVM OPTIONS - with either 8 or 16 ports , cascade up to 128 servers

Local Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1010 Details 16 Port KVM - LCDK1011 Details	Local + Remote Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1024 Details 16 Port KVM - LCDK1025 Details
Local Console DB-15 USB KVM Switch : 8 Port KVM - LCDK1020 Details 16 Port KVM - LCDK1021 Details	Local + Remote Console DB-15 USB KVM Switch : 16 Port KVM - LCDK1023 Details
	Local + IP Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1038 Details 16 Port KVM - LCDK1039 Details

Integrated with High Density CAT.5 KVM Switch Only

High Density RJ-45 CAT5 KVM OPTIONS - with either 16 or 32 ports , cascade up to 256 servers

Local Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1043Details 32 Port KVM - LCDK1044 Details	Local + Remote Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1045 Details 32 Port KVM - LCDK1046 Details
	Local + IP Console High Density CAT.5 IP KVM Switch : 16 Port KVM - LCDK1047 Details 32 Port KVM - LCDK1048 Details

Back to top

Optional Accessories

Optional Peripheral

Optional Video input
-S-Vdieo + Composite Video / DVI-D / BNC

Details

Local Console DB-15 PS2 KVM switch
- 4 Port / 8 Port / 16 Port Details

48V / 24V / 12V DC Power
   Input Range        : 10~36V (DC-12V, DC-24V model)
                              36~75V (DC-48V model)
   DC power Output : DC 12V    Voltage Accuracy: +/- 1% (Max.)
   Safety                    : Continuous short circuit protection

Details

Local Console DB-15 USB KVM switch
- 8 Port / 16 Port Details

Touch Screen

Details

Local + Remote Console DB-15 PS2 KVM switch
- 8 Port / 16 Port Details

PS/2 or USB KVM Cables & Cascade Cables in various
length

Details

Local + Remote Console DB-15 USB KVM switch
- 8 Port / 16 Port Details

PS/2 or USB Dongles & CAT5 Cables in various
length

Details

Local + IP Console DB-15 IP Over KVM switch
- 8 Port / 16 Port Details

Options
- Speaker                                 - Front Panel
- Internal Power Supply          - Micro Switch
- LCD Membrane
                               *** Please contact us for details

Local Console High Density CAT.5 KVM switch
- 16 Port / 32 Port

16 Port KVM - LCDK1043 Details
32 Port KVM - LCDK1044 Details

    LCD-A1001 PS2 to SUN /iMac USB adapter
Converting PS/2 to USB with SUN translating special keys stroke

Details

Local + Remote Console High Density CAT.5 KVM
Switch - 16 Port / 32 Port

16 Port KVM - LCDK1045 Details
32 Port KVM - LCDK1046 Details

CAT.5 PS2 KVM Extender

Details

CAT5 USB KVM Extender

Details

PS2 KVM Over IP Extender

Details

Local + IP Console High Density CAT.5 IP KVM
Switch - 16 Port / 32 Port

16 Port KVM - LCDK1047 Details
32 Port KVM - LCDK1048 Details

Back to top

Ordering information :

KVM Support Keyboard Type Part # Description

NO KVM ( Single Port ) ** with Built-in Combo PS2 & USB interface

Single Port for DB-15 PS2
connection with built-in Combo PS2 / USB Interface Notebook KB w/ Touchpad LCD1U17-02-n
Price : $917 1U 17" Samsung Panel w/ Notebook KB & touchpad & 1 x 6-ft 3-in-1 PS2 KVM cable

Single Port for DB-15 USB
connection with built-in Combo PS2 / USB Interface Notebook KB w/ Touchpad LCD1U17-02-n-u
Price: $917 1U 17" Samsung Panel w/ Notebook KB & touchpad & 1 x 6-ft 2-in-1 USB KVM cable

Single Console KVM ( Local console, 8 / 16 / 32 port KVM )

                                                  DB-15 KVM ( Local console DB-15 KVM)

Local console DB-15
8 Port PS2 KVM Switch Notebook KB w/ Touchpad LCD1U17-02-8KVM-n
Price: $1212 1U 17" Samsung Panel w/ Notebook KB & touchpad & Local Console 8 port PS2 KVM switch & 8 x 6-ft 3-in-1 PS2 KVM cable

Local console DB-15
16 Port PS2 KVM Switch Notebook KB w/ Touchpad LCD1U17-02-16KVM-n
Price: $1417 1U 17" Samsung Panel w/ Notebook KB & touchpad & Local Console 16 port PS2 KVM switch & 16 x 6-ft 3-in-1 PS2 KVM cable

Local console DB-15
8 Port USB KVM Switch Notebook KB w/ Touchpad LCD1U17-02-8KVM-n-u
Price: $1326 1U 17" Samsung Panel w/ Notebook KB & touchpad & Local Console 8 port USB KVM switch & 8 x 6-ft 2-in-1 USB KVM cable

Local console DB-15
16 Port USB KVM Switch Notebook KB w/ Touchpad LCD1U17-02-16KVM-n-u
Price: $1545 1U 17" Samsung Panel w/ Notebook KB & touchpad & Local Console 16 port USB KVM switch & Local Console 16 x 6-ft 2-in-1 USB KVM cable

                        High Density CAT5 KVM ( Local console CAT5 KVM) ** with Built-in Combo PS2 & USB interface

Local console High Density 16 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface Notebook KB w/ Touchpad LCD1U17-02-U16KVM-n
Price: $1402 1U 17" Samsung Panel w/ Notebook KB & touchpad & Local Console 16 port CAT5 KVM switch with Combo PS2 & USB Interface (*PS2 /USB Dongles are optional Details-> )

Local console High Density 32 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface Notebook KB w/ Touchpad LCD1U17-02-U32KVM-n
Price: $1659 1U 17" Samsung Panel w/ Notebook KB & touchpad & Local Console 16 port CAT5 KVM switch with Combo PS2 & USB Interface (*PS2 /USB Dongles are optional Details-> )

2 Console KVM ( Local & Remote Console , 8 / 16 / 32 port KVM)

                                      DB-15 KVM ( 2 Consoles, Local & Remote DB-15 KVM )

2 Consoles ( Local + Remote console ) DB-15 8 Port PS2 KVM Switch Notebook KB w/ Touchpad LCD1U17-02-8KVM2-n
Price: $1515 1U 17" Samsung Panel w/ Notebook KB & touchpad & Local + Remote Console CAT5 up to 500ft away w/ 8 ports PS2 KVM switch & 8 x 6-ft 3-in-1 PS/2 KVM cable

2 Consoles ( Local + Remote console ) DB-15 16 Port PS2 KVM Switch Notebook KB w/ Touchpad LCD1U17-02-16KVM2-n
Price:$1697 1U 17" Samsung Panel w/ Notebook KB & touchpad & Local + Remote Console CAT5 up to 500ft away w/ 16 ports PS/2 KVM switch & 16 x 6-ft 3-in-1 PS/2 KVM cable

2 Consoles ( Local + IP console ) DB-15 8 Port PS2 KVM Over IP Switch Notebook KB w/ Touchpad LCD1U17-02-8KVM2IP-n
Price:$1818 1U 17" Samsung Panel w/ Notebook KB & touchpad & Local + IP Console 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 3-in-1 PS2 KVM cable

2 Consoles ( Local + IP console ) DB-15 16 Port PS2 KVM Over IP Switch Notebook KB w/ Touchpad LCD1U17-02-16KVM2IP-n
Price:$2008 1U 17" Samsung Panel w/ Notebook KB & touchpad & Local + IP Console 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 3-in-1 PS2 KVM cable

High Density CAT5 KVM ( 2 Consoles, Local & Remote CAT5 KVM ) ** with Built-in Combo PS2 & USB interface

2 Consoles ( Local + Remote console ) High Density 16 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface
Notebook KB w/ Touchpad LCD1U17-02-U16KVM2-n
Price: $1629 1U 17" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) with 16 port CAT5 KVM switch in Combo PS2 & USB Interface (*PS2 /USB Dongles are optional Details-> )

2 Consoles ( Local + Remote console ) High Density 32 Port CAT5 KVM Switch with built-in Combo PS2 / USB Interface
Notebook KB w/ Touchpad LCD1U17-02-U32KVM2-n
Price:$1841 1U 17" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local + Remote) with 32 port CAT5 KVM switch in Combo PS2 & USB Interface (*PS2 /USB Dongles are optional Details-> )

2 Consoles ( Local + IP console ) High Density
16 Port CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface Notebook KB w/ Touchpad LCD1U17-02-U16KVM2IP-n
Price:$1902 1U 17" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local +IP) with 16 port CAT5 KVM Over IP switch in Combo PS2 & USB Interface (*PS2 /USB Dongles are optional Details-> )

2 Consoles ( Local + IP console ) High Density
32 Port CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface
Notebook KB w/ Touchpad LCD1U17-02-U32KVM2IP-n
Price:$2114 1U 17" Samsung Panel w/ Notebook KB & touchpad & 2 consoles (Local +IP) with 32 port CAT5 KVM Over IP switch in Combo PS2 & USB Interface (*PS2 /USB Dongles are optional Details-> )

Back to top

Toll Free : 1-888-865-6888 Fax : 510-226-8968 Email : sales@RackmountMart.com

Home | Buy Online | About Us | Contact Us | Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Inc is not responsible for any typographical errors. Specifications subject to change without notice. Legal.
