1U Rackmount LCD Monitor Keyboard with optional 8 port or 16 port KVM Drawer : Part # LCD1U17-03-USB

1U Rackmount 17" TFT LCD Monitor Keyboard Drawer with USB Port
optional 8 port KVM switch or 16 port KVM switch ( FCC & CE approved , RoHS Compliant )

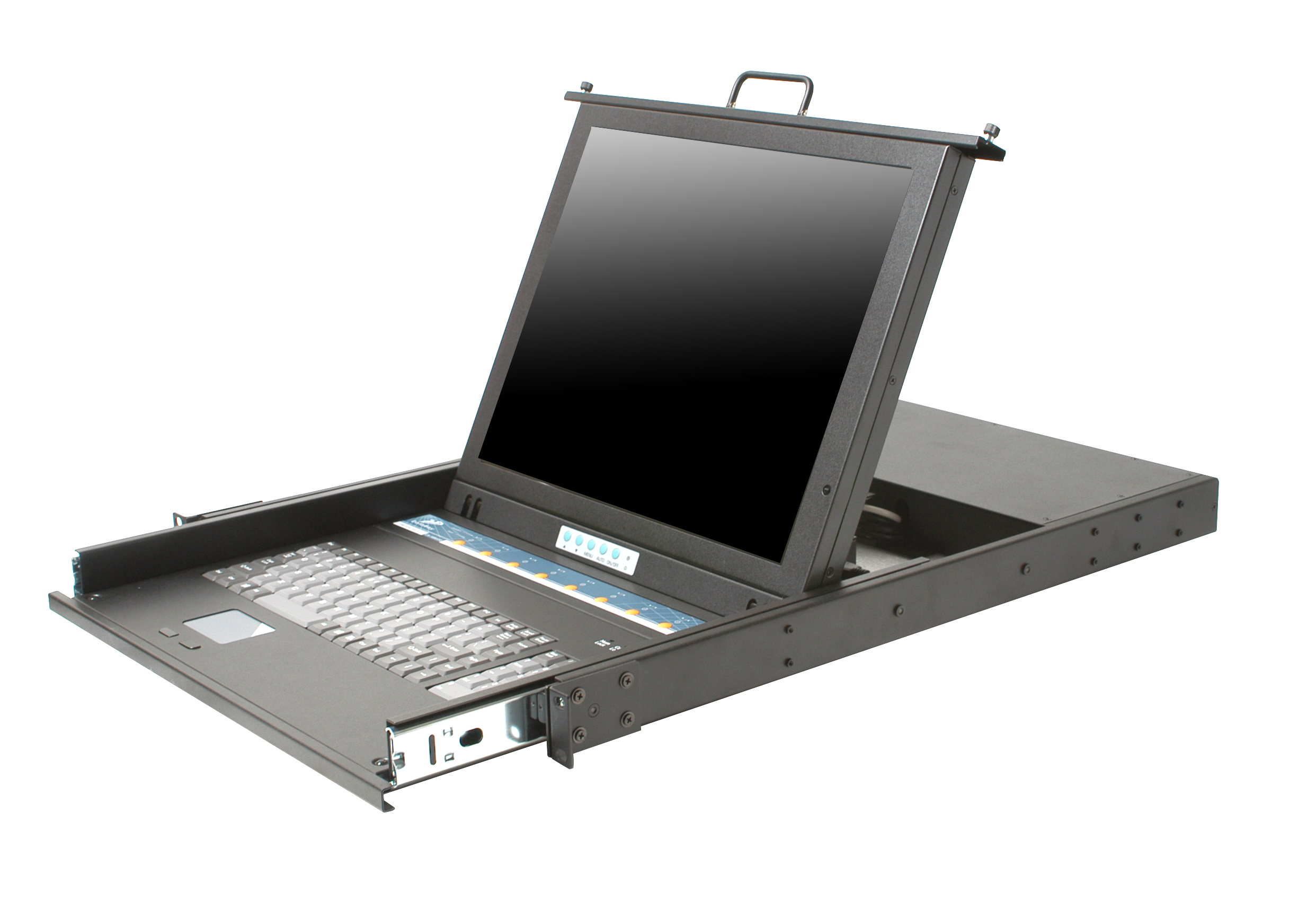

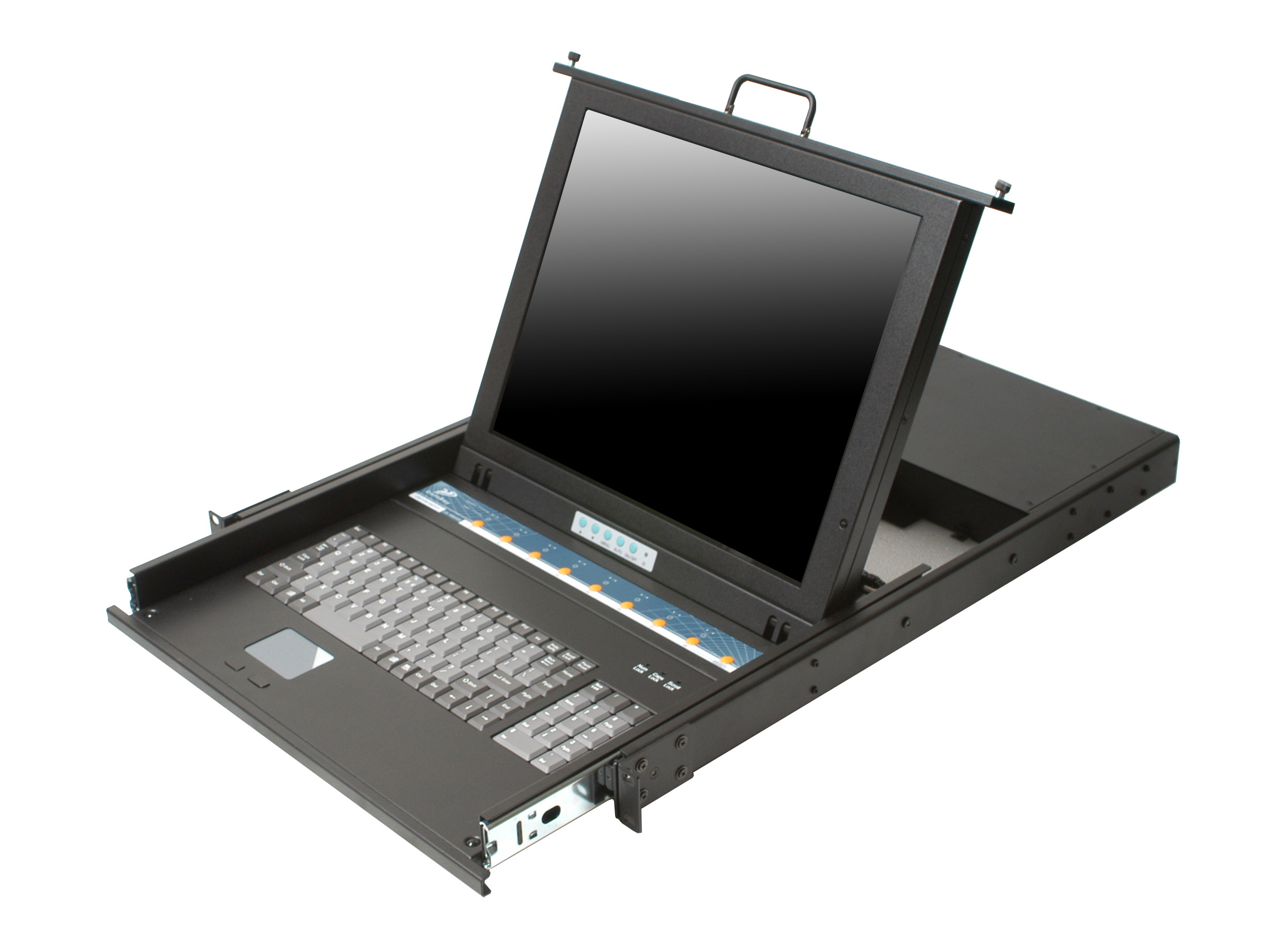

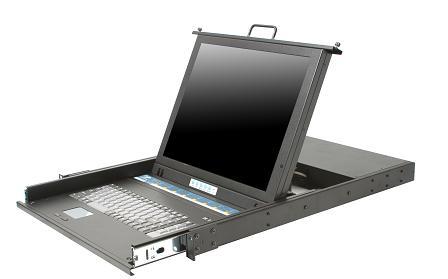

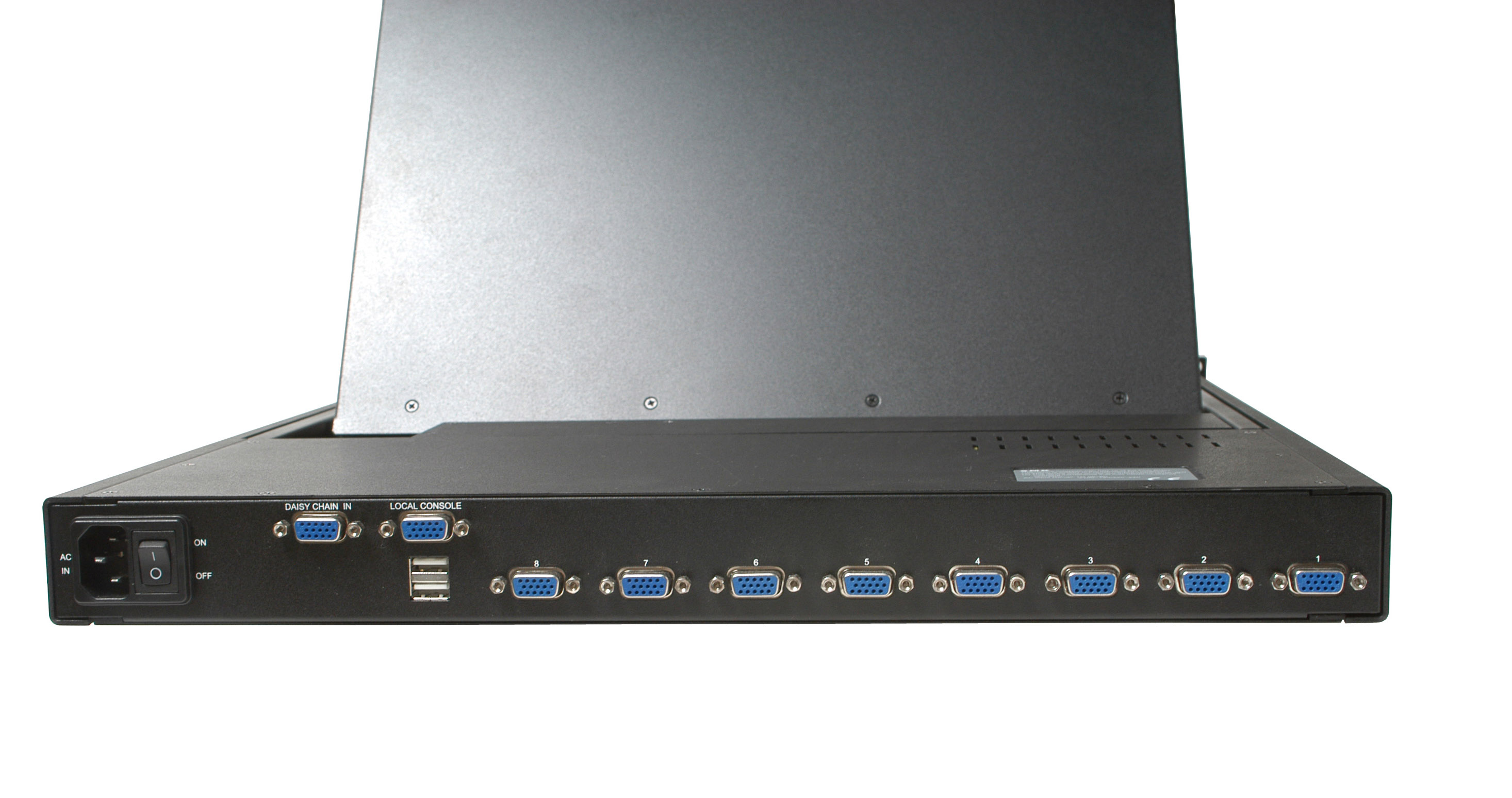

* Click on the above photos for enlarged views

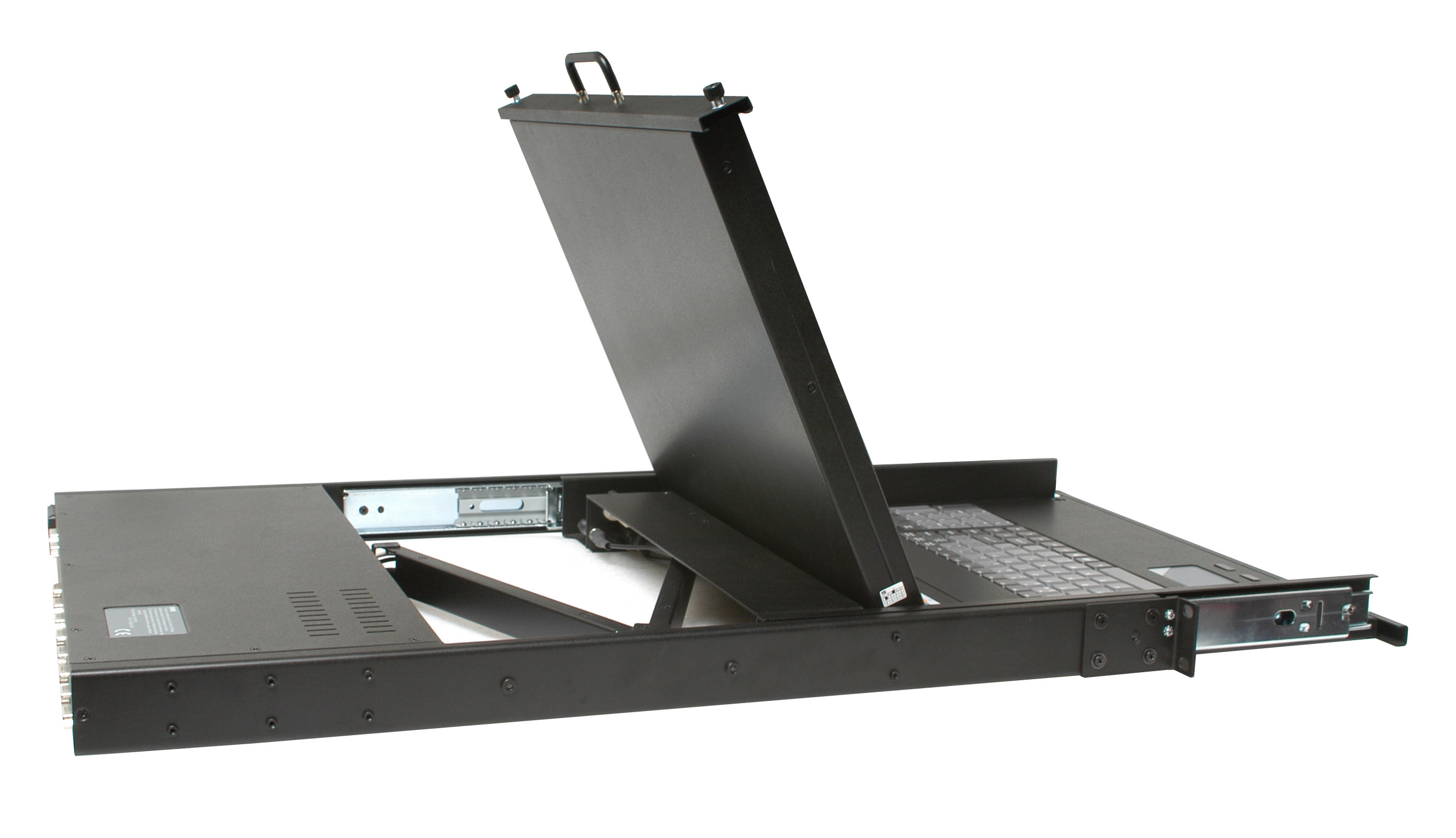

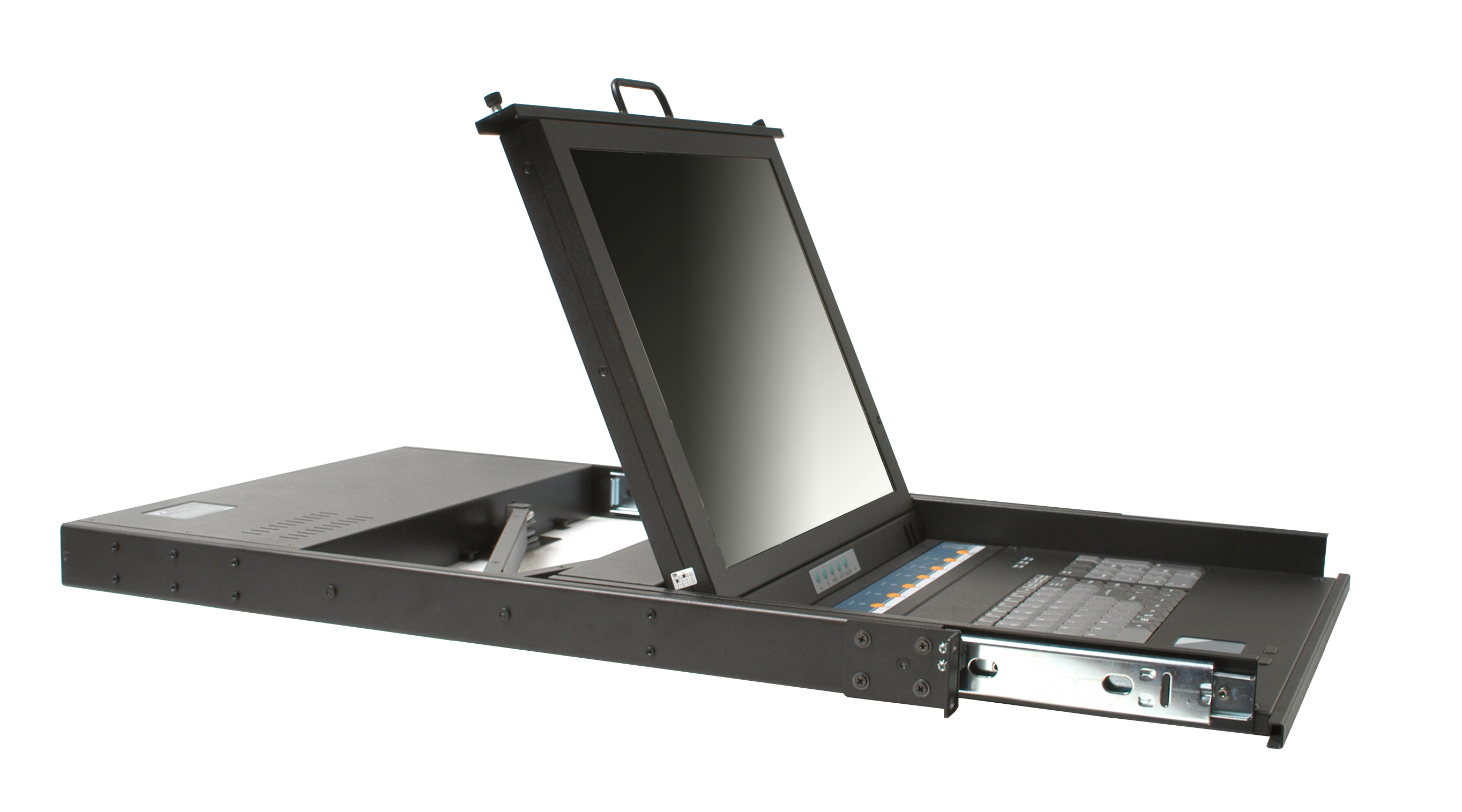

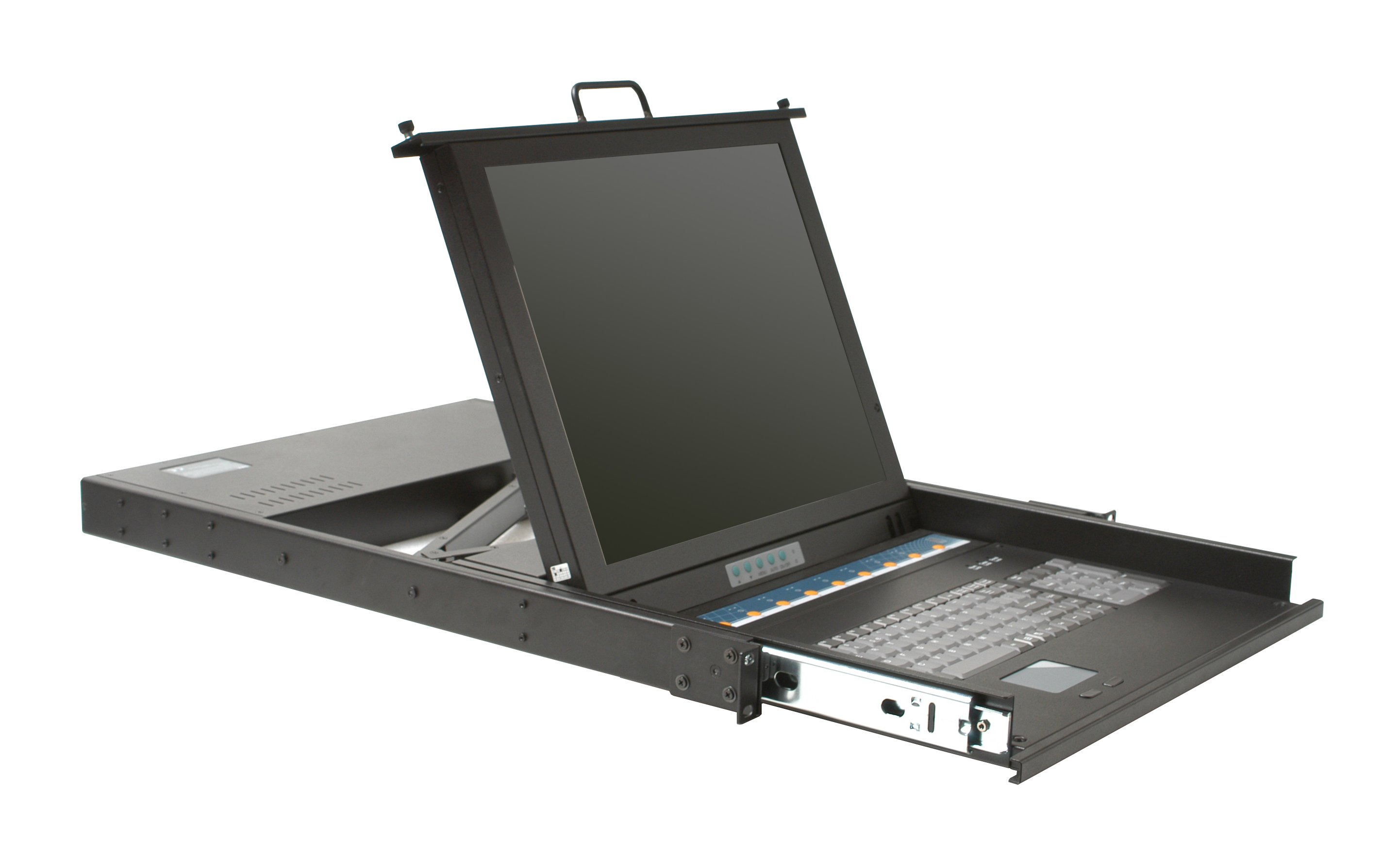

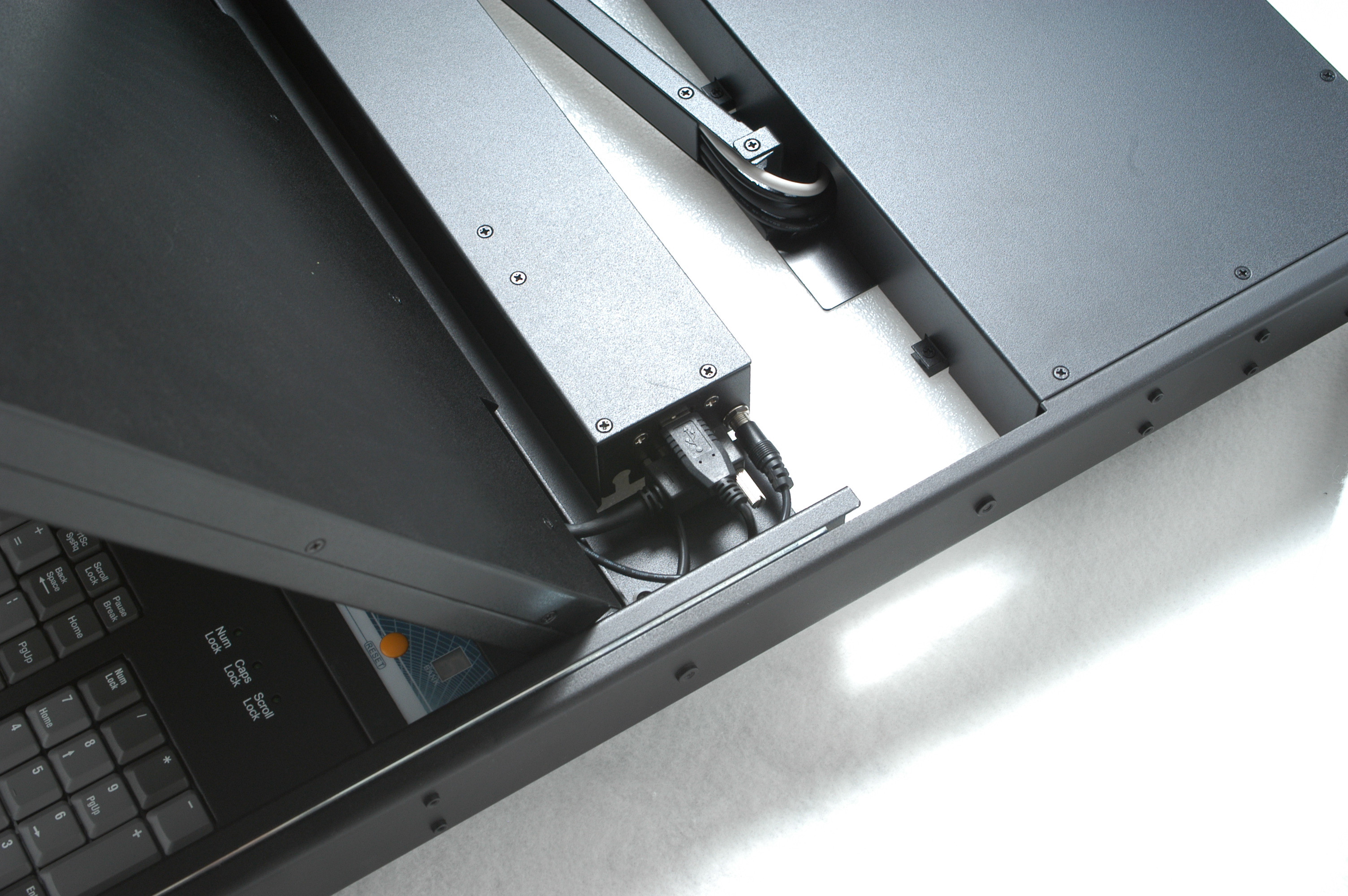

Click on the following photos for enlarged views :

User Manual

***FREE GROUND SHIPPING***

FCC and CE Approved & RoHS Compliant
17.1" ultra bright/contrast TFT screen
Meets EIA-310C & IEC-3 specifications
Heavy-duty steel
Support DOS, Win 3.X, Win 95 / 98 / 98SE / 2000 / ME / XP, WinNT, SCO Uix, HP Unix, Linux, Netware
Compatible with SUN BLade Series Server
105-key with numeric keypad and built-in touchpad keyboard
17.1" TFT 1280 x 1024
Anti-glare tempered glass for added protection to the LCD screen
Built-in Power Adapter
Hot Plug - Add PCs or Remove Connected PCs for Maintenance without Powering down the 8KVM or16 KVM version or PCs
Support eight characters password protection and search PC server name
No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys
Keyboard status restored when switching PCs
Built-in one extra daisy chain port and no waste any PC port
No DIP switch setting needed and auto detect daisy chain bank
Auto Scan Mode for monitoring PCs and flexible Scan time from 5~99 seconds
Built-in side railing for instant installation
Movable front panel offers additional comfort during data entry
Keyboard available in multiple languages
Available in black and Customized colors available
Optional DC-48V power supply / Touchscreen

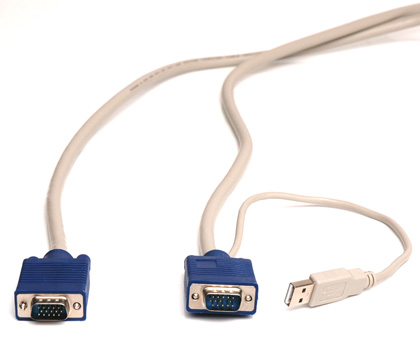

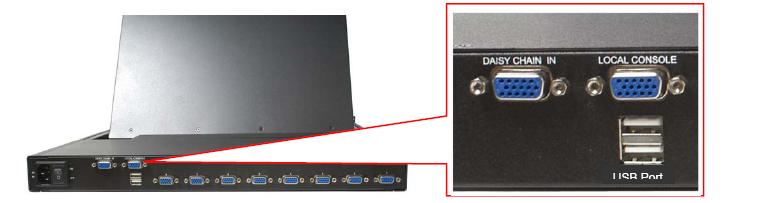

USB KVM cable connector : 15Pin D-sub Male (to Cascade port), 15Pin D-sub Male (to 2nd KVM Console port)

	I	II	III
Model No	LCD1U17-03-USB	LCD1U17-03-8KVM-USB	LCD1U17-03-16KVM-USB
Certification	FCC and CE Approved
Ports switch for PC	Single port	8 ports	16 ports
Dimension	442.4 x44.5 x550mm / 17.0" x 1.75" x 21.7" (W x H x D)	442.4 x 44.5 x 625mm / 17.0" x 1.75" x 24.6" (W x H x D)	442.4 x 44.5 x 625mm / 17.0" x 1.75" x 24.6" (W x H x D)
Power Supply	AC 100 / 240 V Auto Switch or DC+48V	AC 100 / 240 V Auto Switch	AC 100 / 240 V Auto Switch
Chassis	Heavy-duty Steel
Keyboard	105 key Notebook Keyboard with Numeric keypad and built-in touchpad
Language	US (standard), Optional : UK, Chinese etc
Color	Black
Self-Locking Rail	Rail with self-locking device
Protection	Anti-glare Tempered glass
Auto Power Switch	LCD back-light will automatically shut off when the screen is folded
Folding Angle	Up to 110°
Operation Temperature	0-50° C (32-122°F)
Cable Set	15 pin to 15 pin D-sub cabl, PS2 keyboard & mouse detachable
Display
Diagonal	17" (431.8mm)
Resolution	1280 x 1024
Size	17.1"
Display Area	337.92 x 270.34
Brightness	300
Contrast Ratio	450:1
Frequency	60 Hz
Control System	OSD
Number of Color	16.2 M
LCD Protection	Yes
KVM Switch
KVM Switch Port	N/A	8	16
Hot Plug	N/A	Add PCs or Remove Connected PCs for Maintenance without powering down the KVM switch for PCs
Video Quality	N/A	Up to 1280 x 1024 with 200 MHz bandwidth
Auto Scan Mode	N/A	5s - 99s

Ordering information :

Part #	Description
LCD1U17-03-USB Price:$980	1U 17" Rack monitor ( TFT LCD) Keyboard Drawer with USB Port, 1 cable included
LCD1U17-03-8KVM-USB Price:$1248	1U Rackmount 17" TFT LCD Monitor Keyboard Drawer with USB Port and 8 port KVM switch, 8 sets of KVM cables included
LCD1U17-03-16KVM-USB Price:$1598	1U Rackmount 17" TFT LCD Monitor Keyboard Drawer with with USB Port and 16 port KVM switch, 16 sets of KVM cables included
