Home >> Rackmount LCD / KVM >> 1U Rackmount LCD Monitor Keyboard Drawer with KVM Switch >>

Home >> Rackmount LCD / KVM >> 17" Rackmount LCD Keyboard KVM >>

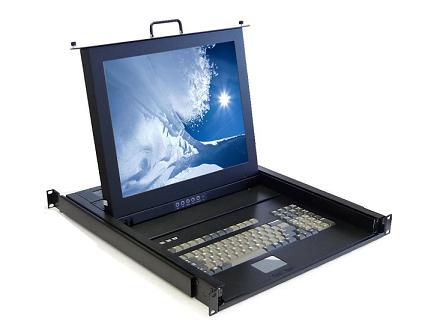

1U Rackmount LCD Monitor Keyboard with optional 8 port or 16 port KVM Drawer : Part # LCD1U17-03

1U Rackmount 17" TFT LCD Monitor Keyboard Drawer optional 8 port KVM Drawer or 16 port KVM Drawer ( UL Listed, FCC & CE approved, RoHS Compliant )

Also known as: rack mount keyboard drawer, keyboard monitor drawer, KVM drawers, keyboard LCD drawer, rackmount keyboard drawer, rackmount lcd , rackmount lcd kvm, rackmount kvm.

Click on the following photos for enlarged views :

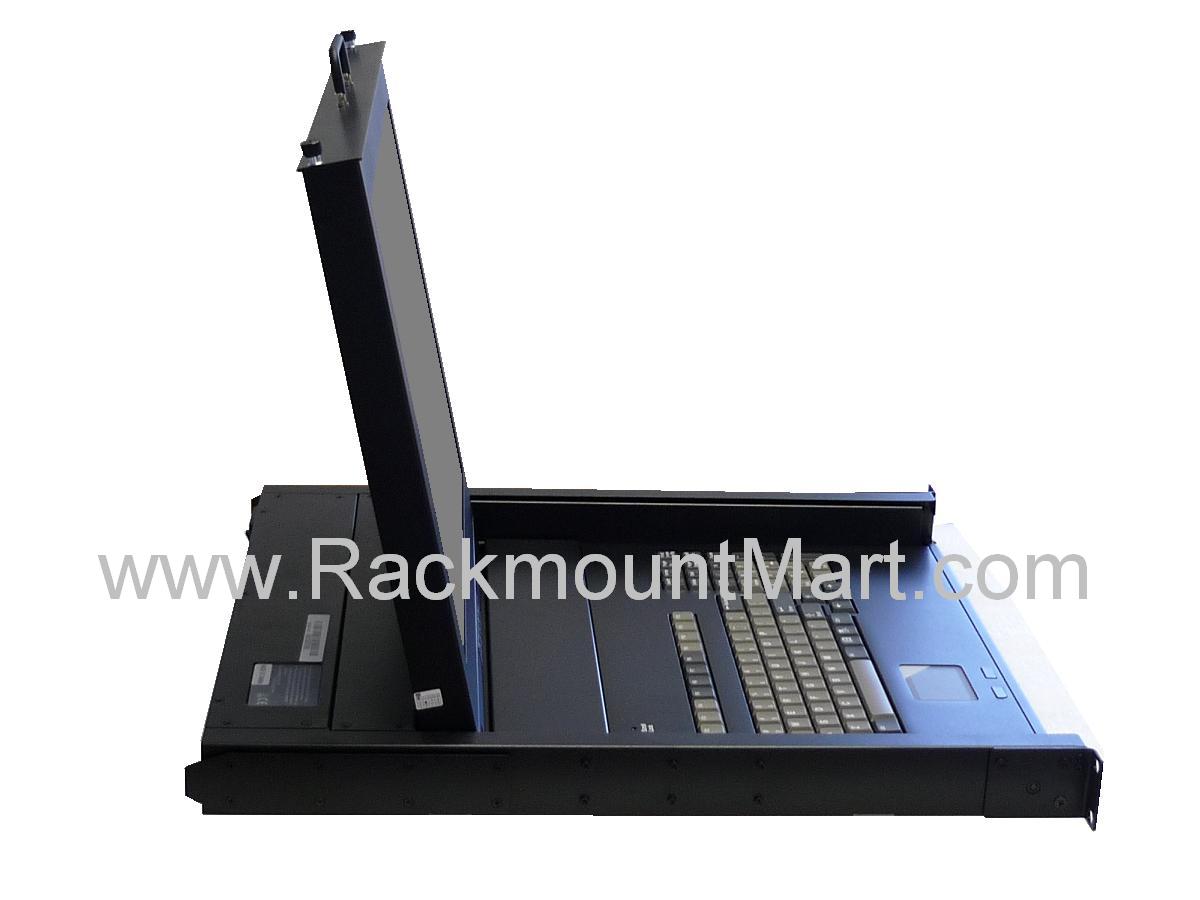

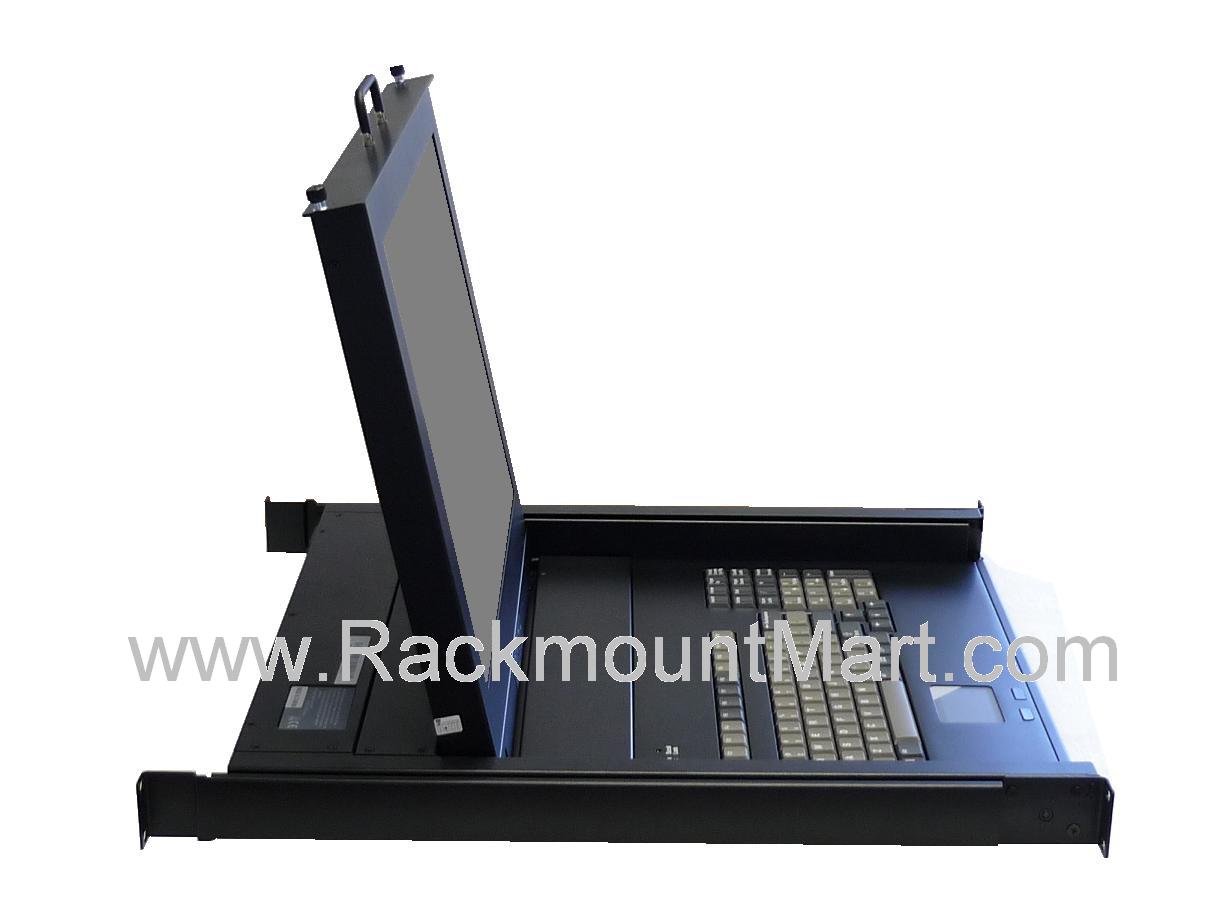

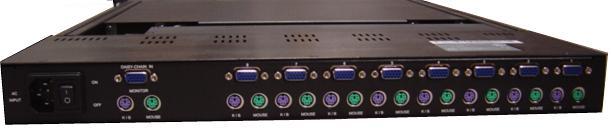

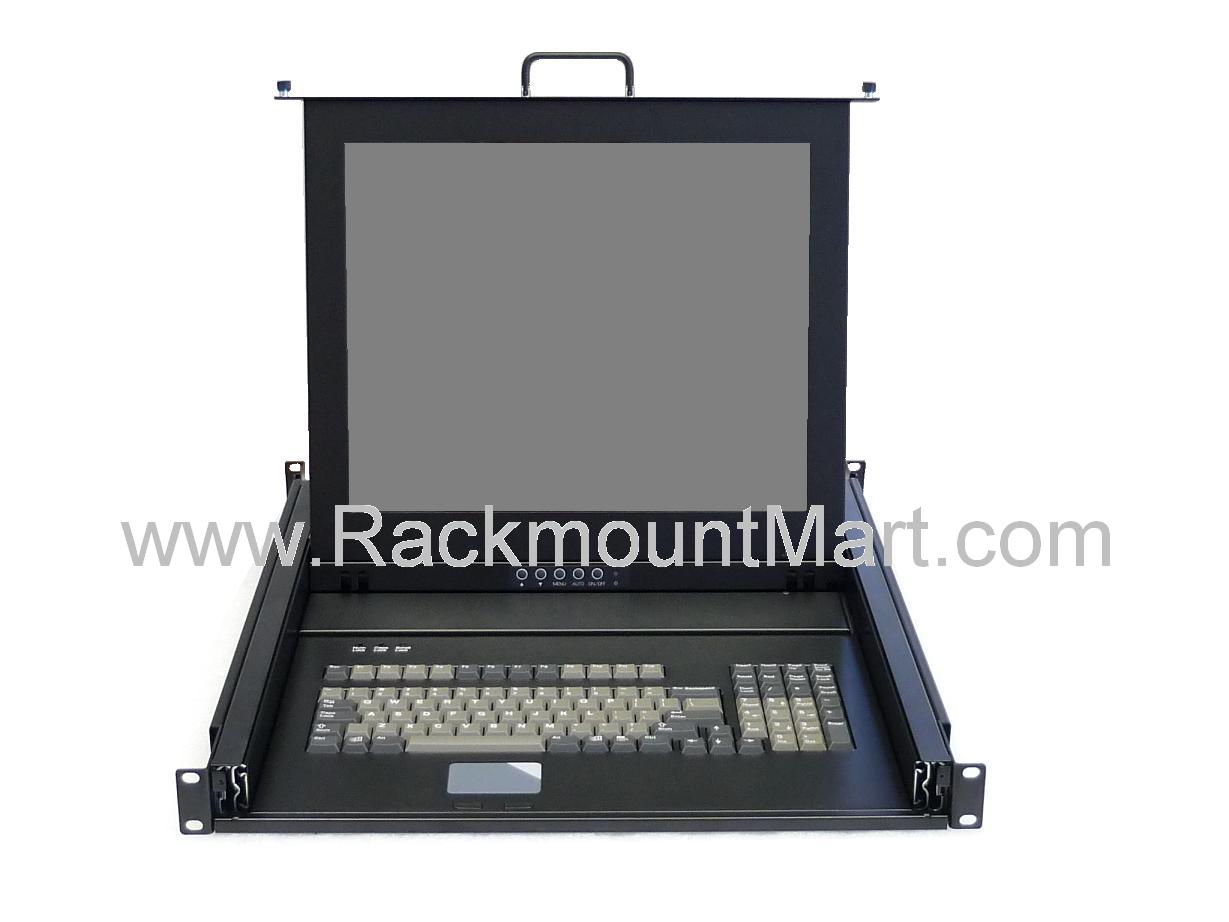

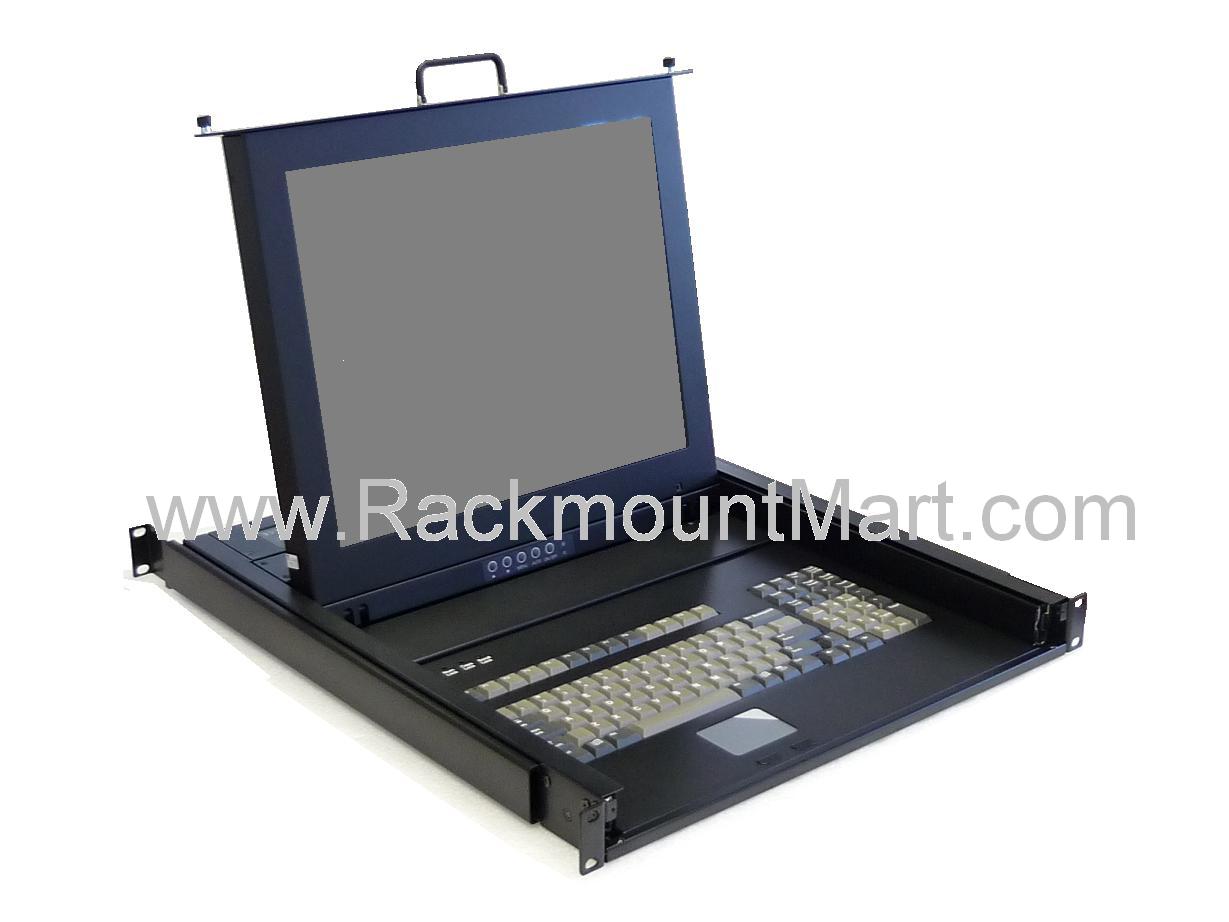

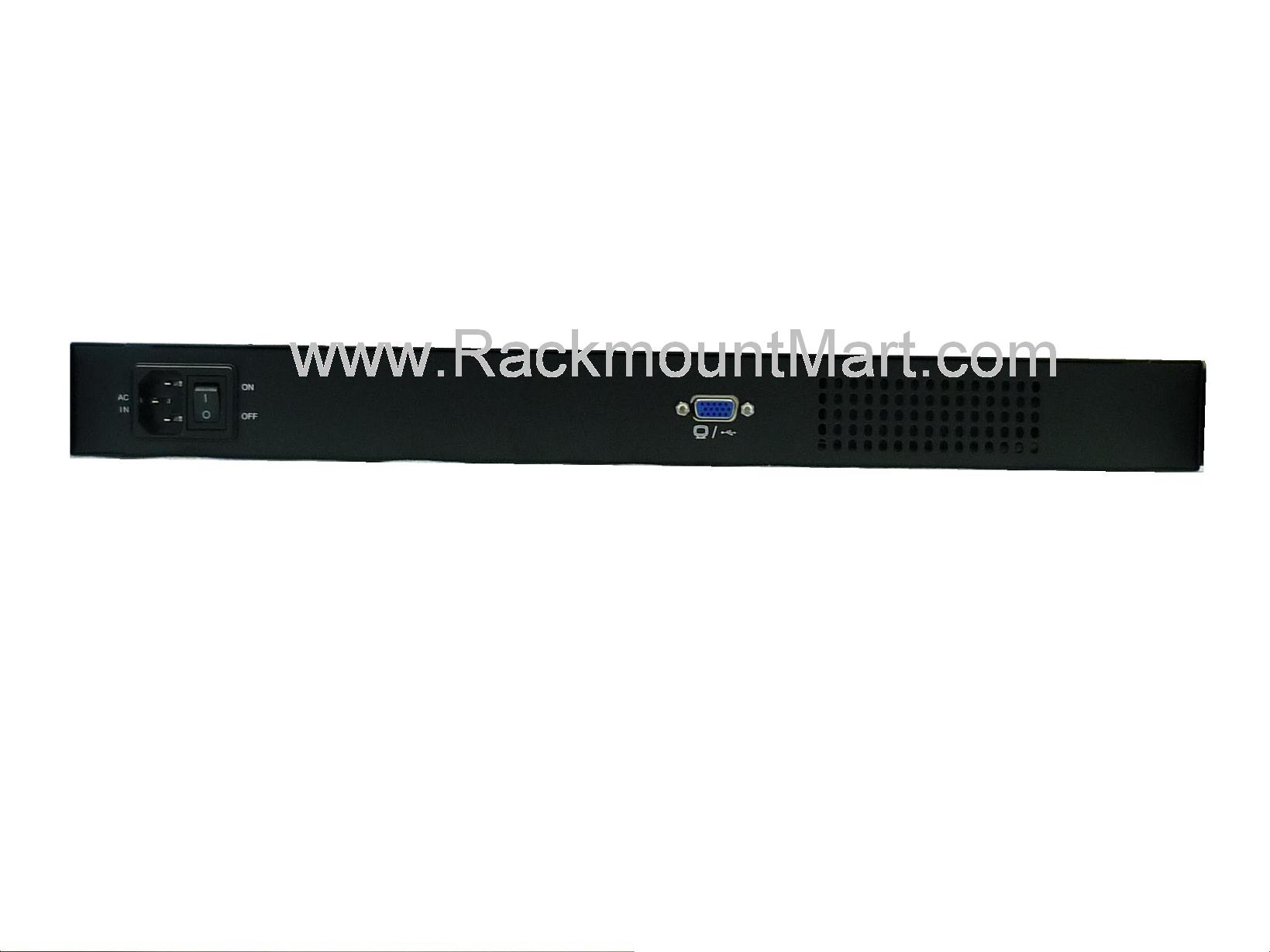

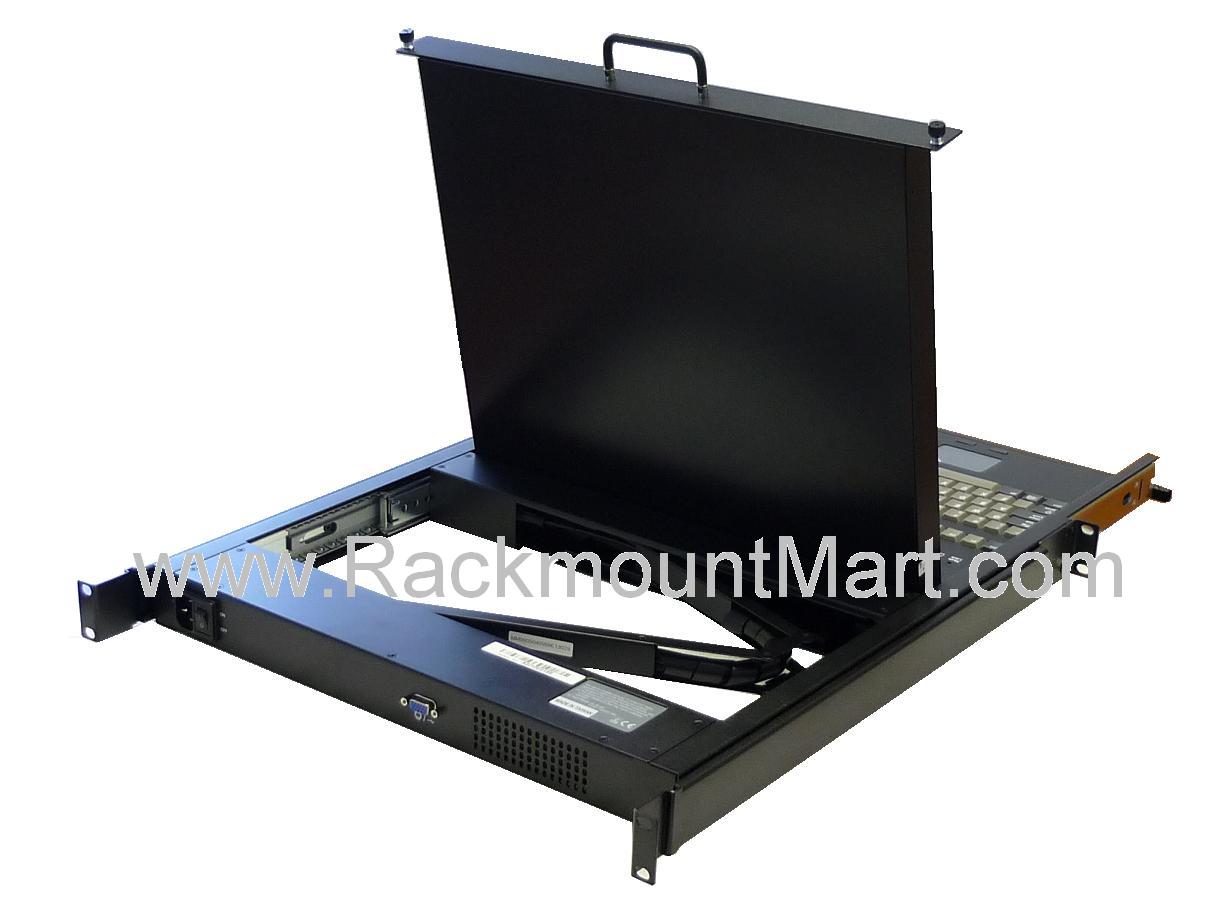

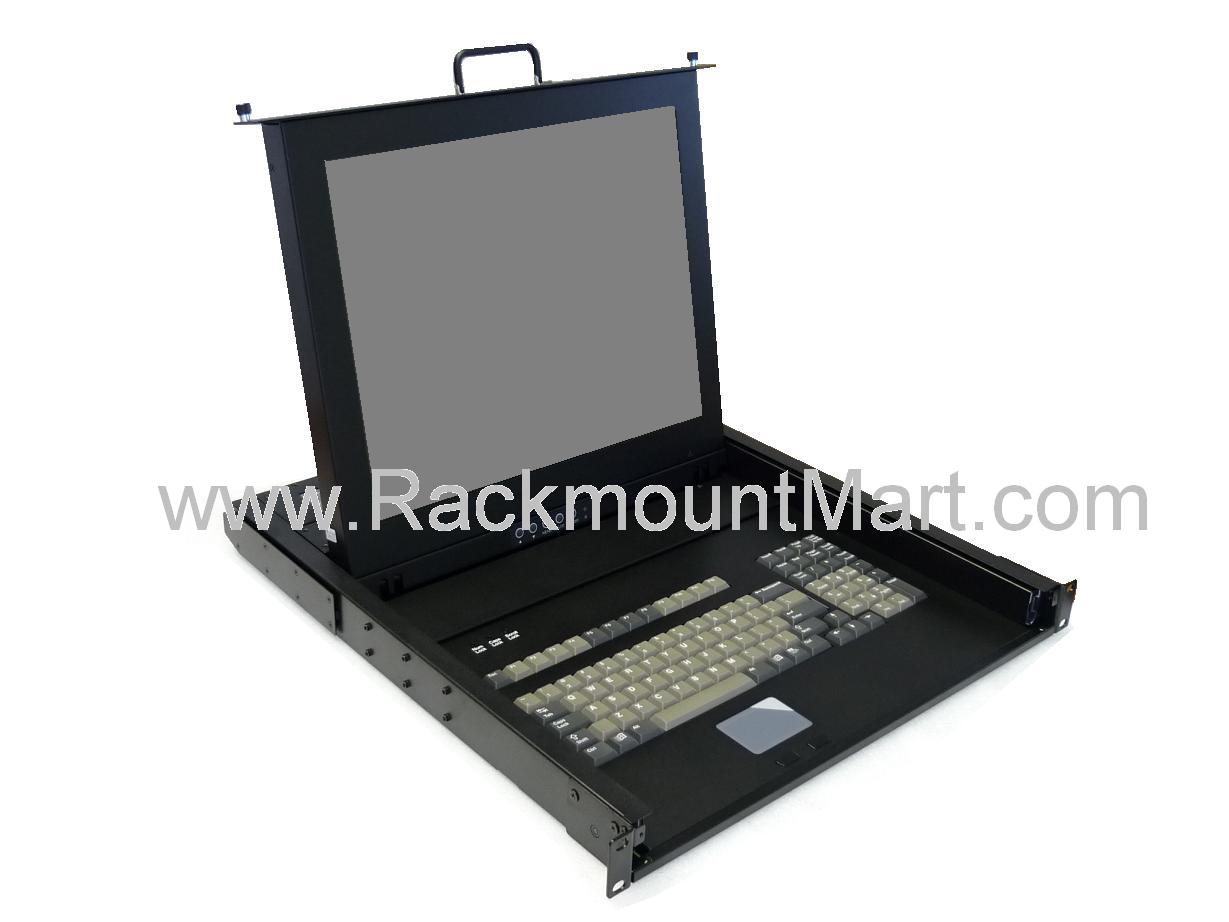

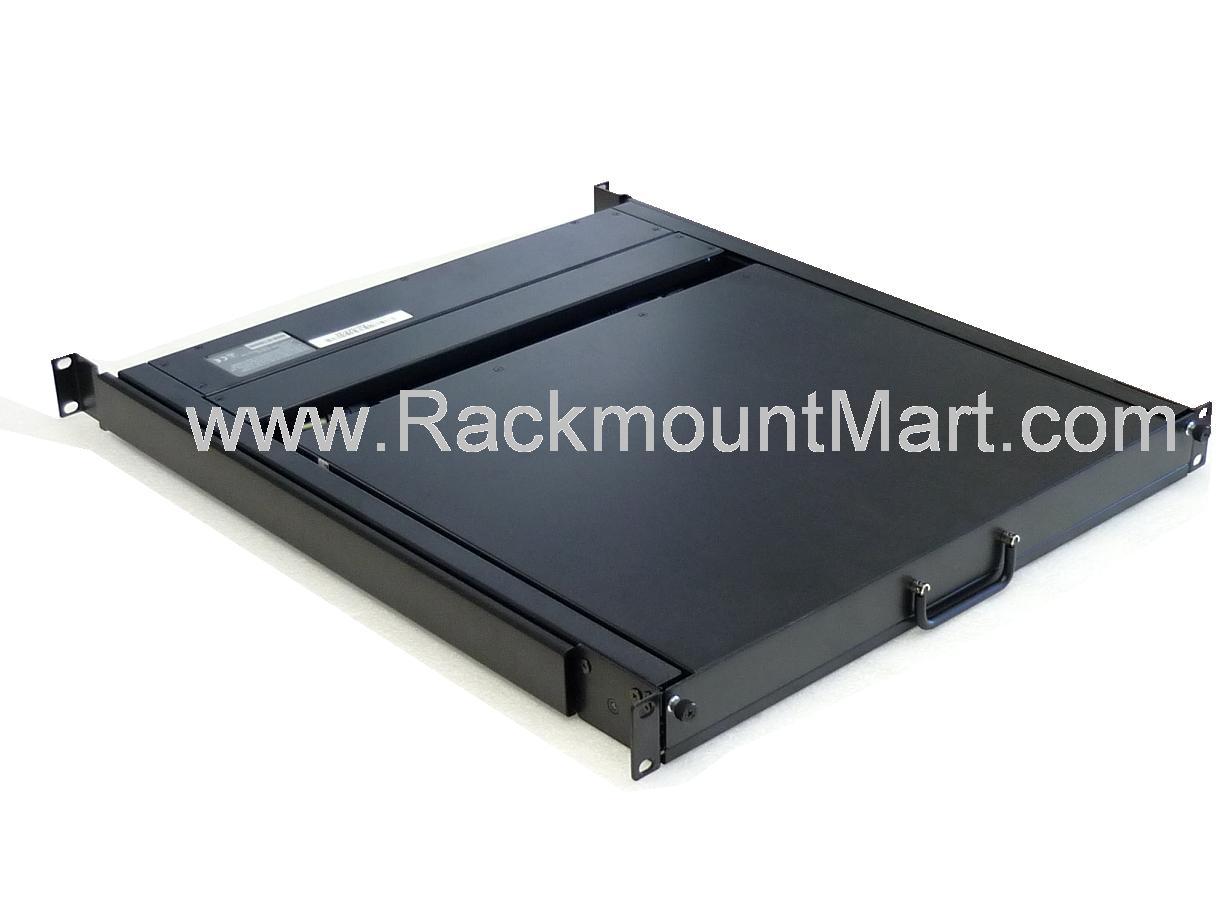

LCD1U17-03-n LCD1U17-03-n LCD1U17-03-n LCD1U17-03-n LCD1U17-03-8KVM-n Rear view of 8 KVM PS2 / KVM cable

LCD1U17-03-8KVM-n LCD1U17-03 LCD1U17-03

LCD1U17-03 (Standard Single port )

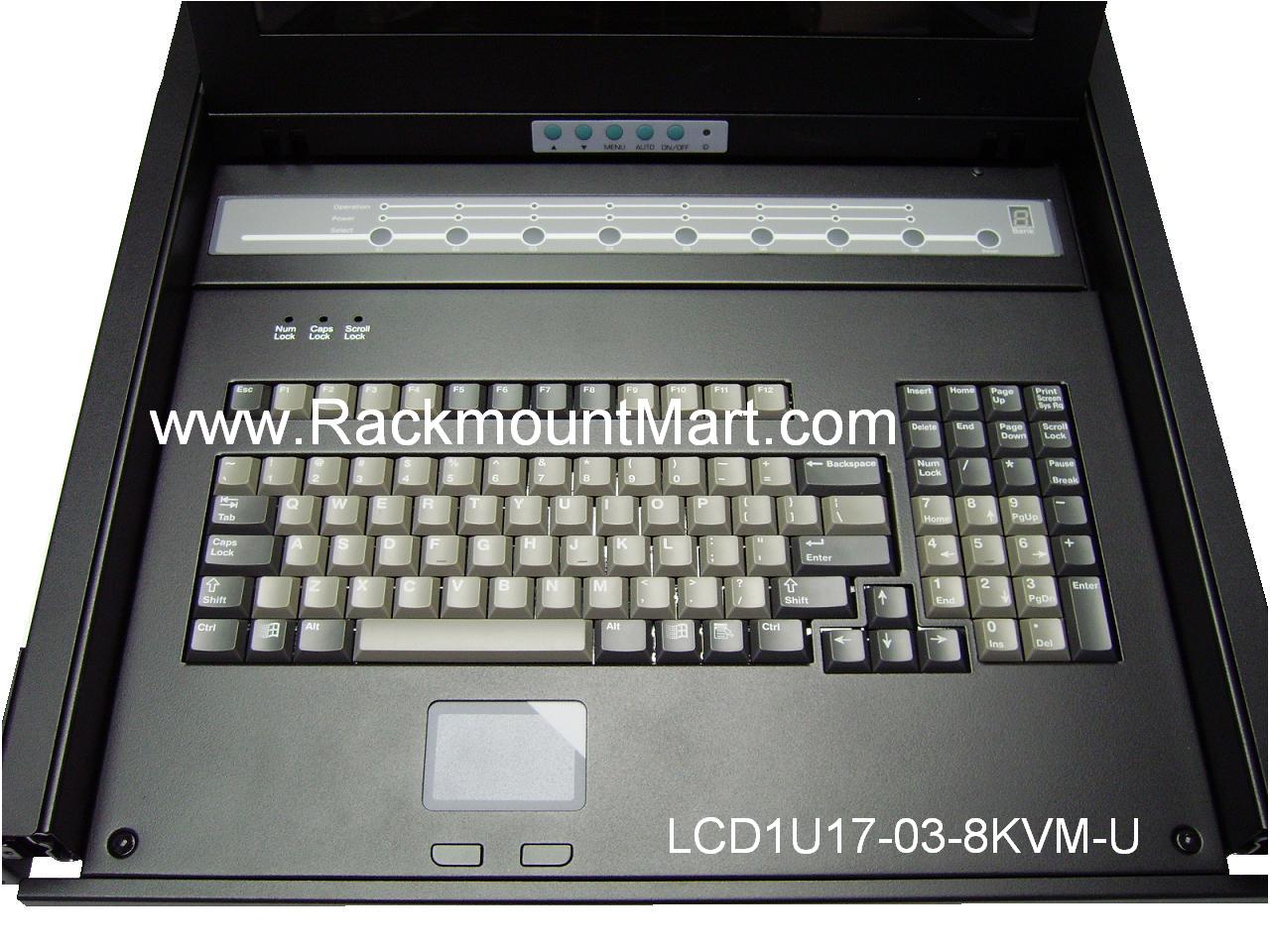

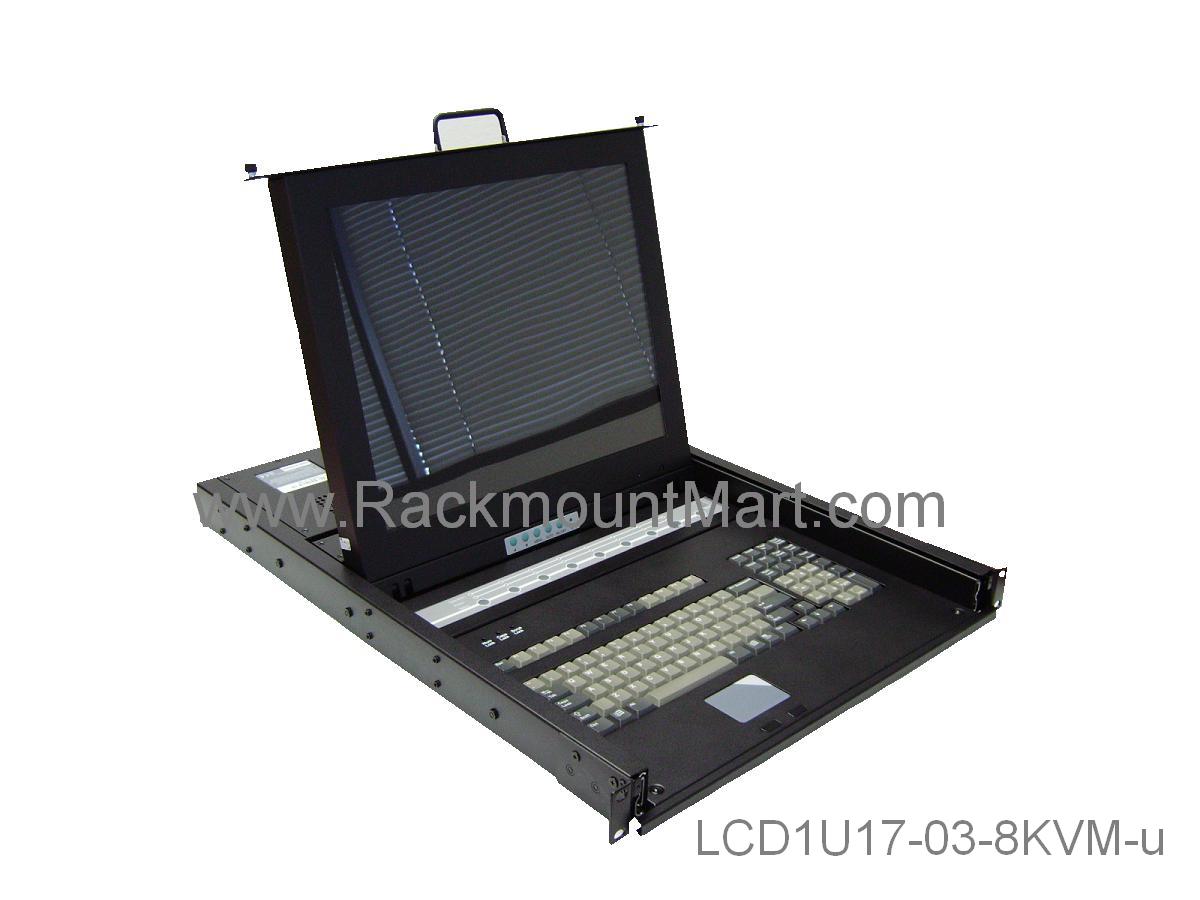

LCD1U17-03-8KVM (w/ 8 KVM switch)

User Manual

***FREE GROUND SHIPPING***

UL Listed , FCC and CE Approved & RoHS Compliant
17.1" ultra bright/contrast TFT screen
Meets EIA-310C & IEC-3 specifications
Heavy-duty steel
Support DOS, Win 3.X, Win 95 / 98 / 98SE / 2000 / ME / XP, WinNT, SCO Uix, HP Unix, Linux, Netware
105-key with numeric keypad and built-in touchpad keyboard
17.1" TFT 1280 x 1024
Anti-glare tempered glass for added protection to the LCD screen
Built-in Power Adapter
Auto Power Switch
Built-in side railing for instant installation
Movable front panel offers additional comfort during data entry
Keyboard available in multiple languages
Available in black and Customized colors available
Optional DC-48V power supply / Touchscreen

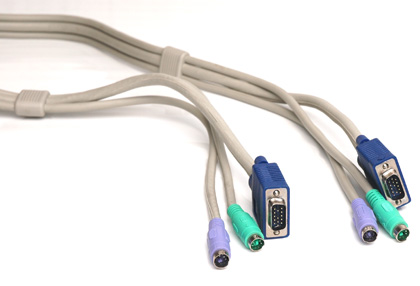

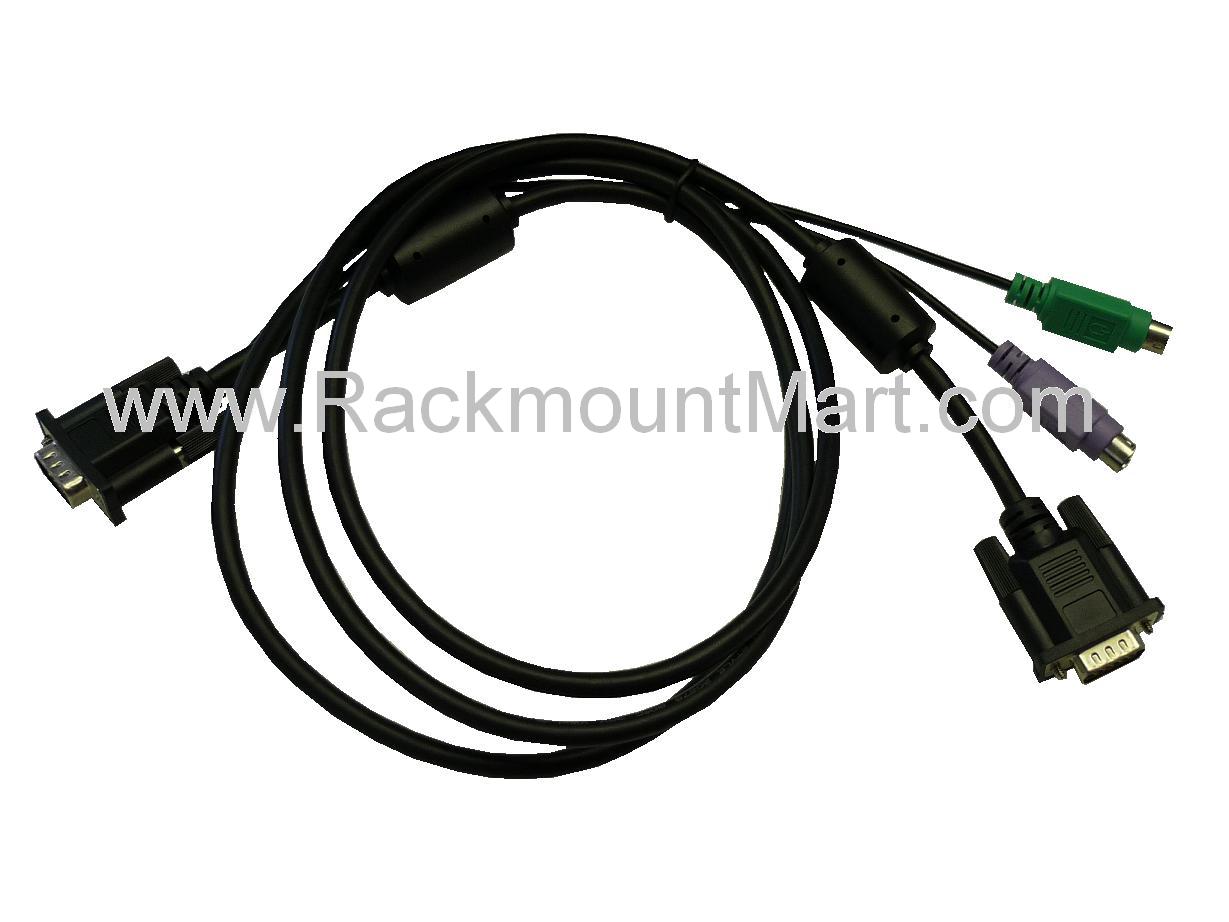

PS2 KVM cable connector : 15Pin D-sub Male (to Cascade VGA port), PS/2 x2 Male (to Cascade PS/2 ports), 15Pin D-sub Male (to Console VGA port), PS/2 x2 Male (to Console PS/2 ports)

	I	II	III
Model No	LCD1U17-03	LCD1U17-03-8KVM	LCD1U17-03-16KVM
Certification	UL Listed , FCC and CE Approved
Ports switch for PC	Single port	8 ports	16 ports
Dimension	442.4 x44.5 x550mm / 17.0" x 1.7" x 21.7" (W x H x D)	442.4 x 44.5 x 580mm / 17.0" x 1.7" x 22.8" (W x H x D)	17.5" x 1.75" x 24.625" / 444.5mm x 44.5mm x 625.0mm (W x H x D)
Power Supply	1U, AC 50W, DC +48V, 80W auto switching	1U, 50W auto switching	1U, 50W auto switching
Extension Cable	none	3 IN 1	3 IN 1
Extension Rail	Up to 35.4" (900mm)	Up to 35.4" (900mm)	Up to 35.4" (900mm)
Chassis	Heavy-duty Steel
Keyboard	Mechaical 105 key with Numeric keypad and built-in touchpad
Language	US (standard), Optional : UK, Chinese etc
Color	Black
Protection	Anti-glare Tempered glass
Auto Power Switch	LCD back-light will automatically shut off when the screen set fold
Security Lock	Thumb screw x 2
Operation Temperature	0-50° C (32-122°F)
Cable Set	15 pin to 15 pin D-sub cabl, PS2 keyboard & mouse detachable
Display
Diagonal	17"
Resolution	1280 x 1024
Display Area	337.92 x 270.34
Brightness	300
Contrast Ratio	350: 1	350: 1	400:1
Viewing Angle	160 / 160
Backlight MTBF	50,000 hours
Number of Color	16.2 M
Input Signal	Analog : 0.7Vp-p / 75 Ohms
Frame Rate	60Hz(typ), 75Hz (Max)
KVM Switch
KVM Switch Port	N/A	8	16
Hot Plug	N/A	Add PCs or Remove Connected PCs for Maintenance without powering down the KVM switch for PCs
Video Quality	N/A	Up to 1280 x 1024 with 200 MHz bandwidth
Auto Scan Mode	N/A	5s - 99s

Ordering information :

Part #	Description
LCD1U17-03 Price:$864	1U 17" Rack monitor ( TFT LCD) Keyboard Drawer , 1 cable included
LCD1U17-03-8KVM Price:$1108	1U Rackmount 17" TFT LCD Monitor Keyboard Drawer with 8 port KVM switch, 8 x KVM cables included
LCD1U17-03-16KVM Price:$1448	1U Rackmount 17" TFT LCD Monitor Keyboard Drawer with 16 port KVM switch, 16 x KVM cables included
