        1U Rack Console with Monitor Keyboard , Real Optical Mouse and Optional KVM  :
                                                        Part #   LCD1U17-09
     1U  Rack Console  17" SAMSUNG Grade A Industrial LCD Monitor Keyboard with Real Optical Mouse
                                        Optional  DB-15 Kvm / CAT5 Kvm ( CAT6 Kvm ) connector
           Optional Combo Kvm ( USB PS2 Kvm ) / PS2 Kvm / Multi-User Matrix Kvm / Kvm Over IP
                                           Optional 1 / 2 / 3 / 4 Consoles for  Local / Remote Access

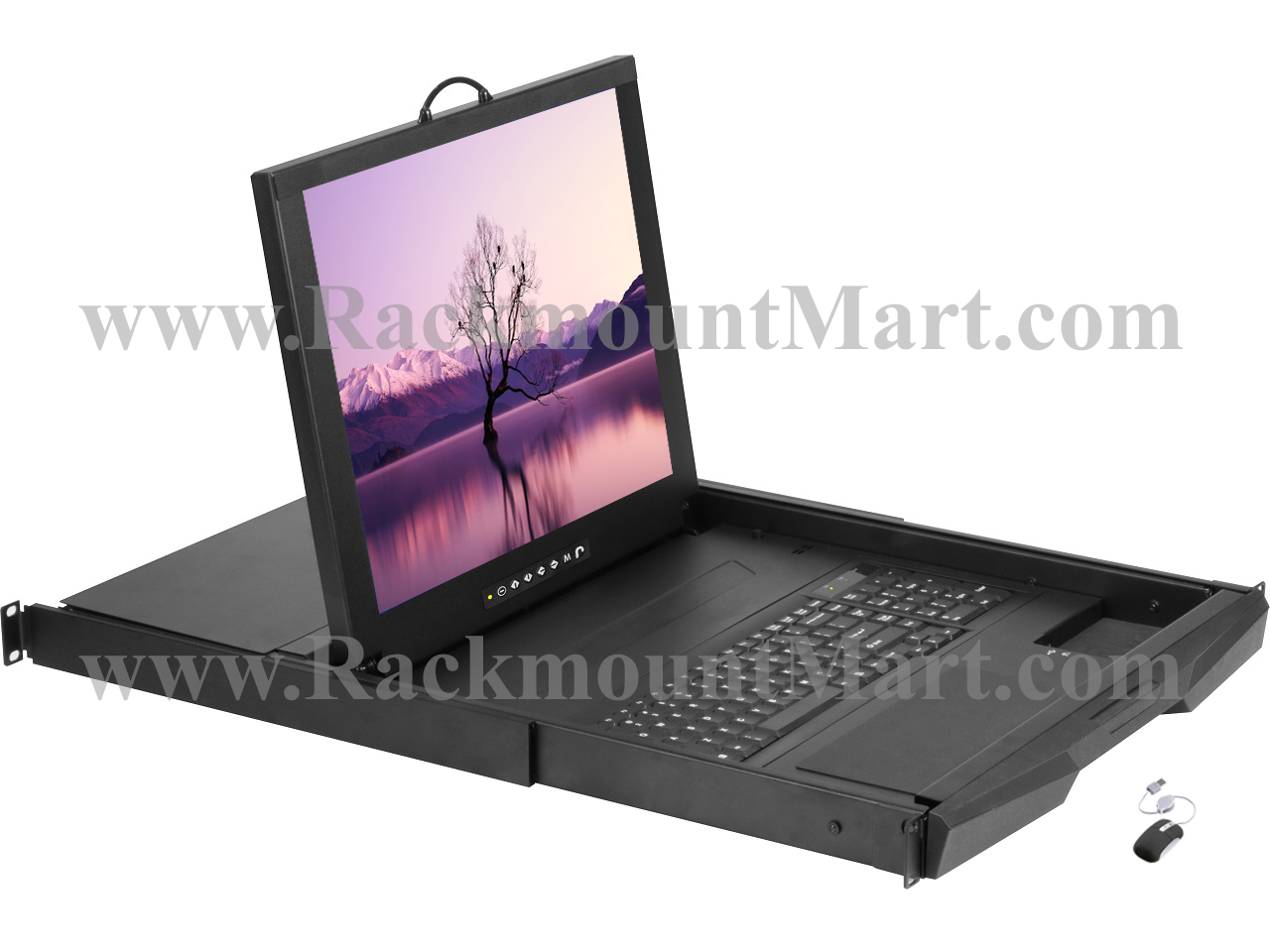

    Rack Console LCD1U17-09



                 *click on photo for enlarged view

     Real Mouse Rack Console Benefits
  • Use of a real optical mouse optional wireless optical mouse
  • Rugged 1U 17" SAMSUNG LCD Rack Console
  • Optional Cost Efficient built in KVM with various choices:
    - Connector : DB-15 KVM  or Cat5 KVM ( Cat6 KVM )
    - KVM Type : Combo KVM (USB PS2 KVM ) / PS/2 KVM /
                       Multi-User Matrix KVM

  • Secure remote user access across the internet via optional IP console (KVM Over IP )

  • Mix PS/2 , USB & SUN with Multi-Platform switch capability
  • "One Man" installation slides for easy and quick installation
  • Combo interface either PS/2 or USB input to the rack console
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Optional S-Video + Composite Video ( BNC or RCA ),
    DVI-D, Touch screen , DC Input Power, Audio
  • 2 year Warranty
                     General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platforms - Mix PCs, IBM, SUN, HP , DELL, Linux , Windows
                          LCD Screen

LCD Type

Grade A Industrial monitor 17 inch Active Matrix TFT LCD Panel

Display Size

 17 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr=1.3 / Tf=3.7ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.264 (H) x 0.264 (V) mm

Panel color

16.2 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video  Input

S-video & Composite (BNC or RCA ),
DVI-D      ...More Video Input Details

LCD MTBF

50,000 hrs
                          Keyboard & Pointing Device

Keyboard

Notebook type KB  w/ Numeric Keypad & Touchpad and a Real Mini Optical Mouse, optional Wireless Optical mouse



                        ..More Keyboard Details

                          KVM  ( Keyboard Video Mouse )

Connector

               KVM Version


DB-15
 * DB-15 No KVM ( with combo interface)
 * DB-15 PS/2 KVM  ( 8 or 16 port )
 * DB-15 Combo KVM  ( USB PS2 KVM )
 No. of  Console  No of  KVM port
1 ( Local only )   8 or 16
2 ( 1 x local + 1 x remote )   8 or 16
2  ( 1 x local + 1 x IP )   8 or 16
 * DB-15 Matrix KVM
 No. of  Console  No. of KVM port
2 ( 1 x local + 1 x remote )   8 or 16
3 ( 1 x local + 2 x remote )   8 or 16
3 (1x local +1x remote +1x IP )   8 or 16
4 ( 1 x local + 3 x remote )   8 or 16
4 (1x local +1x remote +2x IP )   8 or 16
4 (1x local +2x remote +1x IP )   8 or 16


CAT6
* CAT6 Combo KVM  ( USB PS2 KVM )
 No. of  Console  No. of  KVM port
1 ( Local only )   8 or 16 or 32
2 ( 1 x local + 1 x remote )   8 or 16 or 32
2  ( 1 x local + 1 x IP )   8 or 16 or 32
* CAT6 Matrix KVM
 No. of  Console  No. of KVM port
2 ( 1 x local + 1 x remote )   16 or 32
3 ( 1 x local + 2 x remote )   16 or 32
3 (1x local +1x remote +1x IP )   16 or 32
4 ( 1 x local + 3 x remote )   16 or 32
4 (1x local +1x remote +2x IP )   16 or 32
4 (1x local +2x remote +1x IP )   16 or 32
                          Power Supply



 -Remote adapter : 110V - 220 V AC Input , 12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /  10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
 6ft / 182cm
-Cable length from adapter to unit :
 6ft / 180cm
-Mains plug options available
-Optional  DC power with 48V / 24V / 12V
  input power
                     Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -25 to 65 Degree Celsius (Storage)
Relative Humidity  90%, non condensing
   Shock  50G peak acceleration
 (11ms, half since wave)
   Vibration  58~500Hz/ 0.98G
 (11min/ cycle)
                          Mechanical

Product Dimension

(W x D x H )
442 x 650 x 44 mm /17.4 x 25.6 x 1.73 inch
Product Weight  Approximately 37 lbs / 17kg
Relative Humidity  90%, non condensing
                              Regulatory Approval
         FCC , CE , VCCI , 3C*

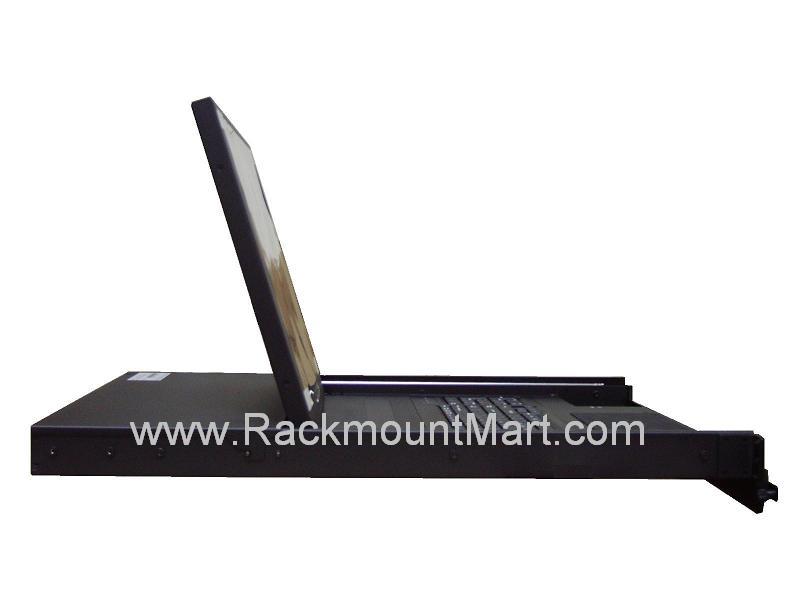

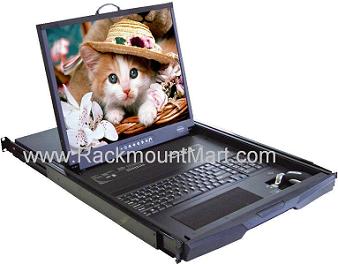

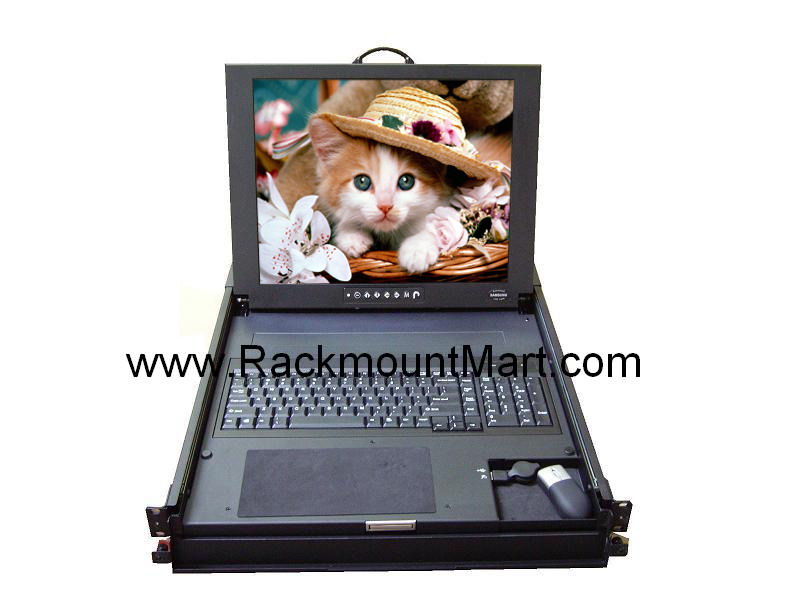

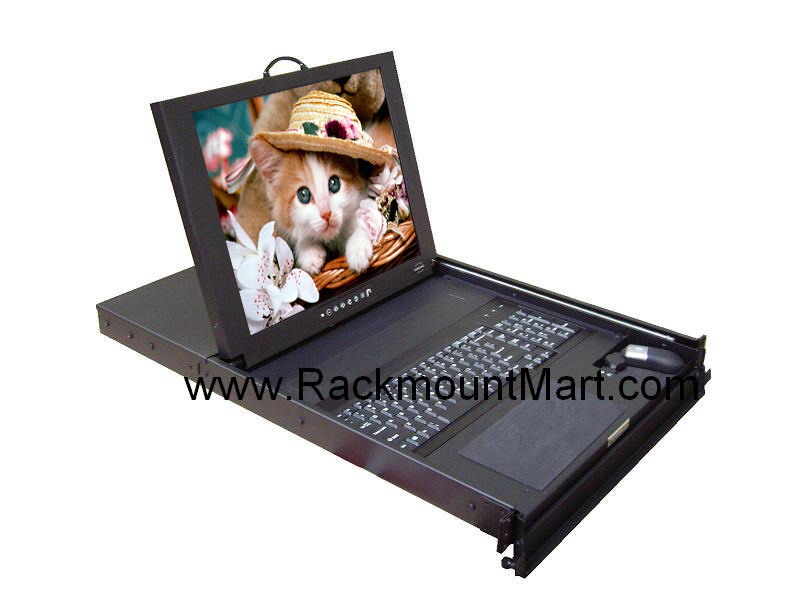

  More photos (click to enlarge )







   Dimension



      *click on above pictures for enlarged views

  Product Sheet
 Single Product Sheet
  User Manual
 General User Manual
 KVM Support
 DB-15 PS2 kvm Local console
DB-15 Combo USB PS2 kvm Local console
DB-15 Combo USB PS2 kvm Local + remote console
DB-15 Combo USB PS2 kvm Local + IP console
Cat6 Combo USB PS2 kvm Local console
Cat6 Combo USB PS2 kvm Local + remote console
Cat6  Combo USB PS2 kvm Local + IP console


Optional Peripheral & Accessory
- S-Vdieo + Composite Video (BNC or RCA) / DVI-D
- Touch screen
- DC Power Input ( 12V / 24V / 48V )
- KVM Cables & Cascade Cables in Various length
- USB & PS/2 Dongles
-PS2 to SUN /iMac USB adapter
- KVM Extender        -IP KVM Extender
Free Ground Shipping( A $55 Value) *Click for details



 Customer who ordered this product may also order these :
- KVM Switch
- PDU ( Power Distribution Unit )
- Server Rack Cabinet
- 4 Post Rack
- Wall Rack Mount
- Rack Shelves
- Rack Drawer
- Power Strips
- Rack Cooling Fan














Features of Rack Console :
  • SAMSUNG Industrial monitor Grade A 17" LCD Panel with use of a real mouse in 1U Rack space
  • Use of a real optical mouse optional wireless optical mouse
  • Either PS/2 or USB input to this Rack console  (the rack LCD drawer / keyboard )
  • 7-button LCD OSD membrane with a power LED

  • 2 point lock, with Stylish latching front panel to release the 2-point lock

  • Micro switch for screen auto power off , power saving feature for prolonging the lift of LCD panel

  • KVM membrane

  • Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
  • Unique mechanical design to maximize rack mountable space
  • Black Anodized aluminum front panel
  • VGA, keyboards & mouse all in one by 15 pin HDB connector
  • Built in slide rails which can be mounted easily in any 19" rack cabinet
  • EMC shielding around the monitor housing to minimize interference
  • Rear rack mounting bracket included
  • Standard 6-ft KVM cable, optional 10, 15, 33 ft available
  • Optional : S-Video and Composite video input (RCA or BNC ), DVI-D , Audio, DC power input adapter , Speaker , Touch screen, wireless optical mouse

                                                                                                                                                                           Back to top
Features of Optional KVM   :

Connector KVM Version Number of KVM port Cascade Capacity Capability / KVM Technical Specifications
DB-15
PS/2 KVM
 8 or 16 port
Up to 8 Levels / 128 Servers
Capability
DB-15 PS/2 kvm hooks up  8 or 16 servers with multi-platforms and multi-operating systems. PS/2 KVM cables included
Link to KVM Technical Specification
* DB-15 8 Port PS/2 KVM
* DB-15 16 Port PS/2 KVM
DB-15
Combo KVM  (USB PS2 KVM )
8 or 16 port
Up to 8 Levels / 240 Servers
Capability
DB-15 Combo kvm hooks up  8 or 16 servers with multi-platforms and multi-operating systems. With local + remote  console model, user can remote access up to 1,000 feet distance via CAT6 cable. While with local + IP console model, user can remote access via internet without distance limitation. This model supports servers with either USB or PS/2  interface. Respective Combo KVM cables or/and dongles included
Link to KVM Technical Specification
* DB-15 1 Console 8 Port Combo KVM
* DB-15 1 Console 16 Port Combo KVM
* DB-15 2 Console ( Local + Remote ) 8 Port Combo KVM
* DB-15 2 Console ( Local + Remote ) 16 Port Combo KVM
* DB-15 2 Console ( Local + IP ) 8 Port Combo KVM
* DB-15 2 Console ( Local + IP ) 16 Port Combo KVM
DB-15
Matrix KVM


8 or 16 port


Up to 8 Levels / 240 Servers
Capability
DB-15 Matrix kvm allows maximum of 4 users to local access, remote access up to 1000 feet distance via CAT6 cable or  IP remote access without distance limitation via internet. This model supports servers with either USB or PS/2  interface. Respective Combo KVM cables included
Link to KVM Technical Specification
* DB-15 2-4 Console (Local+Remote) 8 /16 Port Matrix KVM
* DB-15 3-4 Console(Local+Remote+IP) 8/16 Port Matrix KVM
CAT6
Combo KVM  (USB PS2 KVM )
8 / 16 / 32 port
Up to 8 Levels / 256 Servers
Capability
CAT6 Combo kvm hooks up 8 , 16 or 32 servers with multi-platforms and multi-operating systems. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. This model supports servers with either USB or PS/2  interface.
Link to KVM Technical Specification
* CAT6 1 Console 8 Port Combo KVM
* CAT6 1 Console 16 Port Combo KVM
* CAT6 1 Console 32 Port Combo KVM
* CAT6 2 Console (Local + Remote) 8 Port Combo KVM
* CAT6 2 Console (Local + Remote) 16 Port Combo KVM
* CAT6 2 Console (Local + Remote) 32 Port Combo KVM
* CAT6 2 Console (Local + IP) 8 Port Combo KVM
* CAT6 2 Console (Local + IP) 16 Port Combo KVM
* CAT6 2 Console (Local + IP) 32 Port Combo KVM
CAT6
Matrix KVM


8 / 16 / 32 port


Up to 8 Levels / 256 Servers
Capability
CAT6 Matrix kvm allows maximum of 4 users. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well.  Respective dongles included.
Link to Technical Specification
* CAT6 2 Console (Local + Remote) 8 /16/32 Port Matrix KVM
*CAT6 3-4 Console(Local+Remote+IP)8/16/32 Port Matrix KVM
                                                                                                                                                                           Back to top

 ORDERING INFORMATION FOR  LCD1U17-09  - 1U SAMSUNG 17" LCD RACK CONSOLE WITH REAL
                                                                                            OPTICAL MOUSE


 KVM Support  Keyboard Type Part # Description
 NO KVM ( Single Port ) ** with Built-in Combo  PS2 & USB interface
Single Port for DB-15 PS2
connection with built-in Combo PS2 / USB Interface		 Notebook KB w/ Touchpad  & Real Mini Mouse  LCD1U17-09-n
Price : $735		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & 1 x 6-ft 4-in-1 combo KVM cable
Single Port for DB-15 USB
connection with built-in Combo PS2 / USB Interface		 Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-n-u
Price: $735		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & 1 x 6-ft 4-in-1 combo KVM cable
 Single Console KVM ( Local console,  8 / 16 / 32 port KVM )
                                                  DB-15 KVM ( Local console  DB-15 KVM)
Local console DB-15
8 Port  PS2 KVM Switch		 Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-8KVM-n
Price: $1030		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 8 port PS2 KVM switch  & 8 x 6-ft 3-in-1 PS2 KVM cable
Local console DB-15
16 Port  PS2 KVM Switch		 Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-16KVM-n
Price: $1235		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 16 port PS2 KVM switch  & 16 x 6-ft 3-in-1 PS2 KVM cable
Local console DB-15
8 Port  USB  KVM Switch		 Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-8KVM-n-u
Price: $1144		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 8 port USB KVM switch  & 8 x 6-ft 4-in-1 comboKVM cable
Local console DB-15
16 Port  USB  KVM Switch		 Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-16KVM-n-u
Price: $1364		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 16 port USB KVM switch  & Local Console 16 x 6-ft 4-in-1 combo KVM cable
                        High Density CAT5  KVM ( Local console CAT5 KVM)  ** with Built-in Combo  PS2 & USB interface
Local console High Density  8 Port  CAT5 KVM Switch with built-in Combo PS2 / USB Interface Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-U8KVM-n
Price: $1462		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 16 port CAT5 KVM switch with Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB donglesDetails-> )
Local console High Density  16 Port  CAT5 KVM Switch with built-in Combo PS2 / USB Interface Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-U16KVM-n
Price: $1553		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 16 port CAT5 KVM switch with Combo PS2 & USB Interface (AND 8 pcs of customer's choice of PS2 / USB dongles  Details-> )
Local console High Density  32 Port  CAT5 KVM Switch with built-in Combo PS2 / USB Interface Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-U32KVM-n
Price: $2068		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local Console 16 port CAT5 KVM switch with Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles  Details-> )
 2 Console KVM (  Local & Remote Console , 8 / 16 / 32 port KVM)
                                       DB-15 KVM ( 2 Consoles, Local & Remote  DB-15 KVM )
2 Consoles ( Local + Remote console ) DB-15 8 Port  PS2 KVM Switch Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-8KVM2-n
Price: $1333		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local + Remote Console CAT5 up to 500ft away w/ 8 ports PS2 KVM switch  & 8 x 6-ft 4-in-1 comboKVM cable
2 Consoles ( Local + Remote console ) DB-15 16 Port  PS2 KVM Switch Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-16KVM2-n
Price:$1515		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local + Remote Console CAT5 up to 500ft away w/ 16 ports PS/2 KVM switch  & 16 x 6-ft 4-in-1 comboKVM cable
2 Consoles ( Local + IP console ) DB-15  8 Port  PS2  KVM Over IP Switch Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-8KVM2IP-n
Price:$1636		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local + IP Console 8 port KVM Over IP switch  w/ PS2 interface & 8 x 6-ft 4-in-1 comboKVM cable
2 Consoles ( Local + IP console ) DB-15  16 Port  PS2  KVM Over IP Switch Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-16KVM2IP-n
Price:$1826		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & Local + IP Console 16 port KVM Over IP switch  w/ PS2 interface & 16 x 6-ft 4-in-1 comboKVM cable
 High Density CAT5 KVM ( 2 Consoles, Local & Remote CAT5 KVM ) ** with Built-in Combo  PS2 & USB interface

2 Consoles ( Local + Remote  console ) High Density 8 Port  CAT5 KVM Switch with built-in Combo PS2 / USB Interface

 Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-U8KVM2-n
Price: $1689		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & 2 consoles (Local + Remote) with 8 port CAT5 KVM switch in Combo PS2 & USB Interface  (AND 8 pcs of customer's choice of PS2 / USB dongles  Details-> )

2 Consoles ( Local + Remote  console ) High Density 16 Port  CAT5 KVM Switch with built-in Combo PS2 / USB Interface

 Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-U16KVM2-n
Price: $1780		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & 2 consoles (Local + Remote) with 16 port CAT5 KVM switch in Combo PS2 & USB Interface  (AND 8 pcs of customer's choice of PS2 / USB dongles  Details-> )

2 Consoles ( Local + Remote  console ) High Density 32 Port  CAT5 KVM Switch with built-in Combo PS2 / USB Interface

 Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-U32KVM2-n
Price:$2295		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & 2 consoles (Local + Remote) with 32 port CAT5 KVM switch in Combo PS2 & USB Interface (AND 16 pcs of customer's choice of PS2 / USB dongles  Details-> )
2 Consoles ( Local + IP console ) High Density
8 Port  CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface		 Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-U8KVM2IP-n
Price:$1932		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & 2 consoles (Local +IP) with 8 port CAT5 KVM Over IP switch in Combo PS2 & USB Interface  (AND 8 pcs of customer's choice of PS2 / USB dongles  Details-> )
2 Consoles ( Local + IP console ) High Density
16 Port  CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface		 Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-U16KVM2IP-n
Price:$2008		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & 2 consoles (Local +IP) with 16 port CAT5 KVM Over IP switch in Combo PS2 & USB Interface  (AND 8 pcs of customer's choice of PS2 / USB dongles  Details-> )
2 Consoles ( Local + IP console ) High Density
32 Port  CAT5 KVM Over IP Switch with built-in Combo PS2 / USB Interface		 Notebook KB w/ touchpad & Real Mini Mouse  LCD1U17-09-U32KVM2IP-n
Price:$2538		 1U 17" Samsung Panel w/ Notebook KB & touchpad & Real Mini Mouse & 2 consoles (Local +IP) with 32 port CAT5 KVM Over IP switch in Combo PS2 & USB Interface  (AND 16 pcs of customer's choice of PS2 / USB dongles  Details-> )
Option
-12VDC
Price : $171		 Add 12V DC power supply
-24VDC
Price : $171		 Add 24V DC power supply
-48VDC
Price : $171		 Add 48V DC power supply
-BNC
Price : $114		 Add Composite Video (RCA) + S-video
-AV
Price : $114		 Add Composite Video (BNC) + S-video
-DVI
Price : $114		 Add DVI-D Input
-TRS
Price : $300		 Add e-Resistive touch screen + Serial controller (the Height changed from 1U to 1.5U)
-TRB
Price : $300		 Add e-Resistive touch screen + USB controller (the Height changed from 1U to 1.5U)
-TCS
Price : $486		 Add e-Capacitive touch screen + Serial controller (the Height changed from 1U to 1.5U)
-TCB
Price : $486		 Add e-Capacitive touch screen + USB controller (the Height changed from 1U to 1.5U)
-SPK
Price : $114		 Add speaker

                                                                                                                                                                            Back to top



              Toll Free : 1-888-865-6888    Fax : 510-226-8968    Email :  sales@RackmountMart.com



                                  Home    |   Buy Online   |   About Us  |    Contact Us    |    Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Technology  Inc is not responsible for any typographical errors. Specifications subject to change without notice.  Legal.


 Copyright © 2002- 2010 SYNERGY GLOBAL TECHNOLOGY INC. All rights reserved.
