        1U Rackmount LCD Monitor Keyboard with optional 8 port or 16 port KVM Drawer :
                                                             Part #  LCD1U17-12

1U Rackmount 17"  TFT LCD Monitor Keyboard Drawer  with Dual Rails
optional 8 port PS/2 KVM switch or 16 port  PS/2 KVM  switch (  FCC & CE approved , RoHS Compliant  )

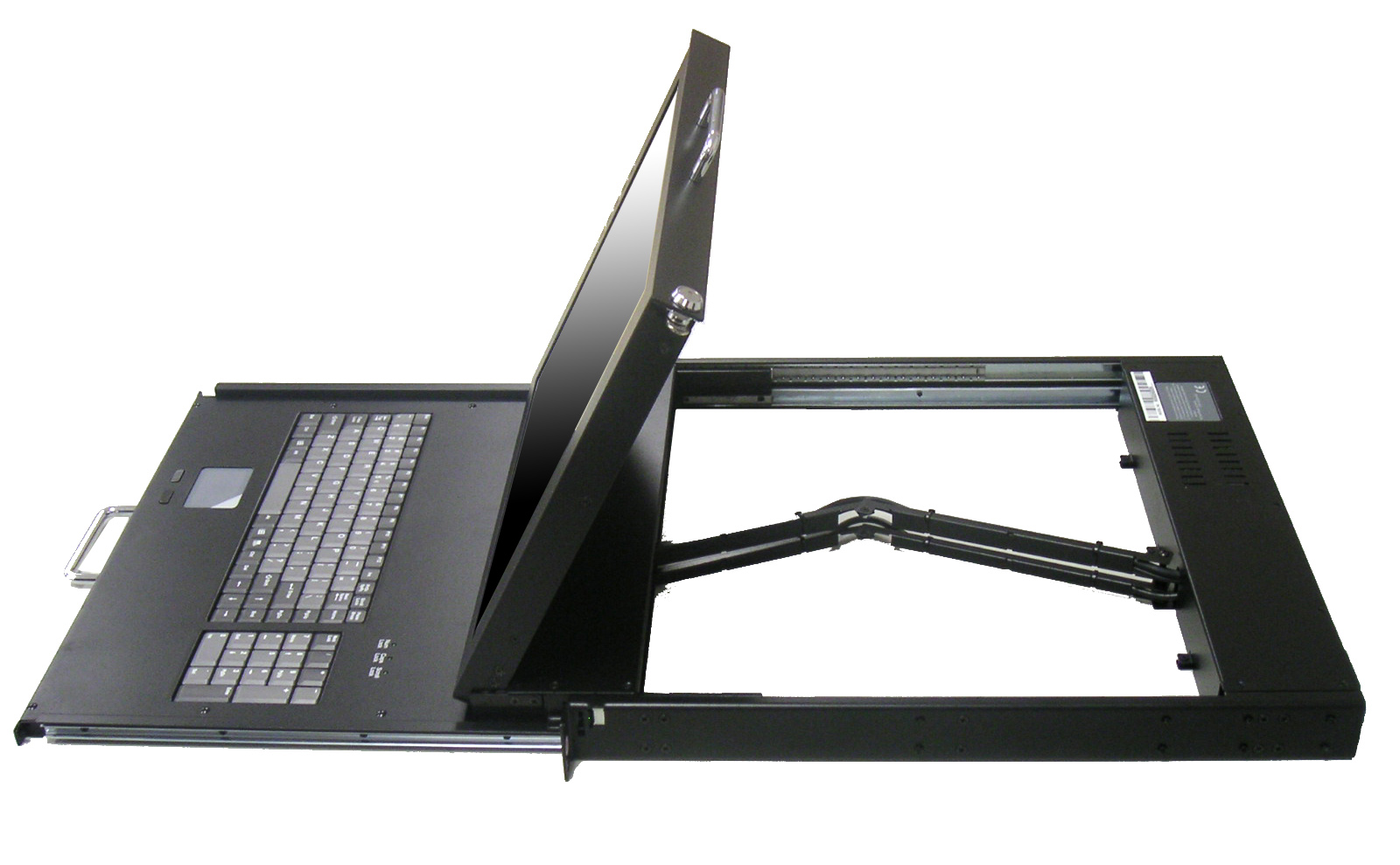

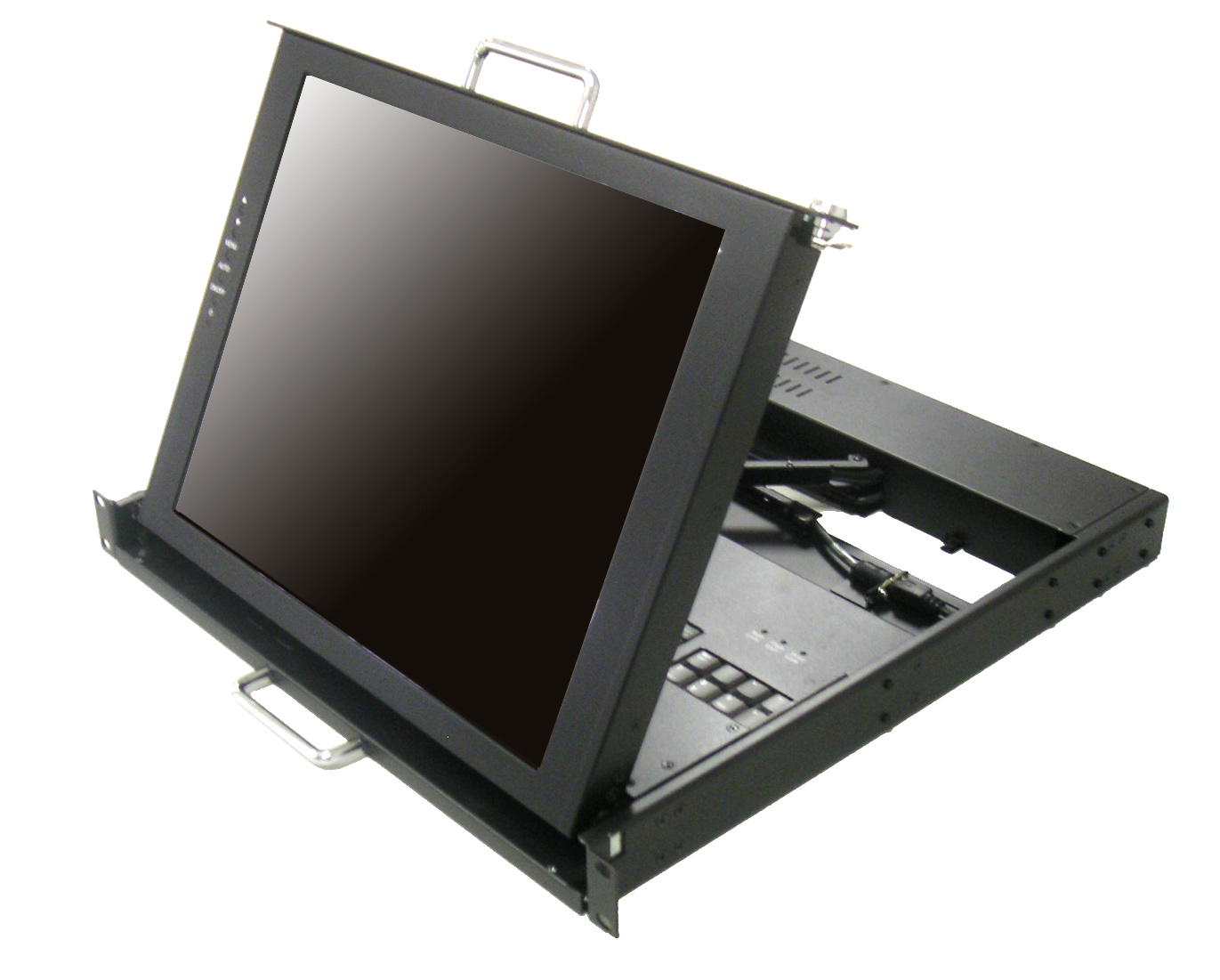

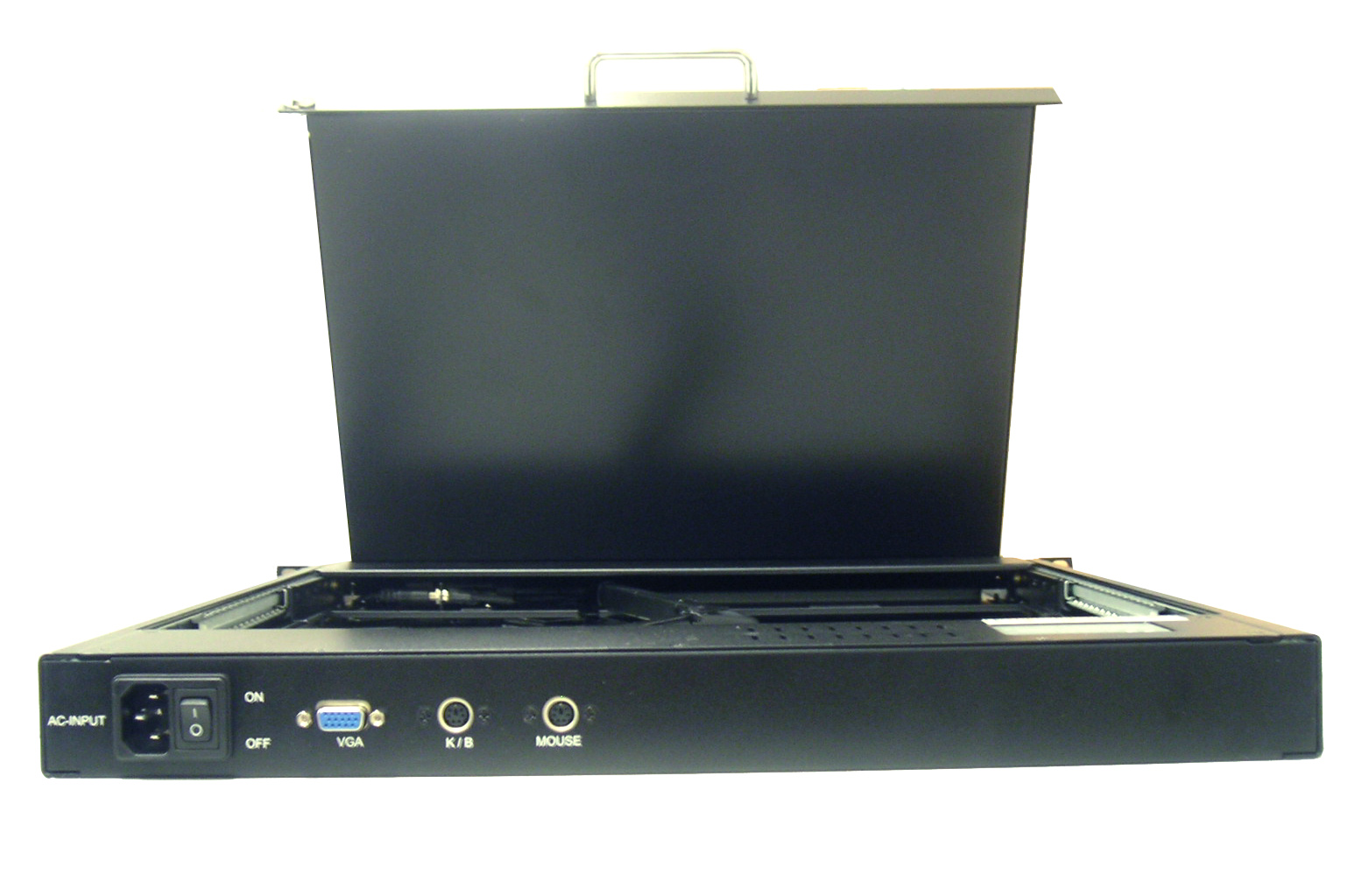

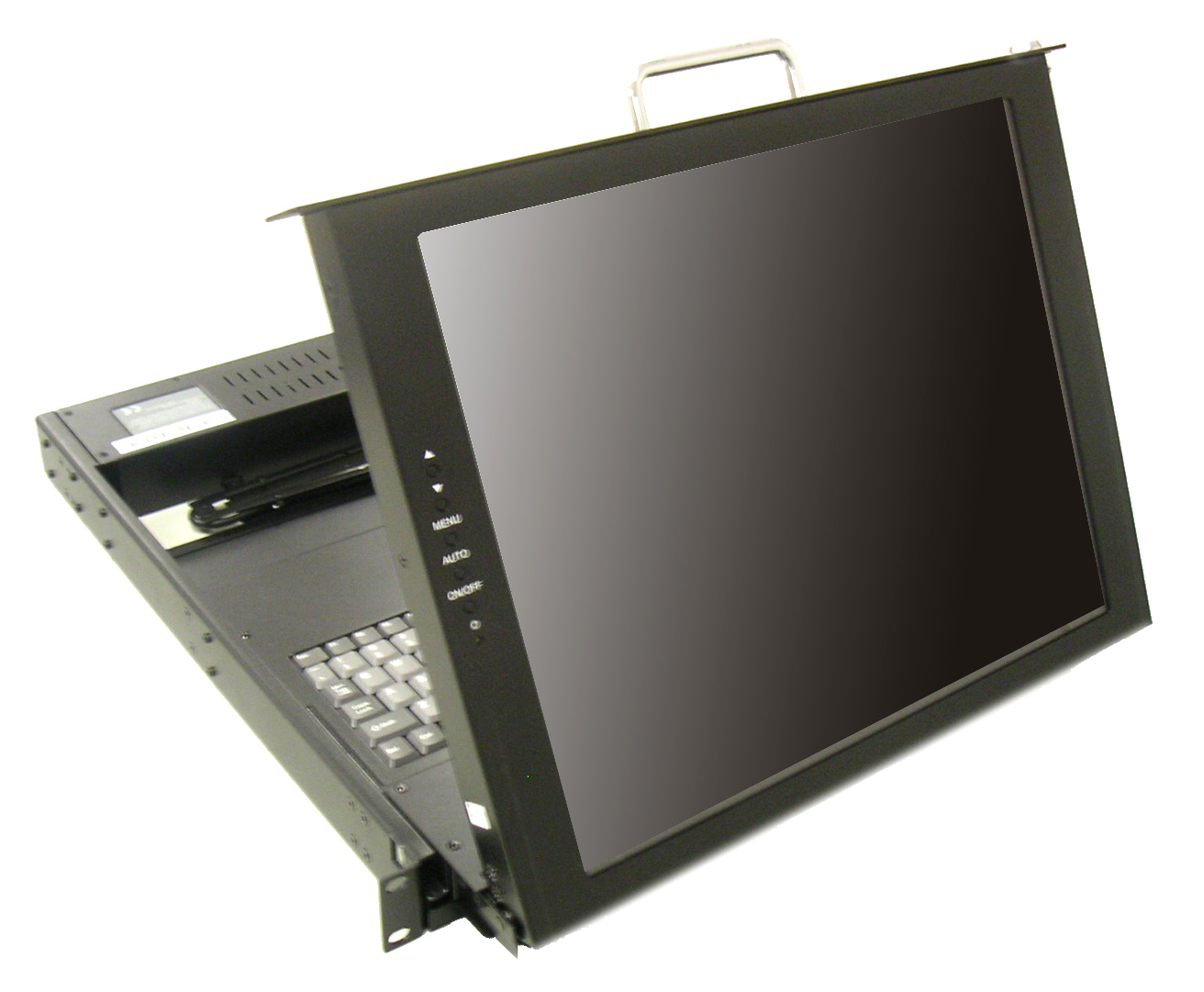

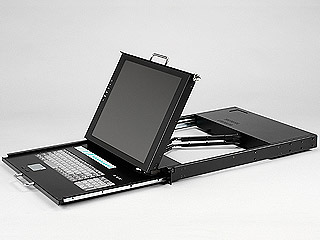

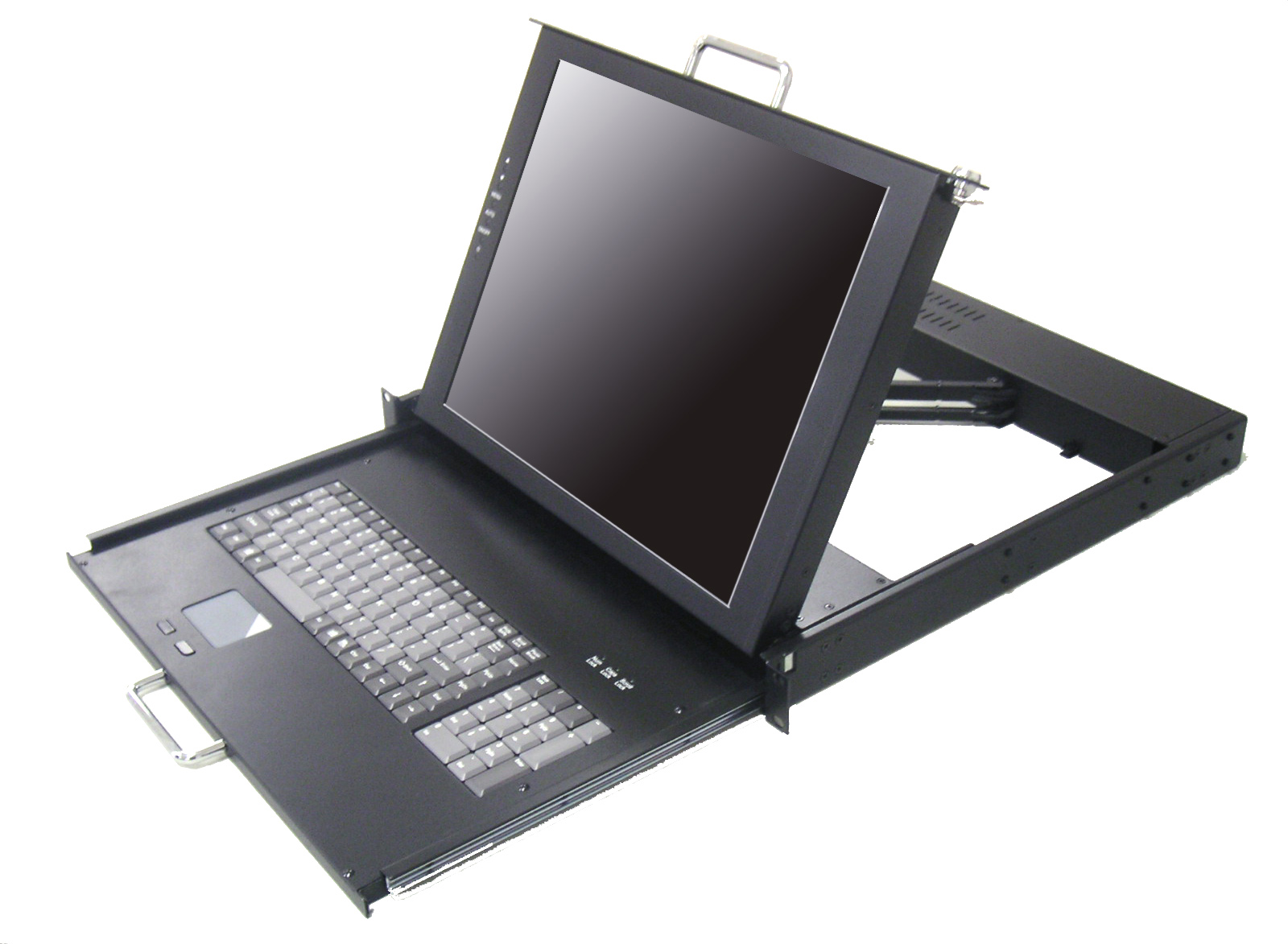

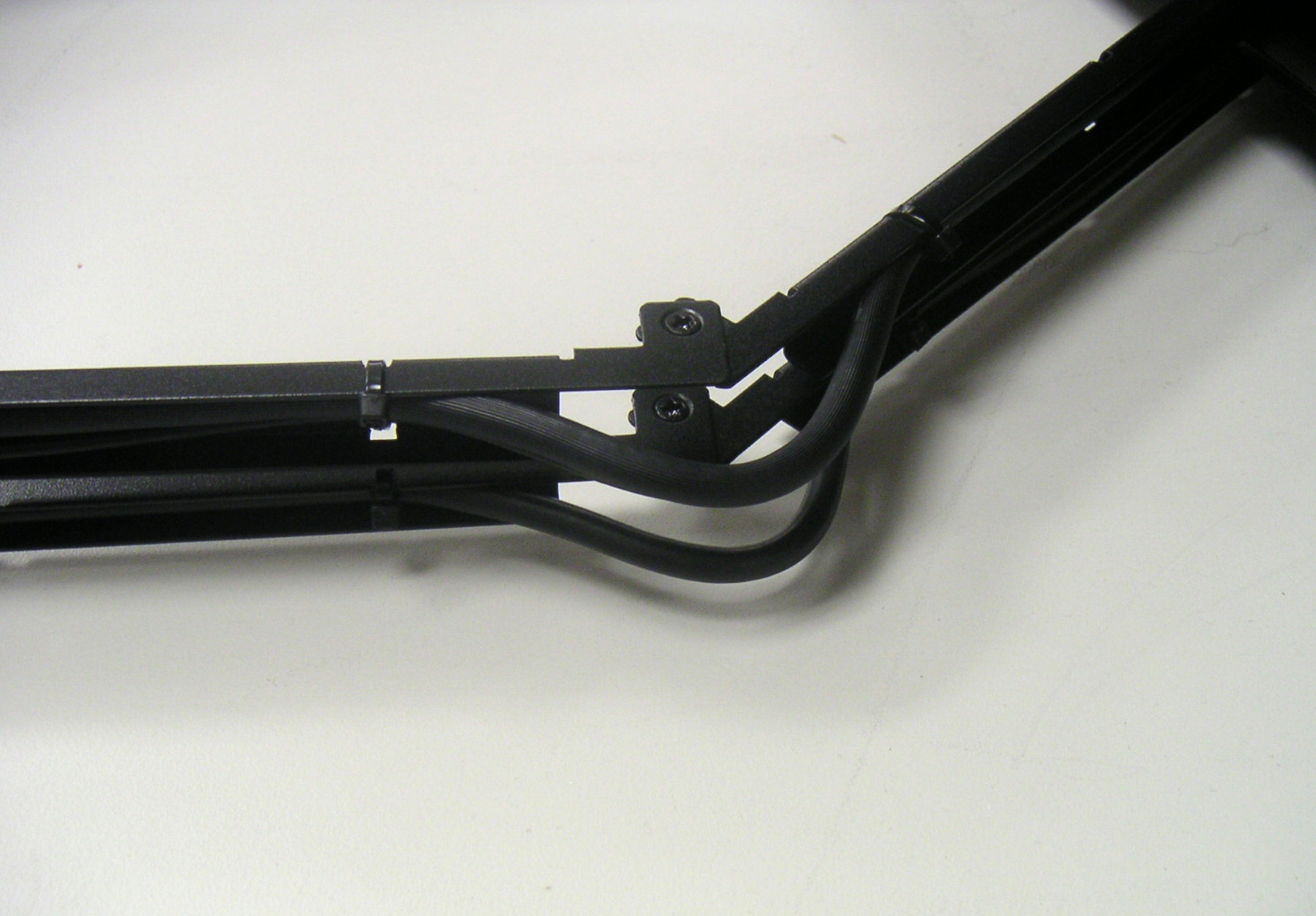

Click on the following photos for enlarged views :




  • FCC and CE Approved & RoHS Compliant
  • 17.1"  ultra bright/contrast TFT screen
  • Meets EIA-310C & IEC-3 specifications
  • Heavy-duty steel
  • 105-key with numeric keypad and built-in touchpad  keyboard
  •  17.1" TFT 1280 x 1024
  • Support DOS, Win 3.X, Win 95 / 98 / 98SE / 2000 / ME / XP, WinNT, SCO Uix, HP Unix, Linux, Netware
  • Anti-glare tempered glass for added protection to the LCD screen
  • Built-in Power Adapter
  • Hot Plug - Add PCs or Remove Connected PCs for Maintenance without Powering down the 8KVM or16 KVM version or PCs
  • Support eight characters password protection and search PC server name
  • No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys
  • Keyboard status restored when switching PCs
  • Built-in one extra daisy chain port and no waste any PC port
  • Auto Scan Mode for monitoring PCs and flexible Scan time from 5~99 seconds
  • Built-in side railing for instant installation
  • Keyboard available in multiple languages
  • Available in black and Customized colors available
  • Optional DC +48V power supply / Touch screen
  • PS2 KVM cable connector : 15Pin D-sub Male (to Cascade VGA port), PS/2 x2 Male (to Cascade PS/2 ports), 15Pin D-sub Male (to Console VGA port), PS/2 x2 Male (to Console PS/2 ports)

I
II
                   III
Model No
LCD1U17-12
LCD1U17-12-8KVM
LCD1U17-12-16KVM
Certification

    FCC and CE Approved
Ports switch for PC
Single port
8 ports
16 ports
Dimension

442.4 x44 x480mm /
17.0" x 1.73" x 18.9"
(W x H x D)

442.4 x 44.5 x 590mm /
17.0" x 1.75" x 23.2"
(W x H x D)
442.4 x 44.5 x 590mm /
17.0" x 1.75" x 23.2"
(W x H x D)
Power Supply
Industrial Level 1U, 50W
auto switching
1U, 50W
auto switching

1U, 50W
auto switching

Drawer Design
  dual rails enables independent extraction of either panel or keyboard alone (i.e.
 one slide for flat panel & one for keyboard, which is a Special space  saving design
 that allows viewing  through closed glass doors of cabinet without giving up space)
Chassis
Heavy-duty Steel
Keyboard
Mechanical 105 key with Numeric keypad and built-in touchpad
Language
US (standard), Optional : UK, Chinese etc
Color
Black
Protection
Anti-glare Tempered glass
Auto Power Switch
                 LCD back-light will automatically shut off when the screen set fold
Security Lock

Thumb screws x 2
Operation Temperature
0-50° C (32-122°F)
Storage Temperature
-5 to 60 Degree Celsius
Relative Humidity
5~90%, non condensing
Shock
10G acceleration (11ms duration)
Vibration
5~500Hz, 1G RMS random vibration
Cable Set

15 pin to 15 pin D-sub cable, PS2 keyboard & mouse detachable
Display
Diagonal
17" (431.8mm)
Resolution
1280 x 1024
Size
17.1"
Display Area
337.92 x 270.34
Brightness
300
Contrast Ratio
450:1
Frequency
60 Hz
OSD

Auto adjustment, brightness, contrast, H-V position, frequency, size, and display mode
Number of Color
16.2 M
Backlight MTBF

50,000 hours under 25±5 degree Celsius
KVM Switch
KVM Switch Port
N/A
8
16
Hot Plug
N/A
Add PCs or Remove Connected PCs for Maintenance
without powering down the KVM switch for PCs
Video Quality
N/A
Up to 1280 x 1024 with 200 MHz bandwidth
Auto Scan Mode
N/A
5s - 99s






  Ordering information :

  Part # Description
LCD1U17-12
Price:$908		 1U 17" Rack monitor ( TFT LCD)  Keyboard Drawer with dual rails, 1 PS/2 cable included
LCD1U17-12-8KVM
Price : $1198
1U Rackmount 17" TFT LCD Monitor Keyboard Drawer with dual rails and 8 port PS/2 KVM switch, 8 sets of PS/2 KVM cables included
LCD1U17-12-16KVM
Price:$1438		 1U Rackmount 17" TFT LCD Monitor Keyboard Drawer with with dual rails and 16 port PS/2 KVM switch, 16 sets of PS/2 KVM cables included
