1U Rackmount Monitor Keyboard Drawer and KVM Switch :
Part # LCD1U17-13 / S117 / S117-801 / S117-1601/ S117-S801 / S117-S1601

1U SUN Solaris Compatible Rackmount 17" TFT LCD Monitor Keyboard Drawer
New Optional 8 port / 16 port DB-15 KVM Switch / KVM Over IP / CAT5 KVM
New Optional 16 port / 32 port High Density CAT5 KVM or CAT.5 KVM Over IP for Local / Remote Access

              Compatibility with the following SUN Servers & Solaris Servers have been certified by SUN-Microsystems :
                           SUN Server -       Entry Level Server - V100 , V120, V240 & V440 , Middle Lever Server - V890
                           Solaris Server -   8, 9 & 10 Operating Systems

                                      General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Compatible with SUNs, IBMs, HPs, DELLs and
Mix PCs with USB-enable

Server Side Interface

HD15 VGA, USB Type A for
KB/MS

Support Platform

Solaris, MS Windows 2000/XP, Linux and
SCO Unix

Rack Mounting

Adjustable ranges from 15.3" to 33.2"
(390 to 845mm)

                                                  LCD Screen

LCD Type

Samsung Grade A 17" Industrial
              Active Matrix TFT LCD Panel

Display Size

17 inch diagonal

Resolutions

-1280 x 1024 native graphic resolution
-Screen will sync with mist SUN resolution
including 1152 x 900 @66 or 76Hz

Response time

Tr=2 / Tf=6 ms

Contrast ratio

700 : 1

Brightness

300 cd/ m2

Pixel pitch

0.264 (H) x 0.264 (V) mm

Panel color

16.2 million display colors

Viewing angle

150 / 135 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Color, H. position,
V.position, Phase, Scaling, Auto config ,
Input Select, Mulit window, Clear EERRom
OSD adjust, Save

Signal Input

VGA, Analog RGB

LCD MTBF

50,000 hrs

                                     Keyboard & Pointing Device

-USB connector
-3 button with 15mm trackball mouse
-Incorporate SUN keys including Stop, Cut,
Paste, Compose, Copy and Help
-US layout version only

                                   Keyboard Details

       New Integrated High Density CAT.5 KVM Switch Option

KVM port

16 port or 32 port

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM) via RJ-45 connection

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM) via RJ-45 connection

Cascade Expansion

Up to 256 ports/servers by 8 level cascade

                                       More Details

      Cost efficient Integrated DB-15 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status
LED

Cascade Expansion

Up to 128 ports/servers

USB Type Interface       More Details

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

VGA HD15, analog RGB, USB type A,
support hot-plugging

Support Platform

MS Windows 2000/XP, Solaris and SCO
Unix

KVM cable

USB KVM cable with 6, 10, 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet
option

                                Power Supply

-Remote adapter : 110V - 220 V AC Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H)
/ 10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V
DC input

                                 Rear I/O Connector

Integrated KVM

8 or 16 KVM ports : HD15 female

IP console port : RJ45 type (IP KVM model )

Remote console port: RJ45 type (2-console model)

Serial port   : DB9 (IP KVM model)

Virtual Device port : USB type B (IP KVM model)

USB cascade port : HD15 female

DC power input Plug-round type

Without KVM

Console port  : HD 15 female

DC power input : Plug-round type

                                  Mechanical

Product Dimension

17.4"(W) x 1.75"(H) x 23.62"(D) /
44.2(W) x 4.45(H) x 60(D)cm

Product Weight Approximately 35.2 lbs / 16kg

Relative Humidity 90%, non condensing

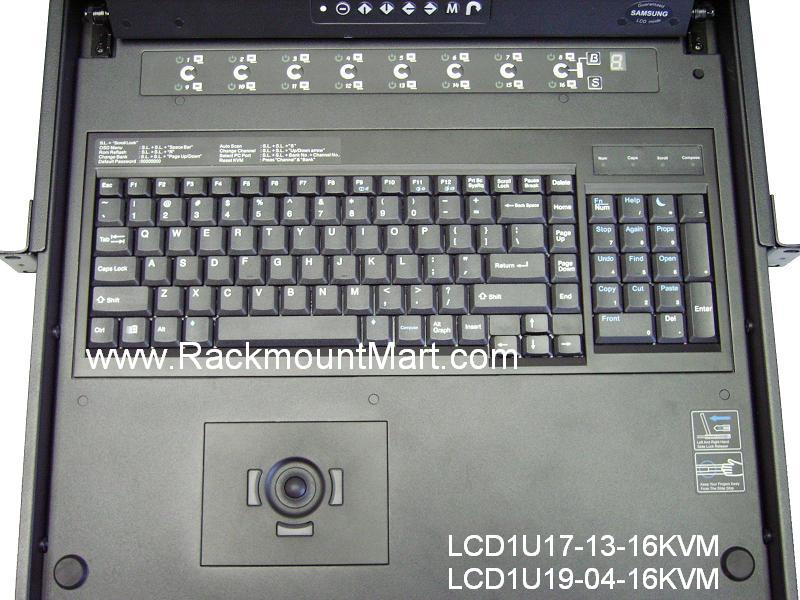

Front View of LCD1U17-13 / S117

             *click on photo for enlarged view


     Dimension


      *click on above pictures for enlarged views

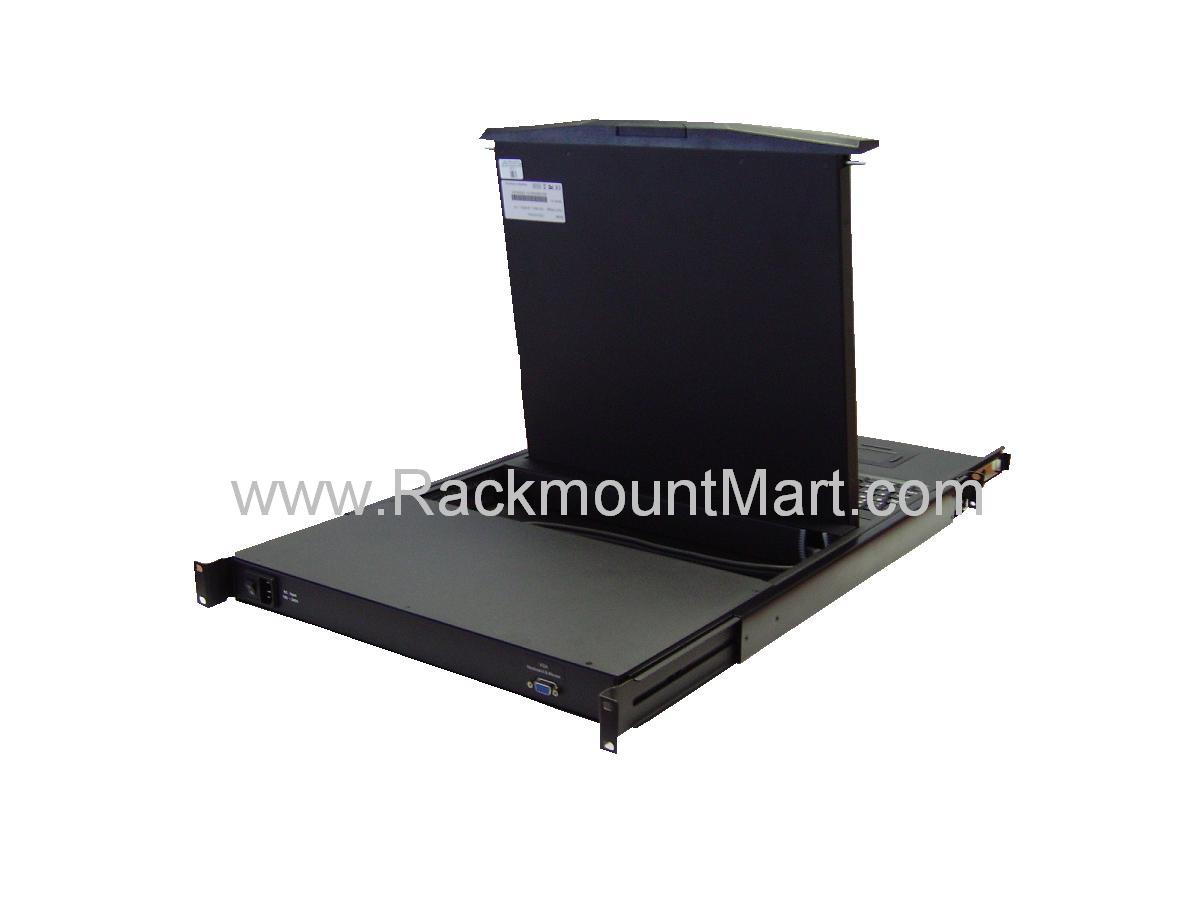

Rear Views for various versions of LCD1U17-13/
S117



       *click on above picture for enlarged view

   User Manual

KVM SUPPORT

USB, No KVM

USB, Local console KVM

Local Console, High Density CAT.5 KVM

Local + Remote Console, High Density CAT.5 KVM

Local + IP Console, High Density CAT5 IP KVM

Space saving Flip up design

      Free Ground Shipping *Click for details


                              Regulatory Approval

       FCC , CE , VCCI

                       Optional Accessories & Peripheral

Details

                             Package Content

Package Content

See user manual of the respective version listed above

LCD Drawer & KVM Benefits :

High Density Cat5 KVM with either 16 or 32 ports in 1U of rack space
Cost efficient DB-15KVM integration
Direct support for SUN Micro 1152 x 900 native resolution
Video auto-adjust for optimum image
104 key notebook keyboard with full numerical pad and SUN function
Mix PS/2 , USB & SUN with Multi-Platform switch capability
Secure remote user access across the web wide web via optional IP console

Features :

1U rackmount drawer with SAMSUNG Grade A 17" LCD Panel
Slide rails with fixed positions to prevent keyboard movement while typing
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
Directly compatible with SUN & USB server
Automatic detection of SUN Server resolution 1152 x 900 @ 66 or 76Hz
SAMSUNG 17" Grade A LCD Panel
Compatible with SUN, Apple, IBM, Dell, HP and USB Server
104-key Sun Compatible keyboard with 3-button trackball support SUN keys including STOP, HELP, AGAIN, PROPS, UNDO, FIND, OPEN, CUT, PASTE and FRONT KEY
Fits all current SUN racks. Adjustable mounting brackets compatible with SUN rack depths of 24" to 36"
Easy operation : Simply connect the USB keyboard, mouse and VGA monitor to servers with USB cables
Unique mechanical design to maximize rack mountable space
Adjustable mounting bracket from 15.4"(390mm) to 31.1"(790mm)(front to rear 17"mounts), fits any standard 17"server rack
Anodized aluminum front panel
Sliding rails will self-lock when pulled all the way out
Built in on screen display controlled by integral membrane switches
Built-in thumb screws securing the machine when it is folded or pushed all the way in
Allow adding or removing connected PCs without powering down the USB KVM switch of the PCs
Power saving feature for prolonging the lift of LCD panel
Standard D-sub 15-pin VGA input connector
12V 5A remote power adapter (Single power source)
EMC shielding around the monitor housing to minimize interference
All mounting hardware included
Optional : S-Video and Composite video input / Touch Screen, , 12V/24V/ 48V DC input adaptor ,
Speaker / DVI Input / Micro switch / LCD Membrane / Front Panel / Internal Power Supply

More photos - (click on the photos for enlarged views)

                                                                       USB KVM cable           Rear View with DB-15 USB KVM switches

Integrated wiith Standard DB-15 KVM Switch Only

Cost efficient DB-15 KVM OPTIONS - with either 8 or 16 ports , cascade up to 128 servers

Local Console DB-15 USB KVM Switch :
8 Port KVM - LCDK1020 / CV-S801 Details
16 Port KVM - LCDK1021/ CV-S1601 Details

Integrated with New High Density CAT.5 KVM Switch Only

New High Density RJ-45 CAT5 KVM OPTIONS - with either 16 or 32 ports , cascade up to 256 servers

Local Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1043/ U-1601 Details 32 Port KVM - LCDK1044/ U-3201 Details	Local + Remote Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1045 / U-1602 Details 32 Port KVM - LCDK1046 / U-3202 Details
	Local + IP Console High Density CAT.5 IP KVM Switch : 16 Port KVM - LCDK1047 / UIP-1602 Details 32 Port KVM - LCDK1048 / UIP-3202 Details

Back to top

Optional Accessories
Optional Video input -S-Vdieo + Composite Video / DVI-D / BNC Details	48V / 24V / 12V DC Power Input Range : 10~36V (DC-12V, DC-24V model) 36~75V (DC-48V model) DC power Output : DC 12V Voltage Accuracy: +/- 1% (Max.) Safety : Continuous short circuit protection Details
USB KVM Cables & Cascade Cables in various length Details	USB Dongles & CAT5 Cables in various length Details
New Options - Speaker - Front Panel - Internal Power Supply - Micro Switch - LCD Membrane *** Please contact us for details

Back to top

ORDERING INFORMATION :

KVM Support Keyboard Type Part # Description

NO KVM ( Single Port )

Single Port 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U17-13 / S117
Price : $1000 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard , 1 set of one 6-ft long all-in-one USB KVM cable included

Single Console KVM ( Local console, 8 / 16 / 32 port KVM )

                                                  DB-15 KVM ( Local console DB-15 KVM)

Local consoleDB-15 8 Port   KVM Switch 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U17-13-8KVM /
S117-801
Price: $1409 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard and 8 Port KVM switch, 8 sets of 6-ft long all-in-one USB KVM cable included

Local consoleDB-15 16 Port   KVM Switch 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U17-13-16KVM /
S117-1601
Price: $1629 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard and 16 Port KVM switch, 16 sets of 6-ft long all-in-one USB KVM cable included

                                                 High Density CAT5 KVM ( Local console High Density CAT5 KVM)

Local console High Density 16 Port CAT5 KVM Switch 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U17-13-U16KVM /
S117-U1601
Price: $1485 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard with Local console High density 16 port CAT5 KVM switch
(*USB Dongles are optional Details-> )

Local console High Density 32 Port CAT5 KVM Switch 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U17-13-U32KVM /
S117-U3201
Price: $1742 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard with Local console High density 32 port CAT5 KVM switch
(*USB Dongles are optional Details-> )

2 Console KVM ( Local & Remote Console , 16 / 32 port KVM)

                                                High Density CAT5 KVM ( 2 Consoles, Local & Remote CAT5 KVM )

Local & Remote consoles - 16 Port High Density CAT5 KVM Switch
3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys   LCD1U17-13-U16KVM2 /
S117-U1602
Price: $1712 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard & 2 consoles (Local + Remote) with High Density 16 port CAT5 KVM switch
(*USB Dongles are optional Details-> )

Local & Remote consoles - 32 Port High Density CAT5 KVM Switch
3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys   LCD1U17-13-U32KVM2 /
S117-U3202
Price: $1924 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard & 2 consoles (Local + Remote) with High Density 32 port CAT5 KVM switch
(*USB Dongles are optional Details-> )

Local & IP consoles - 16 Port High Density CAT5 KVM Via IP Switch 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys     LCD1U17-13-U16KVM2IP /
S117-UIP1602
Price:$1985 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard & 2 consoles (Local + Remote) with High Density 16 port CAT5 KVM Over IP switch
(*USB Dongles are optional Details-> )

Local & IP consoles - 32 Port High Density CAT5 KVM Via IP Switch
3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys     LCD1U17-13-U32KVM2IP /
S117-UIP3202
Price:$2197 1U 17"Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard & 2 consoles (Local + Remote) with High Density 32 port CAT5 KVM Over IP switch
(*USB Dongles are optional Details-> )
