     1U SUN Solaris Compatible Rack Console with Monitor Keyboard and Optional KVM :
                                                        Part #   LCD1U17-21
   1U  SUN Solaris Dual Rails Rack Console  17" SAMSUNG Grade A Industrial LCD Monitor Keyboard
                                       Optional  DB-15 Kvm / CAT5 Kvm ( CAT6 Kvm ) connector
                                         Optional USB KVM / Multi-User Matrix Kvm / Kvm Over IP
                                         Optional 1 / 2 / 3 / 4 Consoles for  Local / Remote Access
SUN Solaris Dual Rails Rack Console LCD1U17-21-n

*click on photo for enlarged view

     SUN Solaris Dual Rails  Rack Console Benefits
  • 1U SUN Solaris Dual Rails 17" SAMSUNG Rack Console
  • Direct support for SUN Micro 1152 x 900 native resolution
  • SUN key support including Stop, Cut, Paste, Composes etc
  • Optional Cost Efficient built in KVM with various choices:
    - Connector : DB-15 KVM  or Cat5 KVM ( Cat6 KVM )
    - KVM Type : USB KVM /  Multi-User Matrix KVM
  • Secure remote user access across the internet via optional IP console (KVM Over IP )
  • Mix USB & SUN with Multi-Platform switch capability
  • High Scalability : Interchangeable KVM, & Keyboard & mouse modules
  • Optional S-Video + Composite Video ( BNC or RCA ),
    DVI-D, DC Power input, Audio
  • 2 year Warranty
                     General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platforms - Mix PCs, IBM, SUN, HP , DELL, Linux , Windows
                          LCD Screen

LCD Type

Grade A Industrial monitor 17 inch Active Matrix TFT LCD Panel

Display Size

 17 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr=1.3 / Tf=3.7 ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.264 (H) x 0.264 (V) mm

Panel color

16.2 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video  Input

S-video & Composite (BNC or RCA ),
DVI-D      ...More Video Input Details

LCD MTBF

50,000 hrs
                          Keyboard & Pointing Device

Model n

Notebook type KB  w/ Numeric Keypad & Touchpad   ...More Keyboard Details

                          KVM  ( Keyboard Video Mouse )

Connector

               KVM Version


DB-15
 * DB-15 No KVM
 * DB-15 USB KVM
 No. of  Console  No of  KVM port
1 ( Local only )   8 or 16
2 ( 1 x local + 1 x remote )   8 or 16
2  ( 1 x local + 1 x IP )   8 or 16
 * DB-15 Matrix KVM
 No. of  Console  No. of KVM port
2 ( 1 x local + 1 x remote )   8 or 16
3 ( 1 x local + 2 x remote )   8 or 16
3 (1x local +1x remote +1x IP )   8 or 16
4 ( 1 x local + 3 x remote )   8 or 16
4 (1x local +1x remote +2x IP )   8 or 16
4 (1x local +2x remote +1x IP )   8 or 16


CAT6
* CAT6 USB KVM
 No. of  Console  No. of  KVM port
1 ( Local only )   8 or 16 or 32
2 ( 1 x local + 1 x remote )   8 or 16 or 32
2  ( 1 x local + 1 x IP )   8 or 16 or 32
* CAT6 Matrix KVM
 No. of  Console  No. of KVM port
2 ( 1 x local + 1 x remote )   16 or 32
3 ( 1 x local + 2 x remote )   16 or 32
3 (1x local +1x remote +1x IP )   16 or 32
4 ( 1 x local + 3 x remote )   16 or 32
4 (1x local +1x remote +2x IP )   16 or 32
4 (1x local +2x remote +1x IP )   16 or 32
                          Power Supply



 -Remote adapter : 110V - 220 V AC Input , 12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /  10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
 6ft / 182cm
-Cable length from adapter to unit :
 6ft / 180cm
-Mains plug options available
-Optional  DC power with 48V / 24V / 12V
  input power
                     Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
                          Mechanical

Product Dimension

(W x D x H )
442 x 650 x 44 mm /17.4 x 25.6 x 1.73 inch
Product Weight  Approximately 35 lbs / 16kg
Relative Humidity  90%, non condensing
                              Regulatory Approval
         UL , FCC , CE , VCCI , 3C*



  More photos (click to enlarge )
     Diagram


            *click on above pictures for enlarged view

  Product Sheet
Product Sheet
  User Manual
 General User Manual
 KVM Support
   DB-15 KVM
DB-15 PS2 kvm Local console
DB-15 USB kvm Local console
DB-15 USB kvm Local + remote console
DB-15 USB kvm Local + IP console
   CAT5 / CAT6 KVM
Cat5 / Cat6 USB kvm Local console
Cat5 / Cat6 USB kvm Local + remote console
Cat5 / Cat6  USB kvm Local + IP console
   Matrix KVM
DB-15 Matrix USB kvm Local + remote console
DB-15 Matrix USB kvm Local + IP console
Cat5 / Cat6 Matrix USB kvm Local + remote console
Cat5 / Cat6 Matrix USB kvm Local + IP console

Optional Peripheral & Accessory

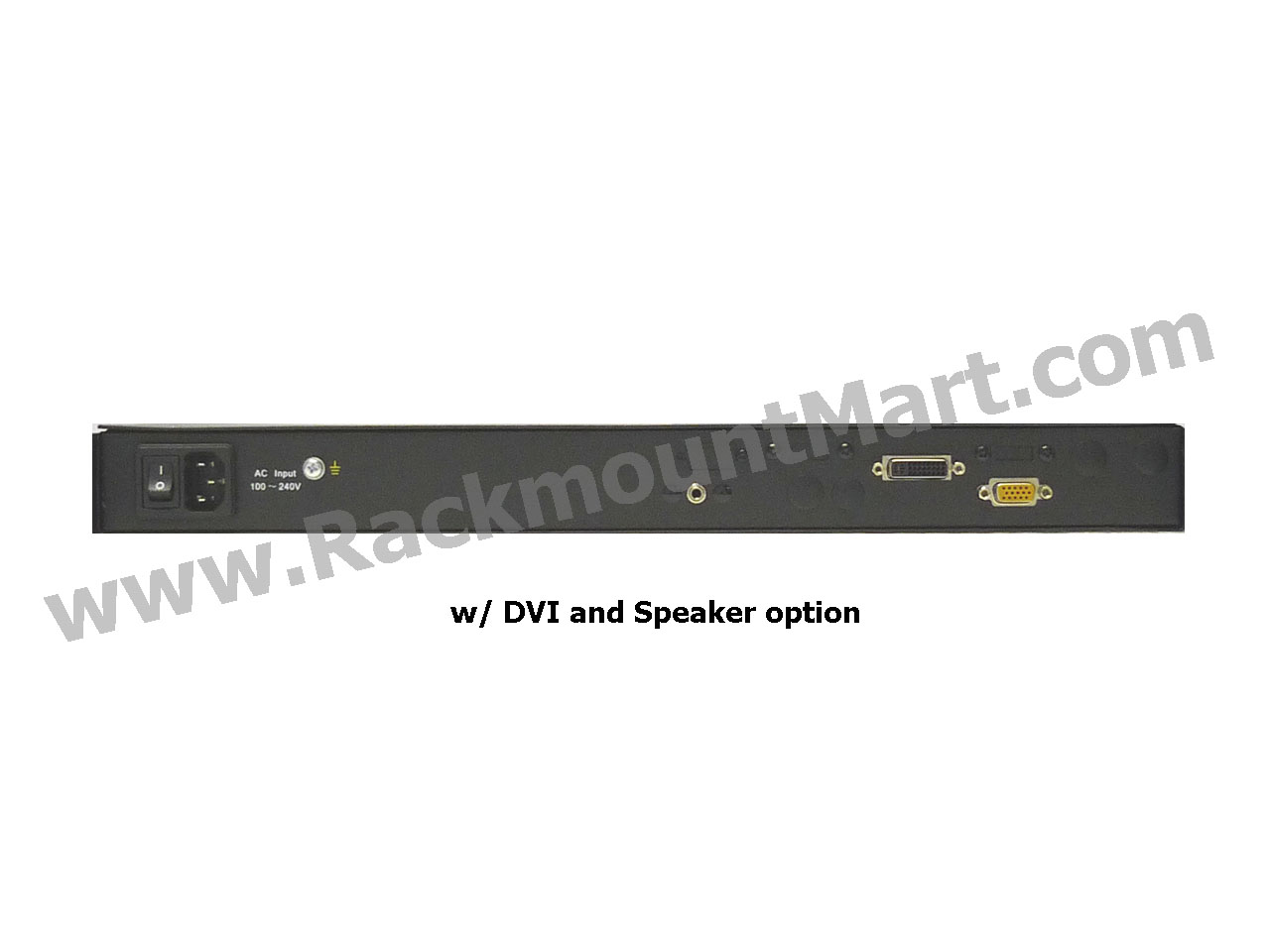

- S-Vdieo + Composite Video (BNC or RCA) / DVI-D
- HDMI
- DC Power Input ( 12V / 24V / 48V )
- KVM Cables & Cascade Cables in Various Length
- USB & PS/2 Dongles
-PS2 to SUN /iMac USB adapter
- KVM Extender        -IP KVM Extender
Free Ground Shipping( A $55 Value) *Click for details



 Customer who ordered this product may also order these :
- KVM Switch - Server Rack Cabinet
- PDU ( Power Distribution Unit )
- 4 Post Rack - Wall Rack Mount
- Rack Shelves - Rack Cooling Fan
- Rack Drawer - Power Strips
Features of SUN Solaris Compatible Rack Console :
  • 1U Dual sliding SAMSUNG Industrial monitor Grade A 17" LCD Panel
  • Directly compatible with  SUN & USB server
  • Automatic detection of SUN Server resolution 1152 x 900 @ 66 or 76Hzl
  • Compatible with SUN, Apple, IBM, Dell, HP and USB Server
  • 104-key Sun Compatible keyboard with 3-button trackball support SUN keys including STOP, HELP, AGAIN, PROPS, UNDO, FIND, OPEN, CUT, PASTE and FRONT KEY
  • Fits all current SUN racks. Adjustable mounting brackets compatible with SUN rack depths of  24" to 36"
  • Either PS/2 or USB input to this Rack console  (the rack LCD drawer / keyboard )
  • Scalable :  -KVM interchangeable module Kit : i.  All KVM versions are  interchangeable in the same chassis
                                                                  ii. Mix PS/2 & USB with multi-Platform switch capability
                   -Keyboard interchangeable module Kit : 104 key touchpad or trackball with full numerical pad
                   -Mouse interchangeable module kit :     3 button GlidepointTM touchpad or trackball interchangeable in
                                                                    same chassis
  • 7-button LCD OSD membrane with a power LED
  • 2 point lock, with Stylish latching front panel to release the 2-point lock
  • Micro switch for screen auto power off , power saving feature for prolonging the lift of LCD panel
  • KVM membrane
  • Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
  • Unique mechanical design to maximize rack mountable space
  • Black Anodized aluminum front panel
  • VGA, keyboards & mouse all in one by 15 pin HDB connector
  • Built in slide rails which can be mounted easily in any 19" rack cabinet
  • EMC shielding around the monitor housing to minimize interference
  • Rear rack mounting bracket included
  • Standard 6-ft KVM cable, optional 10, 15, 33 ft available
  • Optional : S-Video and Composite video input (RCA or BNC ), DVI-D , Audio, DC power input adapter , Speaker

                                                                                                                                                                           Back to top
Features of Optional KVM   :

Connector KVM Version Number of KVM port Cascade Capacity Capability / KVM Technical Specifications
DB-15
USB KVM
8 or 16 port
Up to 8 Levels / 240 Servers
Capability
DB-15 USB KVM hooks up  8 or 16 servers with multi-platforms and multi-operating systems. With local + remote  console model, user can remote access up to 1,000 feet distance via CAT6 cable. While with local + IP console model, user can remote access via internet without distance limitation. This model supports servers with either USB or PS/2  interface. Respective USB KVM cables or/and dongles included
Link to KVM Technical Specification
* DB-15 1 Console 8 Port USB KVM
* DB-15 1 Console 16 Port USB KVM
* DB-15 2 Console ( Local + Remote ) 8 Port USB KVM
* DB-15 2 Console ( Local + Remote ) 16 Port USB KVM
* DB-15 2 Console ( Local + IP ) 8 Port USB KVM
* DB-15 2 Console ( Local + IP ) 16 Port USB KVM
DB-15
Matrix KVM


8 or 16 port


Up to 8 Levels / 240 Servers
Capability
DB-15 Matrix kvm allows maximum of 4 users to local access, remote access up to 1000 feet distance via CAT6 cable or  IP remote access without distance limitation via internet. This model supports servers with either USB or PS/2  interface. Respective USB KVM cables included
Link to KVM Technical Specification
* DB-15 2-4 Console (Local+Remote) 8 /16 Port Matrix KVM
* DB-15 3-4 Console(Local+Remote+IP) 8/16 Port Matrix KVM
CAT6
USB KVM
8 / 16 / 32 port
Up to 8 Levels / 256 Servers
Capability
CAT6 USB KVM hooks up 8 , 16 or 32 servers with multi-platforms and multi-operating systems. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. This model supports servers with either USB or PS/2  interface.
Link to KVM Technical Specification
* CAT6 1 Console 8 Port USB KVM
* CAT6 1 Console 16 Port USB KVM
* CAT6 1 Console 32 Port USB KVM
* CAT6 2 Console (Local + Remote) 8 Port USB KVM
* CAT6 2 Console (Local + Remote) 16 Port USB KVM
* CAT6 2 Console (Local + Remote) 32 Port USB KVM
* CAT6 2 Console (Local + IP) 8 Port USB KVM
* CAT6 2 Console (Local + IP) 16 Port USB KVM
* CAT6 2 Console (Local + IP) 32 Port USB KVM
CAT6
Matrix KVM


8 / 16 / 32 port


Up to 8 Levels / 256 Servers
Capability
CAT6 Matrix kvm allows maximum of 4 users. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well.  Respective dongles included.
Link to Technical Specification
* CAT6 2 Console (Local + Remote) 8 /16/32 Port Matrix KVM
*CAT6 3-4 Console(Local+Remote+IP)8/16/32 Port Matrix KVM
                                                                                                                                                                           Back to top

 ORDERING INFORMATION FOR  LCD1U17-21  - 1U SUN SOLARIS dual rails SAMSUNG 17" LCD
                                                                                            RACK CONSOLE w/ DB-15 KVM

DB15 KVM CAT5 KVM /
CAT6 KVM 		Matrix KVM
 NO KVM ( Single Port ) ** with Built-in USB interface
 KVM Support  Keyboard Type Part # Description
Single Port for DB-15 PS2
connection with built-in USB Interface		 104 keys KB KB w/ Touchpad  LCD1U17-21-n
Price : $985		 1U 17" dual rails Samsung Panel w/ SUN & Solaris compatible keyboard & touchpad & 1 x 6-ft 2-in-1 USB KVM cable. Black
 Single Console KVM ( Local console,  8 / 16 / 32 port KVM )
DB-15 KVM ( Local console  DB-15 KVM)
 KVM Support  Keyboard Type Part # Description
Local console DB-15
8 Port  USB  KVM Switch		 104 keys KB KB w/ Touchpad  LCD1U17-21-8KVM-n-u
Price: $1367		 1U 17" dual rails Samsung Panel w/ SUN & Solaris compatible keyboard & touchpad & Local console DB-15 8 port USB KVM switch & 8 x 6-ft 2-in-1 USB KVM cables. Black
Single console DB-15
16 Port  USB KVM Switch		 104 keys KB KB w/ Touchpad  LCD1U17-21-16KVM-n-u
Price: $1567		 1U 17" dual rails Samsung Panel w/ SUN & Solaris compatible keyboard & touchpad & Local console DB-15 16 port USB KVM switch & 16 x 6-ft 2-in-1 USB KVM cables. Black
 2 Console KVM (  Local & Remote Console , 8 / 16 / 32 port KVM)
DB-15 KVM ( 2 Consoles, Local & Remote  DB-15 KVM )
 KVM Support  Keyboard Type Part # Description
2 Consoles ( Local + Remote console ) DB-15 8 Port  PS2 KVM Switch 104 keys KB KB w/ Touchpad  LCD1U17-21-8KVM2-n
Price: $1594		 1U 17" dual rails Samsung Panel w/ SUN & Solaris compatible keyboard & touchpad & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 8 ports PS2 KVM switch & 8 x 6-ft 2-in-1 USB KVM cables. Black
2 Consoles ( Local + Remote console ) DB-15 16 Port  USB  KVM Switch 104 keys KB KB w/ Touchpad  LCD1U17-21-16KVM2-n
Price: $1794		 1U 17" dual rails Samsung Panel w/ SUN & Solaris compatible keyboard & touchpad & 2 consoles (Local + Remote) DB-15 CAT6 up to 500ft away w/ 16 ports PS/2 KVM switch & 16 x 6-ft 2-in-1 USB KVM cables. Black
2 Consoles ( Local + IP console ) DB-15  8 Port  PS2  KVM Over IP Switch 104 keys KB KB w/ Touchpad  LCD1U17-21-8KVM2IP-n
Price: $1753		 1U 17" dual rails Samsung Panel w/ SUN & Solaris compatible keyboard & touchpad & 2 consoles (Local + IP) DB-15 8 port KVM Over IP switch w/ PS2 interface & 8 x 6-ft 2-in-1 USB KVM cables. Black
2 Consoles ( Local + IP console ) DB-15  16 Port  PS2  KVM Over IP Switch 104 keys KB KB w/ Touchpad  LCD1U17-21-16KVM2IP-n
Price: $1953		 1U 17" dual rails Samsung Panel w/ SUN & Solaris compatible keyboard & touchpad & 2 consoles (Local + IP) DB-15 16 port KVM Over IP switch w/ PS2 interface & 16 x 6-ft 2-in-1 USB KVM cables. Black
DB-15 Matrix KVM
 KVM Port   KVM Console  Keyboard Type Part # Description
8 Port  KVM Switch 2 console
(1x Local + 1x Remote) 		104 KB w/ TOUCHPAD  & Numeric Keypad LCD1U17-21-M82-n
Price: $2091		 1U 17" dual rails (1x Local + 1x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
3 console
(1x Local + 2x Remote)		 104 KB w/ TOUCHPAD  & Numeric Keypad LCD1U17-21-M83-n
Price: $2318		 1U 17" dual rails (1x Local + 2x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
4 console
(1x Local + 3x Remote)		 104 KB w/ TOUCHPAD  & Numeric Keypad LCD1U17-21-M84-n
Price: $2545		 1U 17" dual rails (1x Local + 3x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
16 Port  KVM Switch 2 console
(1x Local + 1x Remote)		 104 KB w/ TOUCHPAD  & Numeric Keypad LCD1U17-21-M162-n
Price: $2500		 1U 17" dual rails (1x Local + 1x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
3 console
(1x Local + 2x Remote)		 104 KB w/ TOUCHPAD  & Numeric Keypad LCD1U17-21-M163-n
Price: $2727		 1U 17" dual rails (1x Local + 2x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
4 console
(1x Local + 3x Remote)		 104 KB w/ TOUCHPAD  & Numeric Keypad LCD1U17-21-M164-n
Price: $2955		 1U 17" dual rails (1x Local + 3x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
 DB-15 Matrix KVM With IP Remote
 KVM Port   KVM Console  Keyboard Type Part # Description
8 Port  KVM Switch 3 console
(1x Local + 1x Remote + 1x IP)		 104 KB w/ TOUCHPAD  & Numeric Keypad LCD1U17-21-M83IP-n
Price: $2477		 1U 17" dual rails (1x Local + 1x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
4 console
(1x Local + 2x Remote + 1x IP)		 104 KB w/ TOUCHPAD  & Numeric Keypad LCD1U17-21-M84IP-n
Price: $2705		 1U 17" dual rails (1x Local + 2x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
4 console
(1x Local + 1x Remote + 2x IP)		 104 KB w/ TOUCHPAD  & Numeric Keypad LCD1U17-21-M84IP2-n
Price: $2864		 1U 17" dual rails (1x Local + 1x Remote + 2x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
16 Port  KVM Switch 3 console
(1x Local + 1x Remote + 1x IP)		 104 KB w/ TOUCHPAD  & Numeric Keypad LCD1U17-21-M163IP-n
Price: $2886		 1U 17" dual rails (1x Local + 1x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
4 console
(1x Local + 2x Remote + 1x IP)		 104 KB w/ TOUCHPAD  & Numeric Keypad LCD1U17-21-M164IP-n
Price: $3114		 1U 17" dual rails (1x Local + 2x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
4 console
(1x Local + 1x Remote + 2x IP)		 104 KB w/ TOUCHPAD  & Numeric Keypad LCD1U17-21-M164IP2-n
Price: $3273		 1U 17" dual rails (1x Local + 1x Remote + 2x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
                                                                   OPTIONS
Part # & Price  Description of Option
-12VDC
Price : $171		 Add 12V DC power supply
-24VDC
Price : $171		 Add 24V DC power supply
-48VDC
Price : $171		 Add 48V DC power supply
-HDMI
Price : $114		 Add HDMI Input with built in Speaker
-DVI
Price : $64		 Add DVI-D Input

Back to top



Toll Free : 1-888-865-6888    Fax : 510-226-8968    Email :  sales@RackmountMart.com



Home    |   Buy Online   |   About Us  |    Contact Us    |    Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Technology  Inc is not responsible for any typographical errors. Specifications subject to change without notice.  Legal.
