   1U Rackmount LCD Monitor Keyboard Drawer AND RACKMOUNT KVM Switch
                                                 Model  LCD1U17-24

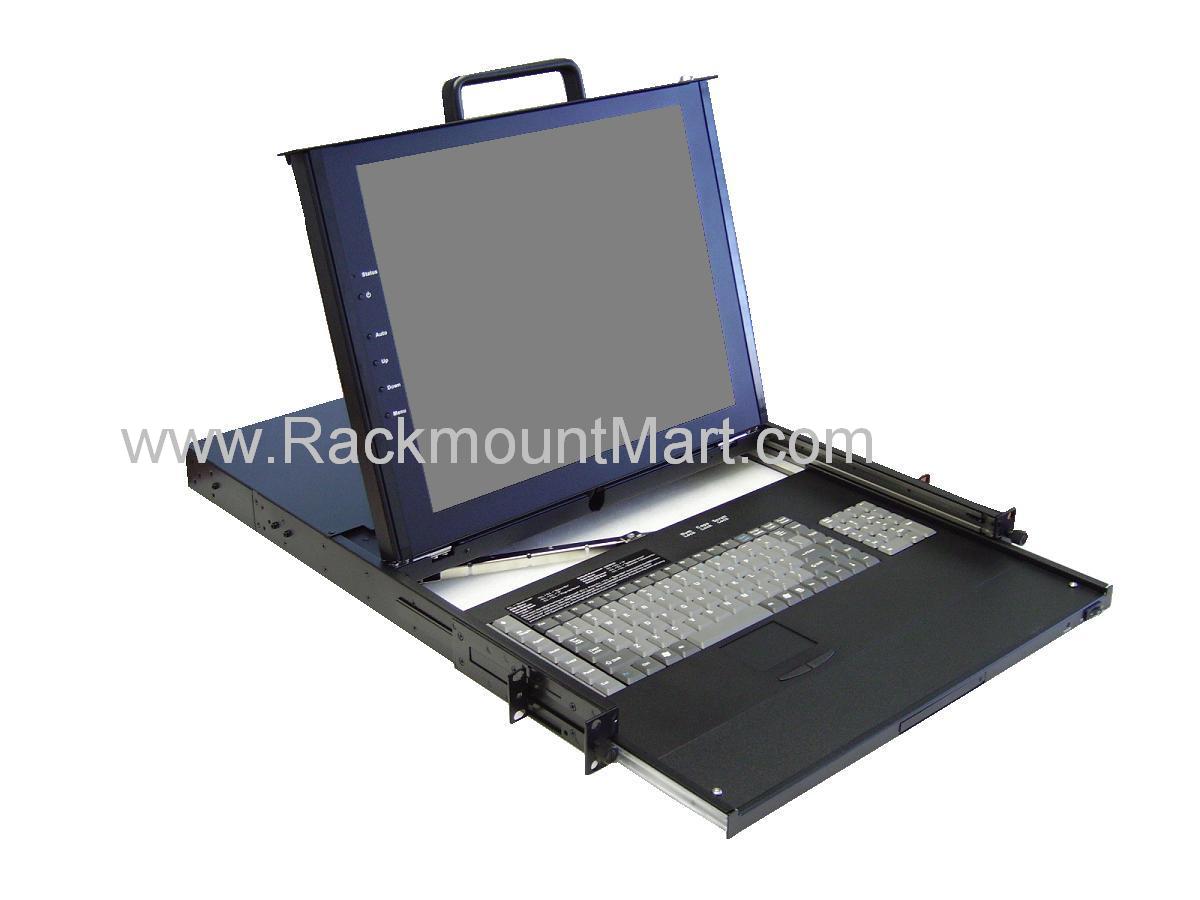

  SUN DUAL SLIDE  Short Depth 1U Rackmount 17" TFT LCD Monitor Keyboard Drawer
                 ( TAA compliant & UL Listed )  with Combo PS2 & USB interface
                   Optional  8 Port KVM or 16 port KVM  /  DVI Input / DVI KVM
                                                     Only 17.7" / 450mm Deep for Single port version

Special space saving design : The Dual Slide technology allows user hide the keyboard and still view
                         through the screen even if the rack door is closed .  UL Listed & RoHS Compliant

Overview :

LCD1U17-24 17" LCD Rack Console enhances secure and compact centralized server control. Independently sliding rails enable the high-grade 17" LCD to remain displayed even with the keyboard is stored. With this slim 1U design, the SUN LCD Rack Console fits  standard 19-inch, 4-post rack and works with any server or KVM switch. This LCD Rack Console offers an affordable SUN solution with  reliability & quality .

Features :

  • SUN Dual Slide Rack console with optional KVM

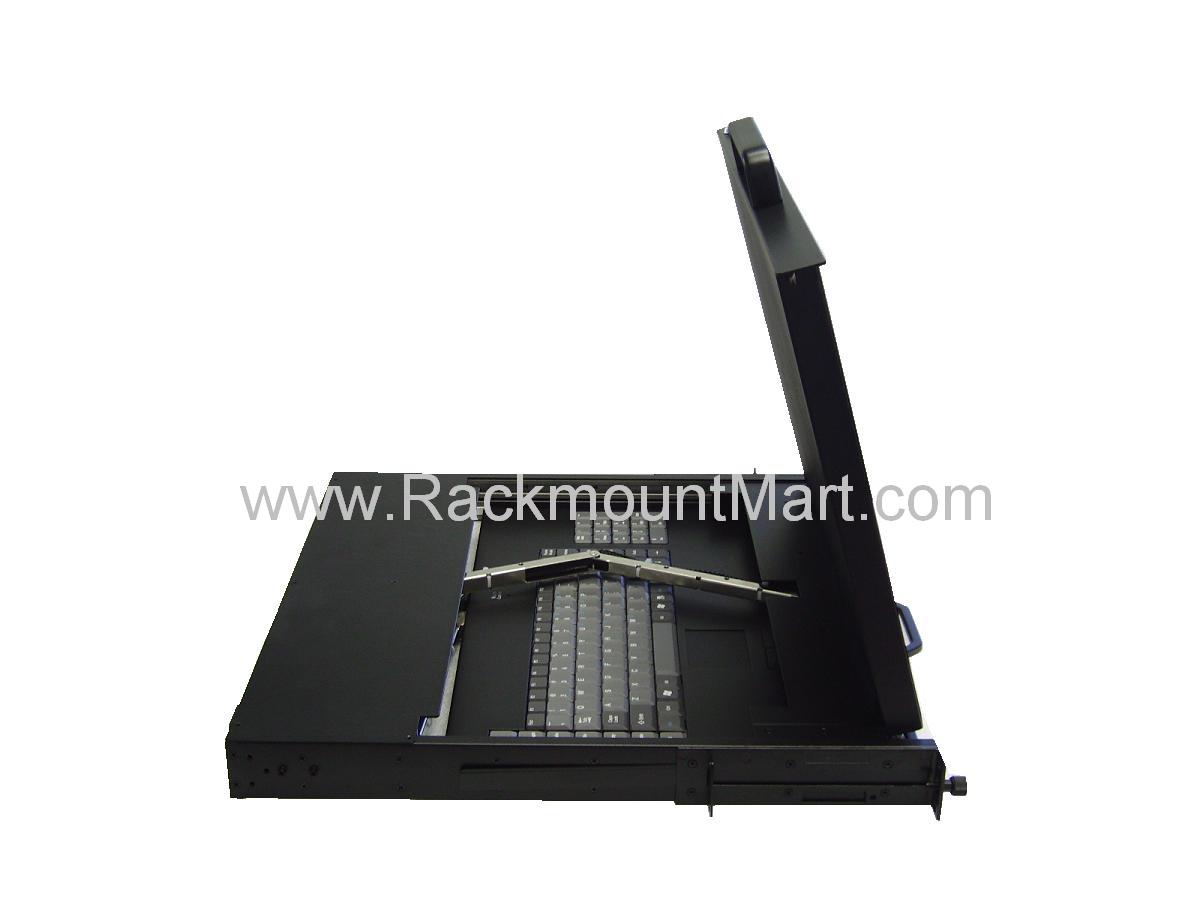

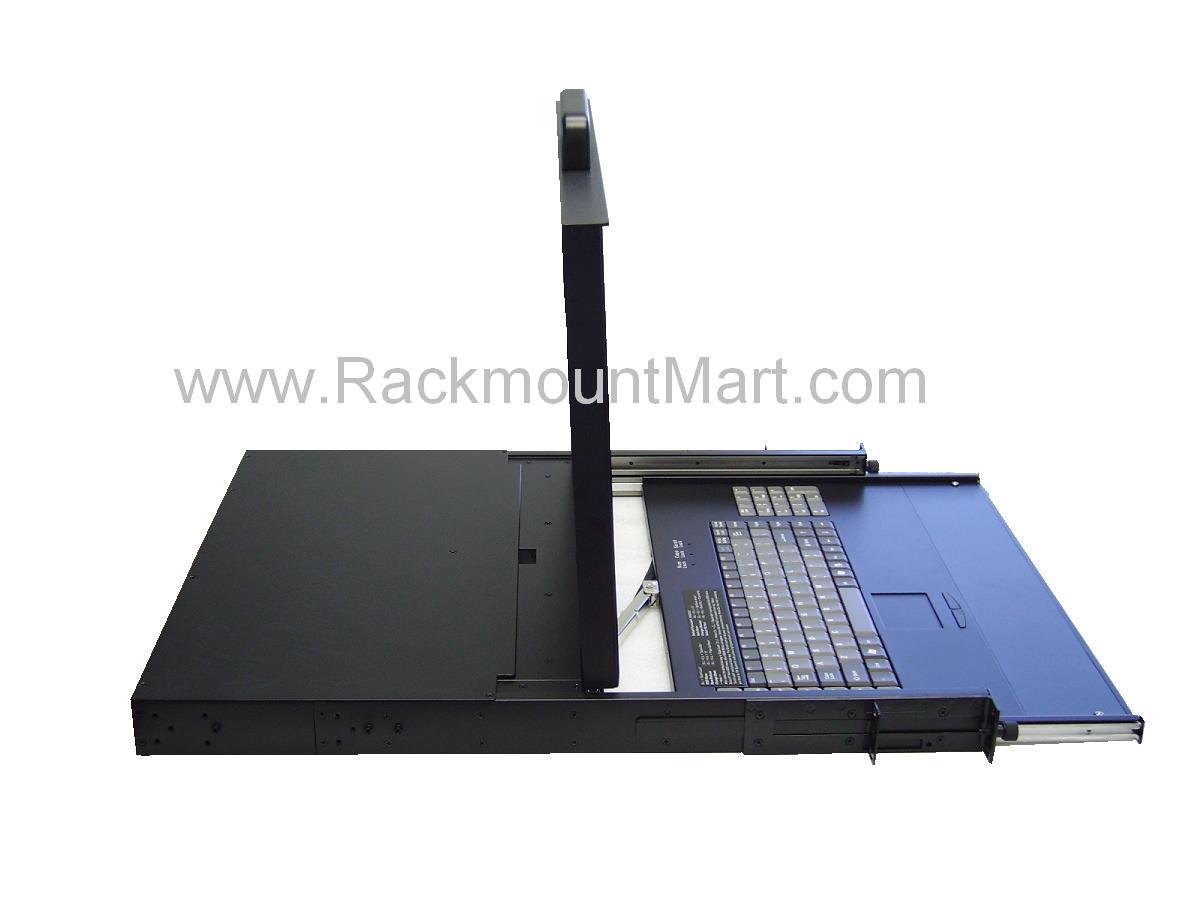

  • Dual Slide KVM rack Drawer  : One pair of rails for Panel and  one pair of rails for Keyboard tray so that Panel and Keyboard can be moved separately
  • Utilizes just 1U rack space
  • Compatible with all KVM switching systems for multiple server access
  • Adjustable to various rack depth from 45cm up to 103cm
  • Plug and play installation requires no change to the installed base
  • 17"  high grade TFT LCD Display
  • Panel protected by tempered glass
  • Hidden handle for Keyboard tray
  • Installs quickly and easily
  • RoHS Compliant
  • Multi-platform :Support PS/2, SUN and USB
  • Support Sun native resolution
  • Durable keyboards (touchpad or Cherry trackball)
  • Support 15 various keyboard languages
  • Bright Active Matrix TFT Display
  • OSD function (On Screen Display) for LCD display and KVM switch
  • Optional Rear extension bracket up to 1030mm
  • Optional DC Input power adapter  /  DVI-D Input






                             * Click to enlarge


 SPECIFICATION
Display Size 17"
Panel Type High Grade Active Matrix TFT LCD

Resolutions

Maximum Resolution up to 1280 x 1024

Pixel Pitch

Supports 0.264mm 2.264mm

Viewing Angle

 Right-Left view 65-75
 Up-Down View 45-60

Contrast Ratio

 450 : 1

Brightness

White 250cd/m2

Back Light

Four Lamps for Back Light

Supported Colors

up to 16.2 M  (6-bit with FRC)

Keyboard

106 Keys with Numeric Key pad & touchpad Keyboard

Video Input :

Analog RGB input

Sync :

45~80KHZ

Input Connector :

 Video HDD15 K/M MiniDin6

Power Source

100-240 VAC input

Power Consumption

Panel:19.05 watts
Drawer: total 25w

Temperature

 Operate 0°~ 50° C / 32° ~122°F
 Storage-20° - 60° C / -4° - 140°F

Humidity

 10%~90%RH

Response Time

Rising Time 2-6ms
Decay Time 14-24ms

Dimension :

Single Port Model :
17.5" x 17.7" x 1.7"  (W X D X H)
8/16 port model :
17.5" x 22.4" x 1.7"  (W X D X H)

Chassis Construction :

Heavy-duty steel materials

Certification

CE / FCC ,  UL / CUL / C-Tik / TAA compliant

 Dimension for Single Port model


Dimension for 8 / 16 Port KVM model



      *click on above picture for enlarged view

               Gallery






 Download User Manual
 Download Hot key Command List

 KVM INFORMATION :

  KVM Rear View and Connection Diagram


 8-DVI Rear View (Click to enlarge)

 Ordering information :

  Single Port KVM PS2 & USB Combo interface
  Part # Description
 LCD1U17-24-n
1U Dual-Slide SUN Rack monitor 17" TFT LCD Monitor Keyboard Drawer with VGA + **DVI input , SUN hot-key, touchpad and *1 USB 6-ft cable included, Black
  8 Port  KVM / PS2 or Optional PS2 & USB Combo interface
  Part # Description
 LCD1U17-24-8KVM-n

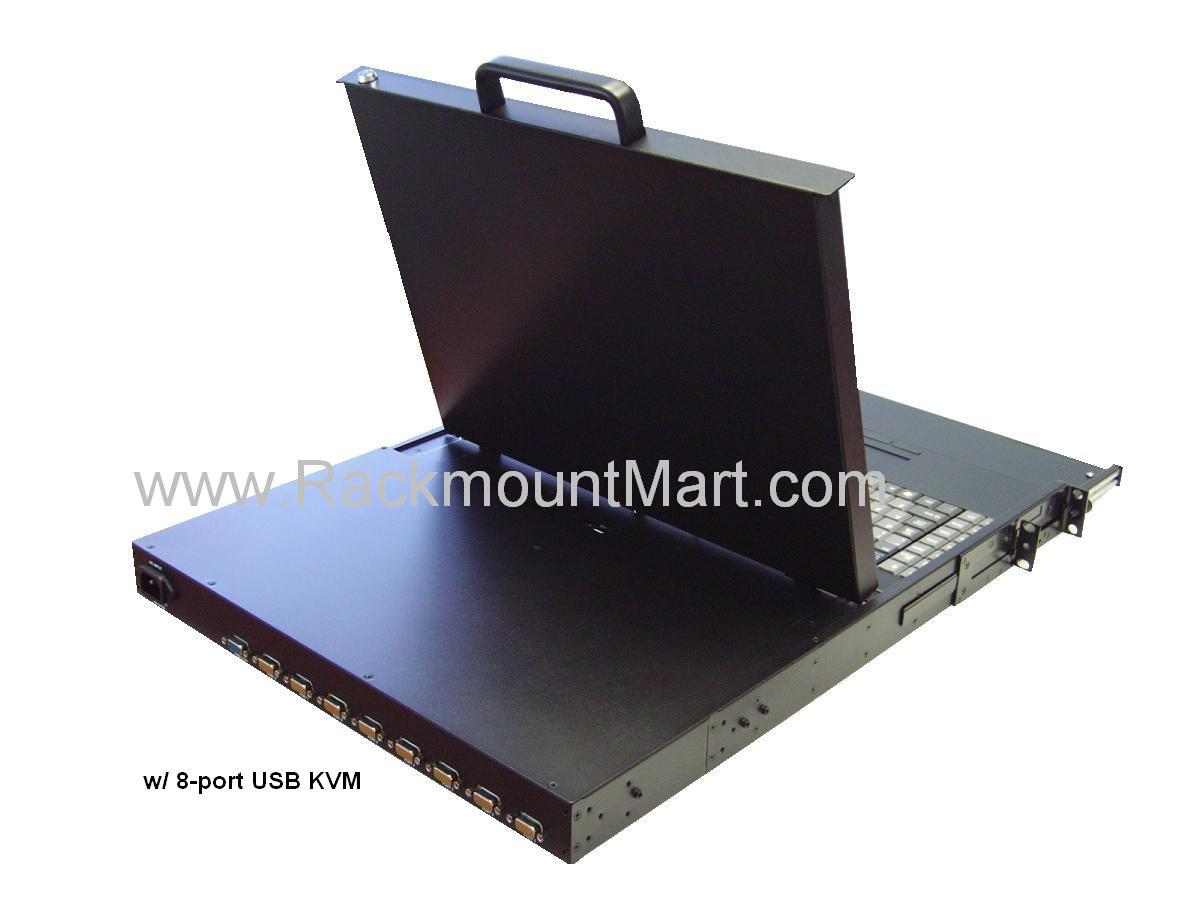

1U Dual-Slide SUN Rack monitor 17" TFT LCD Monitor Keyboard Drawer with SUN hot-key, touchpad & 8 port USB KVM and total of 8 x USB 6-ft KVM cables included, Black. RoHS Compliant
 LCD1U17-24-8DVI-n
1U Dual-Slide SUN Rack monitor 17" TFT LCD Monitor Keyboard Drawer with SUN hot-key, touchpad & 8 port DVI KVM and total of 8 x DVI & USB KVM cables included, Black. RoHS Compliant
  16 Port  KVM / PS2 or Optional PS2 & USB Combo interface
  Part # Description
 LCD1U17-24-16KVM-n
1U Dual- Slide SUN Rack monitor 17" TFT LCD Monitor Keyboard Drawer with SUN hot-key, touchpad & 8 port USB KVM and total of 8 x USB 6-ft KVM cables included, Black. RoHS Compliant
  Options
  Part # Description
 -DVI
Add 1 x DVI-D Input
-TRB
Add Touch Screen
-DC12
Add 12V DC power supply        DC sheet
-DC24
Add 24V DC power supply        DC sheet
-DC48
Add 48V DC power supply        DC sheet
-DC125
Add 125V DC power supply
 LCD-A4011
Add 6 ft USB Cable
 LCD-A4012
Add 10 ft USB Cable
 LCD-A4013
Add 15 ft USB Cable
