1U/1.5U Rackmount Monitor Keyboard Drawer and KVM Switch :
Part # LCD1U19-04

                         1U SUN Solaris Compatible Rackmount 19" TFT LCD Monitor Keyboard Drawer
                                 Optional 8 port / 16 port DB-15 KVM Switch / KVM Over IP / CAT5 KVM
     Optional 16 port / 32 port High Density CAT5 KVM or CAT.5 KVM Over IP for Local / Remote Access

              Compatibility with the following SUN Servers & Solaris Servers have been certified by SUN-Microsystems :
                           SUN Server -       Entry Level Server - V100 , V120, V240 & V440 , Middle Lever Server - V890
                           Solaris Server -   8, 9 & 10 Operating Systems

                                      General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Compatible with SUNs, IBMs, HPs, DELLs and
Mix PCs with USB-enable

Server Side Interface

HD15 VGA, USB Type A for
KB/MS

Support Platform

Solaris, MS Windows 2000/XP, Linux and
SCO Unix

Rack Mounting

Adjustable ranges from 15.3" to 33.2"
(390 to 845mm)

                                                  LCD Screen

LCD Type

Samsung Grade A 19" Industrial
              TFT LCD Panel

Display Size

19 inch diagonal

Resolutions

-1280 x 1024 native graphic resolution
-Screen will sync with mist SUN resolution
including 1152 x 900 @66 or 76Hz

Response time

Tr =1.3ms / Tf =3.7ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.294mm (H) x 0.294mm (W)

Panel color

16.7 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

Video [S-video + Composite (RCA)] , DVI-D,
BNC [S-video + BNC]      More Details

LCD MTBF

50,000 hrs

                                     Keyboard & Pointing Device

-USB connector
-3 button with 15mm trackball mouse
-Incorporate SUN keys including Stop, Cut,
Paste, Compose, Copy and Help
-US layout version only

                                   Keyboard Details

    Integrated High Density CAT.5 KVM Switch Option

KVM port

16 port or 32 port

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM) via RJ-45 connection

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM) via RJ-45 connection

Cascade Expansion

Up to 256 ports/servers by 8 level cascade

                                       More Details

      Cost efficient Integrated DB-15 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status
LED

Cascade Expansion

Up to 128 ports/servers

USB Type Interface       More Details

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

VGA HD15, analog RGB, USB type A,
support hot-plugging

Support Platform

MS Windows 2000/XP, Solaris and SCO
Unix

KVM cable

USB KVM cable with 6, 10, 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet
option

                       Optional Accessories & Peripheral

Details

                             Package Content

Package Content

See user manual of the respective version listed above

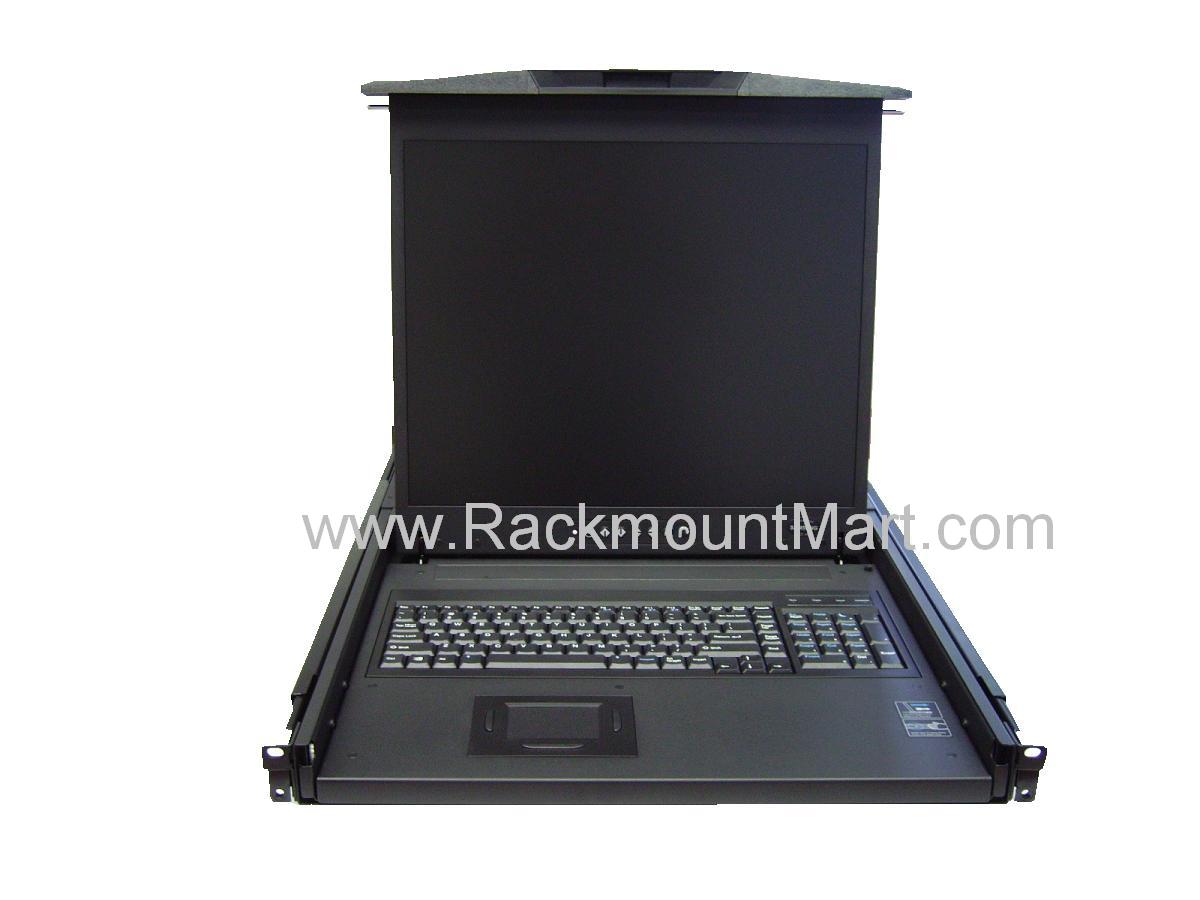

Front View of LCD1U19-04

             *click on photo for enlarged view



   User Manual

KVM SUPPORT

Single Product Sheet

Installation Guide

USB DB-15 local console KVM only

USB CAT6 local console KVM only

USB DB-15 (local + remote) KVM

USB CAT6 (local + remote) KVM

USB DB-15 (local + IP) KVM

USB CAT6 (local + IP) KVM

      Free Ground Shipping *Click for details


                                Power Supply

-Remote adapter : 110V - 220 V AC Input , 12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter : 6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V    DC input

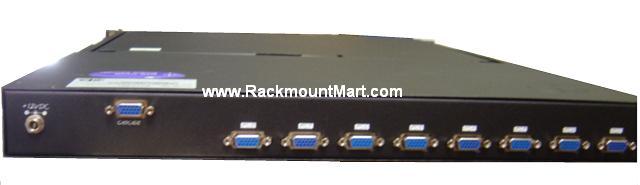

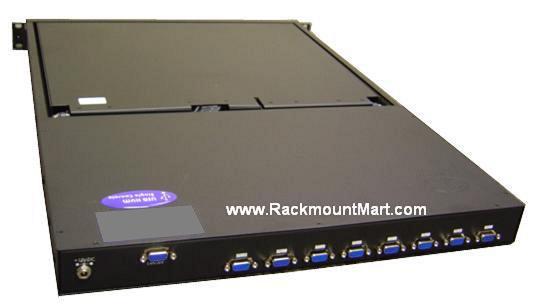

                                 Rear I/O Connector

Integrated KVM

8 or 16 KVM ports : HD15 female

IP console port : RJ45 type (IP KVM model )

Remote console port: RJ45 type (2-console model)

Serial port   : DB9 (IP KVM model)

Virtual Device port : USB type B (IP KVM model)

USB cascade port : HD15 female

DC power input Plug-round type

Without KVM

Console port  : HD 15 female

DC power input : Plug-round type

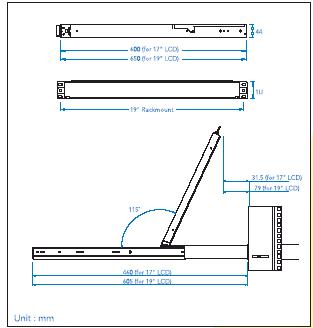

                                  Mechanical

Product Dimension

17.4"(W) x 1.73"(H) x 25.6"(D) /
44.2(W) x 4.4(H) x 65 (D)cm

Humidity Rage 5~90%, non condensing

Operating Temperature Rage 32F ~ 122F

Elevation Rage Ground level to 10,000 ft

                              Regulatory Approval

       FCC , CE , VCCI

LCD Drawer & KVM Benefits :

High Density Cat5 KVM with either 16 or 32 ports in 1U of rack space
Cost efficient DB-15KVM integration
Direct support for SUN Micro 1152 x 900 native resolution
Video auto-adjust for optimum image
104 key notebook keyboard with full numerical pad and SUN function
Mix PS/2 , USB & SUN with Multi-Platform switch capability
Secure remote user access across the web wide web via optional IP console

Features :

1U rackmount drawer with SAMSUNG Grade A 19" LCD Panel
Slide rails with fixed positions to prevent keyboard movement while typing
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
Directly compatible with SUN & USB server
Automatic detection of SUN Server resolution 1152 x 900 @ 66 or 76Hz
SAMSUNG 19" Grade A LCD Panel
Compatible with SUN, Apple, IBM, Dell, HP and USB Server
104-key Sun Compatible keyboard with 3-button trackball support SUN keys including STOP, HELP, AGAIN, PROPS, UNDO, FIND, OPEN, CUT, PASTE and FRONT KEY
Fits all current SUN racks. Adjustable mounting brackets compatible with SUN rack depths of 24" to 36"
Easy operation : Simply connect the USB keyboard, mouse and VGA monitor to servers with USB cables
Unique mechanical design to maximize rack mountable space
Adjustable mounting bracket from 15.4"(390mm) to 31.1"(790mm)(front to rear 19" mounts), fits any standard 19" server rack
Anodized aluminum front panel
Sliding rails will self-lock when pulled all the way out
Built in on screen display controlled by integral membrane switches
Allow adding or removing connected PCs without powering down the USB KVM switch of the PCs
Power saving feature for prolonging the lift of LCD panel
Standard D-sub 15-pin VGA input connector
12V 5A remote power adapter (Single power source)
EMC shielding around the monitor housing to minimize interference
All mounting hardware included
Optional : S-Video and Composite video input / Touch Screen, , 12V/24V/ 48V DC input adaptor ,
Speaker / DVI Input / Micro switch / LCD Membrane / Front Panel / Internal Power Supply

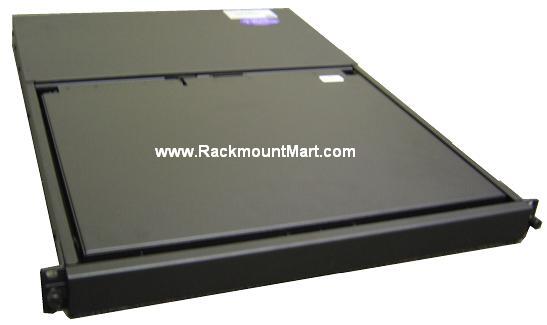

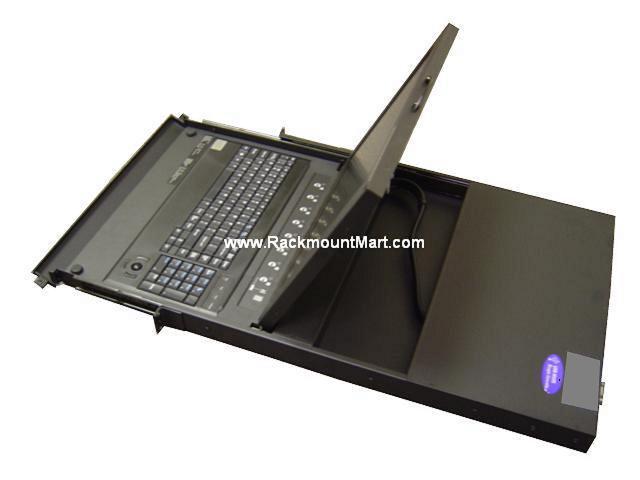

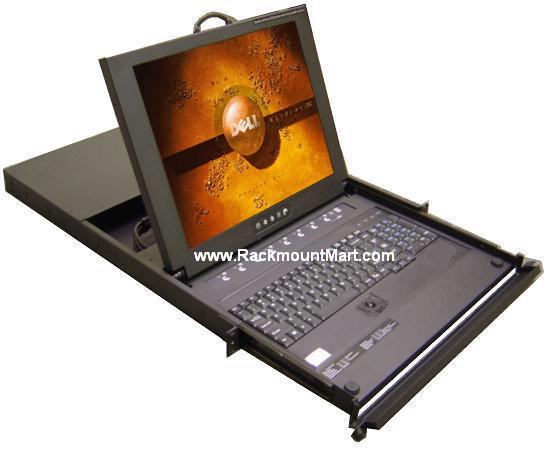

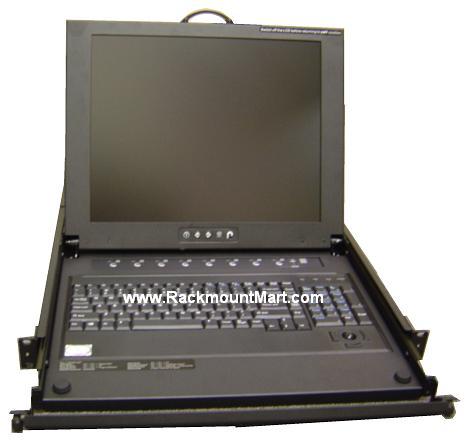

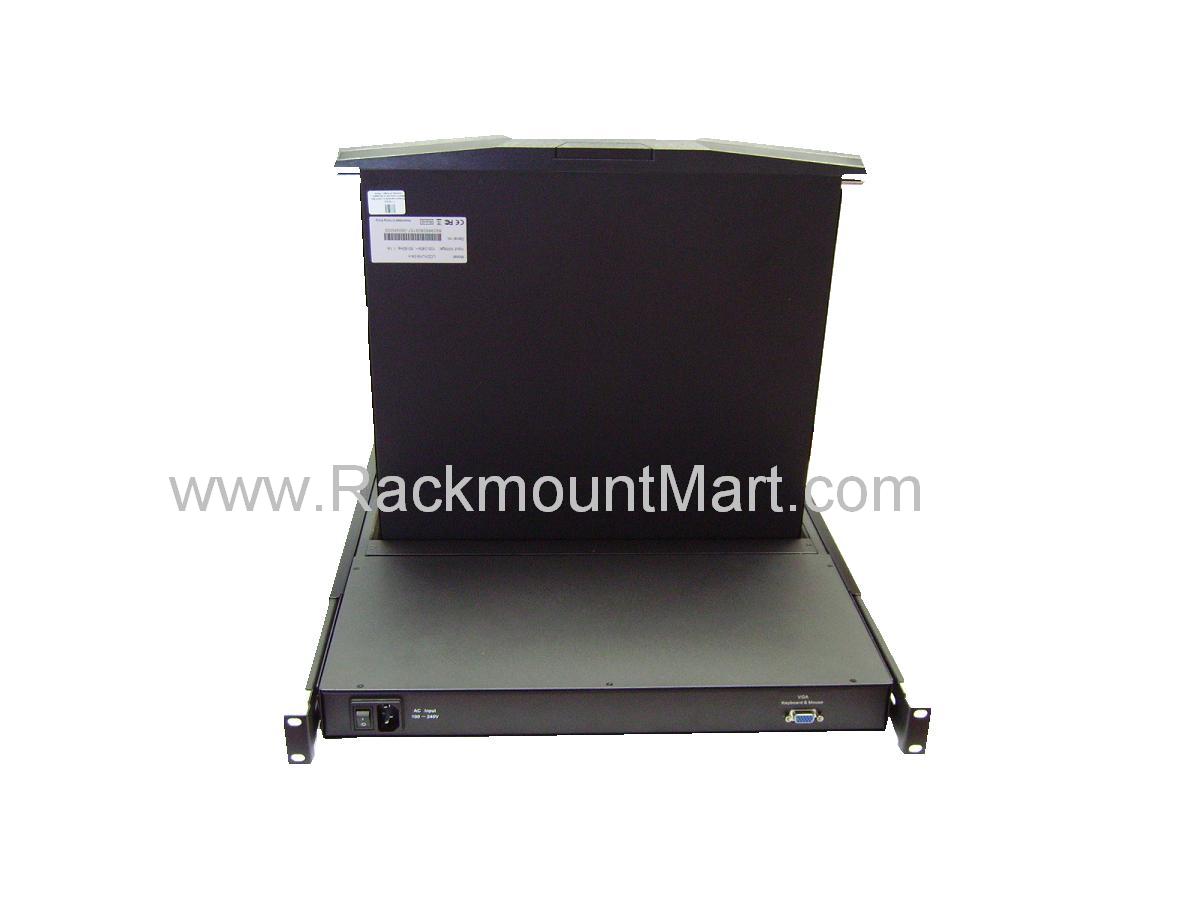

More photos - (click on the photos for enlarged views)

                                           Integrated wiith Standard DB-15 KVM Switch Only

          Cost efficient DB-15 KVM OPTIONS - with either 8 or 16 ports , cascade up to 128 servers

Local Console DB-15 USB KVM Switch :
       8 Port KVM - LCDK1020 Details
     16 Port KVM - LCDK1021 Details

                                                 Integrated with High Density CAT.5 KVM Switch Only

       High Density RJ-45 CAT5 KVM OPTIONS - with either 16 or 32 ports , cascade up to 256 servers

Local Console High Density CAT.5 KVM Switch :
       16 Port KVM - LCDK1043 Details
       32 Port KVM - LCDK1044 Details Local + Remote Console High Density CAT.5 KVM Switch :
              16 Port KVM - LCDK1045 Details
              32 Port KVM - LCDK1046 Details

Local + IP Console High Density CAT.5 IP KVM Switch :
              16 Port KVM - LCDK1047 Details
              32 Port KVM - LCDK1048 Details

                                                                                                                                                                            Back to top


     Optional Accessories

Optional Video input
   -S-Vdieo + Composite Video / DVI-D / BNC
                Details 48V / 24V / 12V DC Power
   Input Range        : 10~36V (DC-12V, DC-24V model)
                              36~75V (DC-48V model)
   DC power Output : DC 12V    Voltage Accuracy: +/- 1% (Max.)
   Safety                    : Continuous short circuit protection

                       Details

USB KVM Cables & Cascade Cables in various
length
                                    Details USB Dongles & CAT5 Cables in various
length

             Details

Options
- Speaker                                 - Front Panel
- Internal Power Supply          - Micro Switch
- LCD Membrane
                               *** Please contact us for details

                                                                                                                                                                           Back to top
Ordering information :

KVM Support Keyboard Type Part # Description

NO KVM ( Single Port )

Single Port 3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-n
Price : $1121 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad, 1 X 6-ft 2-in-1 USB KVM cable included. Black

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-b
Price : $1121 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad, 1 X 6-ft 2-in-1 USB KVM cable included. Black.

Single Console KVM ( Local console, 8 / 16 / 32 port KVM )

DB-15 KVM ( Local console DB-15 KVM)

Local console DB-15 8 Port   KVM Switch 3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-8KVM-n
Price: $1530 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft 2-in-1 USB KVM cable included. Black

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-8KVM-b
Price: $1530 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft 2-in-1 USB KVM cable included. Black.

Local console DB-15 16 Port   KVM Switch 3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-16KVM-n
Price: $1750 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft 2-in-1 USB KVM cable included. Black

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-16KVM-b
Price: $1750 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft 2-in-1 USB KVM cable included. Black.

High Density CAT5 KVM ( Local console High Density CAT5 KVM)

Local console High Density 8 Port CAT5 KVM Switch 3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-U8KVM-n
Price: $1848 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and Local console High density 8 port CAT6 KVM switch (AND 8 pcs of USB dongles) Black Details->

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-U8KVM-b
Price: $1848 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and Local console High Density 8 port CAT6 KVM switch (And 8 pcs of USB dongles). Black. Details->

Local console High Density 16 Port CAT5 KVM Switch 3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-U16KVM-n
Price: $1939 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and Local console High density 16 port CAT6 KVM switch (AND 8 pcs of USB dongles) Black Details->

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-U16KVM-b
Price: $1939 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and Local console High Density 16 port CAT6 KVM switch (And 8 pcs of USB dongles). Black. Details->

Local console High Density 32 Port CAT5 KVM Switch 3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-U32KVM-n
Price: $2455 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and Local console High density 32 port CAT6 KVM switch (AND 16 pcs of USB dongles) Black Details->

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-U32KVM-b
Price: $2455 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and Local console High Density 32 port CAT6 KVM switch (And 16 pcs of USB dongles). Black. Details->

2 Console KVM ( Local & Remote Console , 16 / 32 port KVM)

DB-15 KVM ( 2 Consoles, Local & Remote CAT5 KVM )

Local & Remote console DB-15 8 Port   KVM Switch 3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-8KVM2-n
Price: $1720 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad & (Local + Remote) with DB-15 8 Port KVM switch, 8 X 6-ft 2-in-1 USB KVM cable included. Black

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-8KVM2-b
Price: $1720 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad & (Local + Remote) with DB-15 8 Port KVM switch, 8 X 6-ft 2-in-1 USB KVM cable included. Black

Local & Remote console DB-15 16 Port   KVM Switch 3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-16KVM2-n
Price: $1902 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad & (Local + Remote) with DB-15 16 Port KVM switch, 16 X 6-ft 2-in-1 USB KVM cable included. Black

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD1U19-04-16KVM2-b
Price: $1902 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad & (Local + Remote) with DB-15 16 Port KVM switch, 16 X 6-ft 2-in-1 USB KVM cable included. Black

Local & IP consoles - 8 DB-15 Port KVM Via IP Switch 3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys     LCD1U19-04-8KVM2IP-n
Price:$2023 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad & (Local + IP) with DB-15 8 port KVM Over IP switch, 8 X 6-ft 2-in-1 USB KVM cable included. Black

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys     LCD1U19-04-8KVM2IP-b
Price:$2023 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad & (Local + IP) with DB-15 8 port KVM Over IP switch, 8 X 6-ft 2-in-1 USB KVM cable included. Black

Local & IP consoles - 16 DB-15 Port KVM Via IP Switch 3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys     LCD1U19-04-16KVM2IP-n
Price:$2212 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad & (Local + IP) with DB-15 16 port KVM Over IP switch, 16 X 6-ft 2-in-1 USB KVM cable included. Black

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys     LCD1U19-04-16KVM2IP-b
Price:$2212 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad & (Local + IP) with DB-15 16 port KVM Over IP switch, 16 X 6-ft 2-in-1 USB KVM cable included. Black

High Density CAT5 KVM ( 2 Consoles, Local & Remote CAT5 KVM )

Local & Remote consoles - 8 Port High Density CAT5 KVM Switch
3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys   LCD1U19-04-U8KVM2-n
Price: $2076 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad & (Local + Remote) with High Density 8 port CAT6 KVM switch (AND 8 pcs of USB dongles) Black Details->

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys   LCD1U19-04-U8KVM2-b
Price: $2076 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad & (Local + Remote) with High Density 8 port CAT6 KVM switch (And 8 pcs of USB dongles). Black. Details->

Local & Remote consoles - 16 Port High Density CAT5 KVM Switch
3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys   LCD1U19-04-U16KVM2-n
Price: $2167 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad & (Local + Remote) with High Density 16 port CAT6 KVM switch (AND 8 pcs of USB dongles) Black Details->

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys   LCD1U19-04-U16KVM2-b
Price: $2167 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad & (Local + Remote) with High Density 16 port CAT6 KVM switch (And 8 pcs of USB dongles). Black. Details->

Local & Remote consoles - 32 Port High Density CAT5 KVM Switch
3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys   LCD1U19-04-U32KVM2-n
Price: $2682 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad & (Local + Remote) with High Density 32 port CAT6 KVM switch (AND 16 pcs of USB dongles) Black Details->

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys   LCD1U19-04-U32KVM2-b
Price: $2682 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad & (Local + Remote) with High Density 32 port CAT6 KVM switch (And 16 pcs of USB dongles). Black. Details->

Local & IP consoles - 8 Port High Density CAT5 KVM Via IP Switch 3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys     LCD1U19-04-U8KVM2IP-n
Price:$2318 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad & (Local + IP) with High Density 8 port CAT6 KVM Over IP switch (AND 8 pcs of USB dongles) Black Details->

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys     LCD1U19-04-U8KVM2IP-b
Price:$2318 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad & (Local + IP) with High Density 8 port CAT6 KVM Over IP switch (AND 8 pcs of USB dongles) Black Details->

Local & IP consoles - 16 Port High Density CAT5 KVM Via IP Switch 3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys     LCD1U19-04-U16KVM2IP-n
Price:$2394 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad & (Local + IP) with High Density 16 port CAT6 KVM Over IP switch (AND 8 pcs of USB dongles) Black Details->

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys     LCD1U19-04-U16KVM2IP-b
Price:$2394 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad & (Local + IP) with High Density 16 port CAT6 KVM Over IP switch (AND 8 pcs of USB dongles) Black Details->

Local & IP consoles - 32 Port High Density CAT5 KVM Via IP Switch
3-button touchpad SUN compatible Keyboard w/ built-in SUN Hot keys     LCD1U19-04-U32KVM2IP-n
Price:$2924 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad & (Local + IP) with High Density 32 port CAT6 KVM Over IP switch (And 16 pcs of USB dongles). Black. Details->

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys     LCD1U19-04-U32KVM2IP-b
Price:$2924 1U 19" Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad & (Local + IP) with High Density 32 port CAT6 KVM Over IP switch (And 16 pcs of USB dongles). Black. Details->

Option

-12VDC
Price : $171 Add 12V DC power supply

-24VDC
Price : $171 Add 24V DC power supply

-48VDC
Price : $171 Add 48V DC power supply

-DVI
Price : $114 Add DVI-D Input

                                                                                                                                                                              Back to top

              Toll Free : 1-888-865-6888    Fax : 510-226-8968    Email : sales@RackmountMart.com



                                  Home    | Buy Online   | About Us |    Contact Us    |    Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Technology Inc is not responsible for any typographical errors. Specifications subject to change without notice. Legal.
