1U Rackmount LCD Monitor Keyboard Drawer AND RACKMOUNT KVM Switch :

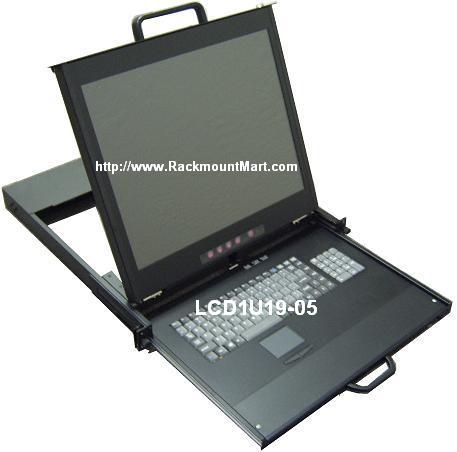

Part #  LCD1U19-05

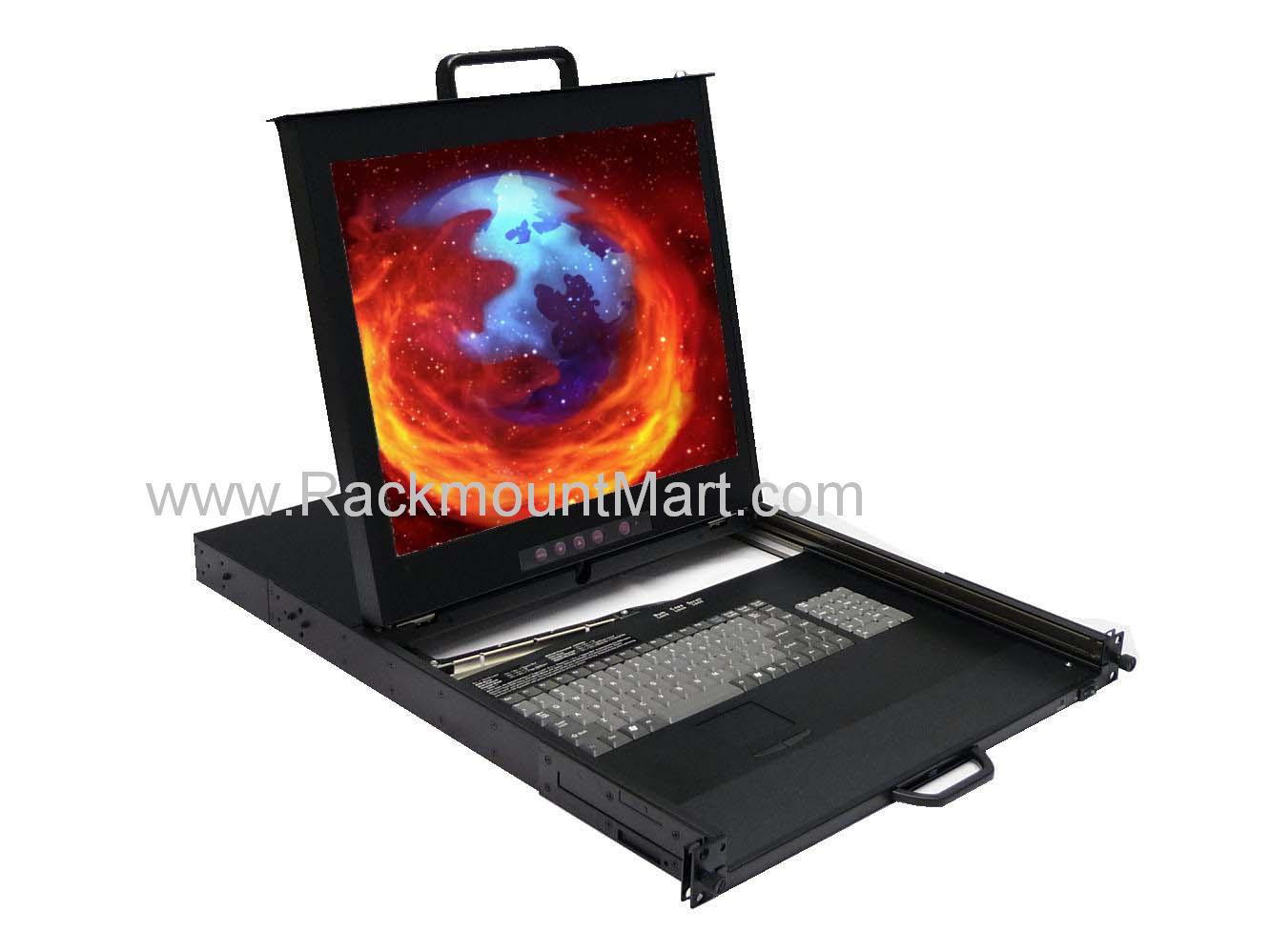

                      DUAL RAILS  Short Depth 1U Rackmount 19" TFT LCD Monitor Keyboard Drawer
                                                           with Combo PS2 & USB interface
                                     OPTIONAL 8 or 16port KVM switch / DVI Input / SUN Hotkey / DVI KVM

             Special space saving design : The dual rail technology allows user hide the keyboard and still view
                               through the screen even if the rack door is closed .  UL Listed & RoHS Compliant

Overview :

LCD1U19-05 19" LCD Rack Console enhances secure and compact centralized server control. Independently sliding rails enable the high-grade 19" LCD to remain displayed even with the keyboard is stored. With this slim 1U design, the LCD Rack Console fits  standard 19-inch, 4-post rack and works with any server or KVM switch. This LCD Rack Console offers an affordable solution with  reliability & quality .

Features :

  • Dual Rail KVM rack Drawer  : One pair of rails for Panel and  one pair of rails for Keyboard tray so that Panel and Keyboard can be moved separately
  • Utilizes just 1U rack space
  • Compatible with all KVM switching systems for multiple server access
  • Adjustable to various rack depth from 45cm up to 103cm
  • Plug and play installation requires no change to the installed base
  • 19" high grade TFT LCD Display
  • Panel protected by tempered glass
  • Hidden handle for Keyboard tray
  • Installs quickly and easily
  • RoHS Compliant
  • Multi-platform :Support PS/2, SUN and USB
  • Operating System :  Dos, Windows , Linux, Novell 3. 12-6, HP UX, SUN
  • Support Sun native resolution
  • Durable keyboards (touchpad or Cherry trackball)
  • Support 15 various keyboard languages
  • Bright Active Matrix TFT Display
  • OSD function (On Screen Display) for LCD display and
    KVM switch
  • Optional Rear extension bracket up to 1030mm
  • Optional DC Input power adapter  / PS2 & USB Combo / DVI /  SUN Hot Key



* Click to enlarge


 SPECIFICATION
Display Size 19"
Panel Type High Grade Active Matrix TFT LCD

Resolutions

Maximum Resolution up to 1280 x 1024

Pixel Pitch

Supports 0.264mm 2.264mm

Viewing Angle

 Right-Left view 140 (Typ)
 Up-Down View 140 (Typ)

Contrast Ratio

 500 : 1

Brightness

White 250cd/m2

MTBF

LCD: 20,000 hours
Keyboard: 10,000,000

Back Light

Four Lamps for Back Light

Supported Colors

up to 16.2 M  (6-bit with FRC)

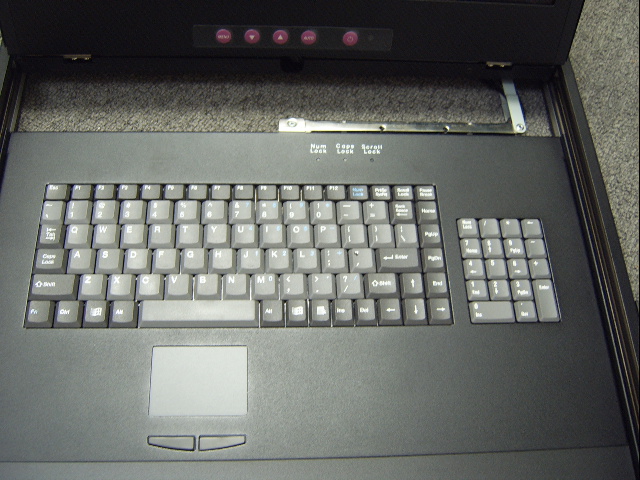

Keyboard

106 Keys with Numeric Key pad &
 touchpad Keyboard

Video Input :

Analog RGB input

Sync :

45~80KHZ

Input Connector :

 Video HDD15 K/M MiniDin6

AC adapter

Input: 100-240V ~ 50/60 Hz 1.7A 50W
Output: 12.0V 4.16A

Power Consumption

16W , 10. 41W for Panel

Temperature

 Operate 0~ 50 C / 32 ~122F
 Storage-20 - 60 C / -4 - 140F

Humidity

 10%~90%RH

Response Time

Rising Time 2ms
Decay Time 10ms

Dimension :

LCD1U19-05-n :
17.5" x 20.1" x 1.7"  (W X D X H)
LCD1U19-05-8KVM-n :
17.5" x 24.9" x 1.7"  (W X D X H)
LCD1U19-05-16KVM-n
17.5" x 24.9" x 1.7" (W X D X H)

Chassis Construction :

Heavy-duty steel materials

Certification

CE / FCC ,  UL / CUL / C-Tik



Download User Manual

  Download Hot Key Command List

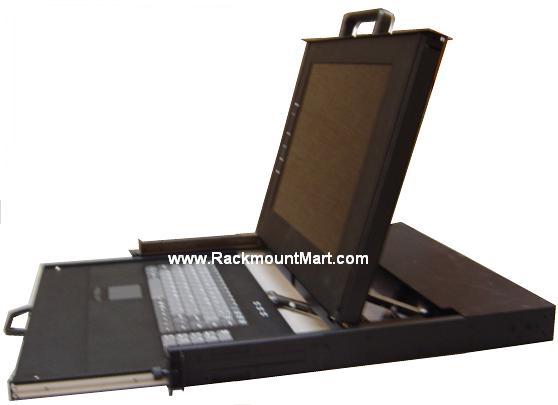

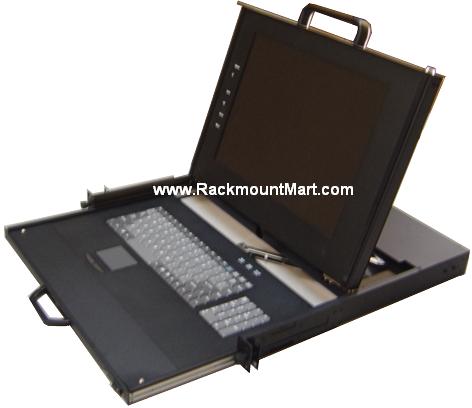

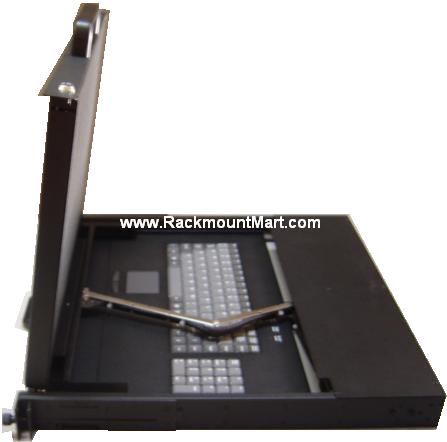

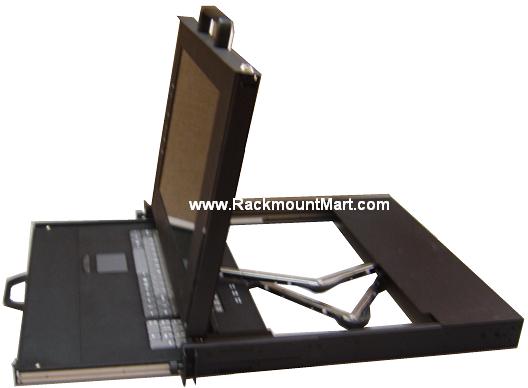

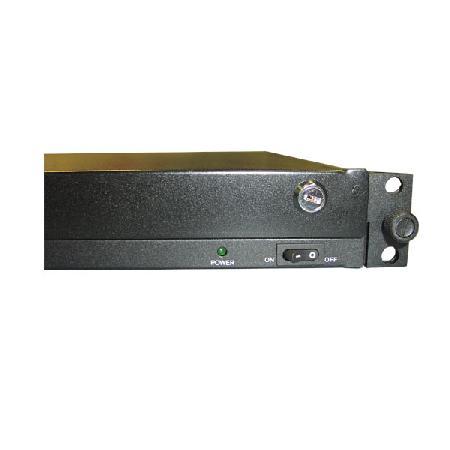

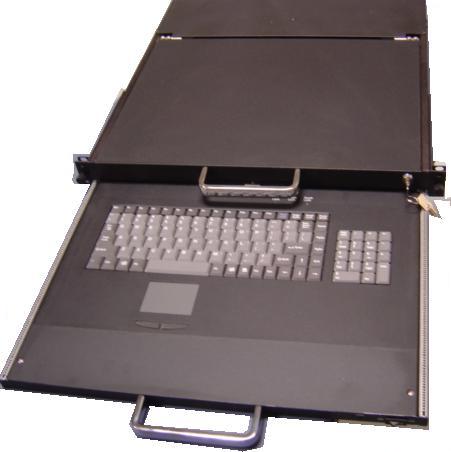

   More Photos : click to enlarge


  Product Sheet
Download Product Sheet
  User Manual
  Download Installation Guide
  Download Connection Diagram
  IP KVM Manual
  IP Quick Setting Guide
Free Ground Shipping( A $55 Value) *Click for details



 KVM INFORMATION :

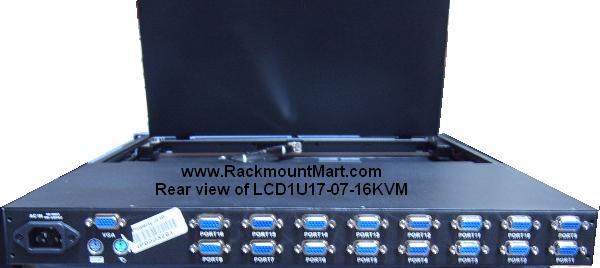

  Combo PS2 USB KVM Rear View and Connection Diagram


 8-DVI Rear View (Click to enlarge)

 Ordering information :

  NO KVM ( Single Port ) / PS2 or Optional PS2 & USB Combo interface
  Part # Description
 LCD1U19-05-n-co-ps2
 Price:$1133
1U Dual-Slide Rack monitor 19" TFT LCD Monitor Keyboard Drawer with VGA + **DVI input , touchpad mouse and COMBO PS2 / USB INTERFACE and *1 PS/2 6-ft cable included, Black
 LCD1U19-05-n-co-usb
 Price:$1133
1U Dual-Slide Rack monitor 19" TFT LCD Monitor Keyboard Drawer with VGA + **DVI input , touchpad mouse and COMBO PS2 / USB INTERFACE and *1 USB 6-ft cable included, Black
 8 Port PS2 & USB Combo / CAT5 / DVI-USB KVM interface
  Part # Description
 LCD1U19-05-8KVM-n-co
 Price:$1286
1U Dual-Slide Rack monitor 19" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 8 port Combo PS2 / USB KVM and total of 8 x customer's choice of PS2 and USB 6-ft KVM cable included, Black RoHS Compliant
 LCD1U19-05-U8KVM-n-co
 Price:$1447.1
1U Dual-Slide Rack monitor 19" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 8 port Combo CAT5 KVM, Black RoHS Compliant. PS2/USB dongles are ordered separately.
 LCD1U19-05-8DVI-n
 Price:$2080
1U Dual-Slide Rack monitor 19" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 8 port DVI KVM switch &USB INTERFACE and 8 x DVI & USB cables included, Black RoHS Compliant
 16 Port PS2 & USB Combo / CAT5 KVM interface
  Part # Description
 LCD1U19-05-16KVM-n-co
 Price:$1489
1U Dual-Slide Rack monitor 19" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 16 port Combo PS2 / USB KVM and total of 16 x customer's choice of PS2 and USB 6-ft KVM cable included, Black RoHS Compliant
 LCD1U19-05-U16KVM-n-co
 Price:$1681.7
1U Dual-Slide Rack monitor 19" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 16 port Combo CAT5 KVM, Black RoHS Compliant. PS2/USB dongles are ordered separately.
 PS2 & USB Combo / CAT5 KVM over-IP interface (Local + IP remote consoles)
  Part # Description
 LCD1U19-05-8KVM2IP-n-co
 Price:$1649.1
1U Dual-Slide Rack monitor 19" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) DB-15 8 port KVM switch & 8 x Combo PS2/USB 6-ft KVM cables included, Black RoHS Compliant
 LCD1U19-05-16KVM2IP-n-co
 Price:$1745.7
1U Dual-Slide Rack monitor 19" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) DB-15 16 port KVM switch & 16 x Combo PS2/USB 6-ft KVM cables included, Black RoHS Compliant
 LCD1U19-05-U8KVM2IP-n-co
 Price:$1861.1
1U Dual-Slide Rack monitor 19" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) 8 port CAT5 KVM switch, Black RoHS Compliant. PS2/USB dongles are ordered separately.
 LCD1U19-05-U16KVM2IP-n-co
 Price:$2095.7
1U Dual-Slide Rack monitor 19" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) 16 port CAT5 KVM switch, Black RoHS Compliant. PS2/USB dongles are ordered separately.
  Options
  Part # Description
 -DVI
 Price:$40
Add DVI-D
 -Sun Hot Key
 Price:$40
Add SUN Hot Keys to Keyboard
-DC12
Price : $120
Add 12V DC power supply        DC sheet
-DC24
Price : $120
Add 24V DC power supply        DC sheet
-DC48
Price : $120
Add 48V DC power supply        DC sheet
-DC125
Call for pricing
Add 125V DC power supply
 LCD-A2001
 Price:$40
Add VGA-USB dongle
 LCD-A2002
 Price:$40
Add VGA-PS2 dongle
 LCD-A4001
 Price:$10.2
Add 6 ft PS2 Cable + USB adapter
 LCD-A4002
 Price:$15.3
Add 10 ft PS2 Cable + USB adapter
 LCD-A4003
 Price:$20.4
Add 15 ft PS2 Cable + USB adapter
 LCD-A4011
 Price:$8.5
Add 6 ft USB Cable
 LCD-A4012
 Price:$11.9
Add 10 ft USB Cable
 LCD-A4013
 Price:$17
Add 15 ft USB Cable
