1U Rackmount Monitor Keyboard Drawer and KVM Switch :
Part # LCD1U19-07-IP /
N119-IP802
/ N119-IP1602 / N119-UIP1602 / N119-UIP3202
1U Stylish & Rugged Rackmount 19" SAMSUNG LCD Monitor Keyboard Drawer with
EITHER
8 port / 16 port DB-15 KVM Over IP Switch
OR
16
port / 32 port High Density CAT5 KVM Over IP
for Local / Remote Access
**** Built-in Combo
PS/2 & USB interface
for selected version
****
Front

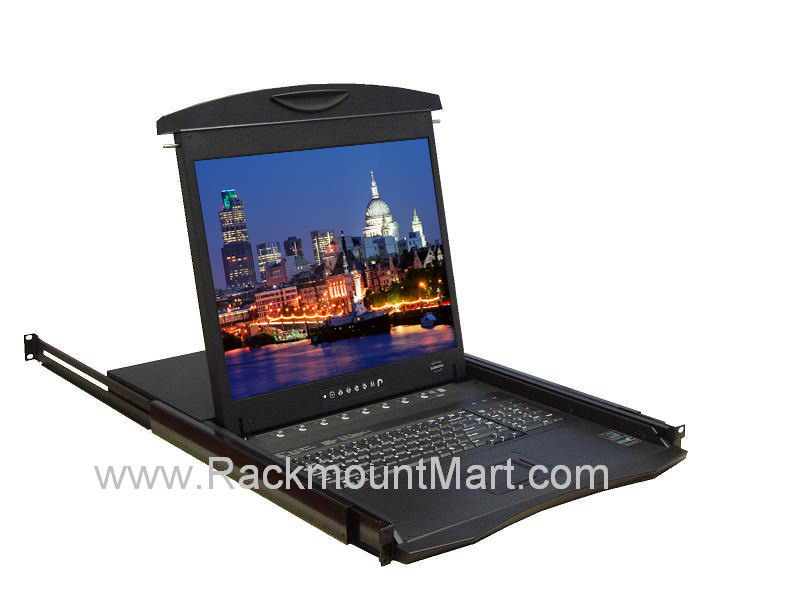

View of LCD1U19-07-IP / N119-IP
*click on photo for enlarged view
|
LCD Drawer & KVM
Benefits
- High Density Cat5 KVM with either 16 or
32 ports in 1U of rack space
- Cost
efficient DB-15KVM integration
-
Stylish Outlook and Rugged design
- Single or "One Man"
installation slides for easy, quick installation
- Built-in Combo PS/2 & USB
interface for selected versions : user can use either PS/2 or USB
input to the LCD by connecting the combo interface of the LCD
with respective type of PS2 or USB KVM cable
/ dongle
- 104 key touchpad or trackball
keyboard with full numerical pad
-
Mix PS/2 , USB & SUN with Multi-Platform
switch capability
- Secure remote
user access across the web wide web via optional IP console
- Slide rails with fixed
positions to prevent drawer movement when typing
- Multi lingual on screen display
menu
|
|
| Special Features :
|
1. LCD interchangeable module Kit :
-17" & 19" LCD Panel interchangeable in the same chassis
-Samsung Grade A panel
-Optional Video , DVI and BNC
inputs |
2. KVM interchangeable module Kit :
-All KVM models are interchangeable in the same chassis
-High density CAT5 KVM are either
16 or 32 ports in 1U of Rack space
-Mix PS/2 & USB with multi-Platform switch
capability |
3. Keyboard interchangeable module Kit :
-Either PS/2 or USB input to the LCD drawer /
keyboard by cable
selection
-Multiple
keyboard language selections with either
touchpad or trackball
-104 key notepad keyboard with full numerical pad |
4.
Mouse
interchangeable module kit
-3
button GlidepointTM touchpad or trackball
interchangeable in same chassis
-Either
PS/2 or USB input to the LCD drawer / keyboard by cable
selection
|
|
5. 2-point lock |
6. Micro
switch for screen auto power off |
| 7. Single
person (One Man ) installation rackmount kit |
8. Carry
handle to release the 2-pt lock |
|
9. 7-button LCD OSD membrane with
a power LED |
10. KVM
membrane |
|
|
General
Information |
|
Form Factor
|
1U Rack mounting on slide-out rails
|
|
Compatibility
|
Multi-platform -
Mix PCs, IBMs, HPs & DELLs
|
|
Server Side Interface
|
| PS2 KVM : |
HD15 VGA,
6-pin Mini DIN for
PS/2 KB/MS |
|
New Combo
Interface KVM: |
Either PS2 or
USB by
cable / dongle selection |
|
|
Rack Mounting
|
Adjustable ranges
from 15.3" to 35.2"
(390 to 895mm)
|
|
LCD Screen |
|
LCD Type
|
 Samsung Grade A 19"
Industrial
Active
Matrix TFT LCD Panel
|
|
Display Size
|
19 inch diagonal
|
|
Resolutions
|
1,280 x 1,024 with
60 / 70 / 75Hz
|
|
Response
time
|
Tr
=1.3ms / Tf = 3.7ms
|
|
Contrast
ratio
|
1000
: 1
|
|
Brightness
|
300
cd/ m2
|
|
Pixel
pitch
|
0.294mm
(H) x 0.294mm (W)
|
|
Panel
color
|
16.7
million display colors
|
|
Viewing
angle
|
160 / 160 (Horiz. / Vert.)
|
|
OSD Control
|
Brightness,
Contrast, Phase & Color, H & V
position,
Auto-tune, Recall & Language
|
|
Signal Input
|
VGA, Analog RGB
|
|
Optional Video Input
|
S-video &
Composite (RCA) / S-Video & BNC /
DVI-D
More Details
|
|
LCD MTBF
|
50,000 hrs |
|
Keyboard
& Pointing Device |
|
Model Nn / Ne
|
Notebook type KB Integrated w Numeric
Keypad & Touchpad
|
|
Model
Nb
|
Notebook type KB Integrated w Numeric
Keypad & Trackball
|
|
|
Keyboard Details
|
|
New Integrated
High Density CAT.5 KVM Switch Option
|
|
KVM port
|
16 port or 32 port
|
|
IP Remote
|
TCP/IP access from anywhere
around the
world (with IP KVM) via RJ-45
connection |
|
Cascade Expansion |
Up to 256
ports/servers by 8 level cascade
|
|
|
More Details
|
|
Cost efficient Integrated DB-15 KVM Switch Option
|
|
KVM port
|
8 port or 16 port , HD15
female
|
|
Port Access
|
Channel button or
hot keys selectable
|
|
Indicators
|
Online (green) and
selected (red) status LED |
|
Cascade Expansion |
Up to 128
ports/servers
|
|
|
PS2
Type Interface
More Details
|
|
IP Remote
|
TCP/IP access from anywhere
around the
world (with IP KVM) |
|
KB/MS Emulation
|
PS/2,
with microprocessor support
hot-plugging
|
|
Server Side Interface
|
VGA HD15, analog
RGB and 2 x 6-pin mini
DIN
|
|
Support
Platform
|
MS Windows
3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and
MS DOS
|
|
KVM cable
|
PS/2 cable with 6,
10 & 15 feet option |
|
Cascade cable
|
Cable to
PS2 KVM switch w/ 2 & 6 feet option
|
|
Power Supply |
|
|
Internal Power Supply : 110V - 220 V AC
Input ,
12V 5A Output
|
|
Rear I/O Connector |
|
Integrated KVM |
|
DB-15 KVM ports : |
HD15
female |
|
IP console port : |
RJ45
type (IP KVM model ) |
|
Remote console port: |
RJ45
type (2-console model) |
|
Serial port : |
DB9
(IP KVM model) |
|
Virtual Device port : |
USB
type B (IP KVM model) |
|
PS/2 cascade port : |
2 Mini
DIN & HD15 female |
|
USB cascade port : |
HD15
female |
|
DC power input |
Plug-round
type |
|
|
Environmental
|
|
Temperature
|
0 to 50
Degree Celsius (Operation)
-25 to 65 Degree Celsius (Storage) |
|
Relative Humidity
|
90%, non
condensing |
|
Shock
|
50G peak
acceleration
(11ms, half since wave) |
|
|
Front View of LCD1U19-07 / N119
*click on photo
for enlarged view
Keyboards
| Touchpad Option
- |
Trackball Option
- |
 |
 |
*click on
above pictures for enlarged views
Dimension
*click
on above pictures for enlarged view

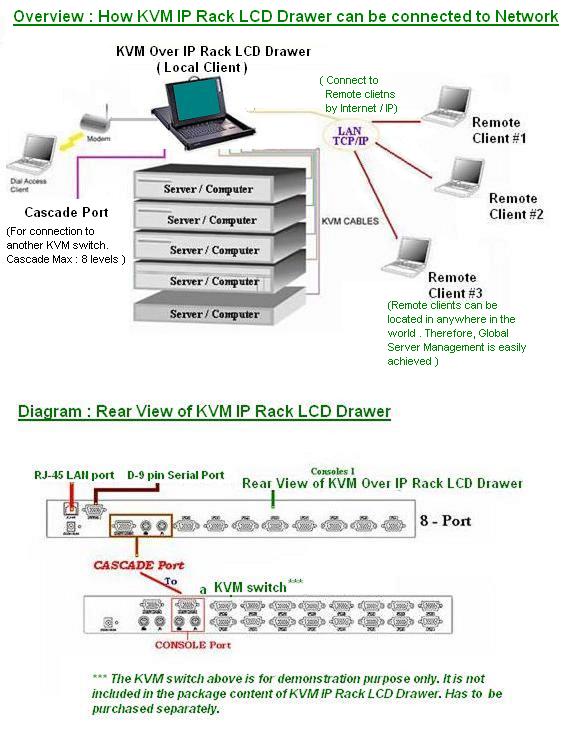

REAR VIEW & CONNECTION DIAGRAM -
DB-15 CAT5.KVM IP :
*click
on above pictures for enlarged view
High Density RJ-45 CAT5.KVM IP :
click on above pictures for
enlarged view
User Manual
| KVM SUPPORT |
|
2
Consoles, w/ DB-15
KVM Via IP |
 |
Local + IP
Console, High Density CAT5 IP KVM |
|
|
Free Ground Shipping
*Click for details
 |
|
Vibration |
58~500Hz/
0.98G
(11min/ cycle) |
|
Mechanical |
|
Product Dimension
|
(W x D x H )
442 x 650 x 44 mm / 17.4 x 25.6
x 1.73inch
|
|
Product Weight
|
Approximately
37 lbs / 17kg |
|
Relative Humidity
|
90%, non
condensing |
|
Regulatory Approval |
|
|
FCC ,
CE , VCCI , 3C*
*Only
for the model with PS/2 or USB KVM
switch |
|
Optional Accessories & Peripheral
|
|
|
Details
|
|
Package Content
|
|
Package Content
|
See user manual of the respective version listed above |
|
Remarks |
|
|
For SUN Solaris Compatible
version ,
click this
Link
|
|
|
LCD Drawer & KVM
Benefits :
-
Stylish Outlook and Rugged design
- Single or "One Man"
installation slides for easy, quick installation
- High Density Cat5 KVM with either 16 or
32 ports in 1U of rack space
- Cost
efficient DB-15KVM integration
-
Mix PS/2 , USB & SUN with Multi-Platform
switch capability
- Secure remote
user access across the web wide web via optional IP console
Features :
- 1U rackmount drawer with SAMSUNG
Grade A 19" LCD Panel
- New Built-in Combo PS/2 & USB
interface ( for selected versions only , see ordering
information below for details ) :
user can have
either PS2 or USB input to the LCD by
connecting the combo PS2 & USB interface of the LCD with the respective type of
PS/2 or USB KVM cable
/ dongle - Slide rails
with fixed positions to prevent keyboard movement
while typing
- Built in on
screen display controlled by integral membrane switches
, Multi lingual on screen display menu
- 104 key notepad or trackball
keyboard with full numerical pad
- Stylish & Rugged design
- Slide rails with fixed
positions to prevent drawer movement when typing
- Multi lingual on screen display
menu
- Unique
mechanical design to maximize rack mountable space
- Black Anodized
aluminum front panel
- Auto Shut down mechanism when LCD is in
locking positions
- Built in on
screen display controlled by integral membrane switches
- Power saving
feature for prolonging the lift of LCD panel
- Standard D-sub
15-pin VGA input connector
- VGA,
keyboards & mouse all in one by 15 pin HDB connector
- Supplied with 12V 5A remote power adapter (single power
source)
- Build in slide
rail and mounts easily in any 19" cabinet
- EMC shielding
around the monitor housing to minimize interference
- Rear rackmount mounting bracket included
- Optional : S-Video and
Composite video input , DVI-D , BNC / Touch Screen, / 12V/24V/ 48V DC input adapter
, Speaker
Back to top
Back to top
ORDERING
INFORMATION :
|
KVM Support |
Keyboard Type |
Part # |
Description |
|
2 Console KVM ( Local &
Remote Console , 8 / 16 / 32 port KVM) |
|
DB-15 KVM ( 2 Consoles, Local & Remote DB-15 KVM ) |
2 Consoles ( Local & Remote
console ) with 8 Port DB-15
KVM Over IP Switch w/ PS2 interface |
Notebook KB w/ Touchpad
|
LCD1U19-07-8KVM2IP-n/
N119-IP802e
Price:$1977 |
1U 19" Samsung
Panel w/ Notebook KB & touchpad & 2 User 8 port KVM Over IP switch
w/ PS2 interface & 8 x 6-ft 3-in-1 PS2 KVM cable |
|
Notebook KB w/
Trackball |
LCD1U19-07-8KVM2IP-b
/ N119-IP802b
Price:$1977 |
1U 19" Samsung
Panel w/ Notebook KB & trackball & 2 User 8 port KVM Over
IP switch
w/ PS2 interface & 8 x 6-ft 3-in-1 PS2 KVM cable |
2 Consoles ( Local & Remote
console ) with 16 Port DB-15
KVM Over IP Switch w/ PS2 interface
|
Notebook KB w/ Touchpad
|
LCD1U19-07-16KVM2IP-n/
N119-IP1602e
Price:$2167 |
1U 19" Samsung
Panel w/ Notebook KB & touchpad & 2 User 16 port KVM Over IP switch
w/ PS2 interface & 16 x 6-ft 3-in-1 PS2 KVM cable |
|
Notebook KB w/
Trackball |
LCD1U19-07-16KVM2IP-b
/ N119-IP1602b
Price:$2167 |
1U 19" Samsung
Panel w/ Notebook KB & trackball & 2 User 16 port KVM
Over IP switch
w/ PS2 interface & 16 x 6-ft 3-in-1 PS2 KVM cable |
High Density CAT5 KVM ( 2
Consoles, Local & Remote
CAT5 KVM )
** with Built-in Combo PS2 & USB
interface |
2 Users Local &
Remote consoles - 16 Port
CAT5
KVM Over IP Switch with built-in Combo PS2 / USB Interface |
Notebook KB w/ Touchpad
|
LCD1U19-07-U16KVM2IP-n/
N119-UIP1602e
Price:$2061 |
1U 19" Samsung
Panel w/ Notebook KB & touchpad & 2 consoles (Local +
Remote) with 16 port CAT5 KVM Over IP switch in Combo PS2 & USB
Interface (*PS2 /USB Dongles are optional
Details-> ) |
|
Notebook KB w/
Trackball |
LCD1U19-07-U16KVM2IP-b
/ N119-UIP1602b
Price:$2061 |
1U 19" Samsung
Panel w/ Notebook KB & trackball & 2 consoles
(Local + Remote) with 16 port CAT5 KVM Over IP switch in Combo
PS2 & USB Interface (*PS2 /USB Dongles are optional
Details-> ) |
2 Users Local &
Remote consoles - 32 Port
CAT5
KVM Over IP Switch with built-in Combo PS2 / USB Interface
|
Notebook KB w/ Touchpad
|
LCD1U19-07-U32KVM2IP-n/
N119-UIP3202e
Price:$2273 |
1U 19" Samsung
Panel w/ Notebook KB & touchpad & 2 consoles (Local +
Remote) with 32 port CAT5 KVM Over IP switch in Combo PS2 & USB
Interface (*PS2 /USB Dongles are optional
Details-> ) |
|
Notebook KB w/
Trackball |
LCD1U19-07-U32KVM2IP-b
/ N119-UIP3202b
Price:$2273 |
1U 19" Samsung
Panel w/ Notebook KB & trackball & 2 consoles
(Local + Remote) with 32 port CAT5 KVM Over IP switch in Combo
PS2 & USB Interface (*PS2 /USB Dongles are optional
Details-> ) |
Back to top
Toll Free
: 1-888-865-6888 Fax : 510-226-8968
Email :
sales@RackmountMart.com
Home
| Online
Store |
About
Us | Contact
Us | Site
Map
Product images may
be generic and may not reflect actual item purchased.
Synergy Global Inc is not responsible for any typographical errors.
Specifications subject to change without notice. Legal.
|
| |
