1U Rackmount Monitor Keyboard Drawer and KVM Switch :
Part # LCD1U19-07

                      1U Stylish & Rugged Rackmount 19" SAMSUNG LCD Monitor Keyboard Drawer
                                Optional 8 port / 16 port DB-15 KVM Switch / KVM Over IP / CAT5 KVM
      Optional 16 port / 32 port High Density CAT5 KVM or CAT.5 KVM Over IP for Local / Remote Access
                                          **** Built-in Combo PS/2 & USB interface for selected versions ****

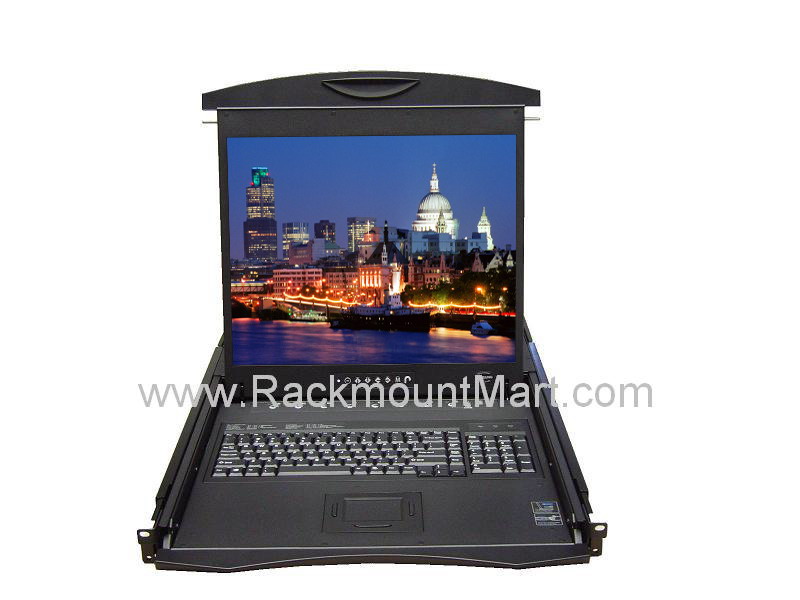

Front View of LCD1U19-07-n *click on photo for enlarged view	LCD Drawer & KVM Benefits High Density Cat5 KVM with either 16 or 32 ports in 1U of rack space Cost efficient DB-15KVM integration Stylish Outlook and Rugged design Single or "One Man" installation slides for easy, quick installation Built-in Combo PS/2 & USB interface for selected versions : user can use either PS/2 or USB input to the LCD by connecting the combo interface of the LCD with respective type of PS2 or USB KVM cable / dongle 104 key touchpad or trackball keyboard with full numerical pad Mix PS/2 , USB & SUN with Multi-Platform switch capability Secure remote user access across the web wide web via optional IP console Slide rails with fixed positions to prevent drawer movement when typing Multi lingual on screen display menu

Special Features :

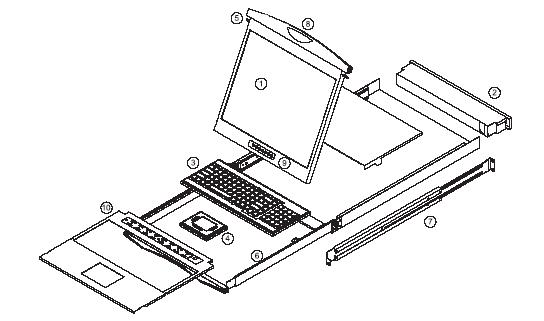

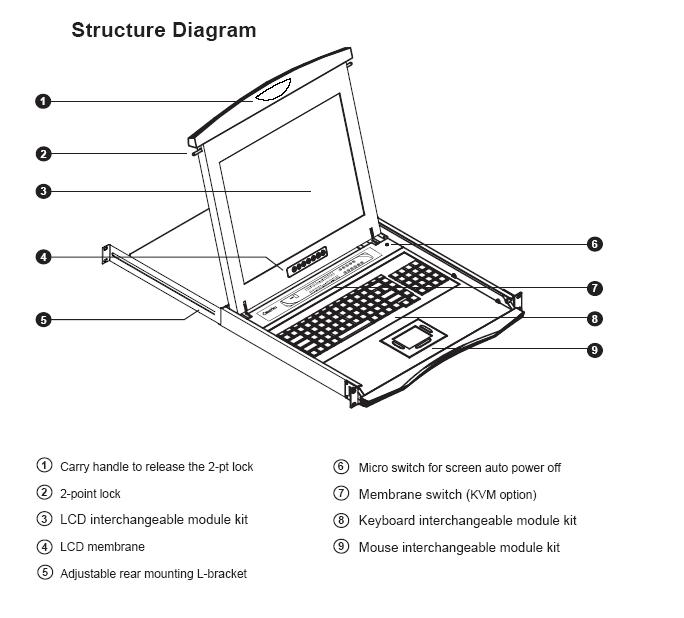

1. LCD interchangeable module Kit : -17" & 19" LCD Panel interchangeable in the same chassis -Samsung Grade A panel -Optional Video , DVI and BNC inputs	2. KVM interchangeable module Kit : -All KVM models are interchangeable in the same chassis -High density CAT5 KVM are either 16 or 32 ports in 1U of Rack space -Mix PS/2 & USB with multi-Platform switch capability
3. Keyboard interchangeable module Kit : -Either PS/2 or USB input to the LCD drawer / keyboard by cable selection -Multiple keyboard language selections with either touchpad or trackball -104 key notepad keyboard with full numerical pad	4. Mouse interchangeable module kit -3 button Glidepoint^TM touchpad or trackball interchangeable in same chassis -Either PS/2 or USB input to the LCD drawer / keyboard by cable selection
5. 2-point lock	6. Micro switch for screen auto power off
7. Single person (One Man ) installation rackmount kit	8. Carry handle to release the 2-pt lock
9. 7-button LCD OSD membrane with a power LED	10. KVM membrane

General Information

Form Factor

1U Rack mounting on slide-out rails

Compatibility

Multi-platform - Mix PCs, IBMs, HPs & DELLs

Server Side Interface

No KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
PS2 KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
USB KVM :	HD15 VGA, USB Type A for KB/MS
New Combo Interface KVM:	Either PS2 or USB by cable / dongle selection

Rack Mounting

Adjustable ranges from 15.3" to 35.2"
(390 to 895mm)

LCD Screen

LCD Type

Samsung Grade A 19" Industrial
Active Matrix TFT LCD Panel

Display Size

19 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr =1.3ms / Tf = 3.7ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.294mm (H) x 0.294mm (W)

Panel color

16.7 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

S-video & Composite (RCA) / S-Video & BNC /
DVI-D More Details

LCD MTBF

50,000 hrs

Keyboard & Pointing Device

Model Nn / Ne

Notebook type KB Integrated w Numeric
Keypad & Touchpad

Model Nb

Notebook type KB Integrated w Numeric
Keypad & Trackball

Keyboard Details

New Integrated High Density CAT.5 KVM Switch Option

KVM port

16 port or 32 port

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM) via RJ-45 connection

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM) via RJ-45 connection

Cascade Expansion

Up to 256 ports/servers by 8 level cascade

More Details

Cost efficient Integrated DB-15 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status LED

Cascade Expansion

Up to 128 ports/servers

PS2 Type Interface More Details

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM)

Cat. 5 Remote

500 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

PS/2, with microprocessor support
hot-plugging

Server Side Interface

VGA HD15, analog RGB and 2 x 6-pin mini
DIN

Support Platform

MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS

KVM cable

PS/2 cable with 6, 10 & 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet option

USB Type Interface More Details

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

VGA HD15, analog RGB, USB type A, support
hot-plugging

Support Platform

MS Windows 2000/XP, Solaris and SCO Unix

KVM cable

USB KVM cable with 6, 10, 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet
option

Power Supply

Internal Power Supply : 110V - 220 V AC Input ,
12V 5A Output

Rear I/O Connector

Integrated KVM

8 or 16 KVM ports :	HD15 female
IP console port :	RJ45 type (IP KVM model )
Remote console port:	RJ45 type (2-console model)
Serial port :	DB9 (IP KVM model)
Virtual Device port :	USB type B (IP KVM model)
PS/2 cascade port :	2 Mini DIN & HD15 female
USB cascade port :	HD15 female
DC power input	Plug-round type

Front View of LCD1U19-07

*click on photo for enlarged view

Keyboards

Trackball Option - Touchpad Option -

*click on above pictures for enlarged views

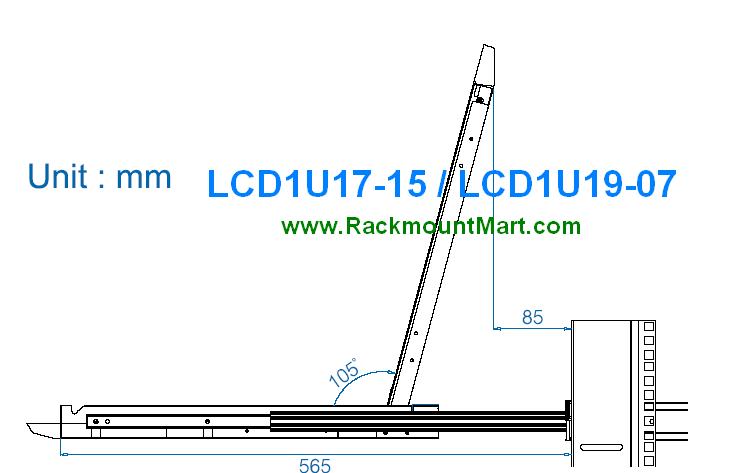

Dimension Construction

*click on above pictures for enlarged view

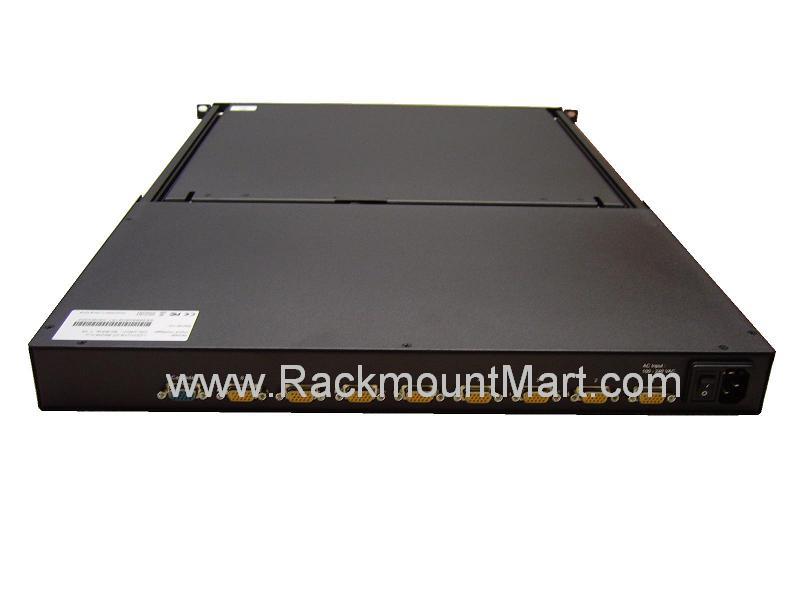

Rear Views for various versions of
LCD1U19-07



       *click on above picture for enlarged view

   User Manual

KVM SUPPORT

Single port, NO KVM

Local console w/
DB-15 KVM

2 Consoles, w/ DB-15
CAT.5 KVM

2 Consoles, w/ DB-15
KVM Via IP

Local console, High Density CAT.5 KVM

Local + Remote Console, High Density CAT.5 KVM

Local + IP Console, High Density CAT5 IP KVM

      Free Ground Shipping *Click for details


Without KVM

Console port  : for VGA PS/2 KB/MS, , HD 15 female

DC power input : Plug-round type

                                  Environmental

   Temperature 0 to 50 Degree Celsius (Operation)
-25 to 65 Degree Celsius (Storage)

Relative Humidity 90%, non condensing

   Shock 50G peak acceleration
(11ms, half since wave)

   Vibration 58~500Hz/ 0.98G
(11min/ cycle)

                                  Mechanical

Product Dimension

(W x D x H )
442 x 650 x 44 mm / 17.4 x 25.6 x 1.73inch

Product Weight Approximately 37 lbs / 17kg

Relative Humidity 90%, non condensing

                              Regulatory Approval

       FCC , CE , VCCI , 3C*
*Only for the model with PS/2 or USB KVM
switch

                       Optional Accessories & Peripheral

Details

                             Package Content

Package Content

See user manual of the respective version listed above

                                           Remarks

For SUN Solaris Compatible version , click this Link

LCD Drawer & KVM Benefits :

Stylish Outlook and Rugged design
Single or "One Man" installation slides for easy, quick installation
High Density Cat5 KVM with either 16 or 32 ports in 1U of rack space
Cost efficient DB-15KVM integration
Mix PS/2 , USB & SUN with Multi-Platform switch capability
Secure remote user access across the web wide web via optional IP console

Features :

1U rackmount drawer with SAMSUNG Grade A 19" LCD Panel
New Built-in Combo PS/2 & USB interface ( for selected versions only , see ordering information below for details ) :
user can have either PS2 or USB input to the LCD by connecting the combo PS2 & USB interface of the LCD with the respective type of PS/2 or USB KVM cable / dongle
Slide rails with fixed positions to prevent keyboard movement while typing
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
104 key notepad or trackball keyboard with full numerical pad
Stylish & Rugged design
Slide rails with fixed positions to prevent drawer movement when typing
Multi lingual on screen display menu
Unique mechanical design to maximize rack mountable space
Black Anodized aluminum front panel
Auto Shut down mechanism when LCD is in locking positions
Built in on screen display controlled by integral membrane switches
Power saving feature for prolonging the lift of LCD panel
Standard D-sub 15-pin VGA input connector
VGA, keyboards & mouse all in one by 15 pin HDB connector
Supplied with 12V 5A remote power adapter (single power source)
Build in slide rail and mounts easily in any 19" cabinet
EMC shielding around the monitor housing to minimize interference
Rear rackmount mounting bracket included
Optional : S-Video and Composite video input , DVI-D , BNC / Touch Screen, / 12V/24V/ 48V DC input adapter , Speaker

Integrated wiith Standard DB-15 KVM Switch Only

Cost efficient DB-15 KVM OPTIONS - with either 8 or 16 ports , cascade up to 128 servers

Local Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1010 / CV-801 Details 16 Port KVM - LCDK1011 / CV-1601 Details	Local + Remote Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1024 / CV-802 Details 16 Port KVM - LCDK1025 / CV-1602 Details
Local Console DB-15 USB KVM Switch : 8 Port KVM - LCDK1020 / CV-S801 Details 16 Port KVM - LCDK1021/ CV-S1601 Details	Local + Remote Console DB-15 USB KVM Switch : 16 Port KVM - LCDK1023/ CV-S1602 Details
	Local + IP Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1038 / IP-802 Details 16 Port KVM - LCDK1039 / IP-1602 Details

Integrated with New High Density CAT.5 KVM Switch Only

New High Density RJ-45 CAT5 KVM OPTIONS - with either 16 or 32 ports , cascade up to 256 servers

Local Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1043/ U-1601 Details 32 Port KVM - LCDK1044/ U-3201 Details	Local + Remote Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1045 / U-1602 Details 32 Port KVM - LCDK1046 / U-3202 Details
	Local + IP Console High Density CAT.5 IP KVM Switch : 16 Port KVM - LCDK1047 / UIP-1602 Details 32 Port KVM - LCDK1048 / UIP-3202 Details
