1U Rackmount LCD Drawer: Part # LCD1U20-012

SUN Solaris Compatible 1U Rackmount 20" SAMSUNG TFT LCD Display Drawer

Panel: SAMSUNG 20" LCD panel

Display type

Active Matrix TFT

Resolutions

-1600 x 1200 native graphic resolution
-Screen will sync with most SUN resolution including 1152 x 900 @66 or 76Hz

Response time

Tr =1 ms / Tf =4 ms (Typ.)

Contrast ratio

800 : 1 typical

Brightness

300 cd/ m2 typical

Pixel pitch

0.255mm (H) x 0.255mm (W)

Panel color

16.7 million display colors

LCD MBTD

50,000 hrs

Viewing angle

160 º (Horiz.) / 160 º (Vert.)

Video:

Horizontal Synchronization :
50 KHz(Typ)
Vertical Synchronization :
60 Hz(Typ)
Input Signal : Analog RGB 0.7Vp-p

OSD Control

Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save

External Connection

Power Input	12V/5A DC adapter
Video Input	15-pin D-Sub connector

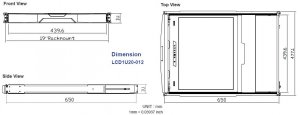

Product Dimension

442(W) x 44(H) x 650(D)mm /
17.4" x 1.73" x 25.6"

Storage temp.

-5ºC to 60ºC

Operating temp.

0ºC to 50ºC

Relative Humidity

5 ~90%, non condensing

Shock

10G peak acceleration (11ms duration)

Vibration

5~500Hz 1G RMS random vibration

Safety Approval

FCC, CE

Front View

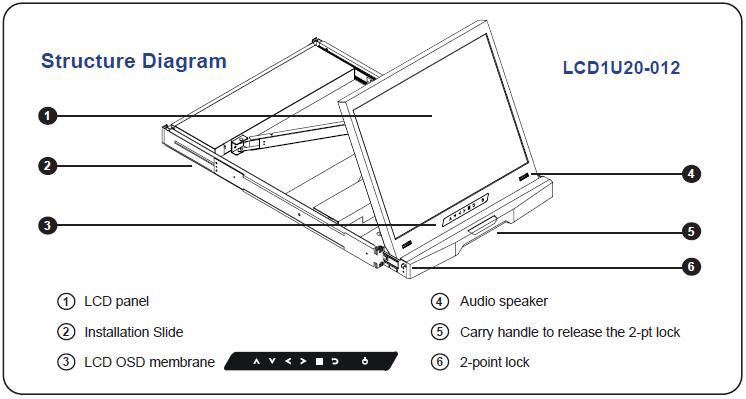

     Diagram

*click on photo for enlarged view

  Product Sheet

User Manual

Free Ground Shipping *Click for details

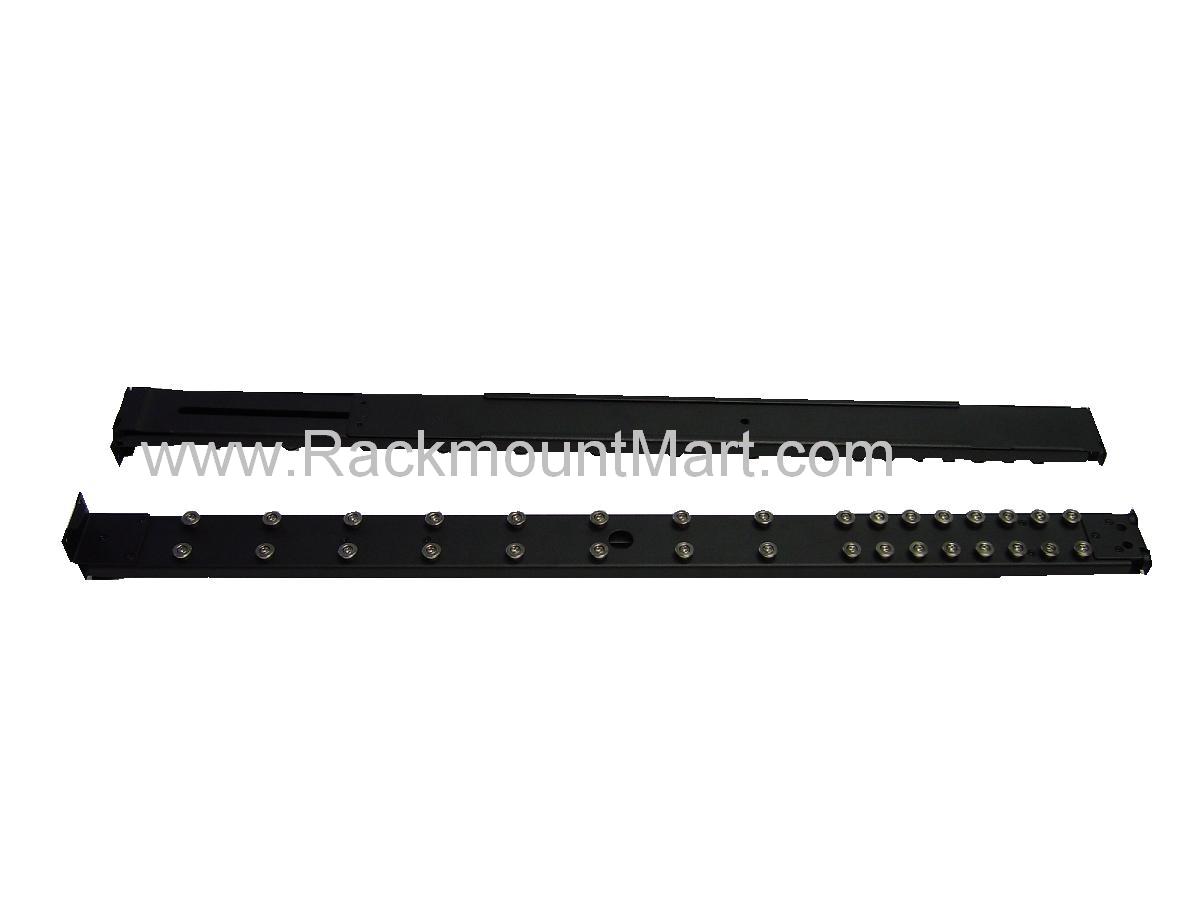

More Photo:

Features :

• Directly compatible with SUN & USB server
• Automatic detection of SUN Server resolution 1152 x 900 @ 66 or 76Hz
• Compatible with SUN, Apple, IBM, Dell, HP and USB Server
• SAMSUNG 20" Grade A LCD Panel
• Unique monitor flip up design allows viewing through closed glass door of cabinet
• Lightweight aluminum construction - with a black anodize finish
• Lock out rails to prevent movement of the keyboard
• Built in on screen display controlled by integral membrane switches
• Power saving feature for prolonging the life of LCD panel
• Front-access lock for security & secure transportation
• Supplied with 12V 5A remote power adapter (single power source)
• EMC shielding around the monitor housing to minimize interference
• Standard 6 ft VGA cable included
• Sliding LCD allowing LCD to remain open when the rack door is closed
• Enhanced aesthetics with new molded front panel and two point lock
• 1U rackmount LCD drawer with 20" LCD
• 12V, 24V and 48V DC power option
• DVI-D options

Power supply :

Remote adapter : 110V - 220 V AC Input
Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) / 10.8 (L) x 6.1 (W) x 3 (H) cm
Cable length from mains plug to adapter : 6ft / 182cm
Cable length from adapter to unit : 6ft / 180cm
Safety approval : FCC, CE
Mains plug options available
Optional 48V / 24V / 12V DC input power adapter available

Optional Accessories	Optional Peripheral
48V / 24V / 12V DC Power	1U Rackmount Keyboard Drawer Details
	Single User (Console) PS/2 KVM switch - 4 Port / 8 Port / 16 Port Details
	Single User (Console) USB KVM switch - 8 Port / 16 Port Details
	2 User (2 Consoles ) PS/2 KVM switch - 8 Port / 16 Port Details
	2 User (2 Consoles )USB KVM switch - 8 Port / 16 Port Details

Back to top

Ordering information

Part Number Description

LCD1U20-012
Price : $1167 1U Rackmount 20" SAMSUNG LCD Drawer

LCD1U20-012-DVI
Price : $1281 1U Rackmount 20" SAMSUNG LCD Drawer with DVI-D

Option

-12VDC
Price : $171 Add 12V DC power supply

-24VDC
Price : $171 Add 24V DC power supply

-48VDC
Price : $171 Add 48V DC power supply
