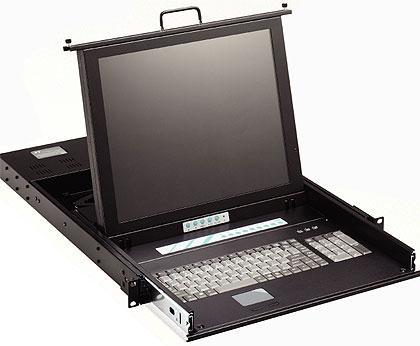

               1U Rackmount LCD Monitor Keyboard with optional 8 port or 16 port KVM Drawer :
                                                     Part #  LCD1U19-06

 1U Rackmount 19"  TFT LCD Monitor Keyboard Drawer  optional 8 port KVM Drawer or 16 port  KVM  Drawer  (  UL Listed , FCC & CE approved, RoHS Compliant )




                     Rear view of Single Port  version



                              Rear view of 8 KVM version


        LCD1U19-06 ( Single port )
      		       LCD1U19-06-8KVM (w/ 8 KVM switch)

        LCD1U19-06 (Single port )


       FREE GROUND SHIPPING  *** Click for details

  • UL , FCC and CE Approved & RoHS Compliant
  • 19"  ultra bright/contrast TFT screen
  • Meets EIA-310C & IEC-3 specifications
  • Industrial Metal
  • Support DOS, Win 3.X, Win 95 / 98 / 98SE / 2000 / ME / XP, WinNT, SCO Uix, HP Unix, Linux, Netware
  • 105-key Notebook Keyboard with numeric keypad and built-in touchpad
  •  19" TFT 1280 x 1024
  • Anti-glare tempered glass for added protection to the LCD screen
  • Built-in Power Adapter
  • Auto Power Switch
  • Built-in side railing for instant installation
  • Movable front panel offers additional comfort during data entry
  • Keyboard available in multiple languages
  • Available in black and Customized colors available
  • PS2 KVM cable connector : 15Pin D-sub Male (to Cascade VGA port), PS/2 x2 Male (to Cascade PS/2 ports), 15Pin D-sub Male (to Console VGA port), PS/2 x2 Male (to Console PS/2 ports)

I
II
                   III
Model No
LCD1U19-06
LCD1U19-06-8KVM
LCD1U19-06-16KVM
Certification

   UL Listed, FCC and CE Approved
Ports switch for PC
Single port
8 ports
16 ports
Dimension
442.4 x44.5 x590mm /
17.0" x 1.7" x 23.2"
(W x H x D)
442.4 x44.5 x650mm /
17.0" x 1.7" x 25.5"
(W x H x D)
17.5" x 1.75" x 25.5" /
444.5mm x 44.5mm x 650mm
(W x H x D)
Power Supply
DC +48V or AC 110/220V auto switching
 DC +48V or AC 110/220V auto switching DC +48V or AC 110/220V auto switching
Extension Cable
 1x1.8 meter (standard VGA, keyboard, mouse cable)
1x1.8 meter (standard VGA, keyboard, mouse cable)
1x1.8 meter (standard VGA, keyboard, mouse cable)
Extension Rail
Up to 35.4" (900mm)
Up to 35.4" (900mm)
Up to 35.4" (900mm)
Chassis
Industrial Metal
Keyboard
Mechanical 105 key Notebook Keyboard with Numeric keypad and built-in touchpad
Language
US (standard), Optional : UK, Chinese etc
Color
Black
Protection
Anti-glare Tempered glass
Auto Power Switch
                           LCD back-light will automatically shut off when the screen set fold
Security Lock
Thumb screw x 2
Operation Temperature
0-50° C (32-122°F)
Display
Diagonal
19" (431.8mm)
Resolution
1280 x 1024
Size
19"
Brightness
300 Nits
Contrast Ratio
700:1
700:1
700:1
Viewing Angle (UD)
80 / 80 /80 / 80
Backlight
4 x CCFL units
Response Time
                                                                                    4ms
Number of Color
16.2 M
Electrical Interface
LVDS
KVM Switch
KVM Switch Port
N/A
8
16
Hot Plug
N/A
Add PCs or Remove Connected PCs for Maintenance
without powering down the KVM switch for PCs
Video Quality
N/A
Up to 1280 x 1024 with 200 MHz bandwidth
Auto Scan Mode
N/A
5s - 99s






  Ordering information :

  Part # Description
LCD1U19-06   ( Regular : $1068 )
**Promotional Price : $928		 1U 19" Rack monitor ( TFT LCD)  Keyboard Drawer , 1 cable included
LCD1U19-06-8KVM     Price : $1338    1U Rackmount 19" TFT LCD Monitor Keyboard Drawer with 8 port PS2 KVM switch, 8 x KVM cables included
LCD1U19-06-16KVM   Price : $1648 1U Rackmount 19" TFT LCD Monitor Keyboard Drawer with 16 port PS2 KVM switch, 16 x KVM cables included
