2U Rackmount LCD Monitor Keyboard Drawer / KVM Switch :
Part # LCD2U15-03 / RKP2415 / RKP2415-801 / RKP2415-1601

                      SHORT DEPTH 2U Rackmount 15" SAMSUNG LCD Monitor Keyboard Drawer
                                                                with Optional PS2 / USB interface
                  Optional 8 port / 16 port DB-15 KVM Over IP / CAT5 Extender Local or Remote Access
New Optional 16 port / 32 port High Density CAT5 KVM or CAT.5 KVM Over IP Local or Remote Access
                                    **** New Built-in Combo PS/2 & USB interface for selected versions ****
                                    - Only 17.3" / 440mm Deep, fits 23.6"/ 600mm deep cabinet
              -Space saving design : Dual Slides enable viewing through closed glass doors of rack

General Information

Form Factor

2 U Rack mounting, separate sliding screen
and keyboard

Compatibility

Multi-platform - Mix PCs, IBMs, HPs &
DELLs

Server Side Interface

No KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
PS2 KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
USB KVM :	HD15 VGA, USB Type A for KB/MS
New Combo Interface KVM:	Either PS2 or USB by cable / dongle selection

Rack Mounting

Adjustable ranges from 15.3" to 27.5"
(390 to 700mm)

LCD Screen

LCD Type

Samsung Grade A 15" Industrial
TFT LCD Panel

Display Size

15 inch diagonal

Resolutions

1,024 x 768 with 60 / 70 / 75Hz

Response time

TTR=3 / Tf=13 ms

Contrast ratio

450 : 1

Brightness

250 cd/ m2

Pixel pitch

0.297 (H) x 0.297 (V) mm

Panel color

16.2 million display colors

Viewing angle

130 / 110 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

S-video & Composite (RCA) / S-Video & BNC/
DVI-D More Details

LCD MTBF

50,000 hrs

Keyboard & Pointing Device

Model n / e

Notebook type KB w/ 2-button Touchpad

Model b

Notebook type KB w/ 3-button mini Trackball

Model c

Cherry type KB w/ 2-button Trackball

Keyboard Details

New Integrated High Density CAT.5 KVM Switch Option

KVM port

16 port or 32 port

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM) via RJ-45 connection

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM) via RJ-45 connection

Cascade Expansion

Up to 256 ports/servers by 8 level cascade

More Details

Cost efficient Integrated DB-15 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status LED

Cascade Expansion

Up to 128 ports/servers

PS2 Type Interface More Details

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM)

Cat. 5 Remote

500 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

PS/2, with microprocessor support
hot-plugging

Server Side Interface

VGA HD15, analog RGB and 2 x 6-pin mini
DIN

Support Platform

MS Windows 3.x/95/98/1664/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS

KVM cable

PS/2 cable with 6, 10 & 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet option

USB Type Interface More Details

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

VGA HD15, analog RGB, USB type A, support
hot-plugging

Support Platform

MS Windows 1664/XP, Solaris and SCO Unix

KVM cable

USB KVM cable with 6, 10, 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet
option

Power Supply

-Remote adapter : 110V - 220 V AC Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /
10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V DC
input

Rear I/O Connector

Integrated KVM

8 or 16 KVM ports :	HD15 female
IP console port :	RJ45 type (IP KVM model )
Remote console port:	RJ45 type (2-console model)
Serial port :	DB9 (IP KVM model)
Virtual Device port :	USB type B (IP KVM model)
PS/2 cascade port :	2 Mini DIN & HD15 female
USB cascade port :	HD15 female
DC power input	Plug-round type

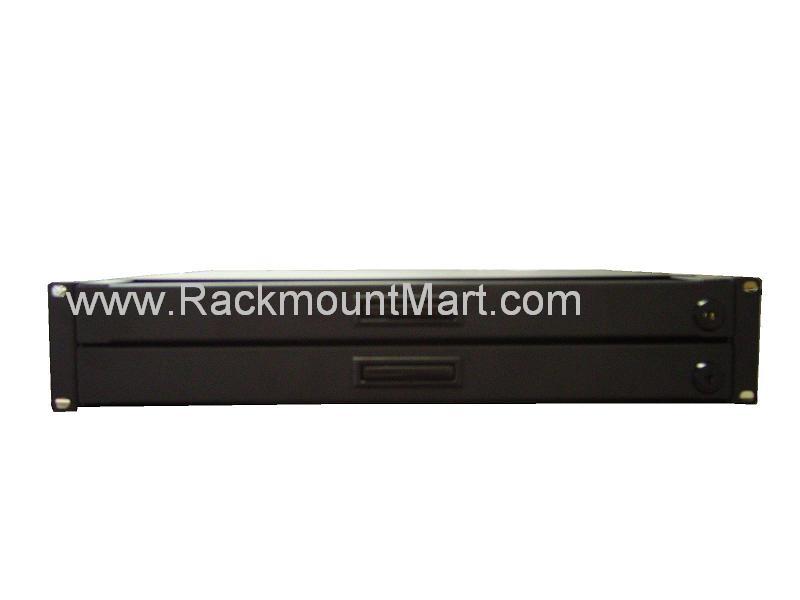

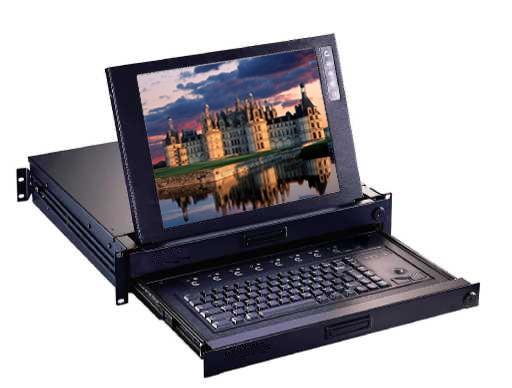

Front View of LCD2U15-03 / RKP2415

*click on photo for enlarged view

Dimension

*click on above picture for enlarged views

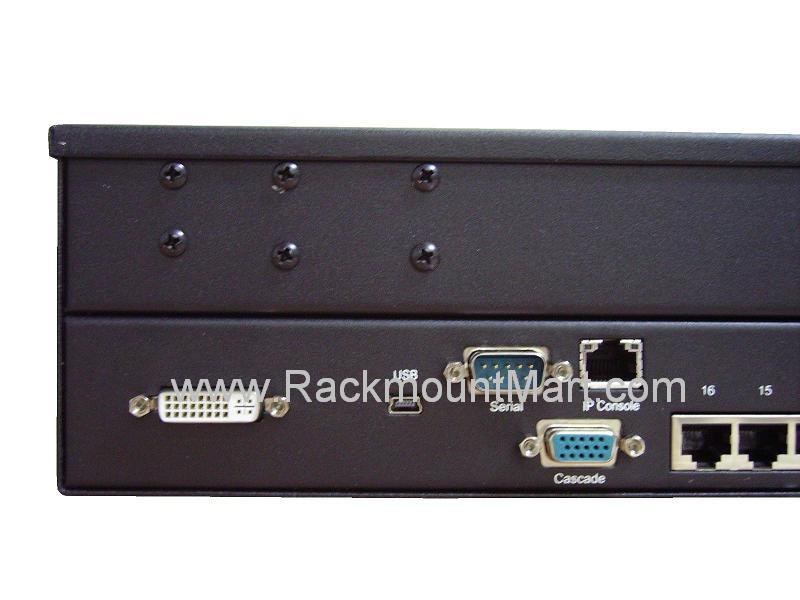

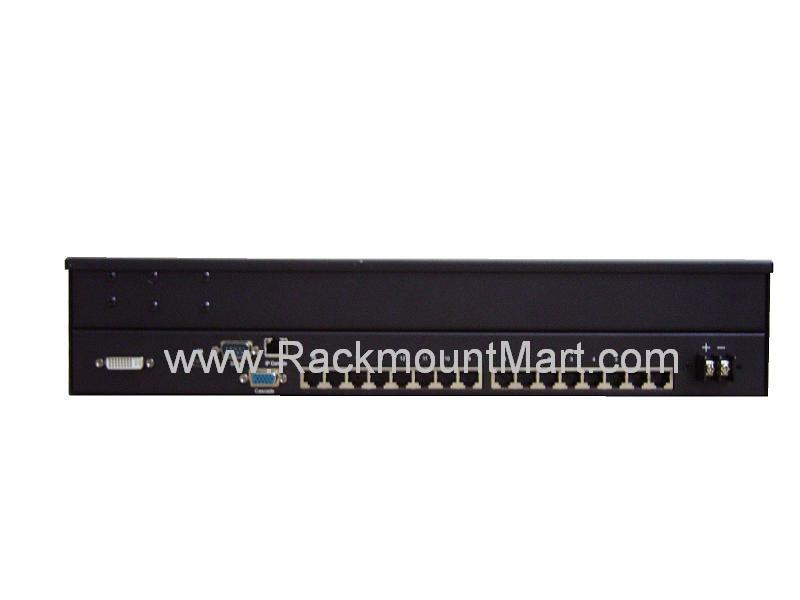

Rear Views for various versions of LCD2U15-03/
RKP2415



       *click on above picture for enlarged view

User Manual

KVM SUPPORT

PS/2 , NO KVM

PS/2, Local Console
KVM

USB, Local Console
KVM

PS/2, Local + Remote Console, DB-15 CAT5 Extender KVM

PS/2, Local + IP Console, DB-15 IP Over KVM
Coming Soon / For 1U model with KVM Over IP Remote Access, click here

Local Console, High Density CAT.5 KVM

Local + Remote Console, High Density CAT.5 KVM

Local + IP Console, High Density CAT5 IP KVM

Space saving Flip up design

Free Ground Shipping *Click for details

Without KVM

Console port :	for VGA PS/2 KB/MS, , HD 15 female
DC power input :	Plug-round type

Environmental

Temperature

0 to 50 Degree Celsius (Operation)
-25 to 65 Degree Celsius (Storage)

Relative Humidity

90%, non condensing

Shock

50G peak acceleration
(11ms, half since wave)

Vibration

58~500Hz/ 0.98G
(11min/ cycle)

Mechanical

Product Dimension

17.4"(W) x 3.5"(H) x 17.3"(D)
44.2(W) x 8.8(H) x 44(D)cm

Product Weight

Approximately 37.2 lbs / 17kg

Relative Humidity

90%, non condensing

Regulatory Approval

FCC , CE , VCCI

Optional Accessories & Peripheral

Details

Package Content

See user manual of the respective version listed above

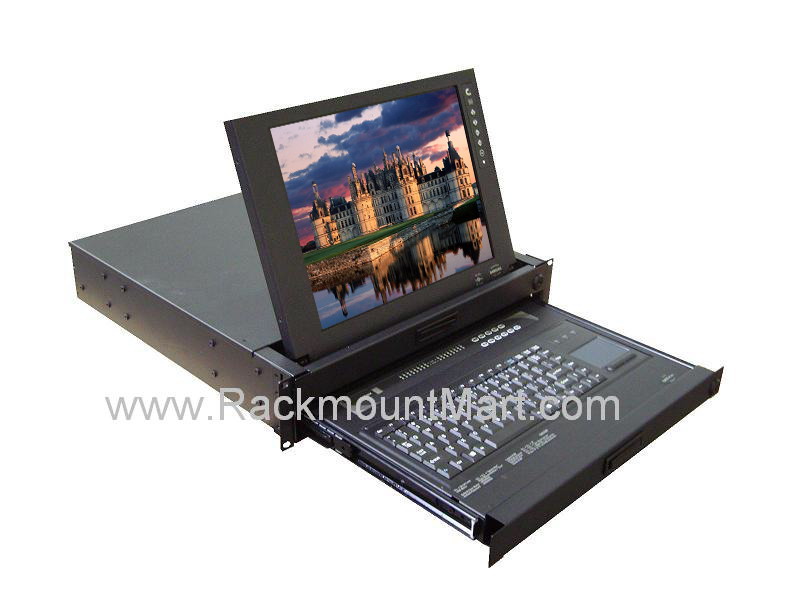

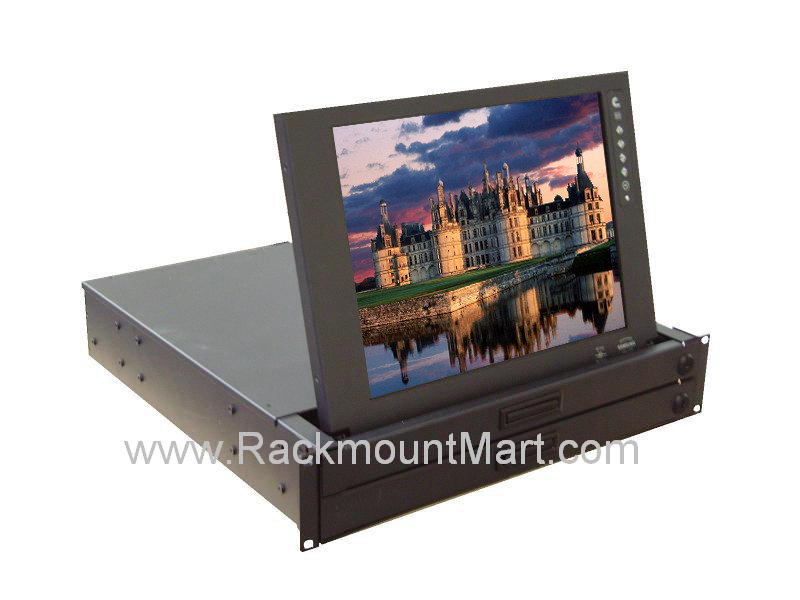

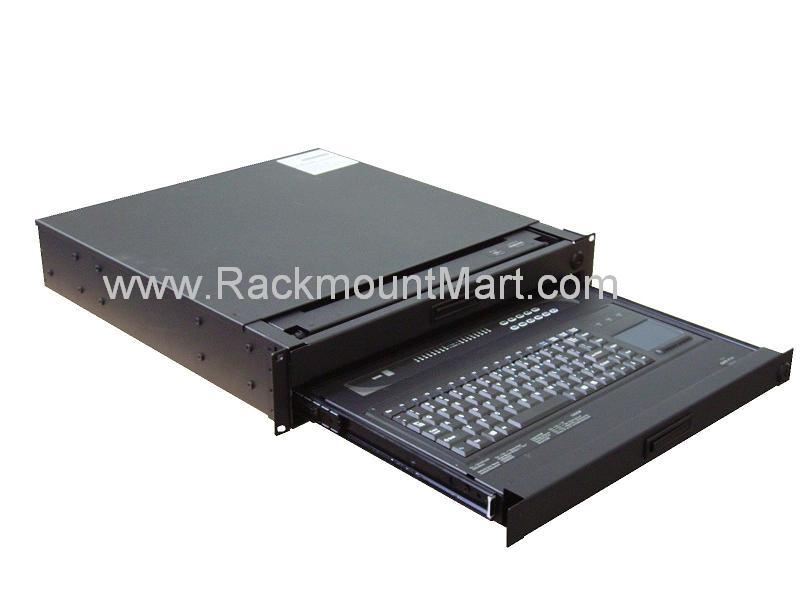

More photos (click to enlarge )

LCD Drawer & KVM Benefits :

Short Depth design of 440mm / 480mm (17.3" and 18.9" only )
Depth will suit a 600mm rack application
Separate sliding LCD & keyboard allowing LCD to remain open when the rack door is closed
High Density Cat5 KVM with either 16 or 32 ports in 2U
Cost efficient DB-15KVM integration
Mix PS/2 , USB & SUN with Multi-Platform switch capability
Secure remote user access across the web wide web via optional IP console

Features :

2U rackmount drawer with SAMSUNG Grade A 15" LCD Panel
New Built-in Combo PS/2 & USB interface ( for selected versions only , see ordering information below for details ) :
user can have either PS2 or USB input to the LCD by connecting the combo PS2 & USB interface of the LCD with the respective type of PS/2 or USB KVM cable / dongle
Slide rails with fixed positions to prevent keyboard movement while typing
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
Adjustable mounting brackets from 390mm to 700mm. (front to rear 19” mounts)
Lock out rails to prevent movement of the keyboard
Lightweight aluminum construction -with a black anodize finish
Built in on screen display controlled by integral membrane switches
Standard D-sub 15-pin VGA input connector
Supplied with 12V 5A remote power adapter (single power source)
Power saving feature for prolonging the life of LCD panel
All mounting hardware included
Optional : S-Video and Composite video input / BNC / DVI-D / Touch Screen, , 12V/24V/ 48V DC input adaptor / Speaker / Micro switch / LCD Membrane / Front Panel / Internal Power Supply

Integrated wiith Standard DB-15 KVM Switch Only

Cost efficient DB-15 KVM OPTIONS - with either 8 or 16 ports , cascade up to 128 servers

Local Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1010 / CV-801 Details 16 Port KVM - LCDK1011 / CV-1601 Details	Local + Remote Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1024 / CV-802 Details 16 Port KVM - LCDK1025 / CV-1602 Details
Local Console DB-15 USB KVM Switch : 8 Port KVM - LCDK1020 / CV-S801 Details 16 Port KVM - LCDK1021/ CV-S1601 Details	Local + Remote Console DB-15 USB KVM Switch : 16 Port KVM - LCDK807/ CV-S1602 Details
	Local + IP Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1038 / IP-802 Details 16 Port KVM - LCDK1039 / IP-1602 Details

Integrated with New High Density CAT.5 KVM Switch Only

New High Density RJ-45 CAT5 KVM OPTIONS - with either 16 or 32 ports , cascade up to 256 servers

Local Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1043/ U-1601 Details 32 Port KVM - LCDK1044/ U-3201 Details	Local + Remote Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1045 / U-1602 Details 32 Port KVM - LCDK1046 / U-3202 Details
	Local + IP Console High Density CAT.5 IP KVM Switch : 16 Port KVM - LCDK1047 / UIP-1602 Details 32 Port KVM - LCDK1048 / UIP-3202 Details

Back to top

Optional Accessories

Optional Peripheral

Optional Video input
-S-Vdieo + Composite Video / DVI-D / BNC

Details

Local Console DB-15 PS2 KVM switch
- 4 Port / 8 Port / 16 Port Details

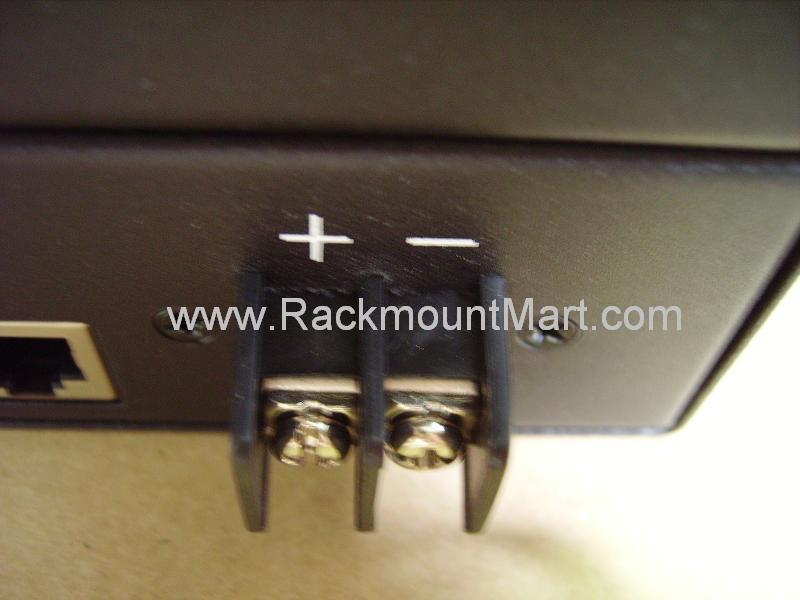

48V / 24V / 12V DC Power
