2U Rackmount LCD Monitor Keyboard Drawer / KVM Switch :
Part # LCD2U19-01 / RKP219 / RKP219-801 / RKP219-1601

                           2U Dual Slides Rackmount 19" SAMSUNG LCD Monitor Keyboard Drawer
                              Optional 8 port / 16 port DB-15 KVM Switch / KVM Over IP / CAT5 KVM
New Optional 16 port / 32 port High Density CAT5 KVM or CAT.5 KVM Over IP for Local / Remote Access
                                    **** New Built-in Combo PS/2 & USB interface for selected versions ****
    Space Saving: Separate Slides for LCD & Keyboard enable viewing through closed glass door of Rack

General Information

Form Factor

2 U Rack mounting, separate sliding screen and keyboard

Compatibility

Multi-platform - Mix PCs, SUNs, IBMs, HPs &
DELLs

Server Side Interface

No KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
PS2 KVM :	HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
USB KVM :	HD15 VGA, USB Type A for KB/MS
New Combo Interface KVM:	Either PS2 or USB by cable / dongle selection

Rack Mounting

Adjustable ranges from 15.3" to 33.2"
(390 to 845mm)

LCD Screen

LCD Type

Samsung Grade A 19" Industrial
TFT LCD Panel

Display Size

19 inch diagonal

Resolutions

1,280 x 1,024 with 60 / 70 / 75Hz

Response time

Tr =1.3ms / Tf =3.7ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.294mm (H) x 0.294mm (W)

Panel color

16.7 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

Video [S-video + Composite (RCA)] , DVI-D,
BNC [S-video + BNC] More Details

LCD MTBF

50,000 hrs

Keyboard & Pointing Device

Model n / e

Notebook type KB w/ 2-button Touchpad

Model b

Notebook type KB w/ 3-button mini Trackball

Model c

Cherry type KB w/ 2-button Trackball

Model d

Compact KB w/ 17-key numeric keypad and 3-button Trackball

Model t

Compact KB w/ 17-key numeric keypad and 2-button Touchpad

Keyboard Details

New Integrated High Density CAT.5 KVM Switch Option

KVM port

16 port or 32 port

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM) via RJ-45 connection

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM) via RJ-45 connection

Cascade Expansion

Up to 256 ports/servers by 8 level cascade

More Details

Cost efficient Integrated DB-15 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status LED

Cascade Expansion

Up to 128 ports/servers

PS2 Type Interface More Details

IP Remote

TCP/IP access from anywhere around the
world (with IP KVM)

Cat. 5 Remote

500 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

PS/2, with microprocessor support
hot-plugging

Server Side Interface

VGA HD15, analog RGB and 2 x 6-pin mini
DIN

Support Platform

MS Windows 3.x/95/98/1568/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS

KVM cable

PS/2 cable with 6, 10 & 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet option

USB Type Interface More Details

Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

USB 1.1 Compliant, support hot-plugging

Server Side Interface

VGA HD15, analog RGB, USB type A, support
hot-plugging

Support Platform

MS Windows 1568/XP, Solaris and SCO Unix

KVM cable

USB KVM cable with 6, 10, 15 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 & 6 feet
option

Power Supply

-Remote adapter : 110V - 220 V AC Input ,
12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /
10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
6ft / 182cm
-Cable length from adapter to unit :
6ft / 180cm
-Mains plug options available
-Optional DC power with 48V / 24V / 12V DC
input

Front View of LCD2U19-01 / RKP219

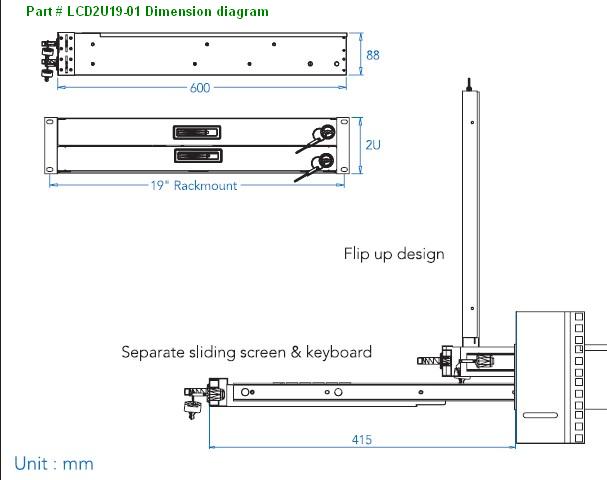

Dimension


      *click on above picture for enlarged views

Rear Views for various versions of LCD2U19-01/
RKP219



       *click on above picture for enlarged view

User Manual

KVM SUPPORT

PS/2 , NO KVM

PS/2, Local Console
KVM

USB, Local Console
KVM

PS/2, Local + Remote Console, DB-15 CAT5 Extender KVM

PS/2, Local + IP Console, DB-15 IP Over KVM
Coming Soon / For 1U model with KVM Over IP Remote Access, click here

Local Console, High Density CAT.5 KVM

Local + Remote Console, High Density CAT.5 KVM

Local + IP Console, High Density CAT5 IP KVM

Space saving Flip up design

      Free Ground Shipping *Click for details

Rear I/O Connector

Integrated KVM

8 or 16 KVM ports :	HD15 female
IP console port :	RJ45 type (IP KVM model )
Remote console port:	RJ45 type (2-console model)
Serial port :	DB9 (IP KVM model)
Virtual Device port :	USB type B (IP KVM model)
PS/2 cascade port :	2 Mini DIN & HD15 female
USB cascade port :	HD15 female
DC power input	Plug-round type

Without KVM

Console port :	for VGA PS/2 KB/MS, , HD 15 female
DC power input :	Plug-round type

Environmental

Temperature

0 to 50 Degree Celsius (Operation)
-25 to 65 Degree Celsius (Storage)

Relative Humidity

90%, non condensing

Shock

50G peak acceleration
(11ms, half since wave)

Vibration

58~500Hz/ 0.98G
(11min/ cycle)

Mechanical

Product Dimension

17.4"(W) x 3.46"(H) x 23.62"(D)
44.2(W) x 8.8(H) x 60(D)cm

Product Weight

Approximately 41.8 lbs / 19kg

Relative Humidity

90%, non condensing

Regulatory Approval

FCC , CE , VCCI

Optional Accessories & Peripheral

Details

Package Content

See user manual of the respective version listed above

Remarks

For SUN Solaris Compatible version , click this Link

LCD Drawer & KVM Benefits :

Separate sliding LCD & keyboard allowing LCD to remain open when the rack door is closed
High Density Cat5 KVM with either 16 or 32 ports in 2U
Cost efficient DB-15KVM integration
Mix PS/2 , USB & SUN with Multi-Platform switch capability
Secure remote user access across the web wide web via optional IP console

Features :

2U rackmount drawer with SAMSUNG Grade A 19" LCD Panel
New Built-in Combo PS/2 & USB interface ( for selected versions only , see ordering information below for details ) :
user can have either PS2 or USB input to the LCD by connecting the combo PS2 & USB interface of the LCD with the respective type of PS/2 or USB KVM cable / dongle
Slide rails with fixed positions to prevent keyboard movement while typing
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
May be fitted into an 800mm deep rack by the use of extended brackets on request
Adjustable mounting brackets from 15.35" to 33.2"(390 to 845 mm) (front to rear 19" mounts). Suitable for 25.61" to 39.4" (650 to 1000mm) deep 19 " rack cabinet
Front access lock for security
For compact keyboard, cushion is ergonomically shaped for wrist support; large padded wrist-rest for "d" & "t" KB
Lightweight aluminum construction -with a black anodize finish
Power saving feature for prolonging the life of LCD panel
All mounting hardware included
Optional : S-Video and Composite video input / BNC / DVI-D / Touch Screen, , 12V/24V/ 48V DC input adaptor / Speaker / Micro switch / LCD Membrane / Front Panel / Internal Power Supply

Integrated wiith Standard DB-15 KVM Switch Only

Cost efficient DB-15 KVM OPTIONS - with either 8 or 16 ports , cascade up to 128 servers

Local Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1010 / CV-801 Details 16 Port KVM - LCDK1011 / CV-1601 Details	Local + Remote Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1024 / CV-802 Details 16 Port KVM - LCDK1025 / CV-1602 Details
Local Console DB-15 USB KVM Switch : 8 Port KVM - LCDK1020 / CV-S801 Details 16 Port KVM - LCDK1021/ CV-S1601 Details	Local + Remote Console DB-15 USB KVM Switch : 16 Port KVM - LCDK1023/ CV-S1602 Details
	Local + IP Console DB-15 PS2 KVM Switch : 8 Port KVM - LCDK1038 / IP-802 Details 16 Port KVM - LCDK1039 / IP-1602 Details

Integrated with New High Density CAT.5 KVM Switch Only

New High Density RJ-45 CAT5 KVM OPTIONS - with either 16 or 32 ports , cascade up to 256 servers

Local Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1043/ U-1601 Details 32 Port KVM - LCDK1044/ U-3201 Details	Local + Remote Console High Density CAT.5 KVM Switch : 16 Port KVM - LCDK1045 / U-1602 Details 32 Port KVM - LCDK1046 / U-3202 Details
	Local + IP Console High Density CAT.5 IP KVM Switch : 16 Port KVM - LCDK1047 / UIP-1602 Details 32 Port KVM - LCDK1048 / UIP-3202 Details

Back to top

Optional Accessories

Optional Peripheral

Optional Video input
-S-Vdieo + Composite Video / DVI-D / BNC

Details

Local Console DB-15 PS2 KVM switch
- 4 Port / 8 Port / 16 Port Details

48V / 24V / 12V DC Power
   Input Range        : 10~36V (DC-12V, DC-24V model)
                              36~75V (DC-48V model)
   DC power Output : DC 12V    Voltage Accuracy: +/- 1% (Max.)
   Safety                    : Continuous short circuit protection

Details

Local Console DB-15 USB KVM switch
- 8 Port / 16 Port Details

Touch Screen

Details

Local + Remote Console DB-15 PS2 KVM switch
- 8 Port / 16 Port Details

PS/2 or USB KVM Cables & Cascade Cables in various
length

Details

Local + Remote Console DB-15 USB KVM switch
- 8 Port / 16 Port Details

PS/2 or USB Dongles & CAT5 Cables in various
length

Details

Local + IP Console DB-15 IP Over KVM switch
- 8 Port / 16 Port Details

New Options
- Speaker                                 - Front Panel
- Internal Power Supply          - Micro Switch
- LCD Membrane
                               *** Please contact us for details

New Local Console High Density CAT.5 KVM switch
- 16 Port / 32 Port

16 Port KVM - LCDK1043/ U-1601 Details
32 Port KVM - LCDK1044/ U-3201 Details
