                  2U Rackmount LCD Monitor Keyboard Drawer / KVM Switch :
                                          Part # LCD2U20-01-Cat5
                  2U  Rackmount 20" SAMSUNG LCD Monitor Keyboard Drawer with EITHER
                                                          8 port  / 16 port  DB-15  CAT5 KVM Switch OR
                              16 port / 32 port  High Density CAT5 KVM  for Local / Remote Access
                                    ****   Built-in Combo PS/2 &  USB interface  for selected version ****

                                      General Information

Form Factor

2 U Rack mounting, separate sliding screen
and keyboard

Compatibility

Multi-platform - Mix PCs, SUNs, IBMs, HPs &
DELLs

Server Side Interface

PS2 KVM : HD15 VGA, 6-pin Mini DIN for
PS/2 KB/MS
Combo Interface KVM: Either PS2 or USB by
cable / dongle selection

Rack Mounting

Adjustable ranges from 15.3" to 33.2"
(390 to 845mm)

                                                  LCD Screen

LCD Type

Samsung Grade A  20" Industrial
              TFT LCD Panel

Display Size

 20 inch diagonal

Resolutions

1600 x 1200

Response time

Tr =1ms / Tf =4ms

Contrast ratio

800 : 1

Brightness

300 cd/ m2

Pixel pitch

0.255mm (H) x 0.255mm (W)

Panel color

16.7 million display colors

Viewing angle

160 º (Horiz.) / 160 º (Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video  Input

Video [S-video + Composite (RCA)] , DVI-D,
BNC [S-video + BNC]      More Details

LCD MTBF

50,000 hrs
                                     Keyboard & Pointing Device

Model n / e

Notebook type KB w/ 2-button Touchpad

Model b

Notebook type KB w/ 3-button mini Trackball

Model c

Cherry type KB w/ 2-button Trackball

Model d

Compact KB w/ 17-key numeric keypad and 3-button Trackball

Model t

Compact KB w/ 17-key numeric keypad and 2-button Touchpad



                                         Keyboard Details

        Integrated High Density CAT.5  KVM Switch Option

KVM port

 16 port or 32 port


Cat. 5 Remote

1000 feet remote access by CAT. 5 cable
(with 2-console KVM) via  RJ-45 connection

Cascade Expansion

Up to 256 ports/servers by 8 level cascade




                                                More Details

  Cost efficient Integrated DB-15 CAT.5 KVM Switch Option

KVM port

8 port or 16 port , HD15 female

Port Access

Channel button or hot keys selectable

Indicators

Online (green) and selected (red) status LED

Cascade Expansion

Up to 128 ports/servers




 DB-15 PS2 Type Interface
                                                 More Details


Cat. 5 Remote

500 feet remote access by CAT. 5 cable
(with 2-console KVM)

KB/MS Emulation

 PS/2, with microprocessor support
 hot-plugging

Server Side Interface

 VGA HD15, analog RGB and 2 x 6-pin mini
 DIN

Support Platform

MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS

KVM cable

PS/2 cable with 6, 10 , 15 & 33 feet option

Cascade cable

Cable to PS2 KVM switch w/ 2 , 6 , 10 & 15
feet option
Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
                                Power Supply



 -Remote adapter : 110V - 220 V AC Input ,
 12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H) /
 10.8 (L) x 6.1 (W) x 3 (H) cm
-Standard Cable length from mains plug to
 adapter :  6ft / 182cm
-Standard Cable length from adapter to unit :
 6ft / 180cm
-Mains plug options available
-Optional  DC power with 48V / 24V / 12V DC
  input
                                 Rear I/O Connector
Integrated KVM
DB-15 KVM ports :  HD15 female
IP console port  :  RJ45 type (IP KVM model )
Remote console port:  RJ45 type (2-console model)
Serial port   :  DB9 (IP KVM model)
Virtual Device port :  USB type B (IP  KVM model)
PS/2 cascade port :  2 Mini DIN & HD15 female
USB cascade port :  HD15 female
DC power input  Plug-round type

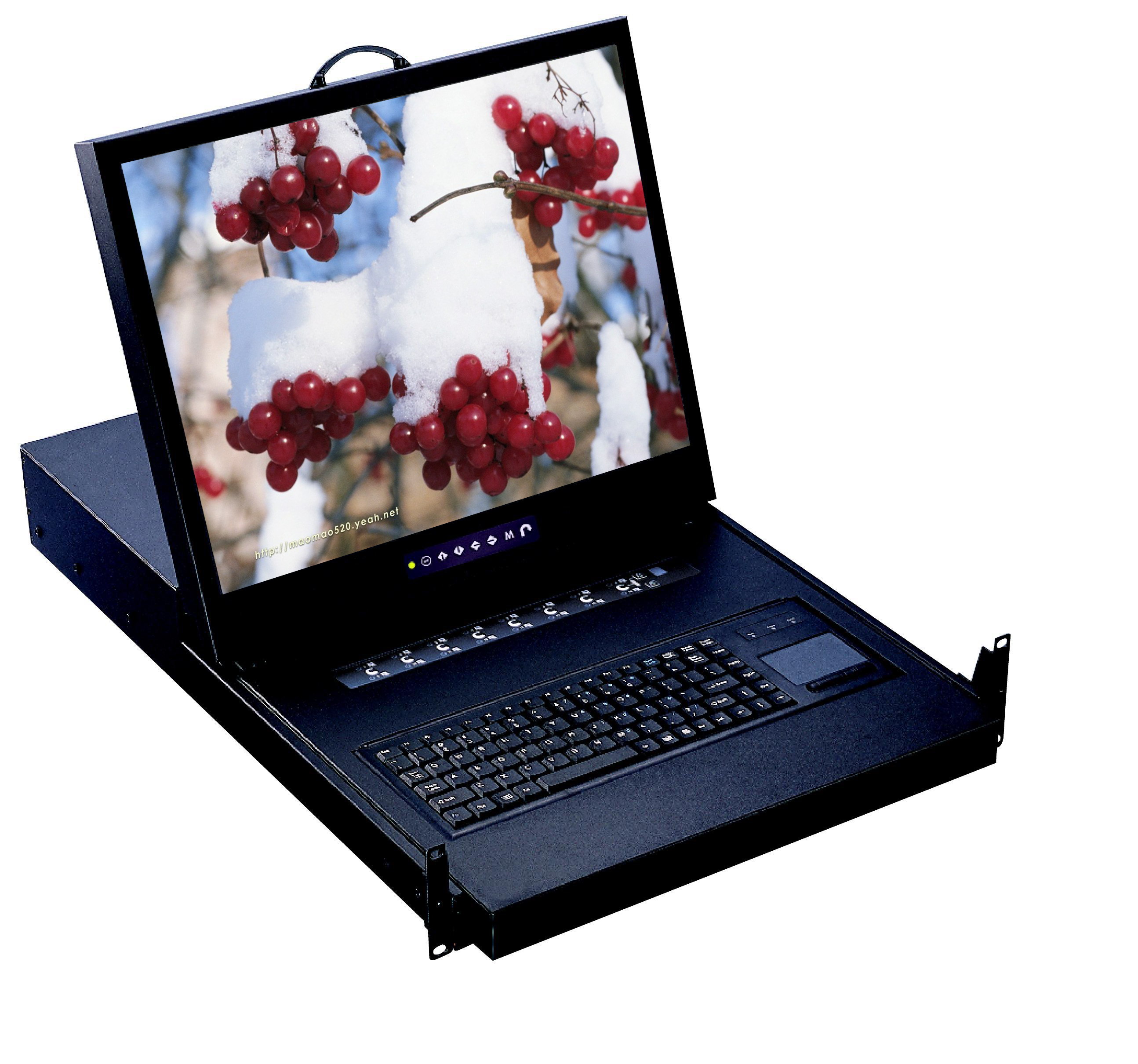

 Front View of LCD2U20-01-Cat5



       *click on above picture for enlarged view
 Dimension



       *click on above picture for enlarged view

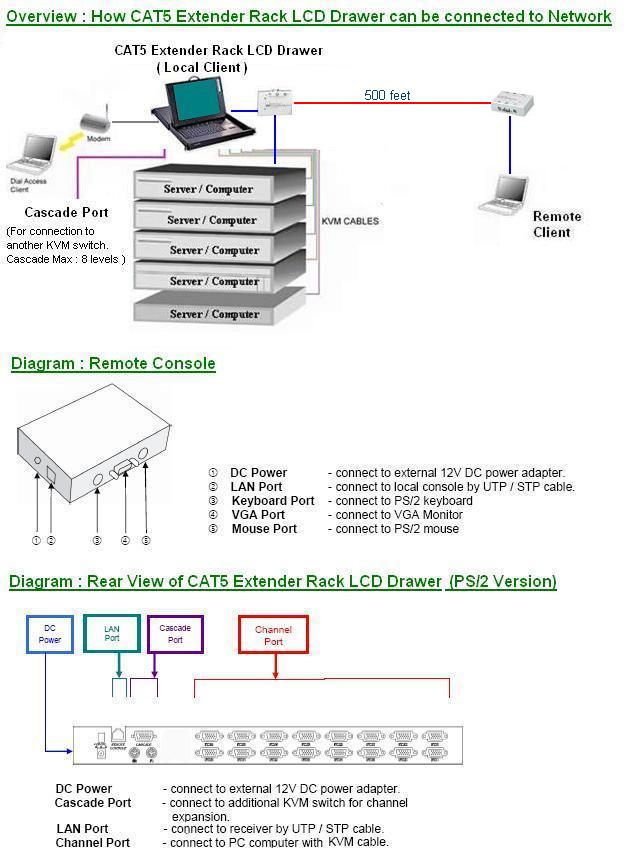

  REAR VIEW & CONNECTION DIAGRAM -
  DB-15 CAT5.KVM  :



      *click on above pictures for enlarged view


   High Density RJ-45 CAT5.KVM :

Single Console (Local ) Local + Remote Consoles



  click on above pictures for enlarged view

  User Manual
  KVM SUPPORT
 COMBO CAT6 local console KVM only
 COMBO DB-15 (local + remote) KVM
 COMBO CAT6 (local + remote) KVM



      Free Ground Shipping *Click for details


                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 65 Degree Celsius (Storage)
Relative Humidity  5 ~ 90%, non condensing
   Shock  10G peak acceleration
 (11ms duration)
   Vibration  5~500Hz/ 1G RMS random
 vibration
                                  Mechanical

Product Dimension

17.4"(W) x 3.5"(H) x 25.9"(D)
44.2(W) x 8.8(H) x 65(D)cm

Product Weight  Approximately 44 lbs / 20kg
                              Regulatory Approval
         FCC , CE , VCCI
                       Optional Accessories & Peripheral



       Details

                             Package Content

Package Content

See user manual of the respective version listed above
                                           Remarks



For SUN Solaris Compatible version , click this  Link

LCD Drawer & KVM Benefits :
  • High Density Cat5 KVM with either 16 or 32 ports in 2U
  • Cost efficient DB-15KVM integration
  • Mix PS/2 , USB & SUN with Multi-Platform switch capability
  • Secure remote user access across the web wide web via optional IP console

Features :

  • 2U rackmount drawer with SAMSUNG Grade A 20" LCD Panel
  • Built-in Combo PS/2 & USB interface ( for selected versions only , see ordering information below  for details ) :
    user can have either PS2 or  USB input to the LCD by connecting the combo PS2 & USB interface of the LCD with the respective type of  PS/2 or USB KVM cable / dongle
  • Slide rails with  fixed positions to prevent keyboard movement while typing
  • Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
  • May be fitted into an 800mm deep rack by the use of extended brackets on request
  • Adjustable mounting brackets from 15.35" to 33.2"(390 to 845 mm) (front to rear 19" mounts). Suitable for 25.61" to 39.4" (650 to 1000mm) deep 19 " rack cabinet
  • Front access lock for security
  • For compact keyboard, cushion is ergonomically shaped for wrist support; large padded wrist-rest for "d" & "t" KB
  • Lightweight aluminum construction -with a black anodize finish
  • Power saving feature for prolonging the life of LCD panel
  • All mounting hardware included
  • Optional : S-Video and Composite video input / BNC / DVI-D / Touch Screen, , 12V/24V/  48V DC input adaptor / Speaker / Micro switch /  LCD Membrane / Front Panel /  Internal Power Supply
                                             Integrated wiith Standard DB-15 Cat5 KVM Switch Only

     Cost efficient DB-15 KVM OPTIONS -  with either 8 or 16  ports , cascade up to 128 servers

Local + Remote Console DB-15 Cat5  PS2 KVM Switch :
           8 Port KVM - LCDK1024 Details
        16 Port KVM - LCDK1025 Details

                                                  Integrated with High Density CAT.5 KVM Switch Only

         High Density RJ-45 CAT5 KVM OPTIONS -  with either 16 or 32 ports , cascade up to 256 servers

Local Console High Density CAT.5 KVM Switch :
         16 Port KVM - LCDK1043 Details
        32 Port KVM - LCDK1044 Details 		 Local + Remote Console High Density CAT.5 KVM Switch :
               16 Port KVM - LCDK1045 Details
              32 Port KVM - LCDK1046 Details
