                   2U LCD Rackmount Monitor Keyboard Drawer and KVM Switch :
                                                        Part #   LCD2U20-02

                         2U LCD SUN Solaris Compatible Rackmount 20" TFT LCD Monitor Keyboard Drawer
                              Optional 8 port  / 16 port  DB-15 KVM Switch /  KVM Over IP  / CAT5 KVM
   Optional 16 port / 32 port  High Density CAT5 KVM  or CAT.5 KVM Over IP  for Local / Remote Access

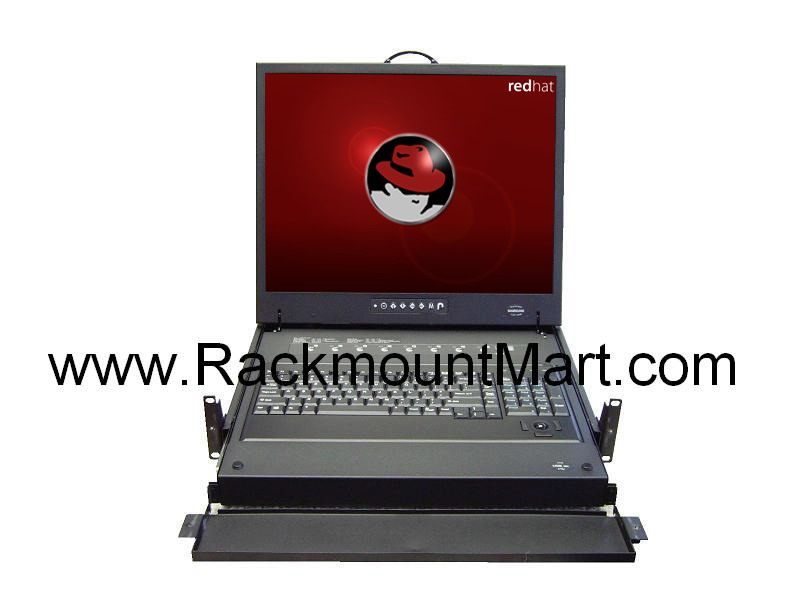

  Front View of 2U LCD LCD2U20-02



 * Available in black only  *click on photo for enlarged view



     SUN Solaris Compatible Rack Console Benefits
  • Rugged 20" SAMSUNG SUN Compatible Rack Console
  • Direct support for SUN Micro 1152 x 900 native resolution
  • SUN key support including Stop, Cut, Paste, Composes etc
  • Optional Cost Efficient built in KVM with various choices:
    - Connector : DB-15 KVM  or Cat5 KVM ( Cat6 KVM )
    - KVM Type : USB KVM / Multi-User Matrix KVM
  • Secure remote user access across the internet via optional IP console (KVM Over IP )
  • Mix USB & SUN with Multi-Platform switch capability
  • "One Man" installation slides for easy and quick installation
  • High Scalability : Interchangeable KVM, & Keyboard & mouse modules
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Optional DVI-D and DC Input Power
  • 2 year Warranty

              Compatibility with  the following SUN Servers  & Solaris Servers have been certified by SUN-Microsystems :
                           SUN Server -       Entry Level Server  - V100 , V120, V240 & V440 , Middle Lever Server - V890
                           Solaris Server -   8, 9 & 10 Operating Systems

                                      General Information

Form Factor

2U rack mounting, separate slide-out screen & keyboard

Compatibility

Compatible with SUNs, IBMs, HPs, DELLs and
Mix PCs with USB-enable
                                   LCD Screen

LCD Type

Samsung Grade A  20" Industrial TFT LCD Panel

Display Size

 20 inch diagonal

Resolutions

-1,600 x 1,200 with 60 / 70 / 75Hz
-Screen will sync with mist SUN resolution including
 1152 x 900 with 66 / 76Hz

Response time

Tr =1ms / Tf =4ms

Color

Black Only

Contrast ratio

800 : 1

Brightness

300 cd/ m2

Pixel pitch

0.255mm (H) x 0.255mm (W)

Panel color

16.7 million display colors

Viewing angle

160 º (Horiz.) / 160 º (Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video  Input

Video [S-video + Composite (RCA)] , DVI-D,
BNC [S-video + BNC]      More Details

LCD MTBF

50,000 hrs
                          Keyboard & Pointing Device

Model n

Notebook type KB  w/ Numeric Keypad & Touchpad

Model b

Notebook type KB w/ Numeric Keypad & Trackball   ...More Keyboard Details

                          KVM  ( Keyboard Video Mouse )

Connector

               KVM Version


DB-15
 * DB-15 USB KVM  ( USB PS2 KVM )
2  ( 1 x local + 1 x IP )   8 or 16
 * DB-15 Matrix KVM
3 (1x local +1x remote +1x IP )   8 or 16
4 (1x local +1x remote +2x IP )   8 or 16
4 (1x local +2x remote +1x IP )   8 or 16

CAT6

* CAT6 USB KVM  ( USB PS2 KVM )
 No. of  Console  No. of  KVM port
1 ( Local only )   8 or 16 or 32
2 ( 1 x local + 1 x remote )   8 or 16 or 32
2  ( 1 x local + 1 x IP )   8 or 16 or 32
* CAT6 Matrix KVM
 No. of  Console  No. of KVM port
2 ( 1 x local + 1 x remote )   16 or 32
3 ( 1 x local + 2 x remote )   16 or 32
3 (1x local +1x remote +1x IP )   16 or 32
4 ( 1 x local + 3 x remote )   16 or 32
4 (1x local +1x remote +2x IP )   16 or 32
4 (1x local +2x remote +1x IP )   16 or 32
                                Power Supply



 -Remote adapter : 110V - 220 V AC Input ,
 12V 5A Output
-Adapter Size : 4.3"(L) x 2.4"(W) x 1.2"(H)
 /   10.8 (L) x 6.1 (W) x 3 (H) cm
-Cable length from mains plug to adapter :
 6ft / 182cm
-Cable length from adapter to unit :
 6ft / 180cm
-Mains plug options available
-Optional  DC power with 48V / 24V /
  12V DC  input
                     Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -25 to 65 Degree Celsius (Storage)
Relative Humidity  90%, non condensing
   Shock  50G peak acceleration
 (11ms, half since wave)
   Vibration  58~500Hz/ 0.98G
 (11min/ cycle)
                          Mechanical

Product Dimension

(W x D x H )
442 x 650 x 44 mm /17.4 x 25.6 x 1.73 inch
Product Weight  Approximately 37 lbs / 17kg
Relative Humidity  90%, non condensing
                              Regulatory Approval
          FCC , CE , VCCI , 3C*







 Rear Views for various versions of LCD2U20-02



       *click on above picture for enlarged view


  Product Sheet
 Product Sheet
  User Manual
 General User Manual
 KVM Support
   DB-15 KVM
DB-15 PS2 kvm Local console
DB-15 USB kvm Local console
DB-15 USB kvm Local + remote console
DB-15 USB kvm Local + IP console
   CAT5 / CAT6 KVM
Cat5 / Cat6 USB kvm Local console
Cat5 / Cat6 USB kvm Local + remote console
Cat5 / Cat6  USB kvm Local + IP console
   Matrix KVM
DB-15 Matrix USB kvm Local + remote console
DB-15 Matrix USB kvm Local + IP console
Cat5 / Cat6 Matrix USB kvm Local + remote console
Cat5 / Cat6 Matrix USB kvm Local + IP console
Optional Peripheral & Accessory
- DVI-D
- DC Power Input ( 12V / 24V / 48V )
- KVM Cables & Cascade Cables in Various Length
- USB & PS/2 Dongles
- KVM Extender        -IP KVM Extender
Free Ground Shipping( A $55 Value) *Click for details



 Customer who ordered this product may also order these :
- KVM Switch
- PDU ( Power Distribution Unit )
- Server Rack Cabinet
- 4 Post Rack
- Wall Rack Mount
- Rack Shelves
- Rack Drawer
- Power Strips
- Rack Cooling Fan

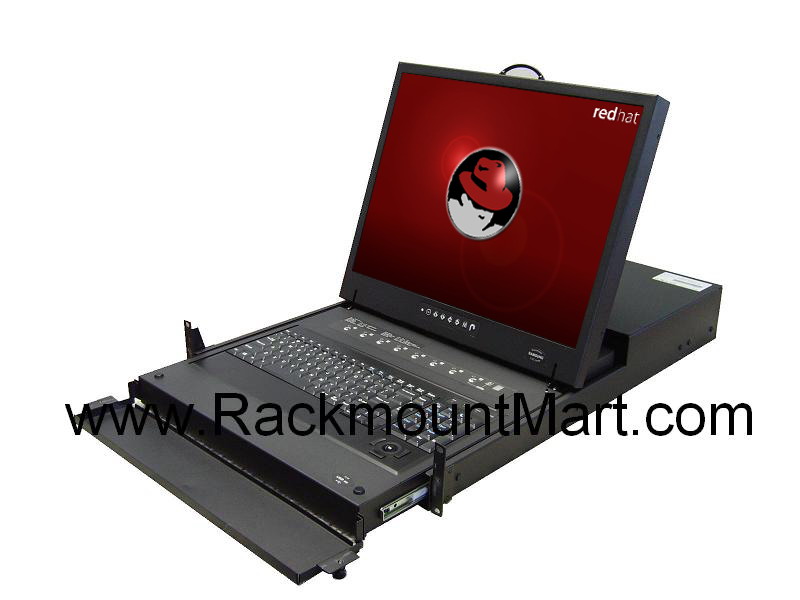

  More photos (click to enlarge )

LCD Drawer & KVM Benefits :

  • High Density Cat5 KVM with either 16 or 32 ports in 2U of rack space
  • Cost efficient DB-15KVM integration
  • Direct support for SUN Micro 1152 x 900 native resolution
  • 104 key notebook keyboard with full numerical pad and SUN function
  • Mix PS/2 , USB & SUN with Multi-Platform switch capability
  • Secure remote user access across the web wide web via optional IP console

Features :

  • 2U  LCD rackmount drawer with SAMSUNG Grade A 20" LCD Panel
  • Slide rails with  fixed positions to prevent keyboard movement while typing
  • Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
  • Directly compatible with  SUN & USB server
  • Automatic detection of SUN Server resolution 1152 x 900 @ 66 or 76Hz
  • SAMSUNG 17" Grade A LCD Panel
  • Compatible with SUN, Apple, IBM, Dell, HP and USB Server

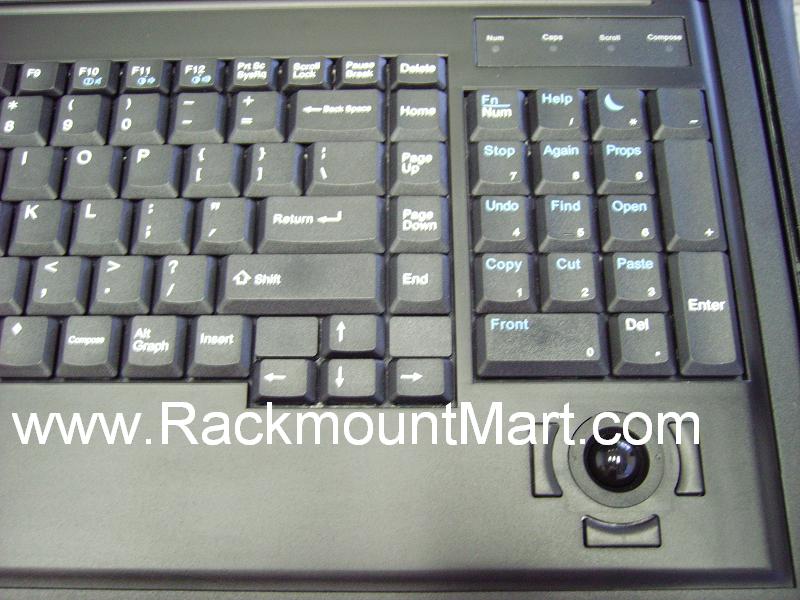

  • 104-key Sun Compatible keyboard with 3-button trackball support SUN keys including STOP, HELP, AGAIN, PROPS, UNDO, FIND, OPEN, CUT, PASTE and FRONT KEY
  • Fits all current SUN racks. Adjustable mounting brackets compatible with SUN rack depths of  24" to 36"
  • Easy operation : Simply connect the USB keyboard, mouse and VGA monitor to servers with USB cables
  • Unique mechanical design to maximize rack mountable space
  • Adjustable mounting bracket from 15.3"(390mm) to 33.2"(845mm)(front to rear 20" mounts), fits any standard 20" server rack
  • Anodized aluminum front panel
  • Sliding rails will self-lock when pulled all the way out
  • Built in on screen display controlled by integral membrane switches
  • Built-in thumb screws securing the machine when it is folded or pushed all the way in
  • Allow adding or removing connected PCs without powering down the USB KVM switch of the PCs
  • Power saving feature for prolonging the lift of LCD panel
  • Standard D-sub 15-pin VGA input connector
  • 12V 5A remote power adapter (Single power source)
  • EMC shielding around the monitor housing to minimize interference
  • All mounting hardware included
  • Optional : S-Video and Composite video input / Touch Screen, , 12V/24V/  48V DC input adaptor ,
    Speaker /   DVI Input /  Micro switch /  LCD Membrane / Front Panel /  Internal Power Supply

 More photos - (click on the photos for enlarged views)

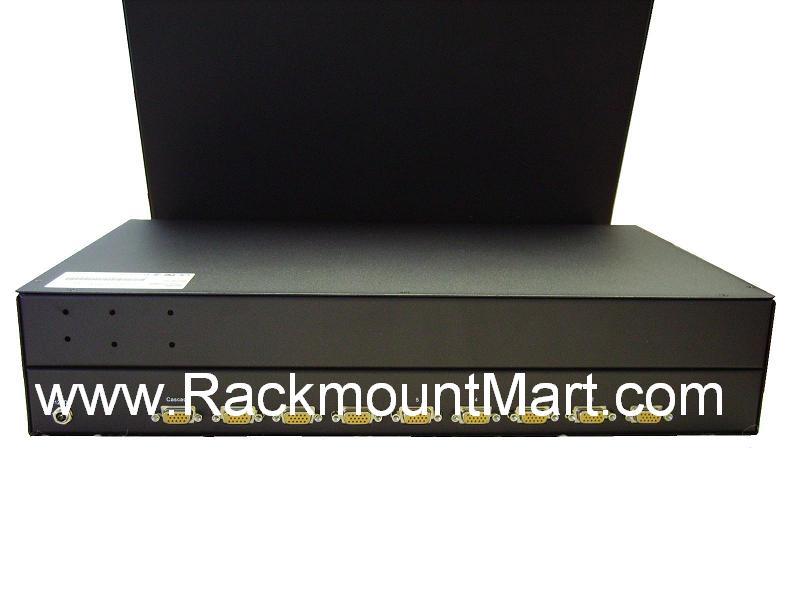

                                                                        USB KVM cable            Rear View with DB-15 USB KVM switches


                                                                                                                                                                            Back to top

Features of Optional KVM   :

Connector KVM Version Number of KVM port Cascade Capacity Capability / KVM Technical Specifications
CAT6
USB KVM
8 / 16 / 32 port
Up to 8 Levels / 256 Servers
Capability
CAT6 USB KVM hooks up 8 , 16 or 32 servers with multi-platforms and multi-operating systems. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. This model supports servers with either USB or PS/2  interface.
Link to KVM Technical Specification
* CAT6 1 Console 8 Port USB KVM
* CAT6 1 Console 16 Port USB KVM
* CAT6 1 Console 32 Port USB KVM
* CAT6 2 Console (Local + Remote) 8 Port USB KVM
* CAT6 2 Console (Local + Remote) 16 Port USB KVM
* CAT6 2 Console (Local + Remote) 32 Port USB KVM
* CAT6 2 Console (Local + IP) 8 Port USB KVM
* CAT6 2 Console (Local + IP) 16 Port USB KVM
* CAT6 2 Console (Local + IP) 32 Port USB KVM
CAT6
Matrix KVM


8 / 16 / 32 port


Up to 8 Levels / 256 Servers
Capability
CAT6 Matrix kvm allows maximum of 4 users. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well.  Respective dongles included.
Link to Technical Specification
* CAT6 2 Console (Local + Remote) 8 /16/32 Port Matrix KVM
*CAT6 3-4 Console(Local+Remote+IP)8/16/32 Port Matrix KVM

Back to top



 ORDERING INFORMATION FOR  LCD2U20-02  - 2U SAMSUNG 20" LCD SUN COMPATIBLE
                                                                                            RACK CONSOLE

DB15 KVM CAT5 KVM / CAT6 KVM Matrix KVM
 KVM Support  Keyboard Type Part # Description
 NO KVM ( Single Port )
Single Port 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD2U20-02
Price : $1636		 2U LCD : 20" Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard , 1 set of one 6-ft long all-in-one USB  KVM cable included
 Single Console KVM ( Local console,  8 / 16 / 32 port KVM )
                                                  D-15 KVM ( Local console  DB-15 KVM)
Local consoleDB-15 8 Port   KVM Switch 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD2U20-02-8KVM
Price: $2045		 2U LCD : 20" Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard  and 8 Port KVM switch, 8 sets of  6-ft long all-in-one USB KVM cable included
Local consoleDB-15 16 Port   KVM Switch 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD2U20-02-16KVM
Price: $2265		 2U LCD : 20" Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard  and 16 Port KVM switch, 16 sets of  6-ft long all-in-one USB KVM cable included
                                                 High Density CAT5  KVM ( Local console  High Density CAT5 KVM)
Local console High Density 16 Port  CAT5 KVM Switch 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD2U20-02-U16KVM
Price: $2121		 2U LCD : 20" Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard with Local console High density 16 port CAT5 KVM switch
(*USB Dongles are optional  Details-> )
Local console High Density 32 Port  CAT5 KVM Switch 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys LCD2U20-02-U32KVM
Price: $2379		 2U LCD : 20" Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard with  Local console High density 32 port CAT5 KVM switch
(*USB Dongles are optional  Details-> )
 2 Console KVM (  Local & Remote Console ,  16 / 32 port KVM)
                                                High Density CAT5 KVM ( 2 Consoles, Local & Remote CAT5 KVM )

Local & Remote consoles - 16 Port  High Density CAT5 KVM Switch

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys   LCD2U20-02-U16KVM2
Price: $2348		 2U LCD : 20" Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard  & 2 consoles (Local + Remote) with High Density 16 port CAT5 KVM switch
(*USB Dongles are optional  Details-> )

Local & Remote consoles - 32 Port  High Density CAT5 KVM Switch

3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys   LCD2U20-02-U32KVM2
Price: $2561		 2U LCD : 20" Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard  & 2 consoles (Local + Remote) with High Density 32 port CAT5 KVM switch
(*USB Dongles are optional  Details-> )
Local & IP consoles - 16 Port  High Density CAT5 KVM Via IP Switch 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys     LCD2U20-02-U16KVM2IP
Price:$2621		 2U LCD : 20" Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard   & 2 consoles (Local + Remote) with High Density 16 port CAT5 KVM Over IP switch
(*USB Dongles are optional  Details-> )
Local & IP consoles - 32 Port  High Density CAT5 KVM Via IP Switch
 		 3-button trackball SUN compatible Keyboard w/ built-in SUN Hot keys     LCD2U20-02-U32KVM2IP
Price:$2833		 2U LCD : 20" Samsung Panel w/ SUN Microsystems & Solaris compatible 3-button trackball Keyboard   & 2 consoles (Local + Remote) with High Density 32 port CAT5 KVM Over IP switch
(*USB Dongles are optional  Details-> )

                                                                                                                                                                              Back to top

              Toll Free : 1-888-865-6888    Fax : 510-226-8968    Email :  sales@RackmountMart.com



                                  Home    |   Buy Online   |   About Us  |    Contact Us    |    Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Technology Inc is not responsible for any typographical errors. Specifications subject to change without notice.  Legal.
