RACK MOUNTABLE MATRIX CAT6 KVM SWITCH :
Part# LCDK2006 / LCDK2007
Matrix KVM : 1U Rack Mounting Multi-User 16 or 32-port Matrix Cat6 KVM Switch
|
Front View of LCDK2006/LCDK2007
*click on above pictures for enlarged view
|
Matrix Cat6 KVM Benefits
- Efficient system management with simultaneous multi-user access
- Capable of connecting 32 or 16 servers per device in 1U
- Support DVI-USB, VGA-USB & VGA-PS/2 server interface
- Increased distance of 40m between your server & KVM
- Enhanced Cat6 cable management with remote access up to 150m
Switch Features & Options
- Provide a diversity of console to access servers independently and simultaneously
- User of the RJ45 Cat6 interface allows for a higher number of ports in smaller density
- Greater distances between your switch and servers allow enhanced data center rack layouts
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
|
|
KVM |
|
Number of ports
|
16 or 32 |
|
Connector |
RJ45 |
|
Connectivity |
DVI-D / VGA connector dongle up to 40 meters
(132 feet) via Cat6 / Cat5 cable |
|
Expansion |
Up to 256 servers by 8-level cascade
|
|
Local Console |
|
Monitor port |
1 x DB15-pin VGA |
|
Resolution |
Up to 1600 x 1200
|
|
Keyboard & mouse port |
2 x USB type connector for keyboard & mouse
|
|
Management |
|
OSD
|
English, France, German, Spanish, Italian,
Russian, Simplified Chinese, Japanese |
|
Hotkey combination |
Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win |
|
Security |
Password enable & disable, up to 8 users
profile for port access
|
|
PC Selection |
Front button, OSD menu & hotkey
|
|
Cat6 Remote Console |
|
Number of remote port
|
1 for LCDK2006-2 / LCDK2007-2
2 for LCDK2006-3 / LCDK2007-3
3 for LCDK2006-4 / LCDK2007-4 |
|
Monitor port |
DB15-pin VGA, up to 1600 x 1200 |
|
Keyboard & mouse port |
2 x USB type connector for keyboard & mouse
|
|
Remote I/O |
RJ45 via Cat5 / Cat6 cable up to 500 feet
|
|
Compatibility |
|
Multi-platform |
Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
|
Support |
Windows 7 / Vista / 2003 / XP, Linux, Unix |
|
Power |
|
Input |
AC power adapter |
|
Consumption |
Max. 48 Watt, Standby 5 Watt |
|
Regulatory Approval |
| |
cUL, FCC, CE |
|
Environmental |
|
Temperature |
0 to 50
Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage) |
|
Relative Humidity |
90%, non
condensing |
|
Shock |
50G peak
acceleration
(11ms, half-sine wave) |
|
Vibration |
58~100Hz / 0.98G (11ms / cycle) |
|
Mechanical |
|
Dimension
(W x D x H)
|
443 x 171 x 43.6 mm / 17.4 x 6.7 x 1.72 inch |
|
Weight |
Approximately
6.5 lbs / 3kg |
|
|
KVM port connection |
 |
| *click on above pictures for enlarged view |
Remote & Local console connection |
 |
| *click on above pictures for enlarged view |
|

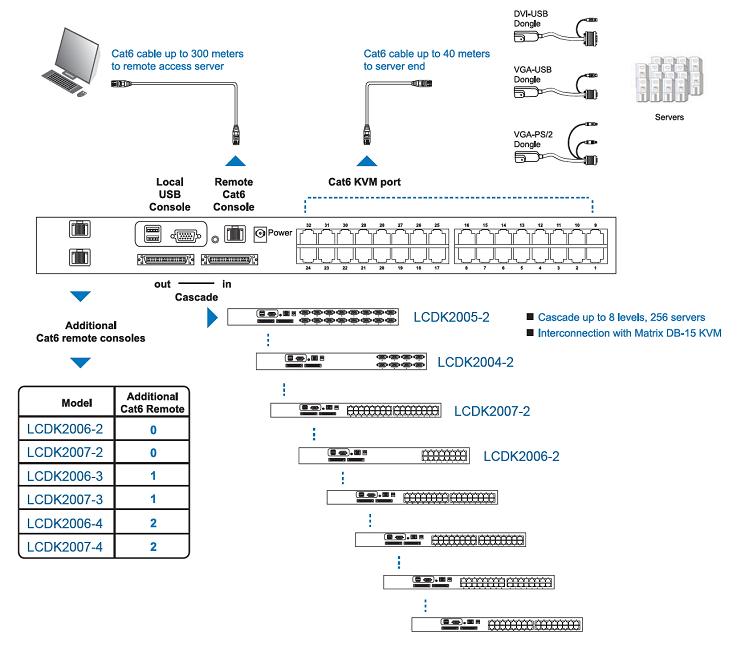

KVM Cascade
|
 |
| *click on above pictures for enlarged view |
|
Console Information
| Console Local Remote IP |
16-port |
32-port |
| 2 1 1 0 |
LCDK2006-2 |
LCDK2007-2 |
| 3 1 2 0 |
LCDK2006-3 |
LCDK2007-3 |
| 4 1 3 0 |
LCDK2006-4 |
LCDK2007-4 |
ACCESSORIES
|
Part #
|
Description |
Photo |
|
LCD-A2001 |
VGA-PS/2 dongle
|
Details
|
|
To connect DB-15 connector to the computer’s video card
To connect PS/2 keyboard connector to the computer’s keyboard port
To connect PS/2 mouse connector to the computer’s mouse port
|
|
LCD-A2002
|
VGA-USB dongle
|
Details
|
|
To connect DB-15 connector to the computer’s video card
To connect USB connector to the computer’s USB port
|
| LCD-A2003 |
DVI-USB dongle
|
Details
|
|
To connect DVI-D connector to the computer's video card
To connect USB connector to the computer's USB port
|
|
LCD-A1024 |
KVM cascade cable
|
Details
|
|
8ft
Matrix KM cascade
cable |
Ordering
information of LCDK2006 / LCDK2007 : CAT6 Matrix KVM Switch
