     Home >>   Rack mount Keyboard  / KVM Switch >>

RACK MOUNT MATRIX IP KVM :
Model  LCDK2010 / LCDK2011


Matrix VGA Combo KVM Switch, 8 / 16 Ports
1 Local User, 1~2 Extended Users (Remote Users), 1~2 Network IP Users ( KVM Over IP )
1U Rackmountable or Standalone
TAA Compliant

  16-Port IP KVM Model : LCDK2011



*Click for enlarged view

    Matrix VGA Combo KVM Benefits
  • Secure IP remote user access across the world wide web /
    KVM Over IP
  • Efficient system management with simultaneous multi-user access
  • Capable of connecting 8 or 16 servers per device in 1U
  • Multi-platform for Server, Blade Server, SNU Server, MAC Server & PC
  • Support resolution up to 1920 x 1080
  • Support SUN 1152 x 900 resolution
  • Standalone KVM or 1U Rack Mountable
  • Extended Cat6 cord remote access up to 495 feet /150 meters
  • Port switching via OSD, front button & keyboard hotkeys
  • Provide a diversity of consoles to access servers independently & simultaneously
  • TAA Compliant
    Switch Features & Options
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
KVM Port

Number of ports

 8 or 16

Connector

 DB-15 combo connector

Connectivity

6-ft VGA + USB Keyboard / Mouse 2-in-1 KVM cable ( Part no.: LCD-A1014), Optional 10 & 15 feet
Resolution 16:10 - max. 1920 x 1200 /
  4:3 - max. 1600 x 1200

Expansion

 Up to 240 servers by 8-level cascade

Local Console

Monitor port

 1 x DB-15 VGA

Resolution

16:10 - max. 1920 x 1200 /
  4:3 - max. 1600 x 1200


Keyboard & mouse port

 2 x USB type connectorfor keyboard & mouse

Remote Console

Number of remote port

 1

Resolution

16:9 - ( 1920 x 1080 ) Max. 50 meters
16:10 - ( 1920 x 1200 ) Max. 50 meters
16:10 - ( 1440 x 900 ) Max. 100 meters
4:3 - ( 1600 x 1200 ) Max. 100 meters
4:3 - ( 1280 x 1024 ) Max. 150 meters

Keyboard & mouse port

 2 x USB type connector for keyboard & mouse

Remote I/O

 RJ45 via Cat5/Cat6 cable up to 500 feet

IP Remote Console

Number of IP console

 1 for LCDK2010-31 / LCDK2011-31
 1 for LCDK2010-41 / LCDK2011-41
 2 for LCDK2010-42 / LCDK2011-4
2

User management

 15 user login, 1 x active user

Browser

 Internet Explorer, Firefox, Safari

Security

 SSL v3, RSA, AES, HTTP/HTTPS, CSR

IP Access

 RJ45 Ethernet per IP console
Power
Input   Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption  Max. 29 Watt
Regulatory Approval
  UL, FCC, CE, RoHS3,
REACH & TAA Compliant
ISO 9001, ISO 14001
Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity  20%~90%, non condensing (Operation)
 5%~90%, non condensing (Storage)
Shock  100G acceleration   (11ms)
Vibration  10~300Hz 0.5G RMS random vibration
Mechanical

Dimension
(W x D x H)

17.4" x 6.7" x 1.73"/ 443mm x 171mm x 43.6 mm

Weight  Approximately 6.5 lbs / 3kg
    KVM port connection

*Click for enlarged view
    Remote & Local console connection

*Click for enlarged view

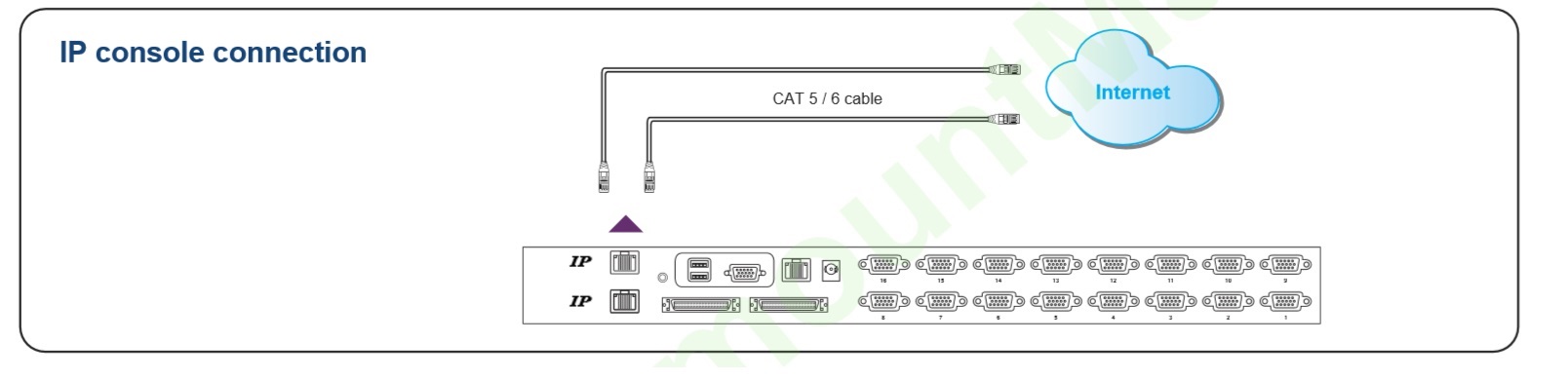

   IP console connection

*Click for enlarged view

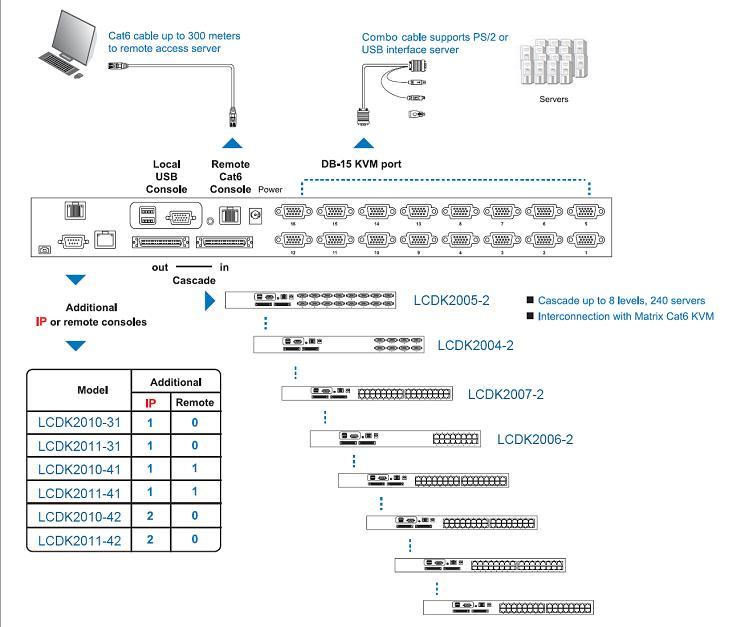

    KVM Cascade

*Click for enlarged view
 Download Product Sheet
 Download User Manual
 Download Software



Console Information

Console     Local     Remote     IP 8-port 16-port
     3                1              1           1 LCDK2010-2 LCDK2011-2
     4                1              2           1 LCDK2010-3 LCDK2011-3
     4                1              1           2 LCDK2010-4 LCDK2011-4



Ordering  Information of  LCDK2010 / LCDK2011 :  Matrix VGA Combo KVM Switch, IP KVM Switch

Part Number  Description
LCDK2010-31
8 Port Matrix VGA Combo KVM Switch, 1 x Local User + 1 x Extended /Remote Users + 1 x Network IP User, with 8 x 6-ft  USB KVM  cable ( LCD-A1014)
LCDK2010-41
8 Port Matrix VGA Combo KVM Switch, 1 x Local User + 2 x Extended /Remote Users + 1 x Network IP User, with 8 x 6-ft  USB KVM  cable ( LCD-A1014)
LCDK2010-42
8 Port Matrix VGA Combo KVM Switch, 1 x Local User + 1 x Extended /Remote Users + 2 x Network IP Users, with 8 x 6-ft  USB KVM  cable ( LCD-A1014)
LCDK2011-31
16 Port Matrix VGA Combo KVM Switch, 1 x Local User + 1 x Extended /Remote Users + 1 x Network IP User, with 16 x 6-ft  USB KVM  cable ( LCD-A1014)
LCDK2011-41
16 Port Matrix VGA Combo KVM Switch, 1 x Local User + 2 x Extended /Remote Users + 1 x Network IP User, with 16 x 6-ft  USB KVM  cable ( LCD-A1014)
LCDK2011-42
16 Port Matrix VGA Combo KVM Switch, 1 x Local User + 1 x Extended /Remote Users + 2 x Network IP Users, with 16 x 6-ft  USB KVM  cable ( LCD-A1014)
