1U /2U/ /3U/ 4U/ 6U/ 7U /8U Rack mountable LCD MONITOR :
                            Part #  LCDR1U1.8-01-SDI

                                1U Rackmount 8 x 1.8"  LCD Flat Panel with SDI input

Panel:   8 x  1.8" LCD panels Display 1.8" LCD Panels x 8 Display Area 1.45" x 1.11" Resolutions 280 H x 220V Pixel pitch 0.132mm  x 0.128mm Brightness 250 cd/m2 Contrast Ratio 200:1 System NTSC / PAL auto rec Input per  panel (total)  1 ( 8 ) SDI Serial Digital ITU-R BT601 Output ( Loop Through) 1 Active per display Product Dimension 19.12" (W) x 1.64" (H)  x 8.72" (D) Approx.  weight 6 lbs Power Consumption 12 VDC , 3.0 Amps Product Dimension 19.12" (W) x 1.64" (H)  x 8.72" (D)  Free Ground Shipping *Click for details

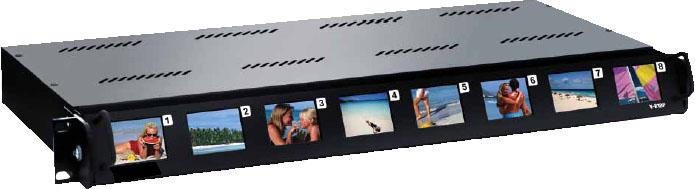

Front  View             *click on  picture for  enlarged view        Rear  View                *click on  picture for  enlarged view  Features : •  Lower power consumption. •  Eight 1.8" displays •  Display can be titled up to 90 degrees to achieve     the best viewing angle for your setting •  Active (relocked) loop through features •  Universal voltage power supply included •  1U high , Wide Viewing Angel •  MADE IN USA

Description :

LCDR1U1.8-01 is a 8 display package with tilt feature and Composite Video input fits in a single rack unit. The display  can be tilted up to 90 degrees to achieve the best viewing angle for your installation. This model has SDI inputs and active loop features and includes universal voltage power supply.

Applications :

•  Signal confidence
•  Data Ingest
•  Cable head end
•  Server Playout
•  Satellite up / down link
•  Multiplexed camera signals


Ordering  information

Part Number	Description
LCDR1U1.8-01-SDI	1U Rackmount 8 x 1.8"  LCD Monitor panel with SDI Inputs
