4U / 6U / 7U / 8U/ 9U Rackmount Monitor :
Part # LCDR4U10-01

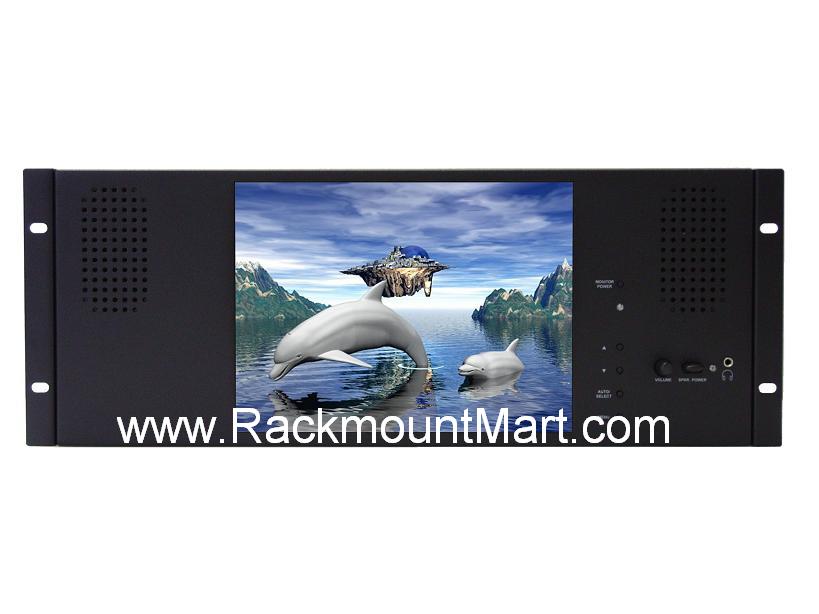

4U Rackmount 10.4" TFT / LCD Monitor ( Made in U.S.A. )

     -10.4" Active Matrix TFT LCD display.
     - High contrast and wide viewing angle.
     - Optional integrated amplified stereo
       speakers (shown).

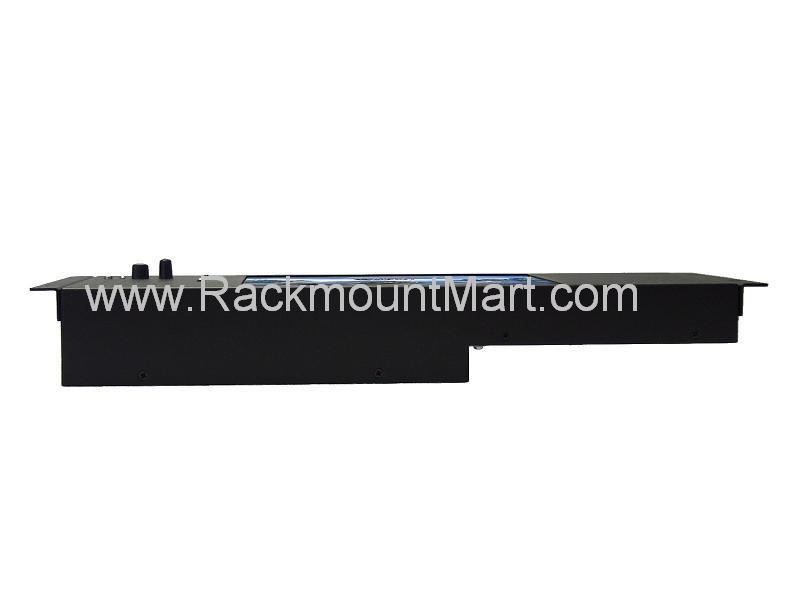

     - Only 2.5" deep allows mounting in
      confined spaces.
     - SVideo/composite video option.
     - Plugs directly into a standard VGA
        card.

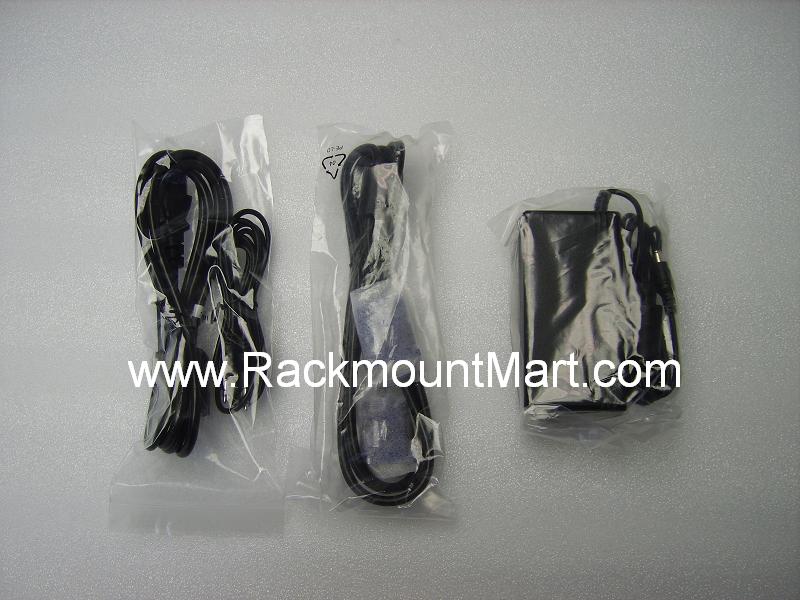

     - Video and power cables provided.

Free Ground Shipping *Click for details

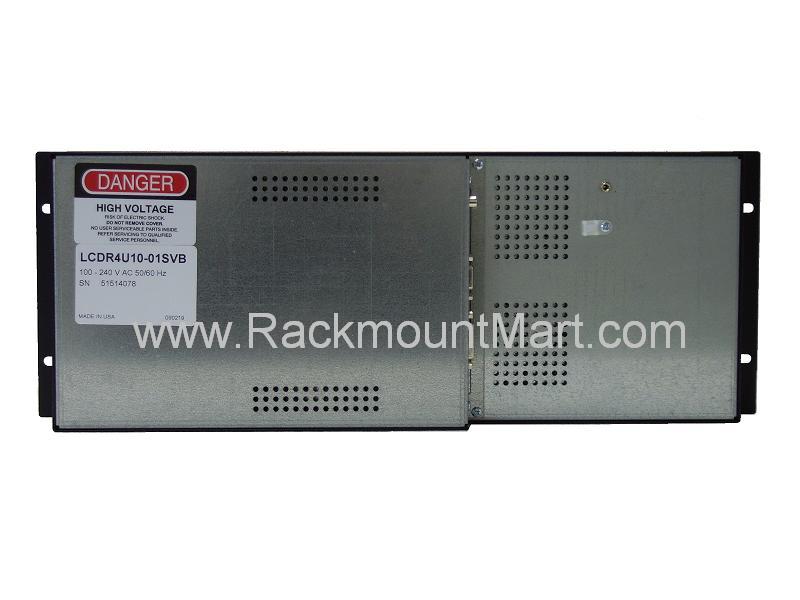

More Photos (click on photo for enlarged views) :

The LCDR4U10-01 rack mountable 10.4" TFT monitor provides a high contrast, wide viewing angle
dispay in minimal rack depth. This TFT display connects directly to a standard video output via a 15-pin
VGA connector and does not require any additional drivers or proprietary interface adapters. Also featured
are optional integrated speakers and/or S-Video/Composite video inputs. Offered in a choice of
light gray or black .

Dimensions	19.0" (W) x 7.0" (H) x 2.5" (D)
Display Type	10.4" viewable, TFT active matrix LCD.
Resolution	1024 x 768 maximun, 262K colors.
Frequency	Horizontal: 31.5~80 KHz. Vertical: 56~75 Hz.
Response Time	35 ms (typ).
Brightness	150 nits typical
Contrast Ratio	450:1 typical
Viewing Angle	Horizontal: 160 degrees Vertical: 160 degrees

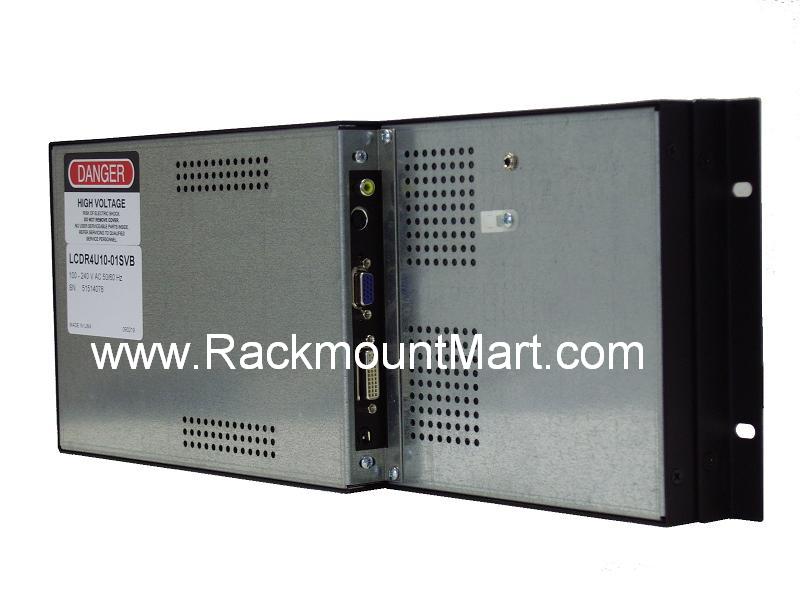

VGA Input	Analog RGB, TTL H & V Sync (HDB-15 connector).
Video Input (Optional)	SVIDEO (Mini-DIN connector). Composite Video (RCA jack).
On-Screen Controls	Brightness, Contrast, Position (Vert. & Horiz.), Auto Adjust, Input Select, Scaling, Color Temp., Reset.
Speaker (Optional)	4W stereo with seperate power and volume controls. 3.5mm Input jack / 3.5mm Headphone jack.
Power Adapter	AC Input	100-240VAC
	Frequency	50/60 Hz
	Output	12VDC
Environment	Temperature	Operating:0 to 50 degree Celsius
	Humidity	Operating: 10% to 90% non-condensing

Ordering information

Part Number Description

LCDR4U10-01-b 4U Rackmount 10.4" LCD Monitor , black

LCDR4U10-01-lg 4U Rackmount 10.4" LCD Monitor , light gray

LCDR4U10-01-s-b 4U Rackmount 10.4" LCD Monitor with speaker, black

LCDR4U10-01-s-lg 4U Rackmount 10.4" LCD Monitor with speaker, light gray

LCDR4U10-01-v-b 4U Rackmount 10.4" LCD Monitor with video, black

LCDR4U10-01-v-lg 4U Rackmount 10.4" LCD Monitor with video, light gray

LCDR4U10-01-sv-b 4U Rackmount 10.4" LCD Monitor with speaker & video, black

LCDR4U10-01-sv-lg 4U Rackmount 10.4" LCD Monitor with speaker & video, light gray
