4U / 6U / 7U / 8U/ 9U Rackmount LCD Display :
Part # LCDR6U15-03

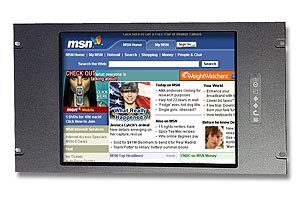

6U Rackmount 15" TFT LCD Display with optional NTSC video decoding

Panel: 15" LCD panel

Display Area
304.1 (H) X 228.1 (V) mm
Driver Element
a-Si TFT active matrix
Display Colors
16.2M (true) colors
Pixels
1024 X 768
Pixel Arrangement
RGB vertical stripe
Pixel Pitch
0.297 (H) X 0.297 (W) mm
Input Select
VGA, composite video & S-video input
Display Mode
White
Surface Treatment
Haze 25%, Hard-coating (3H)
Lamp
4 - Lamp
Storage Temp.
-25ºC to 60ºC
Product Dimension :
48(W) x 26.6(H) x 5(D)cm / 18.9" x 10.5" x 2"

Free Ground Shipping *Click for details

Features :

Anolog-to-Digital Conversion
NTSC(Optional)/PAL/SECAM Video Decoding
Scaling
OSD
EDID (DDC2 compliance)
LCD Timing Controller
comes with VGA, composite video & S-video input connectors

Ordering information

Part Number Description

LCDR6U15-03 6U Rackmount 15" TFT LCD Monitor

LCDR6U15-03-NTSC 6U Rackmount 15" TFT LCD Monitor with NTSC decoding
