Home >> Rackmount LCD Flat Panel >>

Home >> Rackmount LCD / KVM >> 19" Rackmount LCD KVM >>

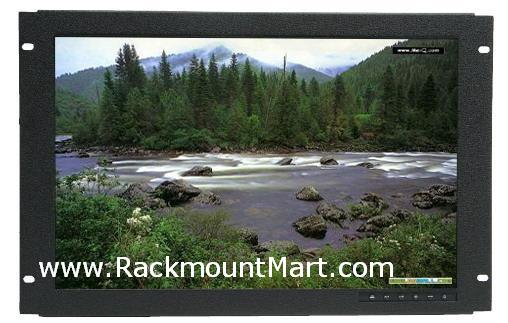

Rack Mountable Monitor : Part # LCDR7U19-01

        7U Rack mountable 19" Samsung Wide Format TFT LCD Monitor Optional Lexan Shield
                                                                      ( Made in U.S.A. )
                  *****This model is discontinued . Learn more about replacement model LCDR7U19-05 *****

Also known as: rackmount lcd monitor, rack mount LCD monitor, rackmount tft monitor, fixed rackmount lcd monitor, tft rackmount lcd monitor, flat panel monitor, rack mount monitor, active matrix monitor


* Click on the photos to enlarge

Features :
-19" SAMSUNG Active Matrix TFT LCD panel with resolution 1440 x 900
- Wide Format 16:10 aspect ratio
- Wide viewing angle enable mounting higher in rack : 160 degree/ 160 degree
- Fast 4 ms (G to G ) response time
- Fits in standard 19" rack/cabinet
- Steel front panel construction with a durable powder coat finish
- Analog & Digital Inputs
- On Screen Display (OSD)

More photos (click to enlarge )

Dimensions	19.0" (W) x 12.25" (H) x 3.0" (D)
Color	Black
Display Type	19" Samsung TFT active matrix LCD.
Resolution	Up to 1440 x 900 maximum, 16.2M colors.
Response Time	4ms (typ).
Brightness	300 nits typical
Pixel Pitch	0.285mm
Contrast Ratio	500:1 typical
Viewing Angle	Horizontal: 160 degrees Vertical: 160 degrees
Input Signal	VGA: RGB. Analog Video, TTL H & V sync Digital : DVI-D (TDMS)
Input Connector	Analog : 15-pin mini D-sub Digital : 24 pin DVI-D
On-Screen Controls	Brightness, Contrast, Position (Vert. & Horiz.), Auto Adjust, OSD H & V Position, Input Select , Reset, Color Temp
Plug & Play	DDC1 and DDC2B
Power	AC Input	100-240VAC
	Frequency	50/60 Hz
	Power Consumption	42 Watts Maximum
Environment	Temperature	Operating:10 to 40 degrees C Storage: -20 to 45 degrees C
	Humidity	Operating: 10% to 80% RH (max)

Ordering information

Part Number Description

LCDR7U19-01 7U Rackmount 19" Wide Format TFT LCD Monitor , black

LCDR7U19-01-Lex 7U Rackmount 19" Wide Format TFT LCD Monitor , black, with Lexan Shield Protection
