A 19" TFT
LCD display featuring high contrast and wide viewing angles while occupying only 1.7" of rack depth
Dimensions |
19.0" (W) x 14.0" (H) x 1.7" (D) |
Display Type |
19" viewable, TFT active matrix
LCD. |
Resolution |
1280 x 1024 maximun, 16M colors. |
Frequency |
Horizontal: 31-80 KHz.
Vertical: 55-76 Hz. |
Response Time |
18 ms (typ). |
Brightness |
270 nits typical |
Contrast
Ratio |
800:1 typical |
Viewing Angle |
Horizontal: +89 / -89 degrees
Vertical: +89 / -89 degrees |
Input Signal |
(VGA) Analog RGB,
TTL H & V Sync.
(Digital) DVI-D (TMDS). |

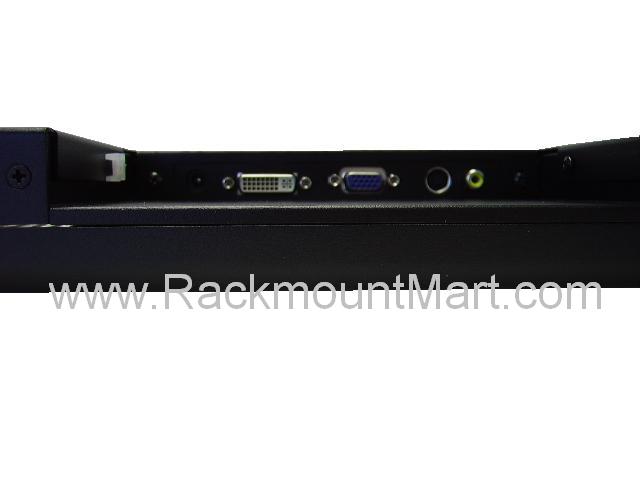

Video
Connector |
Analog: 15 pin mini HD D-sub.
Digital: 24 pin DVI-D. |
On-Screen
Controls |
Brightness, Contrast, Position (Vert.
& Horiz.), Auto Adjust, Input Select, Scaling, Color Temp., Reset. |
Plug & Play |
DDC1 and DDC2B |
Power |
AC
Input |
100-240VAC |
Frequency |
50/60 Hz |
Power Consumption |
60 Watts Maximum |
Environment |
Temperature |
Operating:0 to 50 degrees C |
Humidity |
Operating: 10% to 85% non-condensing |
Features :
- 19" Active
Matrix TFT LCD display.
- High contrast and wide viewing angle.
- Controls on side of monitor for a clean appearance.
- Optional LEXAN shield.
- Only 1.7" deep allows mounting in confined spaces.
- DVI-D digital input in addition to standard VGA input.
- Plugs directly into a standard VGA card.
- Video and power cables provided, TAA Compliant
Ordering
Information
Part
Number |
Description |
LCDR8U19-05-bk
|
8U
Rackmount 19" TFT LCD Monitor , black |
LCDR8U19-05-bk-L
|
8U
Rackmount 19" TFT LCD Monitor , black with Lexan
shield protection on display surface |
LCDR8U19-05-lg
|
8U
Rackmount 19" TFT LCD Monitor , light gray |
LCDR8U19-05-lg-L
|
8U
Rackmount 19" TFT LCD Monitor , light gray Lexan
shield protection on display surface |
-AV
|
S-Video &Composite Video
inputs + ARGB & DVI inputs |
-TRB
|
with Resistive Touchscreen and USB controller |
-TRS
|
with Resistive Touchscreen and Serial controller |
