                                              20 Inches Rackmount  Monitor :
                                         Part #  LCDR8U20-06

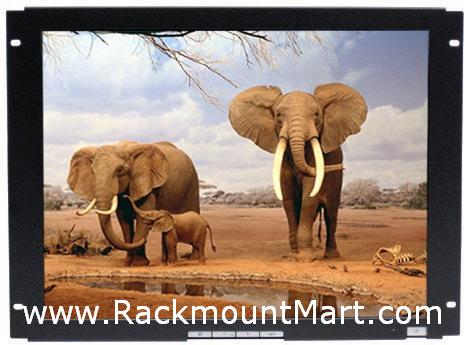

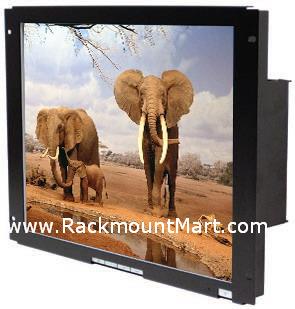

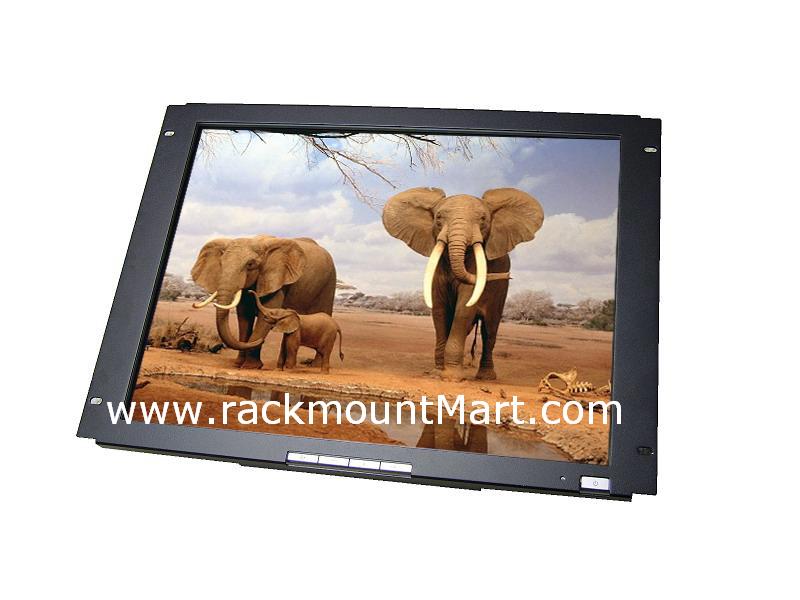

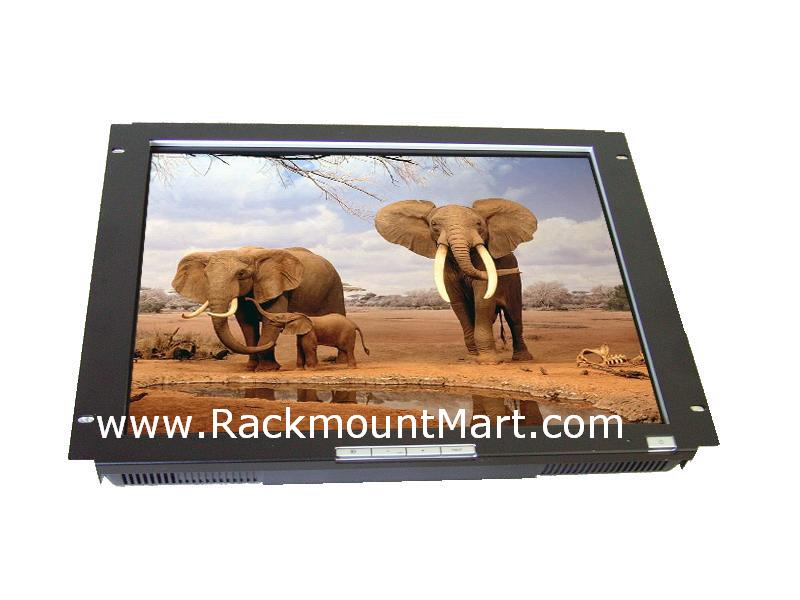

                   8U Rack mount  20.1" TFT / LCD Monitor Panel ( Made in U.S.A. )

                  *****This model is discontinued .  Learn more about replacement model LCDR8U20-07   *****

                                                                     * Click on the photos to enlarge
                            Free Ground Shipping *Click for details



  More photos (click to enlarge )

Features :
- 20.1" Active Matrix HP TFT LCD display with 1600 x 1200 resolution.
- High contrast and wide viewing angle.
- Optional Lexan Shield protection for the display surface.

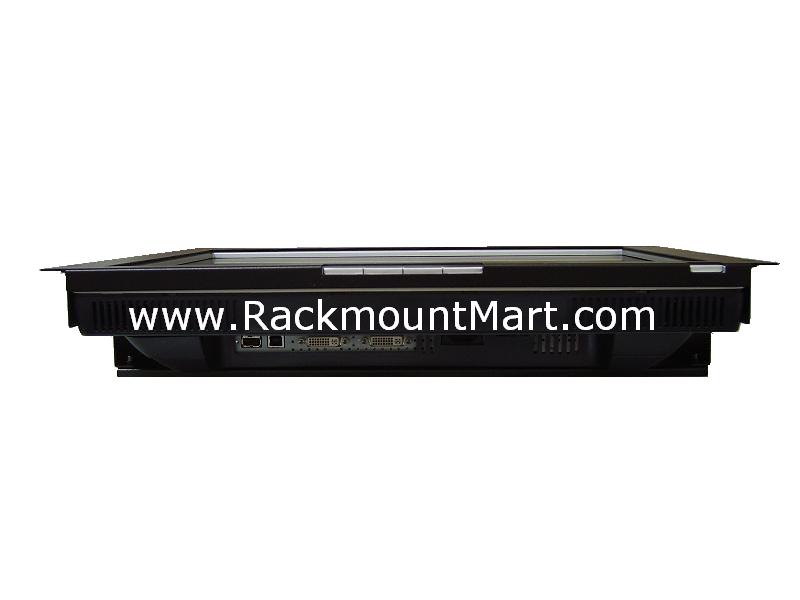

- Only 3.4" deep allows mounting in confined spaces.
- Steel construction with a durable powder coat fi nish.
- Video and power cables provided.

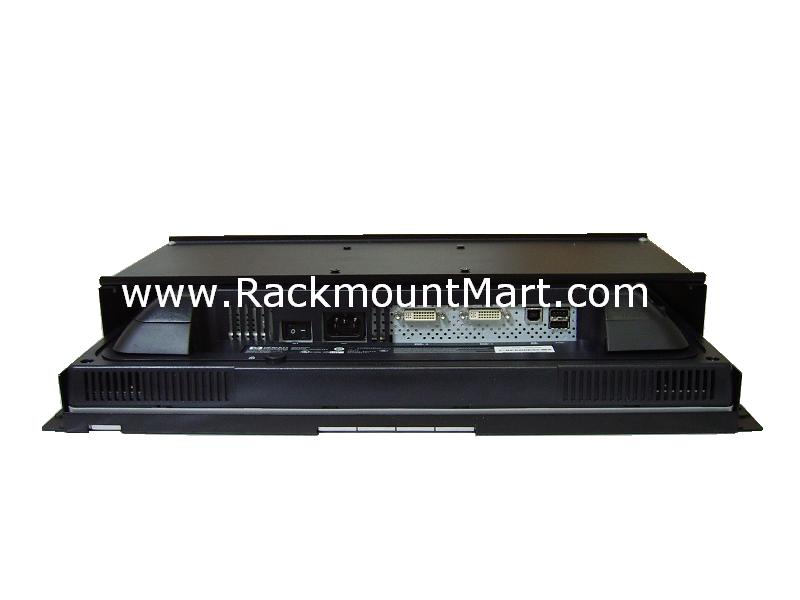

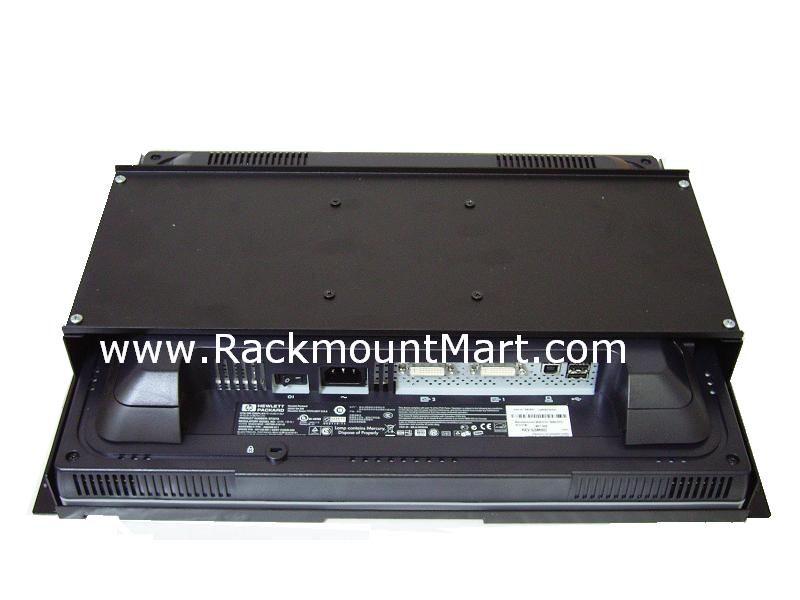

- Input connectors: Two DVI-I connectors (dual VGA analog or dual digital input possible).
- Color : Black

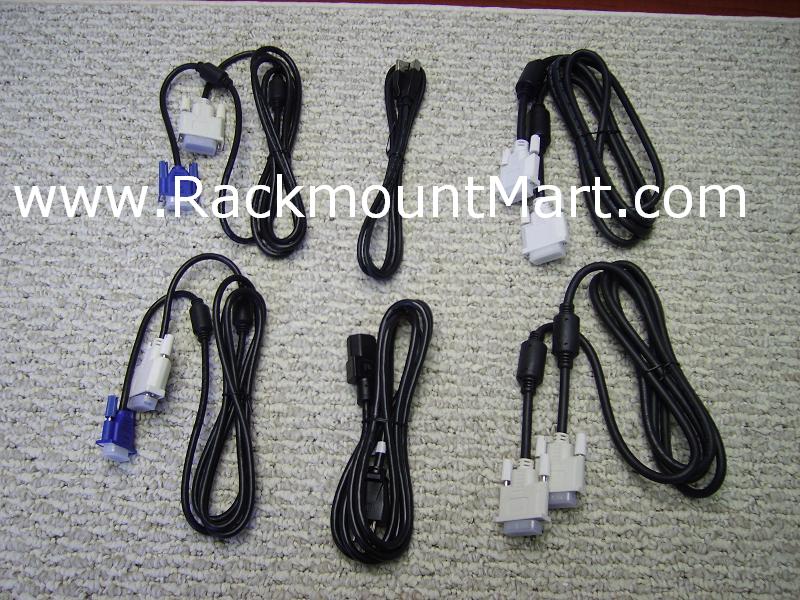

The LCDR8U20-06 rack mountable 20.1"  TFT monitor provides a high contrast, wide viewing angle display in a minimal rack depth. This TFT display connects directly to a standard video output via 2 DVI-D connector and does not require any additional drivers or proprietary interface adapters. Offered in black with optional display surface Lexan Shield protection. Video cables supplied: Two VGA to DVI-I and two DVI-D to DVI-I Self powered USB 2.0 ports: One upstream, 2 downstream. RoHS complaint and CE approved.
Dimensions 19.0" (W) x 14.0" (H) x 3.4" (D)
Display Type 20.1"  viewable, TFT active matrix LCD.
Resolution 1680 x 1200 maximum, 16.7M colors.
Frequency Horizontal: 30-94 KHz.
Vertical: 48-85 Hz.
Response Time 8 ms (typ).
Brightness  300 nits typical
Contrast Ratio 800:1 typical
Viewing Angle Horizontal: 178 degrees
Vertical: 178 degrees
Input Signal Two DVI-I connectors (dual VGA analog or dual digital input possible).
Video Connector Digital: 24 pin DVI-D.

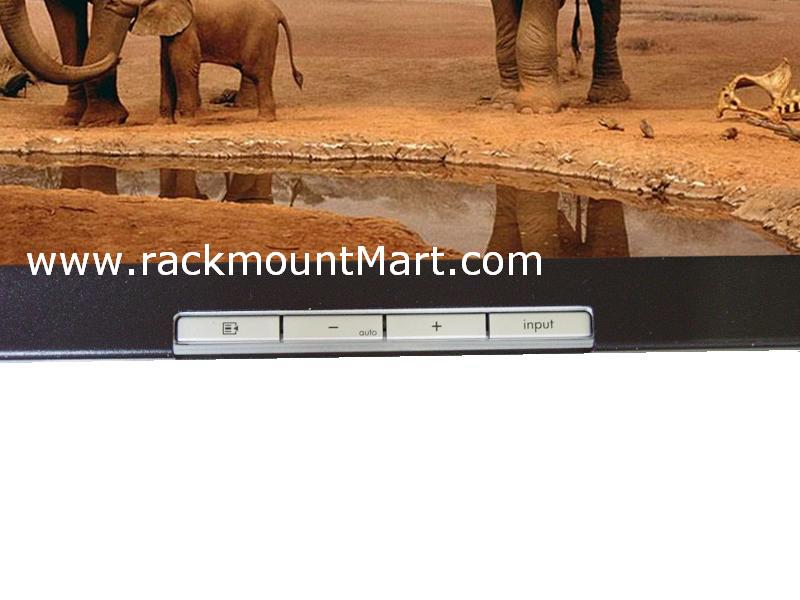

On-Screen Controls Brightness, Contrast, Position (Vert.  & Horiz.), OSD H & V position, Input Select, Color Temp., Reset. Auto Adjust
Plug & Play DDC2B and DDC1
Power AC Input 90-265VAC
Frequency 50/60 Hz
Power Consumption 55 Watts Max
Environment
Humidity Operating: 20% to 80% RH (max)


Ordering  information
Part Number  Description
LCDR8U20-06-b  8U Rackmount 20.1" HP LCD Monitor , black
LCDR8U20-06-b-lex  8U Rackmount 20.1" HP LCD Monitor , with Lexan Shield protection at display , black
