Wall Mount Computer  :  Part # WM1002


 WM1002  Mother Board Version

   WM1002  Backplane Version

EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Mounting: Desktop or Wall Mount
System Boards: Flex & Micro ATX M/B (Part # : WM1002_MB) OR
10/12-slot Passive Backplane (9-Long Card)(Part # : WM1002_BP)
Motherboard Size: Support MATX or Flex M/B (Only 120ATXR)
Drive Bays: 2 x 5.25 + 2 x 3.5 open + 1 x 3.5 hidden
Power Supply (Optional): PS/2 Size Single up to 400W or Redundant up to 300W ATX P/S (Rear Installation) Max. Depth 190mm (Optional)
Cooling Units: 1x (120mm = 90CFM ea.) Fan
Thermal Management Card: Installed
Connector Port (Front): 2x USB Ports (Optional)
Front Door: Single Door With 2 Thumbscrews
Air Filter: Inside Front Panel (Washable)
Expansion Slot: 4x Slots ATX; 12x Slots SR
Indicators: LEDs for Power ON/OFF, HDD Activity, Fan, Temperature
Switch: Power ON/OFF, System Reset, Buzzer Reset
Hold Down Bar: Flexible Hold Down Bar Designed
Dimensions: 400(W) x 177(H) x 420(D) mm (15.7" x 7" x 16.5")
Humidity: 5% - 95% Non-condensing


More photo - (click on the picture to enlarge)

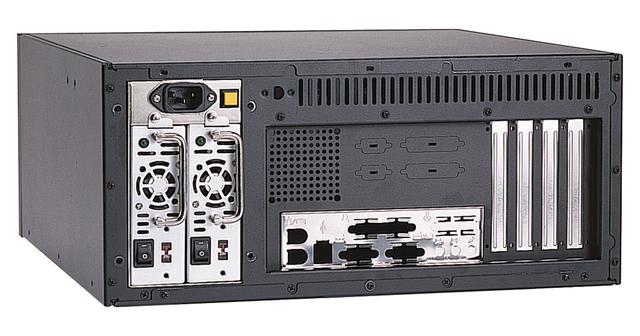

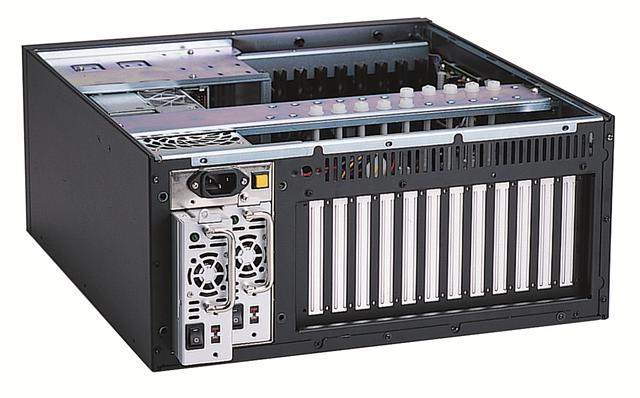

              MotherBoard Version :       Backplane Version :
