    Home >>  Industrial Display >>  Open Frame LCD Monitor >>

Industrial Display:   Part #   ID-19Pw

*** This model is discontinued . Click for replacement model ID-19Pw-LED  ***


                                        19" Samsung Wide Screen (16:9) Open Frame TFT LCD Display

                                                  LCD Panel

LCD Type

Samsung Grade A Industrial TFT LCD Panel

Display Size

Wide 19 inch (16:9)

Resolutions

1440 x 900

Display Color

16.7M color

Brightness

300 cd/m2

Contrast ratio

1000 : 1 (Typical)

Viewing angle

80 / 80 / 80 / 80 (L / R / U / D)  or  160 / 160

LCD MTBF

50,000 hrs

Signal Input

-Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Built-in Video  Input

  • Video Input : DVI and S-Video and Composite
  • Input Connectors : RCA, S-video, DVI

Power Supply

External type,110 ~220 VAC at 50 or 60Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video  Input

  • TV Input : TV tuner with audio
    speaker-out
  • Input Connectors : TV tuner with 3.5mm
    audio jack
  • DVI Input : DVI-D digital input
  • Input Connectors : DVI-D (male)

Optional DC Power

48V / 24V / 12V DC Power    Details
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety  : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details

                                  Mechanical
Dimension  505.5 x 57.1 x 335.1 mm (WxDxH)
Product Weight  5 kg
                                  Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Safety Approval   CE, FCC
                             Package Content

Package Content

LCD Monitor x 1,VGA Cable (Male to Male) x 1,   DC 12V adapter x1, Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

  Front View of  ID-19Pw

  Construction

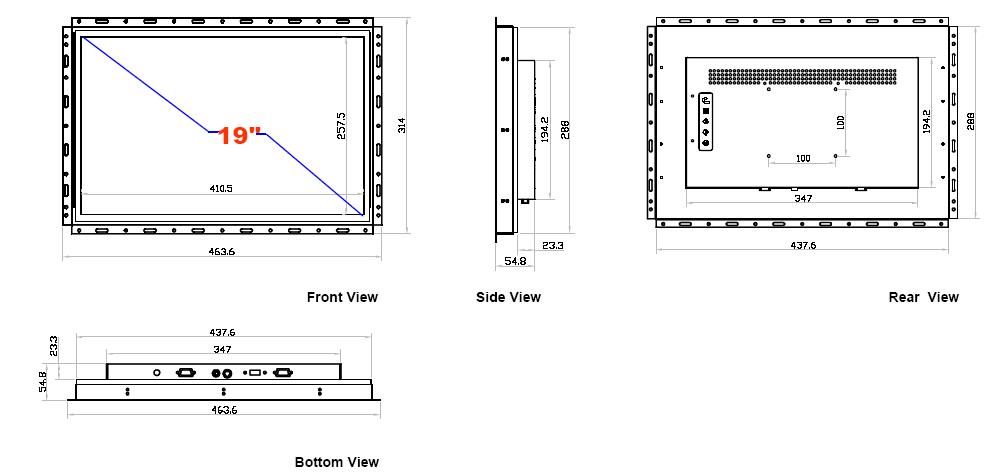

   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view






         Free Ground Shipping * Click for details

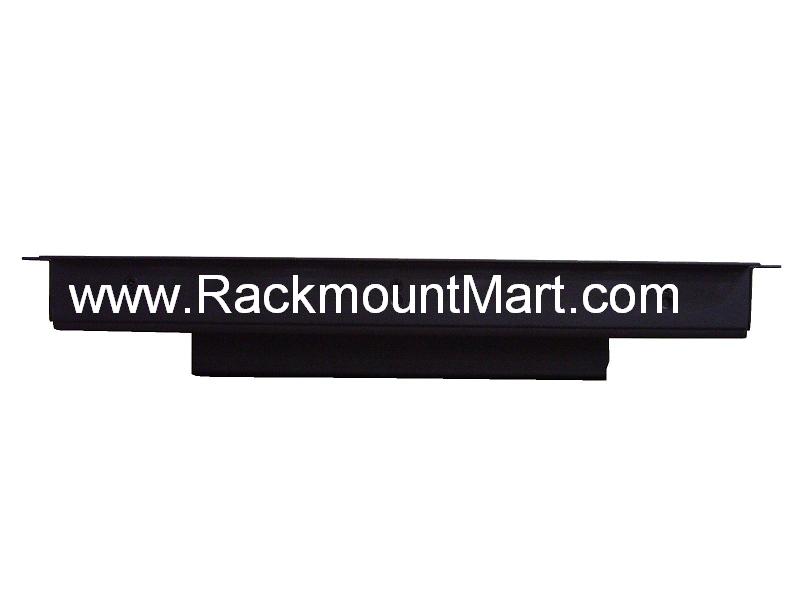

  More photos (click to enlarge )


FEATURES :
  • 19"(16:9) industrial TFT LCD panel support 1280 x 768 pixels
  • 300 cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Built-in VGA (15-pin D-sub) & video input (DVI & S-Video & RCA input)
  • Optional with DVI-D, TV tuner input & audio speaker-out
  • Industrial open frame kit
  • VESA-mount, universal-mount mounting

APPLICATIONS :

  • Industrial automation LCD panel
  • Point of ales / Kiosk
  • Security / surveillance
  • Flight information display
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation

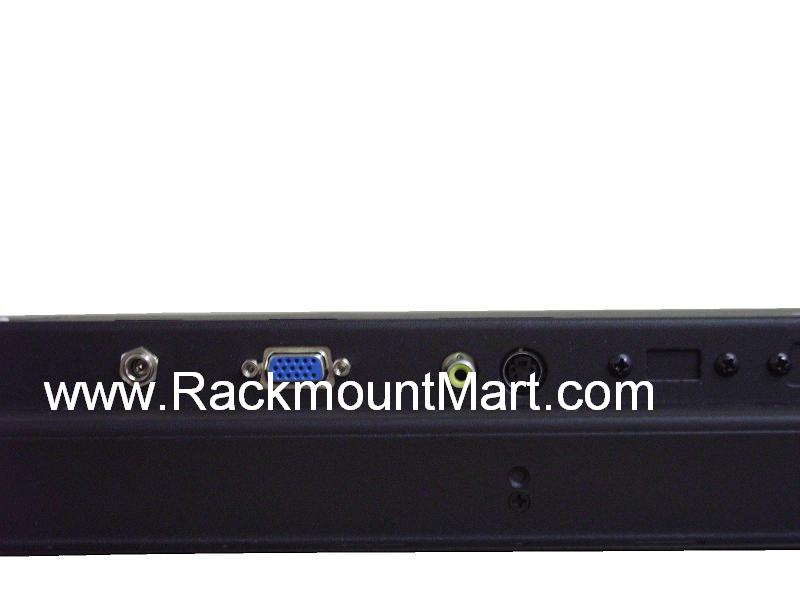

     Diagram for  I/O Outlet




Ordering information :
Part # Description
ID-19Pw Standard Version  - 19"(16:9) Samsung Open Frame TFT LCD Display,
with VGA + DVI-D input
ID-19Pw-BNC 19"(16:9) Samsung Open Frame TFT LCD Display,
with VGA + DVI-D + BNC + S-Video + Audio + remote controller
ID-19Pw-AV 19"(16:9) Samsung Open Frame TFT LCD Display,
with VGA + DVI-D + BNC with RCA adapter + S-Video + Audio + remote controller
ID-19Pw-HDMI 19"(16:9) Samsung Open Frame TFT LCD Display,
with VGA + HDMI w/ speaker + BNC + S-Video + Audio + remote controller
Optional Video/Audio Inputs
-SDI Add 3G / HD / SD-SDI Broadcast grade input             Download Spec Sheet
-QD Add Quad display
-MC Add Multi-Display Controller            Download Spec Sheet
Optional Touch Screen
-TRS Add Resistive Touch Screen with Serial Controller
-TRB Add Resistive Touch Screen with USB Controller
-TCS Add Capacitive Touch Screen with Serial Controller
-TCB Add Capacitive Touch Screen with USB Controller
Optional Controller
-TV Add TV tuner with remote controller (analog)
Optional DC Input Power
-DC12 Add 12V DC Power
-DC24 Add 24V DC Power
-DC48 Add 48V DC Power
Optional Connectors – For DC power only
-MD Add MIL-type DC lockable jack, male
-MA Add MIL-type VGA lockable jack, male
-LD Add Lockable DC jack, male
-LS Add Lockable USB jack
