1U Military Grade Rackmount Monitor Drawer with KVM
options
Model MIL1U19-04
Rugged MIL-SPEC 1U Rackmount 19" SXGA Monitor Drawer
KVM Switch Options: HDMI KVM, DP KVM, DVI KVM, RJ45 KVM (CAT6 KVM), VGA KVM
Made in USA
TAA Compliant
|

MIL1U19-04
|

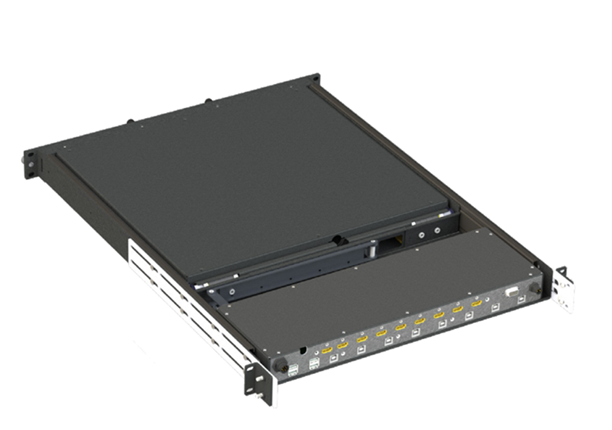

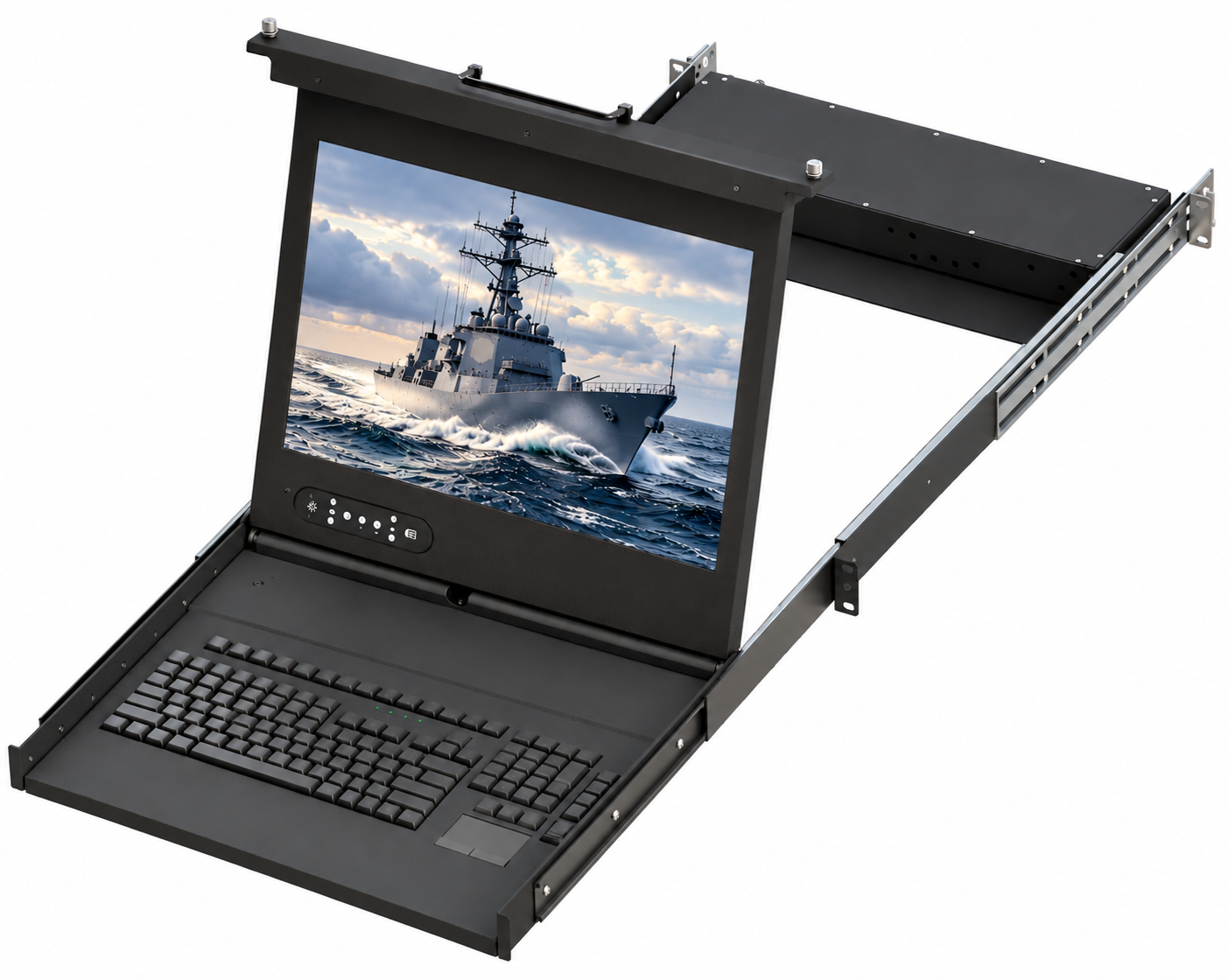

The MIL1U19-04 is a rugged 1U rackmount LCD monitor designed for military, defense, and other demanding environments. Built with precision-machined 5052-H32 and 6061-T6 aluminum, it offers durable construction for standard rackmount and transit case installations.
A chemically strengthened anti-glare protective lens is included as standard. Optional features include MIL-STD-461G EMI enhancements, ITO-coated glass, optical bonding, high-brightness display, MIL-SPEC touchscreen capability, and conformal coating for additional environmental protection.
Designed to meet demanding MIL-SPEC requirements, the MIL1U19-04 supports customized configurations for specialized applications.
Features
- 1U Rackmount 19" SXGA 1280 x 1024 LCD Keyboard Drawer
- Chassis Depth: 24"
- Rugged All Aluminum Construction
- MIL Standard C300 Friction Slides
- Anti Glair, Chem Strengthened Cover Glass
- Shock and Vibe Rugged Design 810G, 901D, 167
- Fits 19” Rack and Transit Cases
- MIL Standard C90, 2 Pin Power Inlet
- Made in USA, TAA Compliant
Options
- KVM Options: DP KVM, HDMI KVM, DVI KVM, RJ45 KVM
(CAT6 KVM) or VGA KVM
- Display Enhancements: Heated Glass and NVIS Backlighting.
- Daylight Viewable, High-Brightness
- 461G EMI, ITO Glass Enhancement
- Optical Bonding for Grade A Shock
- PCAP and Resistive Touch Screen
- Multiple Keyboard Options
- MIL Options
- Custom Options
|
|
LCD Screen |
|
Display Size |
19" |
Resolutions
|
SXGA 1280x1024 |
Cont
rast Ratio |
1,000
: 1 |
Brightness |
350 nits |
Viewing Angles |
85/85/80/80 |
Response Time |
10 ms |
Surface Treatment |
Anti-glare, 3H |
Color |
6-bit+HiFRC (16.7M), NTSC 70% |
| Input Signals |
VGA |
DB15 Male |
HDMI or DVI |
Locking HDMI |
Display Port |
Locking Full Size Display Port |
| USB |
USB 2.0 Type A |
| Power |
| DC Power Input |
12VDC (Optional 9-36VDC) |
| Connector |
MIL lock connector (C90 Connector Standard) |
| AC Power Supply |
UL Listed AC/DC Brick (Optional MIL SPEC) |
| Keyboard |
Standard |
K: Military - Industrial Grade Keyboard |
Options |
K1: Thin, rugged military-grade keyboard with touchpad and Force Sensing Resistor
K2: Thin Military OEM Keyboard
K3: Mobile Keyboard with Force Sensing Resistor
K4: NEMA 4 Sealed Keyboard with Glidepad |
|
Mechanical and Environment |
|
Height |
1.75" |
|
Mounting
|
24" Rack Mount with Rear Arms 24 to 32" Depth |
|
Construction
|
Aluminum Housing with black powder coating |
| Operating Temp. |
-30°C ~ 85°C |
| Storaging Temp. |
-30°C ~80°C |
| Operating Humidity |
5% - 95%, non -condensing | Method 507.4 |
| Anti-Vibration |
5 - 500 Hz / 1 Grms PTP | Method 514.5 |
| Anti-Shock |
15G / Peak (11 ms) | Method 516.5 |
| Physical Dimension |
19" W x 1.75" H x 24" D |
| Gross Weight |
25 lb |
| Certification and Approvals |
UL/CE/ FCC RoHs |
| Altitude Test |
10,000/ 30,000 ft (Operational/ No-Operational) |
|
|

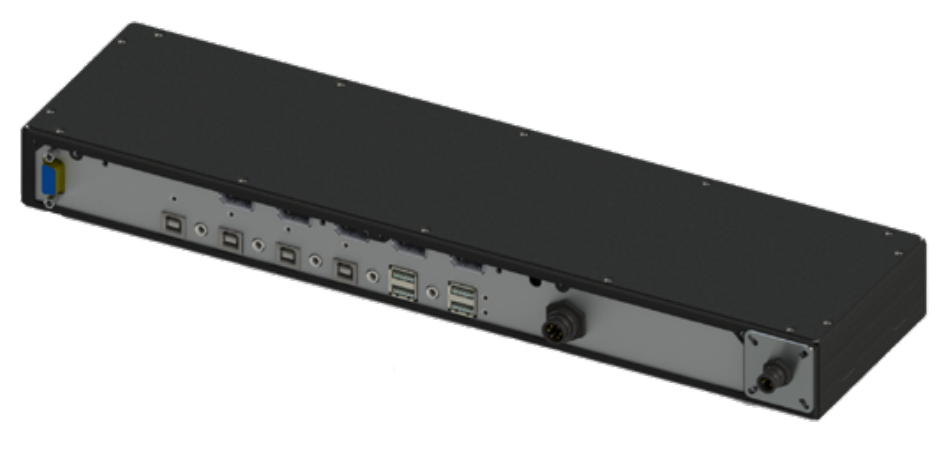

KVM Switch Options |
| 4-Port DP KVM
|
 NIAP Compliant |

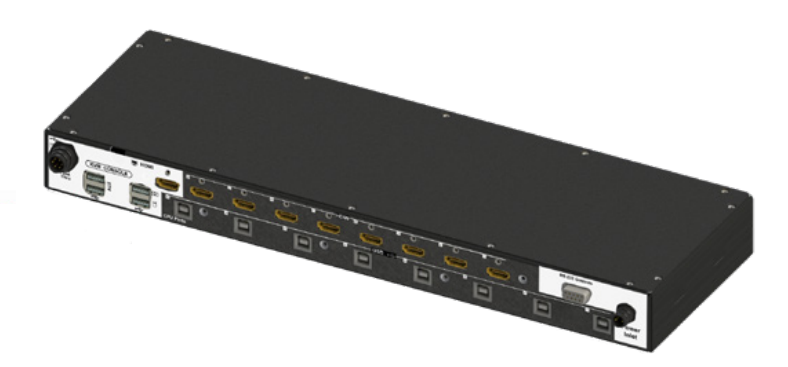

| 8-Port HDMI KVM |
 NIAP Compliant |

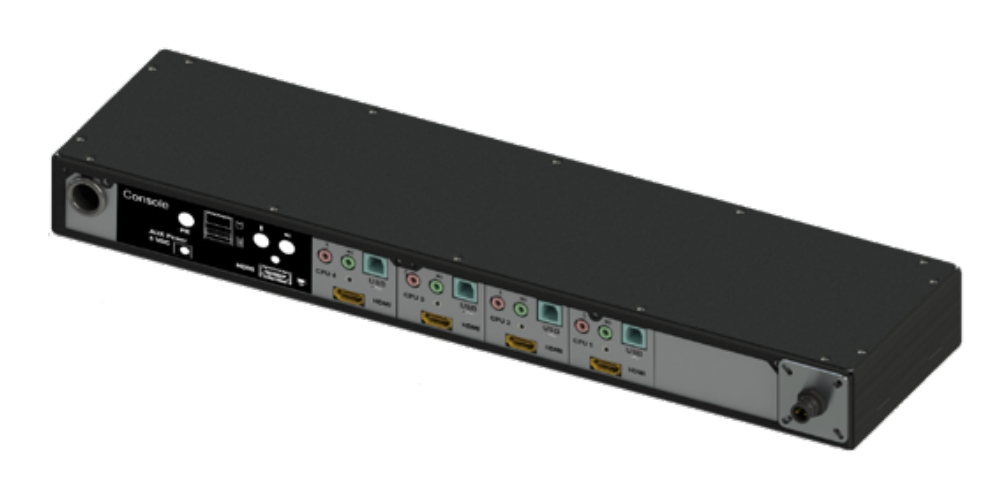

| 4-Port HDMI KVM |
 NIAP Compliant |

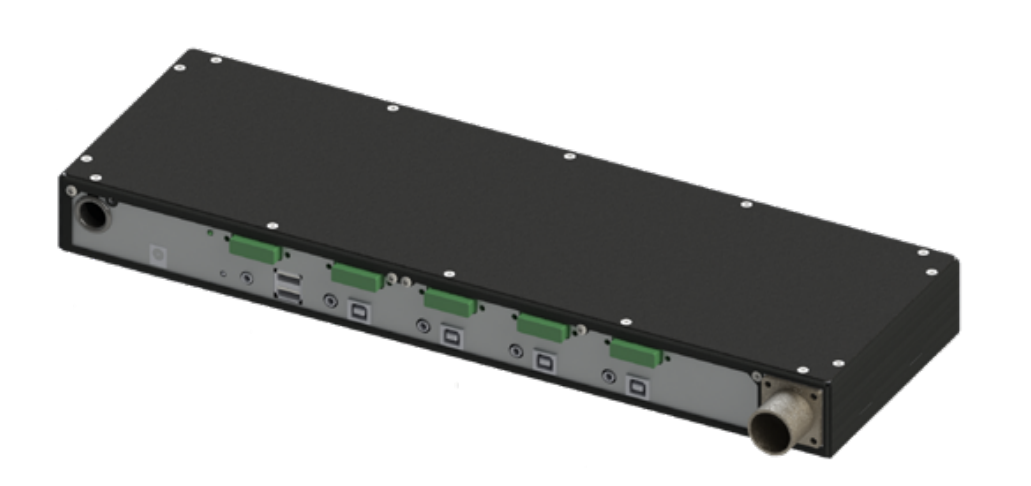

| 4-Port DVI KVM |
 NIAP Compliant |

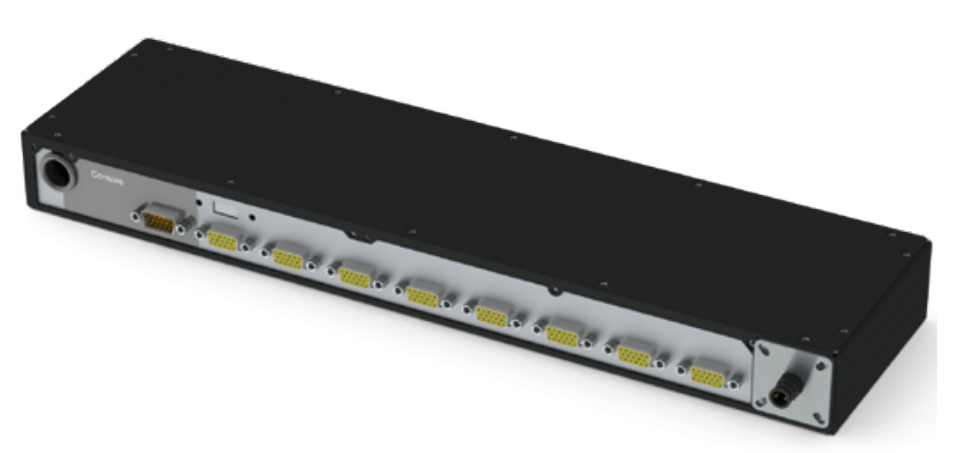

| 8-Port VGA KVM |
 |

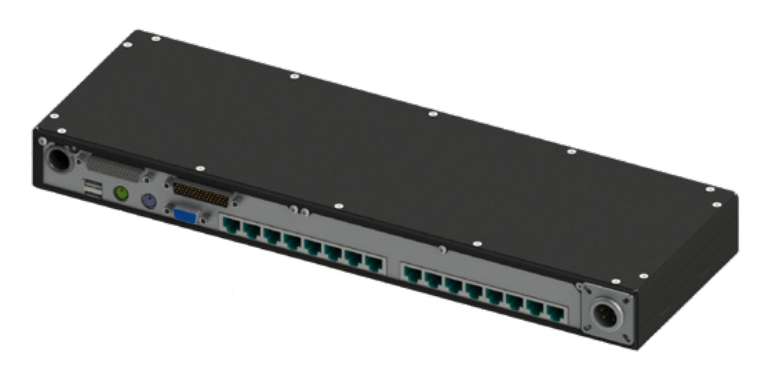

8- /16-/ 32-Port
RJ45 KVM (CAT6 KVM) |
 |
MIL Options
|
|
Operational Temperature Range
|
MIL-STD-810F/G, -10C to +50C
|
|
Storage Temperature
|
MIL-STD-810F/G, -30C to +60C |
|
Humidity
|
MIL-STD-810F/G |
| Altitude |
MIL-STD-810F/G |
| Vibration |
MIL-STD-810F/G, -167, or -516.2 |
| Shock |
MIL-STD-810F/G, -901E Grade B, or -901E Grade A |
| EMI |
MIL-STD-461F/G CE102, RE101, RE102,
CS101, CS114, CS116, RS101, and/or RS103 |
|
