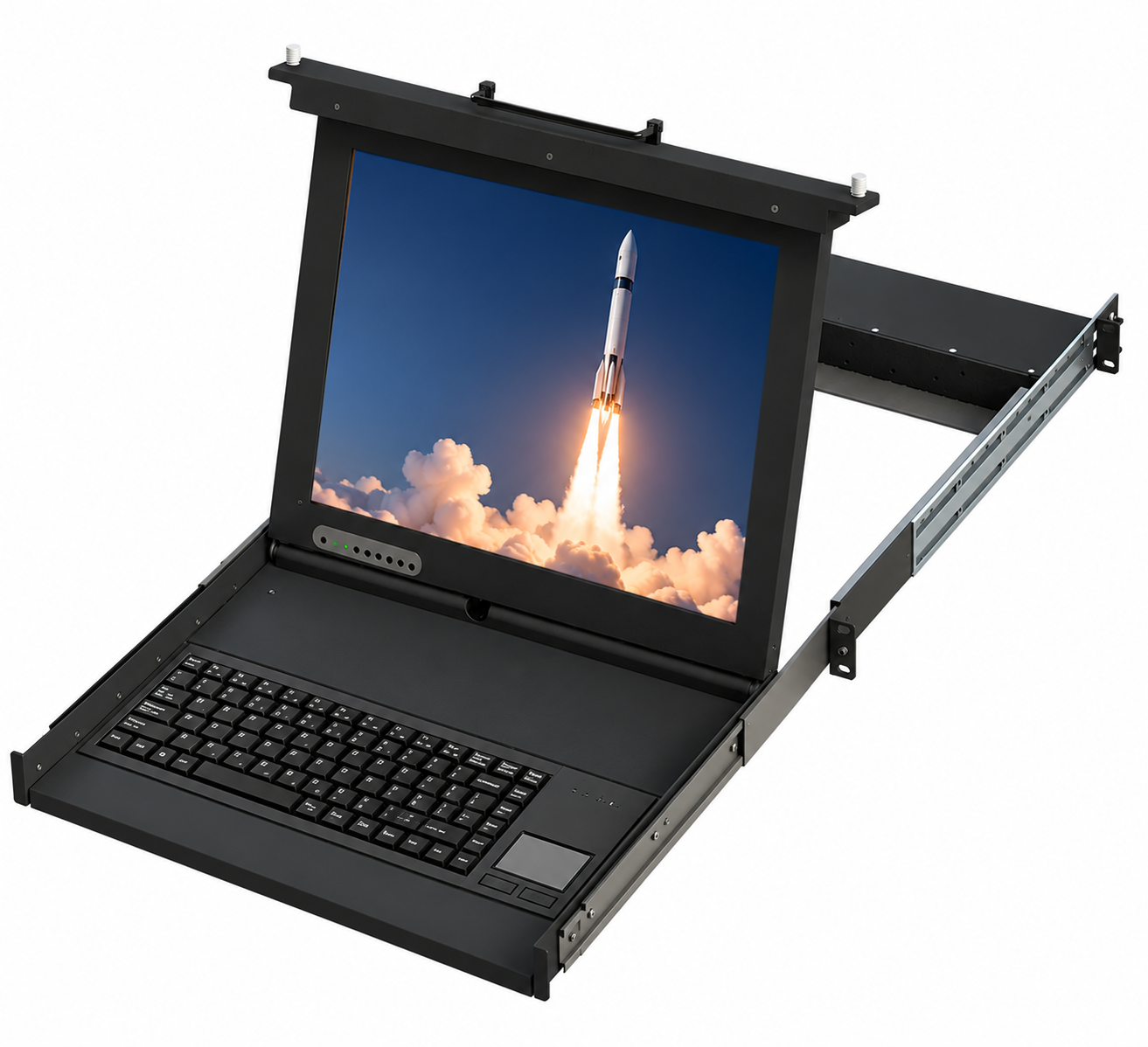

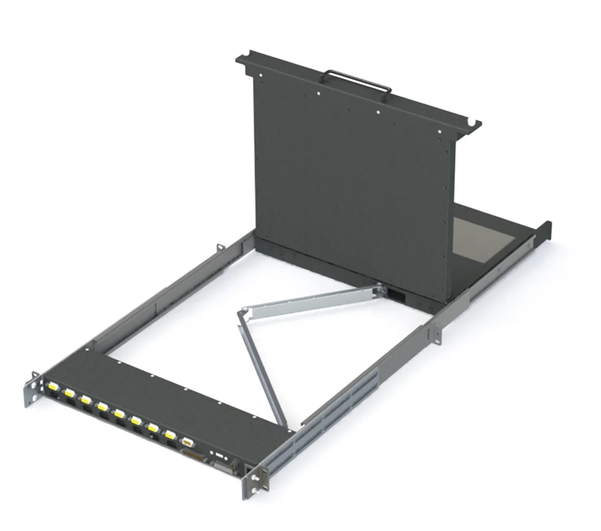

Engineered for applications requiring compact, integrated system access, this 1U rackmount LCD console combines a flat-panel display, keyboard, and pointing device within a space-efficient clamshell drawer design. Featuring a 20-inch chassis depth, the unit installs into standard 19-inch racks or transit cases with depths ranging from 20 to 28 inches.

Its modular architecture supports flexible configurations for industrial, military, and commercial environments. Available options include multiple LCD sizes and display enhancements, keyboard and pointing device selections, front-panel handle and latch configurations, integrated KVM switching, and A/D controller options.

For specialized applications, additional display technologies such as high-brightness panels, optical bonding, and projected capacitive (PCAP) touchscreens are available. The configurable design allows the console to be tailored to specific operational requirements and installation environments.

    Features

• 1U Rackmount 20-inch depth KVM Console wih 17" Sunlight Readable SXGA 1280 x1024 LED-Backlit LCD Display
• Rugged All Aluminum Construction
• MIL Standard C300 Friction Slides
• Shock and Vibe Rugged Design to 810G
• Easily mounts into a standard 19" rack or transit case
• Slim-Profile Keyboard with Multiple Configuration Options
• Integrated Cable Management System
• Flexible I/O Connectivity with Multiple Controller Card and KVM Switch Options
• Adjustable Aluminum Telescoping Rear Mounting Arms
• Configurable Power Input Panel Supporting Various Connector Types
• Customizable Configurations to Meet Specific Application Requirements

• KVM Options: DP KVM, HDMI KVM, DVI KVM, VGA KVM or
   VGA / USB KVM
• Keyboard Options
• Video Controller
• Projected Capacitive (PCAP) or Resistive Touchscreen
• Optical Bonding
• Various Display Enhancement Options. Including: Chem Strengthened AG or AR Coated Glass
• Custom Options
