 1U/ 2U/ 3U/ 4U/ 6U/ 7U / 8U / 9U Rack mountable LCD Flat Panel :
                                  Part #  LCD
R3U6.8-01

     Dual 6.3" Rack Mounted Full Color Active Matrix LCD Panel w/ Dual Composite Video Inputs and Loop Through Feature


Panel: 2 x 6.8" LCD panels

Display

6.8" LCD Panels x 2

Display Area

5.44" x 4.07"

Resolutions

384 H x 234 V

Pixel pitch

0.120mm  x 0.442mm

Brightness

300 cd/m2

System

NTSC / PAL auto rec

Input per  panel (total)

 2  Composite with active loop outputs

Approx.  weight

5 lbs

Power Consumption

12 VDC , 3.0 Amps

Product Dimension


19.125" (W) x 5.14" (H)  x2.5 " (D)

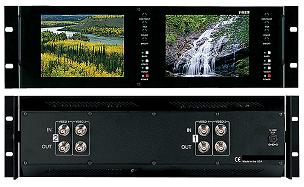

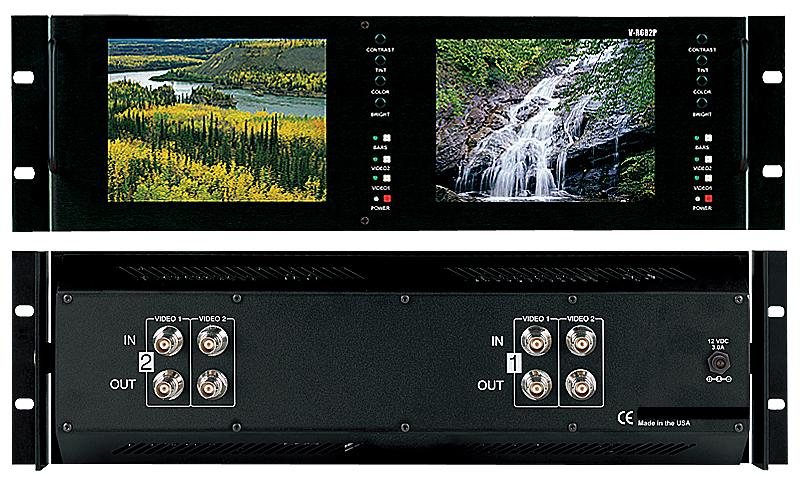

  Front  View

                    *click on  picture for  enlarged view

 Features :

  • High Resolution 384 x 234 Dots , 270,000 total
  • Bright 300 candle luminance
  • Automatic NTSC/PAL signal recognition
  • Fits in standard 19" rack, 3U high
  • Active Loop Through feature
  • Individual color, tint, brightness and contrast controls for
    each panel
  • Built-in Color Bar Generator
  • Unique 180 degree tilt adjustment while mounted in rack
  • MADE IN USA

Free Ground Shipping *Click for details





Description :

The LCDR3U6.8-01  is a rack-mounted unit that has two 6.8" active matrix LCD panels with 4:3 aspect ratio. The panels have 384 x 234 dots (RGB pixels) producing a true high-resolution image. There are 2 composite inputs with dedicated A/B switching per display. An active loop through feature is also provided for each input. The unit is designed to fit into an EIA standard 19" rack and occupies 3RU of space. Each screen has a built-in color bar generator, and 3 Tally indicators. For ease of operation the V-R682P includes dedicated individual front mounted selector buttons with LED indicators plus color, tint, brightness and contrast controls. A U.L. Class 2 power supply and manual are included and the unit is factory ready for rack mount installation



Ordering  information
Part Number  Description
LCDR3U6.8-01  3U Rackmount 2 x 6.8"  Rack mounted LCD  Panel  with dual composite video inputs
