CHASSIS ACCESSORIES - 1U Riser Card



Riser Card is an expansion card that is used to extend a slot for an I/O card in a fully loaded computer to make room to plug it in. It may also refer to a card that contains several slots used in low-profile, space-saving enclosure. The I/O cards are plugged into the riser card and reside parallel with the motherboard.

Picture at left shows the PCI slots location on a 7-slots standard ATX form factor board, starting from left is PCI slot-1, slot-2, slot-3, slot-4, slot-5, slot-6 and AGP slot-7 (On a Micro ATX board, there are only PCI slot-4, slot-5, slot-6 and AGP slot-7 ). The position of slot-6 lines up with the horizontal cutouts of the rackmount chassis.


PART # 1U RISER CARD  DESCRIPTION AND Buy Online
 R1001

   1U Riser Card 32 Bit Direct Plug-in 1 slot
   For  1U Rackmount Chassis

-
32-Bit Direct Plug-in Riser Card
    - Expansion for 1 slot

 R1002



   Independent 1U 64 Bit PCI Slot optional    left or right angle

   -1U 64bit PCI riser card



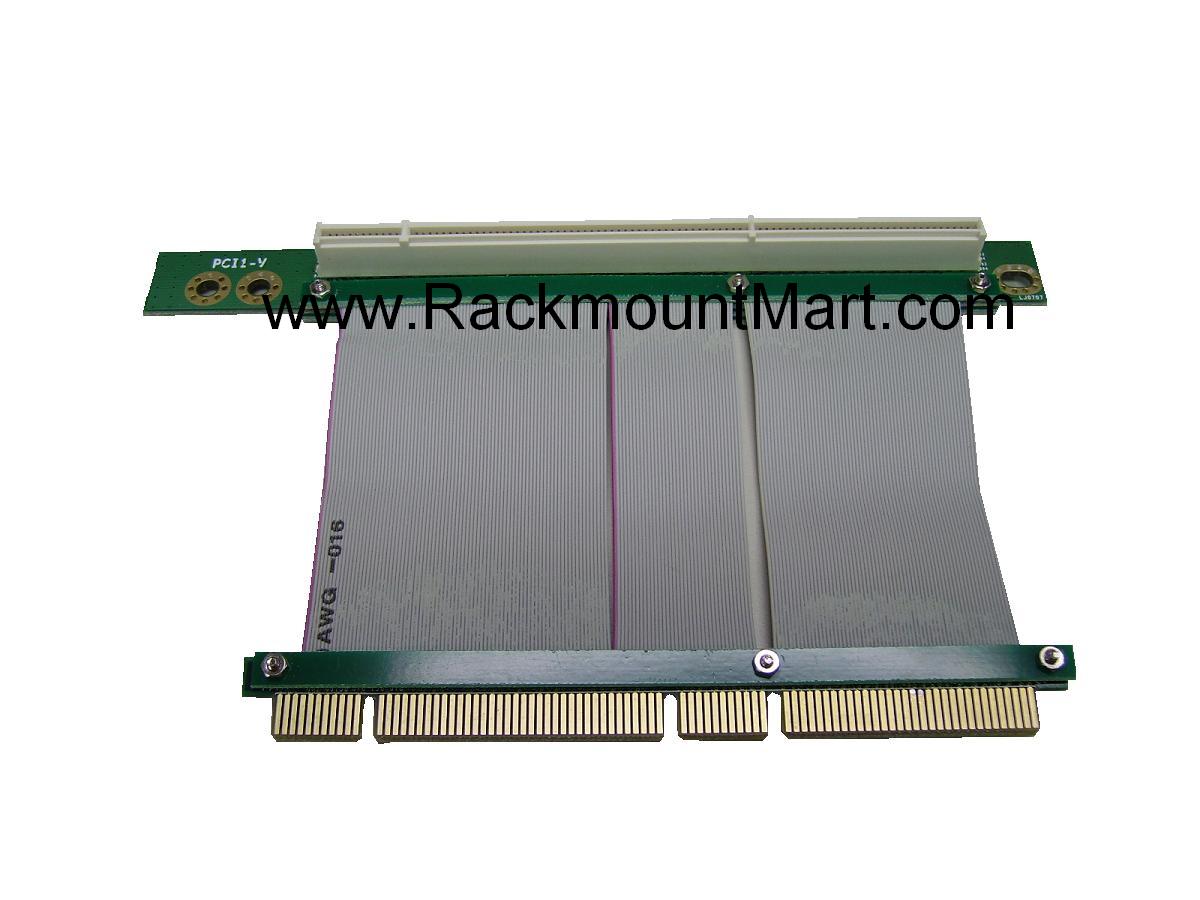

 R1004



 1U 32 Bit PCI Slot with 7 cm ribbon cables

-1U 1*PCI 32bit, 5V with custom length flexible ribbon cable from 2.5cm(1") to 20cm(7.125"), for motherboard w/PCI-32
in any position (2nd,3rd,4th,5th or 6th PCI slot), support Intel S875WP1-E




 R1005



 1U 1 * 4x , 8x AGP w/ Extender

   -for AGP on 7th slot of motherboard



 R1006

  1U 1 * 8 x AGP Pro   w/ optional Extender

-with Extender : for motherboard with AGP Pro on 7th slot
-
without Extender : for motherboard with AGP Pro on 6th slot



 R1007



  1U PCIe x16 Riser Card   w/ optional Extender

-with Extender : for PCI-E on motherboard slot-7, such as  Intel D915/D925/D945 Series,Tyan S5120/S5130 etc

-
without Extender : 1U PCIe x16 Riser Card for PCIe x16 on motherboard slot-6, slot height=11.5mm, for Tyan S2891, Supermicro X6 Series etc.
OR slot height=14.7mm, to avoid components conflict with motherboard





 R1008







  1U PCIe x8 Riser Card

-
1U one-slot PCIe x8 Riser Card for PCIe x8 expansion on motherboard PCIE x8 slot-6, connector center height=1.06"




 R1009





  1-slot PCI-Express x16 Riser Card w/optional  7 / 9 / 11 /13 cm ribbon  cables

-For use in 1U/2U rackmount chassis or any low-profile enclosure for independent connection of PCI-E expansion on any motherboard PCI-E x16 slot, such as Asus K8N4-E Deluxe or any SLI-ready Dual PCIe x16 motherboard (use 2pcs of R1009-7 for Dual PCI-E x16 expansions).




 R1010





  PCI Express X16 slot to X1 gold finger with 7cm flexible cable.

-One PCI Express X16 slot with X1 gold finger. Flexible cable length: 7cm.
 Left-side insertion.





 R1011





  One PCI Express X8 slot w/optional 7 / 9 / 11 CM Left-side insertion

- PCI Express X8 flexible riser card with various lengths of ribbon cable for 1U, 2U IPC chassis, Mini-ITX, CarPC and other applications that require mounting PCI Express add-on card at different locations. Goldfinger can be configured to x1,x4. Riser slot can be re-directed to act as reversed riser card.





 R1012





  One PCI Express X16 slot with X8 gold finger with 7 cm cable

- PCI Express x8 to x16 flexible extender/adapter. PCIe x16 connector to x8 gold finger with 7cm flexible cable. For a PCIe x16 video card to connect to the motherboard PCIE x8 slot. Goldfingers can be configured to x8 x4, x1 to fit any motherboard PCIE slots. PCIE connector can be re-directed to face over the motherboard.

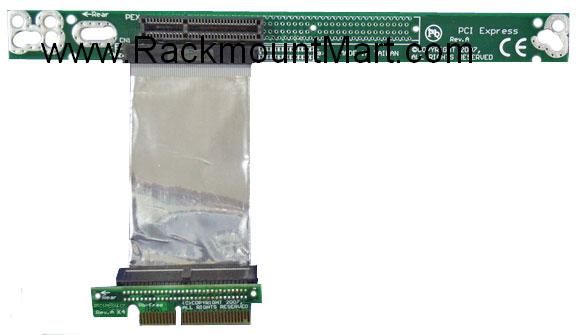

 R1013





  One PCI Express X4 slot w/ 7 cm cable, Left-side

- PCI Express X4 flexible riser card with various lengths of ribbon cable for 1U, 2U IPC chassis, Mini-ITX, CarPC and other applications that require mounting PCI Express add-on card at different locations.Goldfinger can be configured to x1,x4. Riser slot can be re-directed to act as reversed riser card.





 R1014


  One PCI Express X1 for 1U IPC chassic w/optional 5/7/9/11 CM cable, Left-side

- One PCI Express X1 slot
- Connector center height=1.06"





 R1015







  One PCI Express X16 w/optional 5/7/9 CM cable, Right-side

1-slot PCI Express X16 reversed riser card with various length of flexible cables for Mini-ITX, CarPC and other applications that require mounting PCIE add-on card to face over the motherboard.
- One PCI Express X16 slot
- Flexible cable length: 5cm,7cm,9cm
- Right-side(reversed) insertion face toward the motherboard





 R1017


  1U 1 x PCI express X1 to 1-slot PCI 32-bit w/optional 9cm ribbon cable





 R1103



 1-slots PCIX-64bit/3.3V w/optional 5/7/9/11 CM cable

-1-slots PCIX-64bit/3.3V flexible riser card w/various lengths ribbon cable,solid conductors, not strands, direct-soldered pin-to-pin termination, cable EMI shielded to support higher PCI-X bus speed.
- One PCIX-64bit/3.3V slot
- Flexible cable length: 5cm,7cm,9cm,11cm
