    1U / 2U /3U SWITCHING POWER SUPPLY

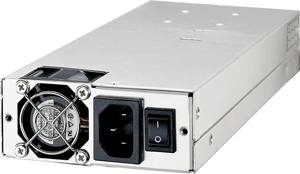

Model PS2007


ATX Dual +12V Output Rails Switching Power Supply for 1U  with 350W Output




350W Output Power
Active Power Correction
Dual +12V Output Rails
Dual Processors Application
Meet EPS1U Specification
Dimension: 100(W)x40(H)x200(D) mm



                                                                 SPECIFICATION

Features:

- Universal Power Input

- Active Power Factor Correction

- Dual +12V Output Rails

-Dual Processors Application

- Remote DC Sense on +5V and +3.3V

- Short Circuit Protection

- Over Current Protection

-Over Voltage Protection

- Over Power Protection

-MTBF >100,000 Hours

General Specifications:

-Input Range: 100 to 240 VAC, +/-10%

- Power Factor: 0.95 minimum

- Efficiency: 70% minimum, at full load

- Hold up Time: 20mS minimum, at full load

- PSON (Remote ON/OFF): TTL compatible signal

- Power Good: 100 to 500 ms, (TTL signal)

-Cooling Fan: 40x40x28 mm (SANYO)

- Operating Temperature: 0 to 50 degree

-Operating Humidity: 20 to 90 %

Agency Requirements:

- Harmonic: Meet EN61000-3-2 standards

- EMI/RFI: CE, FCC class B

-Safety: UL, cUL, CB, TUV

Electrical Specifications:

Regulation, Ripple & Noise:

Output

+5V

+3.3V

+12V

+12V2

-5V

-12V

5Vsb

Load Regulation

± 5%

± 5%

± 5%

± 5%

± 10%

± 10%

± 5%

Cross Regulation

± 5%

± 5%

± 5%

± 5%

± 10%

± 10%

± 5%

Line Regulation

± 1%

± 1%

± 1%

± 1%

± 1%

± 1%

± 1%

Ripple & Noise

50mV

50mV

120mV

120mV

100mV

120mV

50mV

Input and Output Ratings:

Input

Output

Frequency

Current

Watt

Load

+5V

+3.3V

+12V1

+12V2

-5V

-12V

5Vsb

47-63

Hz

6A max

350W

Max Load

30A

28A

18A

18A

0.3

0.8A

2A

Min Load

1A

0A

0.5A

0.5A

0A

0A

0A

Note:
1. The +5 & +3.3 Volt combine total output shall not exceed 200W.

2. The +12V1 & +12V2 combine output currents maximum are 25A.

3. The +5, +3.3 and +12 Volt combine total output shall not exceed 330W.

4. Noise bandwidth is from DC to 20 MHz.
