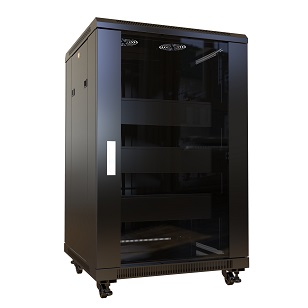

18U Audio Video Rack Cabinet
Model RB-AV18
EIA & RoHS Compliant

Click for enlarged view

Click for enlarged views.


The RB-AV18 is a cost-effective rack cabinet that is ideal for A/V and Security applications. Fully assembled, the RB-AV18 includes factory installed shelves, filler panels, casters, leveling feet and tapped 10-32 mounting rails.


  • 18U mounting heights.
  • 23.62" overall width and depth.
  • Passive cooling vents located on top, bottom and sides.
  • Includes provision for up to two (2) optional fans on top panel.
  • Ships fully assembled and ready for installation on-site.
  • Doors can be flipped to hinge from opposite side.
  • Includes factory installed vented rack shelves and blank panels


  • Constructed in 16-gauge steel.
  • Drilled and 10-32 tapped flange 19" mounting rails are constructed in 13-gauge steel, and are powder coat finished.
    • Rails easily adjust in depth in 1/4" increments.
  • Tested to 950 lbs of equipment load.
  • Grounding studs bonded to frame, side panels and doors.
  • Finished in smooth black powder paint.
  • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
  • RoHS Compliant.


Package Contents
  • Steel frame with factory-installed leveling feet, recessed casters and grounding studs.
  • Two (2) pairs of adjustable depth EIA compliant 10-32 tapped mounting rails.
    • Starter pack of (50) 10-32 screws included.
  • One (1) lightly smoked tempered glass front door with quarter-turn lock.
  • One (1) solid steel rear door with quarter-turn lock.
  • Two (2) solid removable side panels with quarter-turn lock.
  • Removable cable access panels on cabinet top and bottom.
  • Includes three (3) factory installed 2U vented rack shelves and three (3) factory installed 2U blank panels
Overall Dimensions:
38.90" (H) x 23.62" (W) x 23.62" (D)
Usable Diemensions:
31.50" (H) x 19" (W) x 21" (D)

 Ordering Information

Model Number Description

18U Audio Video Rack Cabinet, 38.90" (H) x 23.62" (W) x 23.62" (D)
