22U Server Cabinet : Convex / Vented Doors - 38.22" Overall Depth
Model  CR1203-C/V
TAA Compliant


                                                                                     MADE IN THE USA


*click for enlarged view

  • 2 sets of adjustable mounting rails
  • Removable locking side panels
  • Top and bottom removable cable slots
  • Locking vented front and rear doors
  • Includes casters and levelers
  • 19" EIA compliant




Features
The server rack cabinets is an entry level solution. This cabinet is designed to provide maximum ventilation, having two fully vented doors. The front door has a sleek convex shape to make it look sharp while the rear door offers complete ventilation. Each rack comes with 2 sets of vertical rails that adjust in 1 inch increments, lockable, removable side panels, casters and levelers. The top of the cabinet has cut-outs allowing you to install up to four 4 inch fans. Also there are removable cable slots for easy installation of all your network cabling.
Specifications
  • Width : 24"(Overall)  19"(Inside)
  • Depth : 38.22"(Overall)  36"(Inside)
  • Height : 45.36"(Overall)  38.50"(Inside)
  • Color : Black
  • Weight : 148.00 lbs.
Package Content

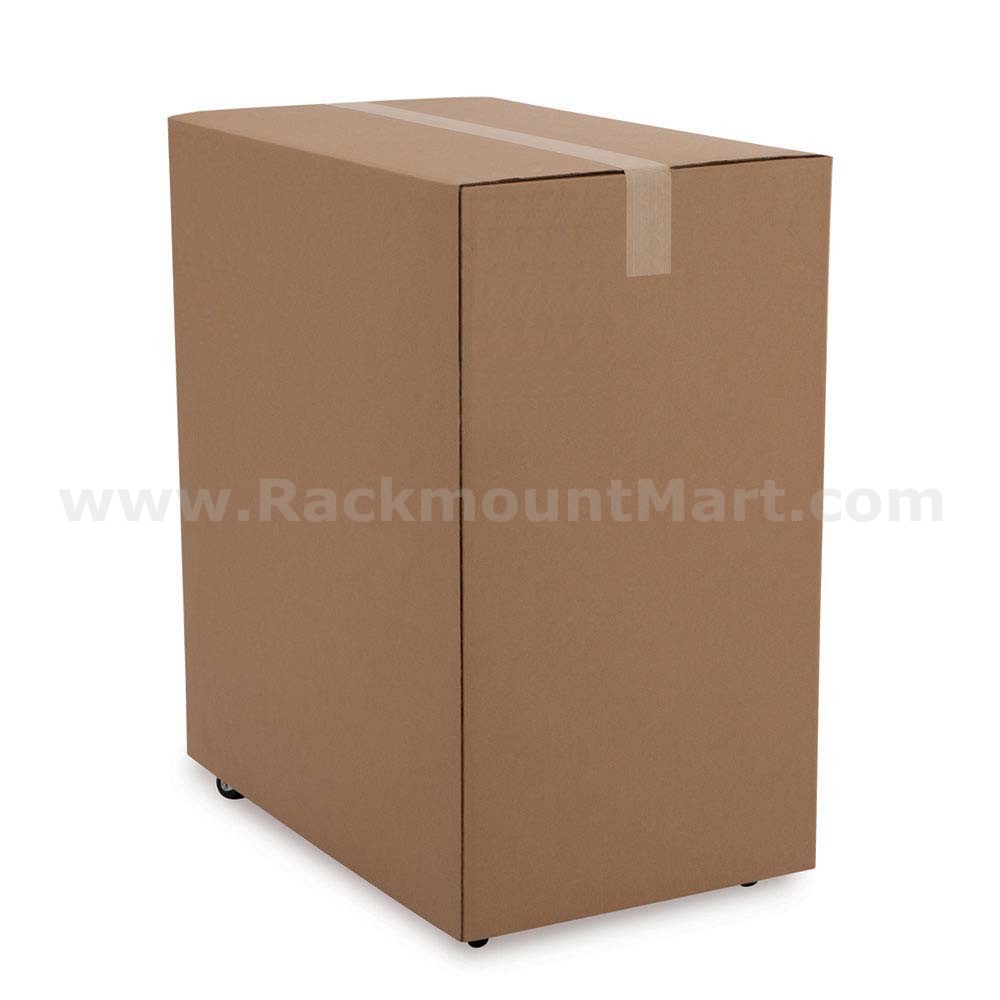

  • Qty 1 - 22U Server Cabinet (Convex Front/Vented Rear)
Download
Download Cut Sheet

Gallery


Optional Vertical Rail Kit
Height Cage Nut 10-32 Tapped
22U PT-SRL-22U-KH PT-SRL-22U-KH-T

 Ordering Information

Part Number Description
 CR1203-C/V
 Price : $1175
22U Server Cabinet - Convex/Vented Doors - 36" Inside Depth (38.22" overall depth)
Options
 CR1203
22U Server Cabinet - Glass/Vented Doors - 36" Inside Depth
 CR1203-A
22U Server Cabinet - No Doors/No Side Panels - 36" Inside Depth
 CR1203-C
22U Server Cabinet - No Doors - 36" Inside Depth
 CR1203-G/S
22U Server Cabinet - Glass/Solid Doors - 36" Inside Depth
 CR1203-C/G
22U Server Cabinet - Convex/Glass Doors - 36" Inside Depth
 CR1203-G/G
22U Server Cabinet - Glass/Glass Doors - 36" Inside Depth
 CR1203-S/C
22U Server Cabinet - Solid/Convex Doors - 36" Inside Depth
 CR1203-C/C
22U Server Cabinet - Convex/Convex Doors - 36" Inside Depth
 CR1203-S/V
22U Server Cabinet - Solid/Vented Doors - 36" Inside Depth
 CR1203-V/V
22U Server Cabinet - Vented/Vented Doors - 36" Inside Depth
 CR1203-S/S
22U Server Cabinet - Solid/Solid Doors - 36" Inside Depth
