                 2 U Rackmount Chassis :  Part # RM2011




Click on the photo for enlarged view



EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black, Beige, or Custom Design
Motherboard Size: Support ATX M/B (Max. to 12" x 13")
Drive Bays: 2 x 5.25" + 2 x 3.5" open + 3 x 3.5" hidden
Power Supply: 2U single. Max. depth=300mm
Cooling Units: 3 x 8cm (42.5 CFM) Heavy Duty Ball Bearing Fans
Front USB ports: 2 (Optional)
Expansion Slot: Version A : 3 Horizontal Slots
Version B : 7 Vertical Slots
Indicators: LED for Power & HDD Activity
Buttons: Power On/Off, System Reset, & Buzzer Reset
Dimensions: 483(W) x 88(H) x 651(D) mm (19" x 3.5" x 25.6")
Product Applications: Web Server, Proxy Server, High-End Workstation, Print Server, File Server
Remarks : Internal hard drive bracket will be removed if  redundant power supply is installed

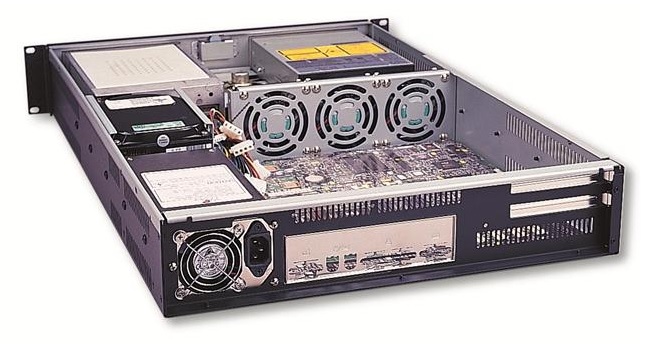

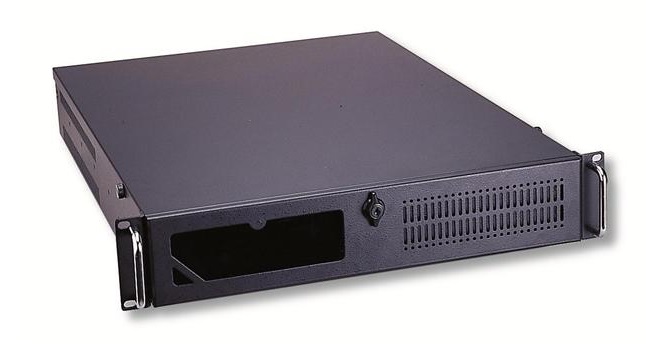

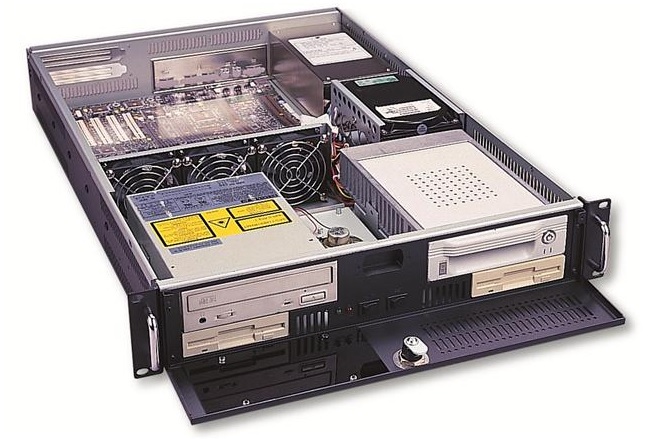

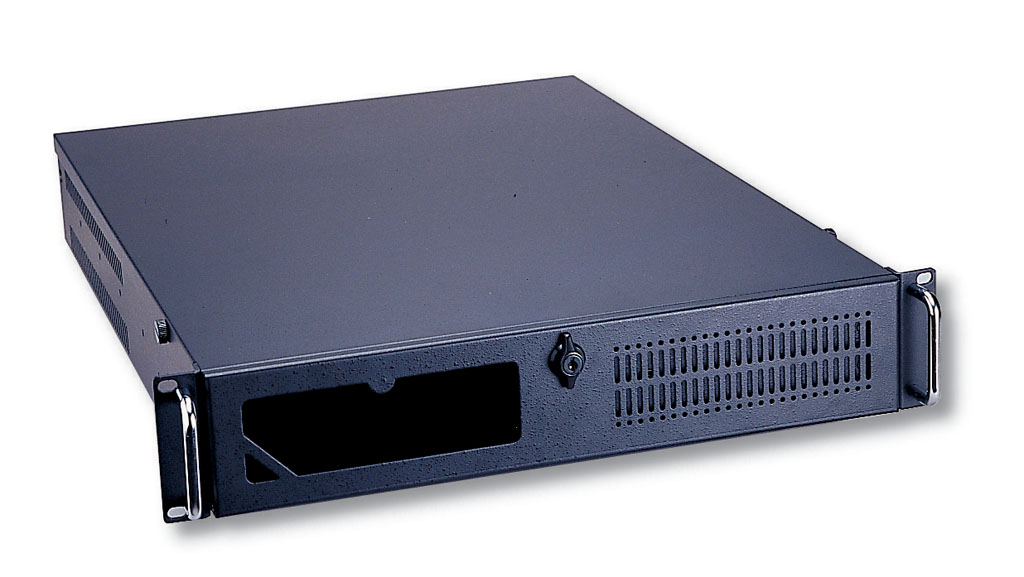

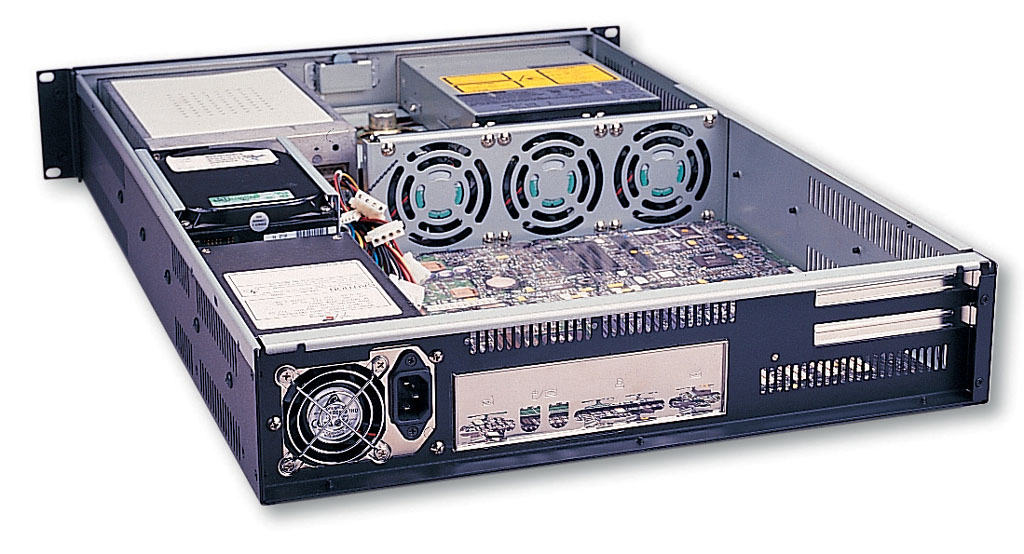

 More photos - (click on the pictures for enlarged views)
