                        2 U Rackmount Chassis :  Part # RM2025

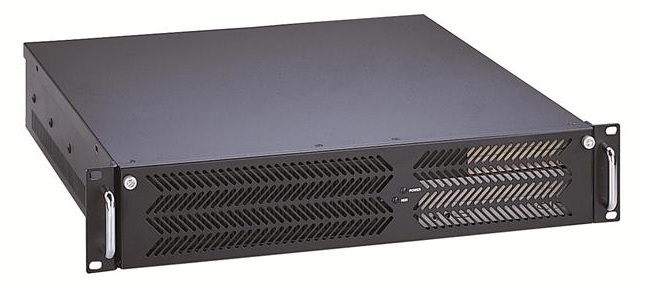

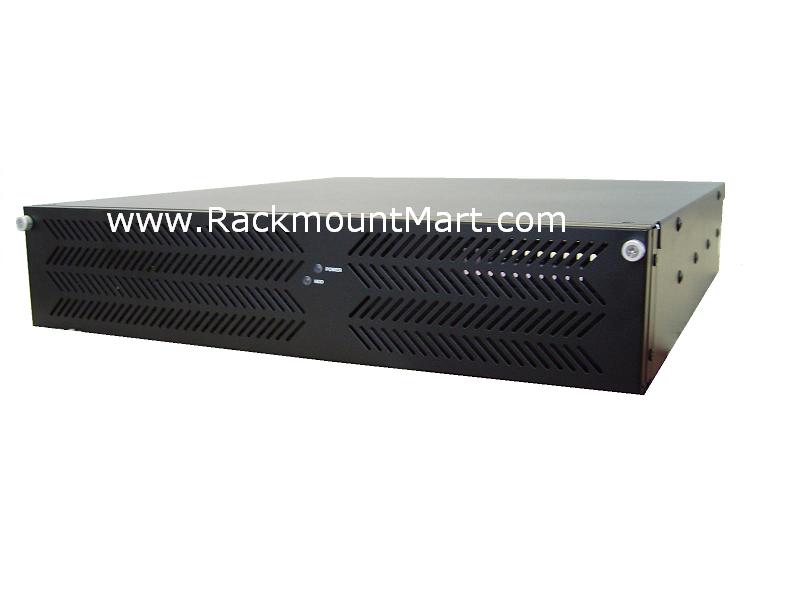

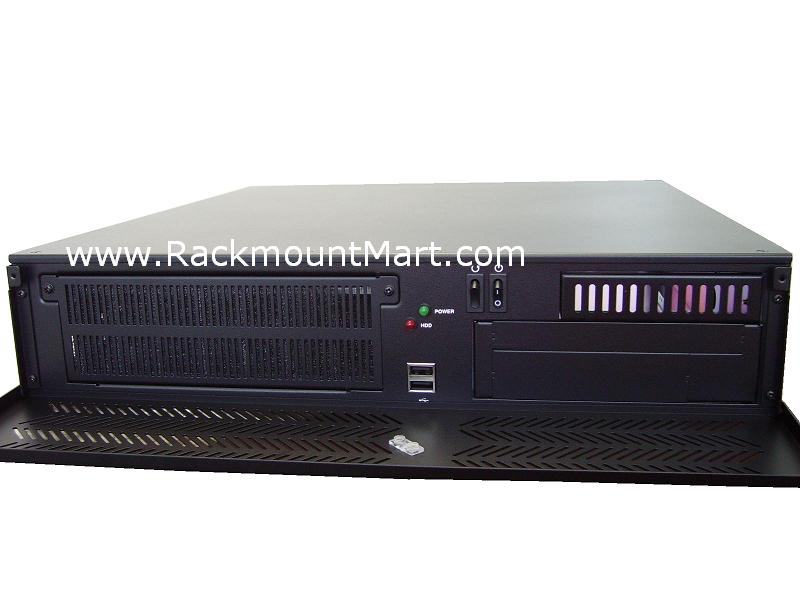

       *Click on photo  for enlarged view




         *Click on photo  for enlarged view

EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black, Beige, or Custom Design
Motherboard Size: Support ATX M/B (Max. to 12" x 9.6")
Drive Bays: 1 x Slim CD-ROM + 1 x 3.5 open + 4 x 3.5 hidden OR 1 x 5.25", 1 x 3.5" Open, 3 x 3.5" Hidden
Power Supply: 2U single or redundant. Max. depth=215mm
Cooling Units: 3 x 8cm (42.5 CFM) Heavy Duty Ball Bearing Fans
Front USB ports: 2
Expansion Slot: Version A : 3 Horizontal Slots
Version B : 7 Vertical Slots
Indicators: LED for Power & HDD Activity
Buttons: Power On/Off & System Reset
Dimensions: 483(W) x 88(H) x 450(D) mm (19" x 3.5" x 17.7")
Product Applications: Web Server, Proxy Server, VPN Gateway, High-End Workstation, Print Server

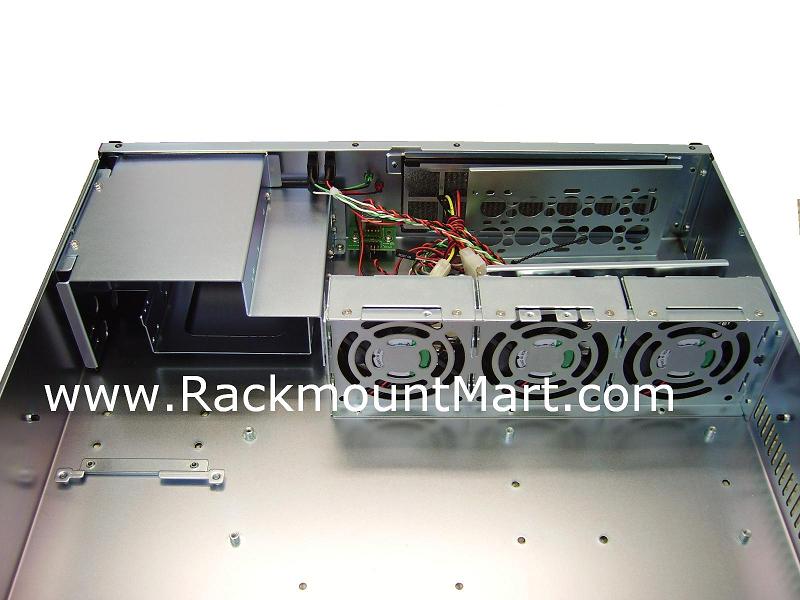

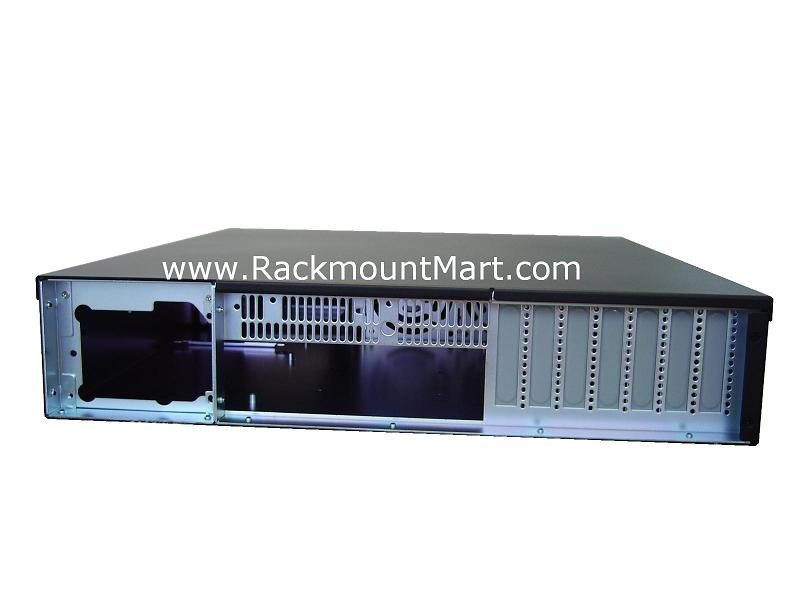

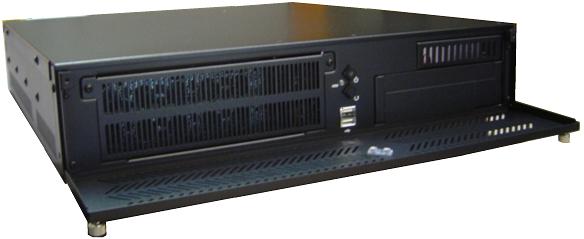

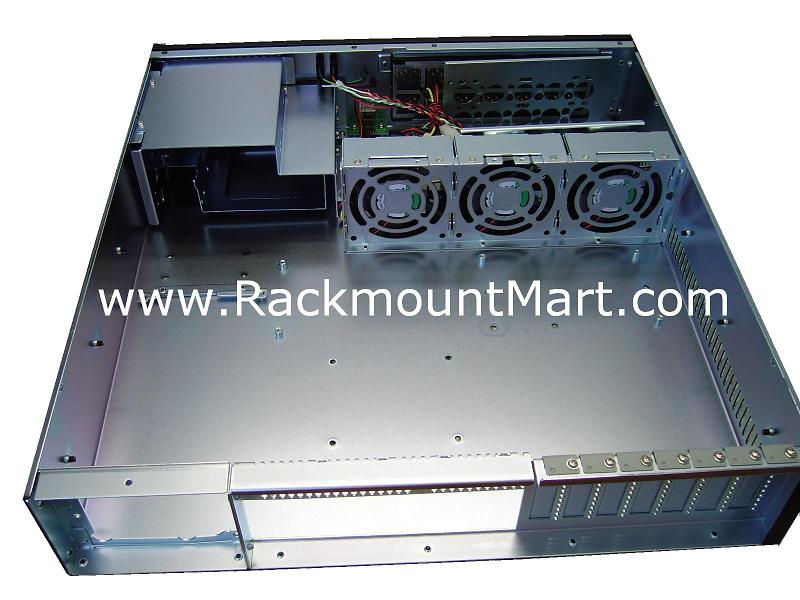

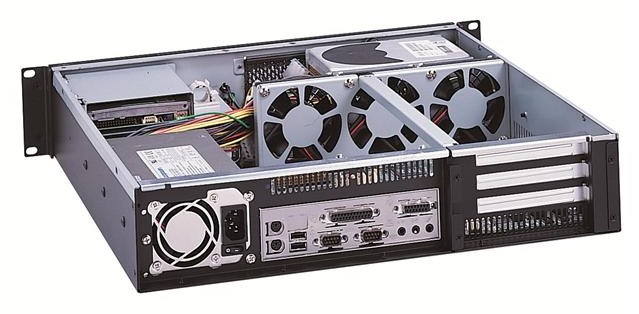

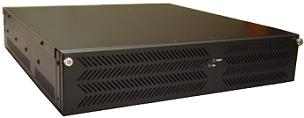

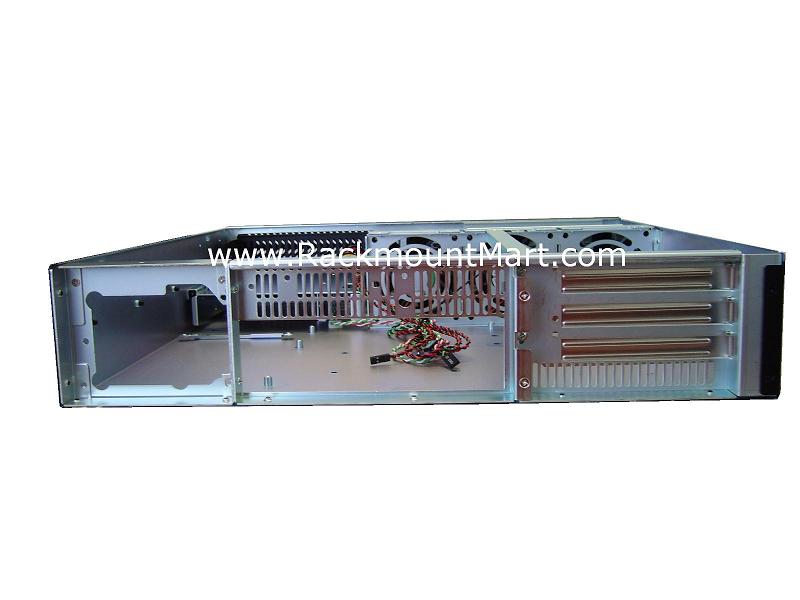

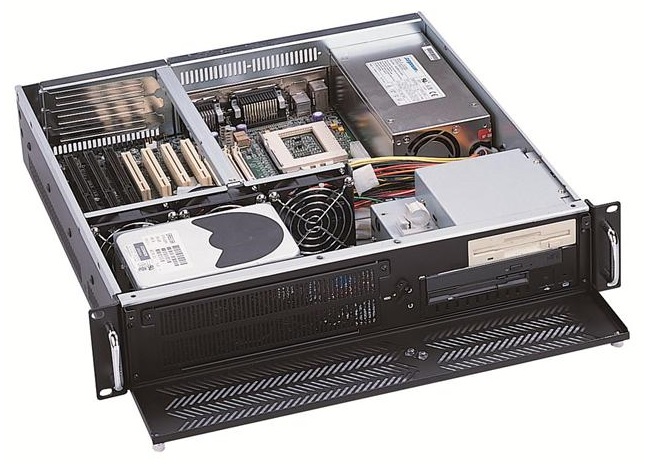

More photos - (click on the pictures for enlarged view)







Ordering information
Part Number  Description
 RM2025-0
2U Rackmount Chassis, 1 x Slim CD-ROM + 1 x 3.5 open + 4 x 3.5 hidden OR 1 x 5.25", 1 x 3.5" Open, 3 x 3.5" Hidden, with slim cd-rom adapter, 3-slot back panel. Black. Case only
 RM2025-0-7L
2U Rackmount Chassis, 1 x Slim CD-ROM + 1 x 3.5 open + 4 x 3.5 hidden OR 1 x 5.25", 1 x 3.5" Open, 3 x 3.5" Hidden, with slim cd-rom adapter, 7 vertical low profile back panel. Black. Case only
