2U Rackmount Chassis :  Part# RM2046





* click on photo for enlarged view

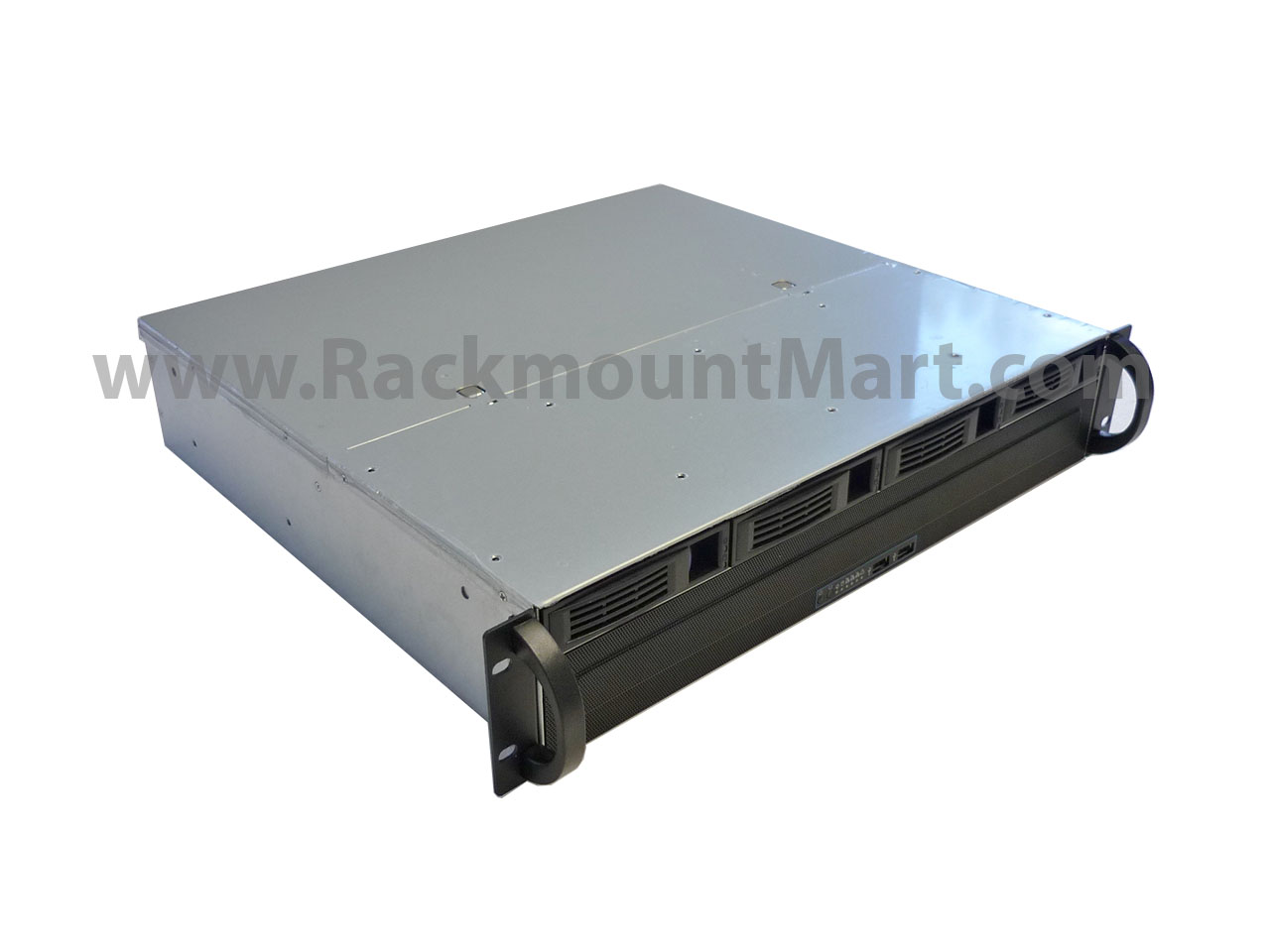

19" 2U Rackmount Server Case with 4 Hot-Swappable Drive Bays
Motherboard Compatibility: Support Micro-ATX (9.6" x 9.6"), ITX (6.7" x 6.7") motherboard

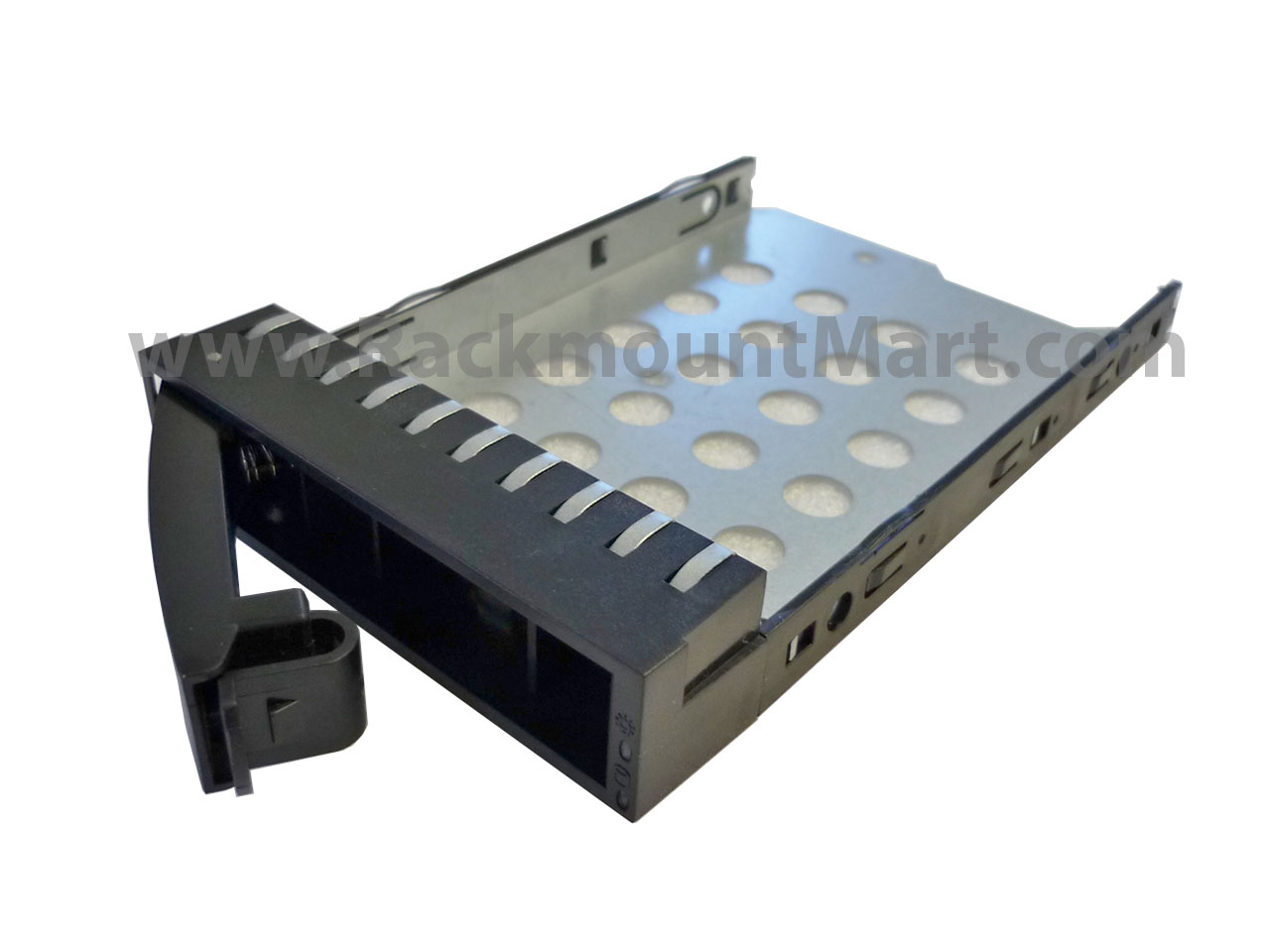

Drive Bays: Supports four hot swappable 3.5" or 2.5" drives
Power Supply Options: Standard ATX power supply (with fan on the back)
Cooling Fan: Three optional 40mm rear fans
Switch: Power ON / OFF x 1, System reset x 1
Indicator: Power ON / OFF x 1, HDD x 1, NETWORK x 2
Connector: Two front USB ports
Dimensions:
(W x D x H)
16.9" x 15.25" x 3.5"
(430mm x 387.3mm x 88mm)
Weight 8.2 kg/18 lb (NET)
Environment Temperature: 0 / 55 °C, 32 / 131 °F (Operating)
-20 / 60 °C, -4 / 140 °F (Non-Operating)
Relative Humidity: 5% to 95%,non-condensing
Vibration:
( 5-500 Hz )
1 Grms (Operating), 2 G (Non-Operating)
Shock: 10 G(with 11ms duration, half sine wave) (Operating),
30 G (Non-Operating)

  Features:

  • 2U rackmount design, meets EIARS-310C standard
  • Super short depth, only 15.25 inch
  • Support Micro-ATX (9.6" x 9.6"), ITX (6.7" x 6.7") motherboard
  • Two front USB ports
  • Three optional 40mm rear fans
  • Smooth border prevent lacerating your skin
  • RoHS Compliant

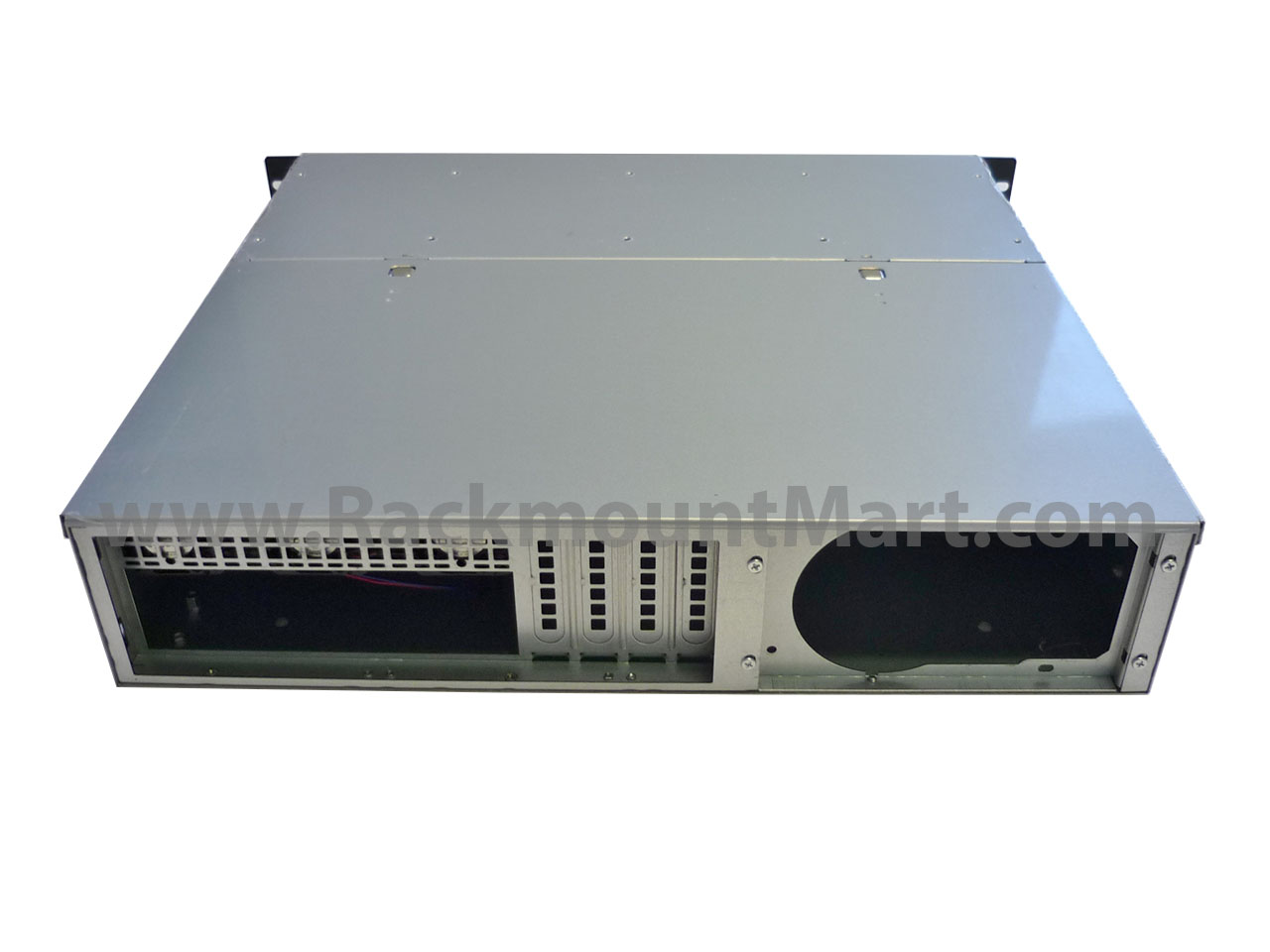

More Photos, click on the following for enlarged view:




Ordering information
Part Number  Description
RM2046-0
 2U Rackmount Server Case with 4 Hot-Swappable Drive Bays, Case only.
