3U Rackmount Chassis :  Part # RM3022




 19" Rackmount Standard
Color: Black
Motherboard Size: Support 12" x 9.6"
Drive Bays: External 2 x 5.25" + 1 x 3.5" and 4 x 3.5" Internal Drive Bays
Power Supply: standard PS/2 power supply
Cooling Units: 60mm and 80mm Fan module (rear panel) Center 3 x 60mm Fan module (optional)
USB Ports: 2
Power switch: 1
Door Lock: 1
Indicators: LEDs for 1x disk activity; 1x power on
Material: Heavy duty cold-rolled steel
Dimensions:
(W x H x D)
483mm x 133mm x 508mm
(19" x 5.25" x 20")
Surface: Black wet paint with textured finish
Mounting: Optional sliding rails
Slot Covers: Yes
Screws: Yes
Standard I/O gasket: 1


Features :
- 3U rackmount design
- Extruded Aluminum front panel with lockable center opening doors with filters
- Accepts 12" x 9.6" ATX or 9.6" x 9.6" micro ATX motherboard
- 60mm and 80mm cooling fan
- Front USB port
- Optional Fan Controller controls up to 8 fans
- Solid top cover

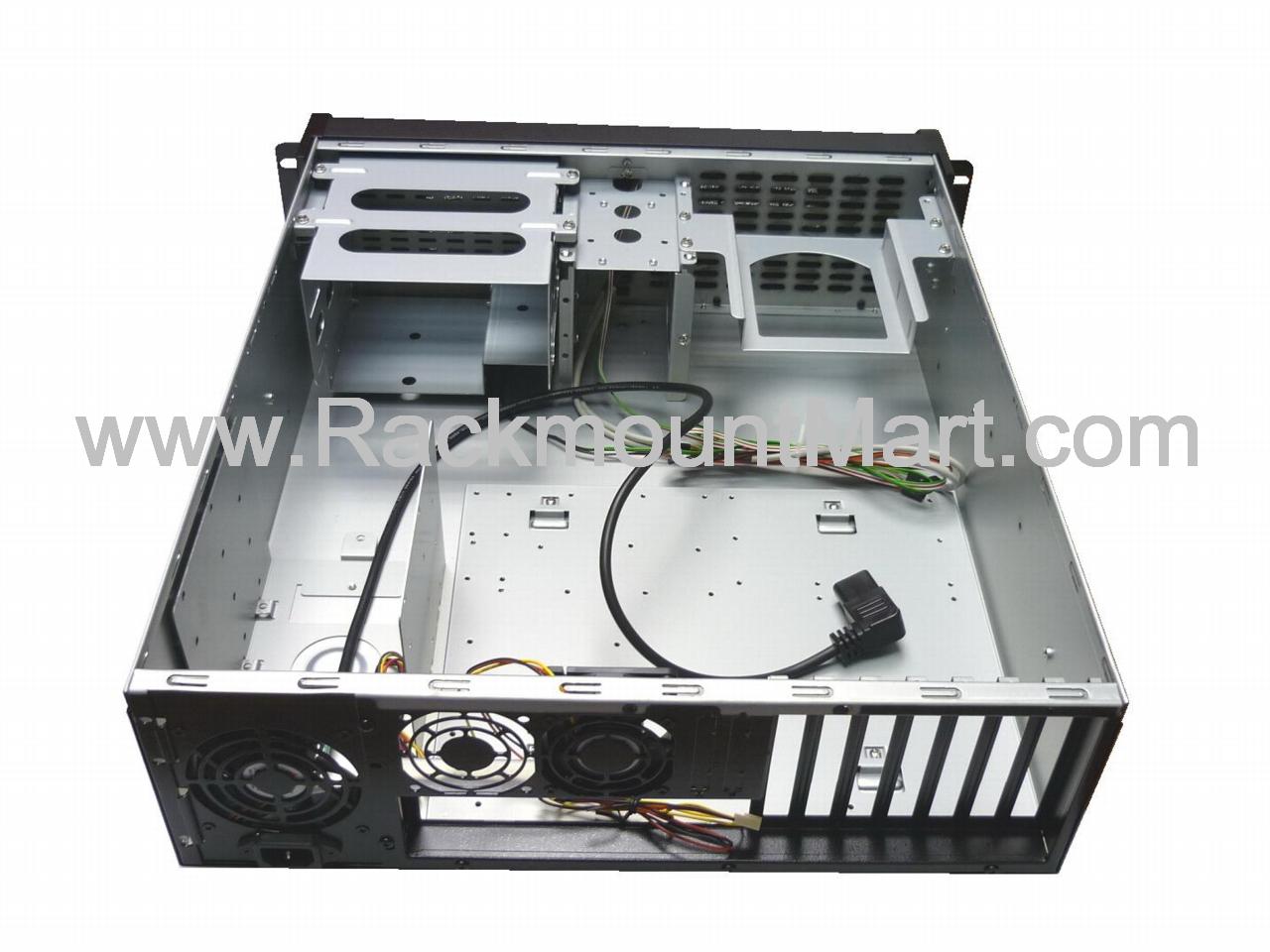

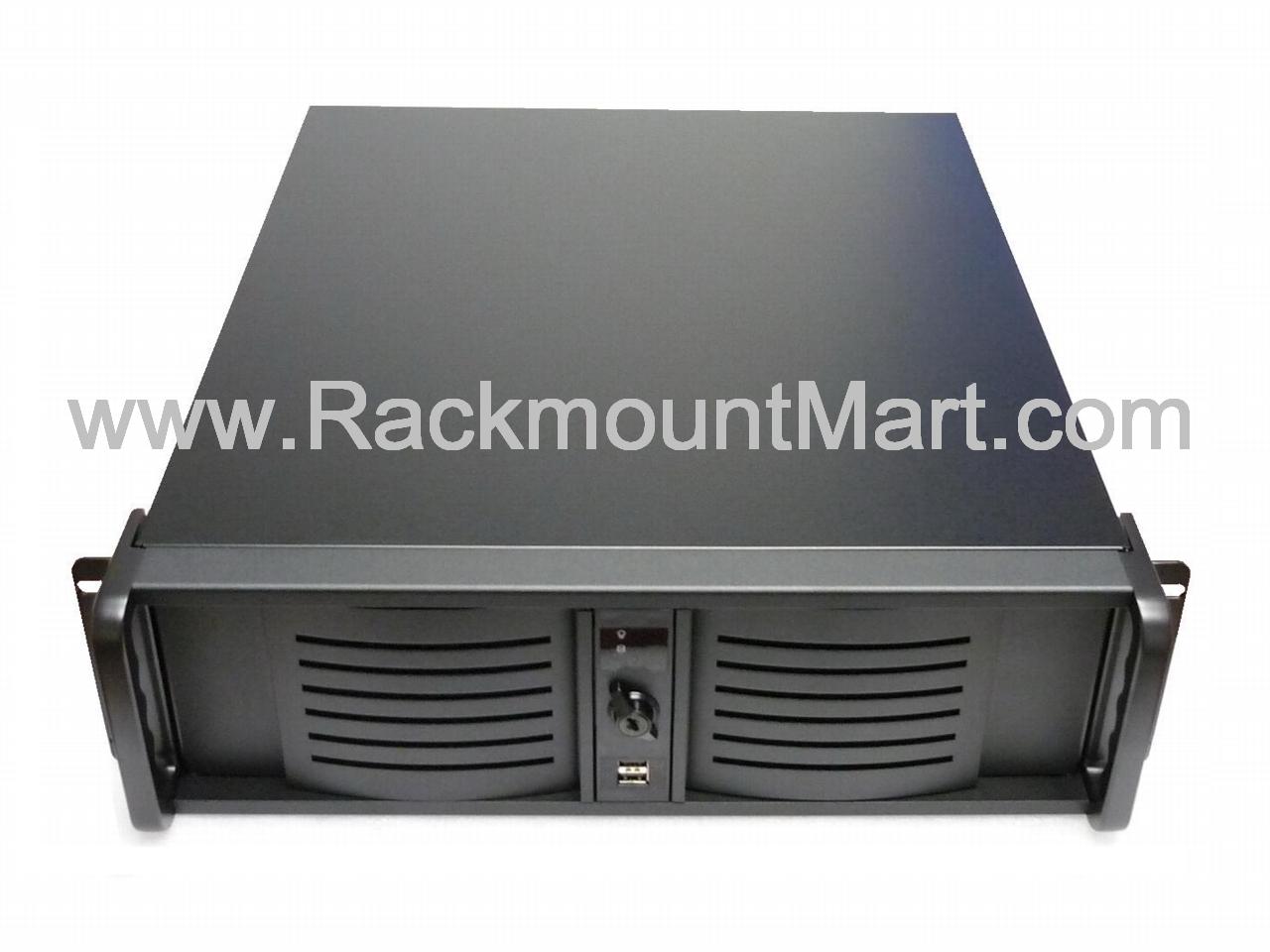

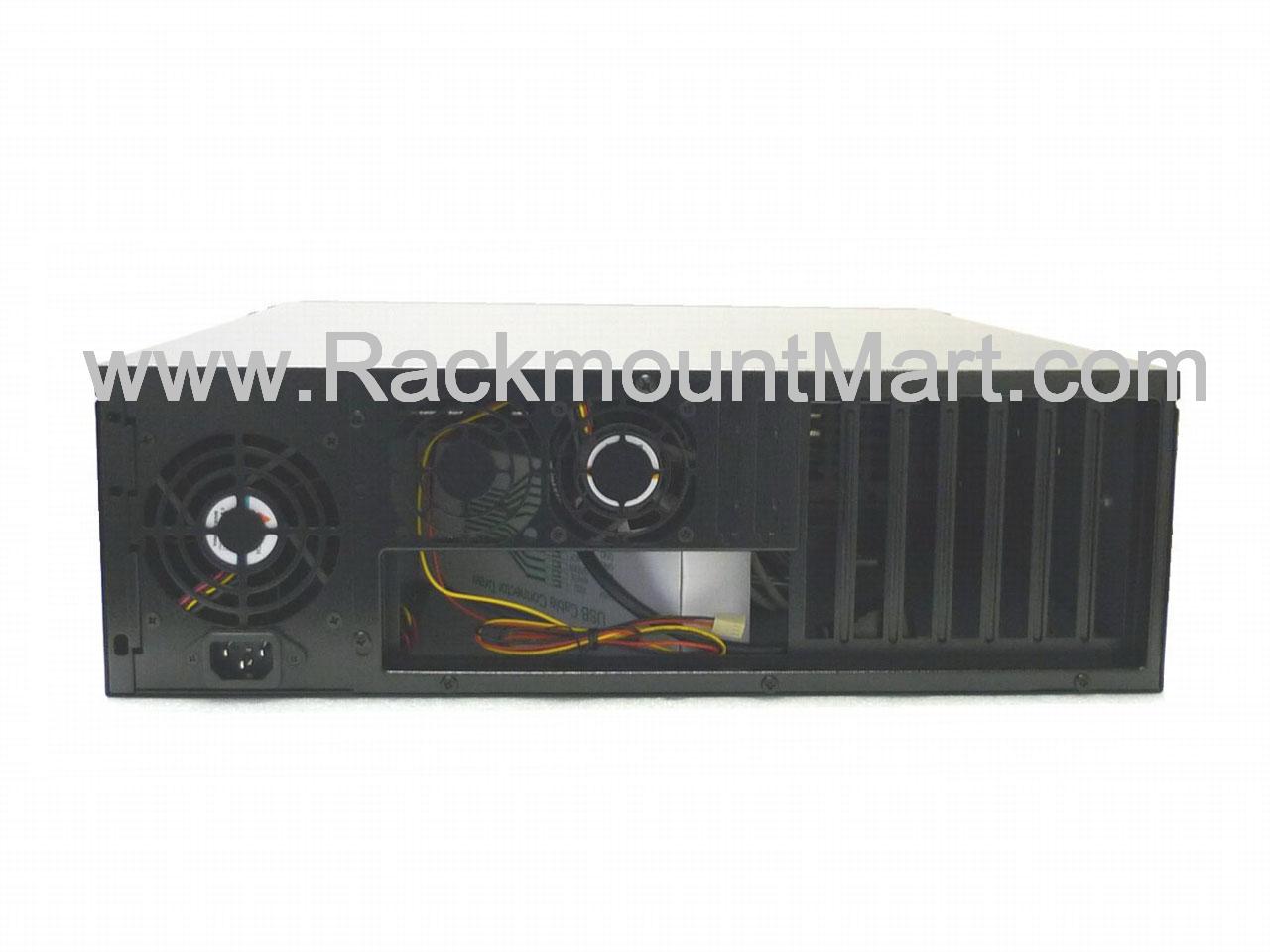

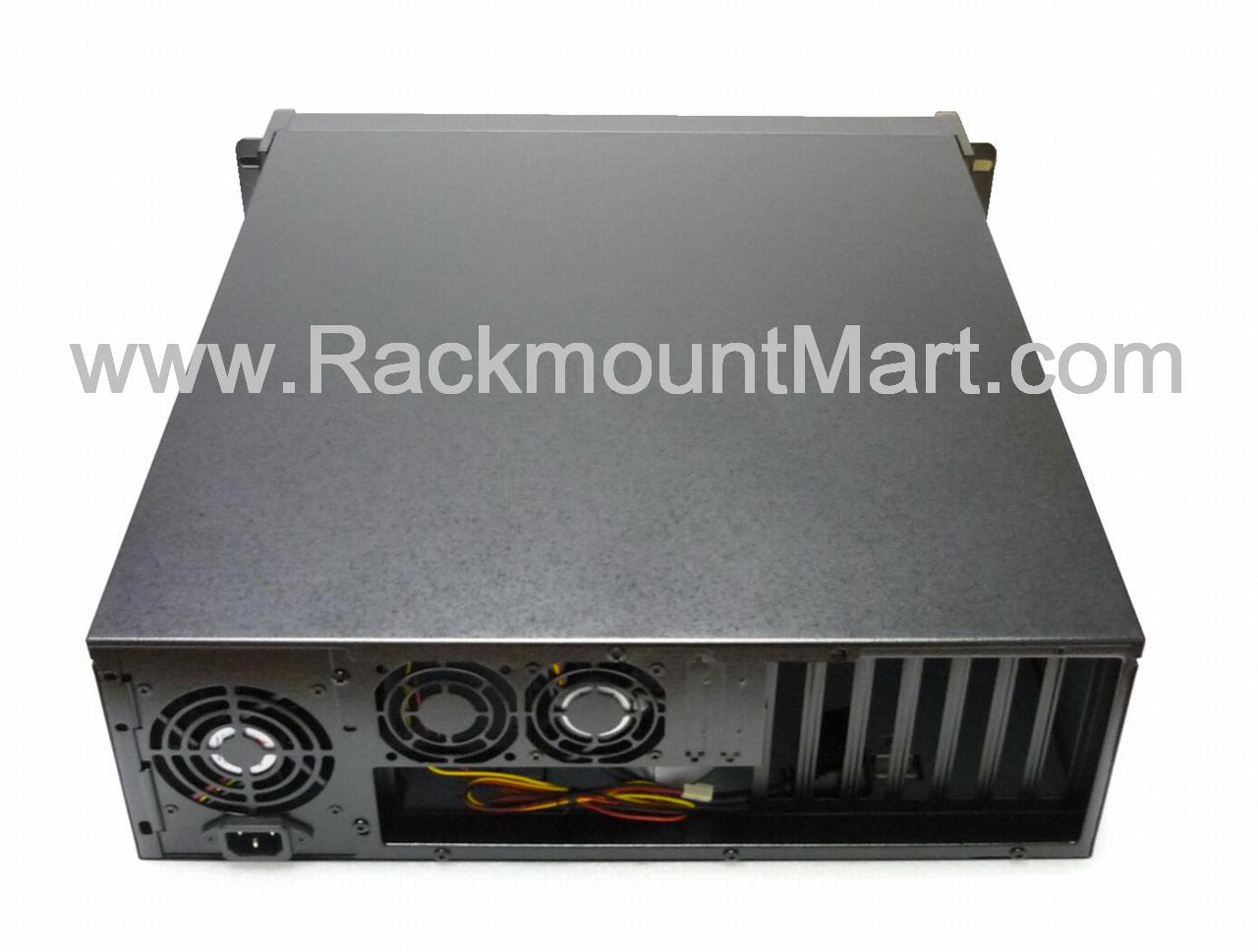

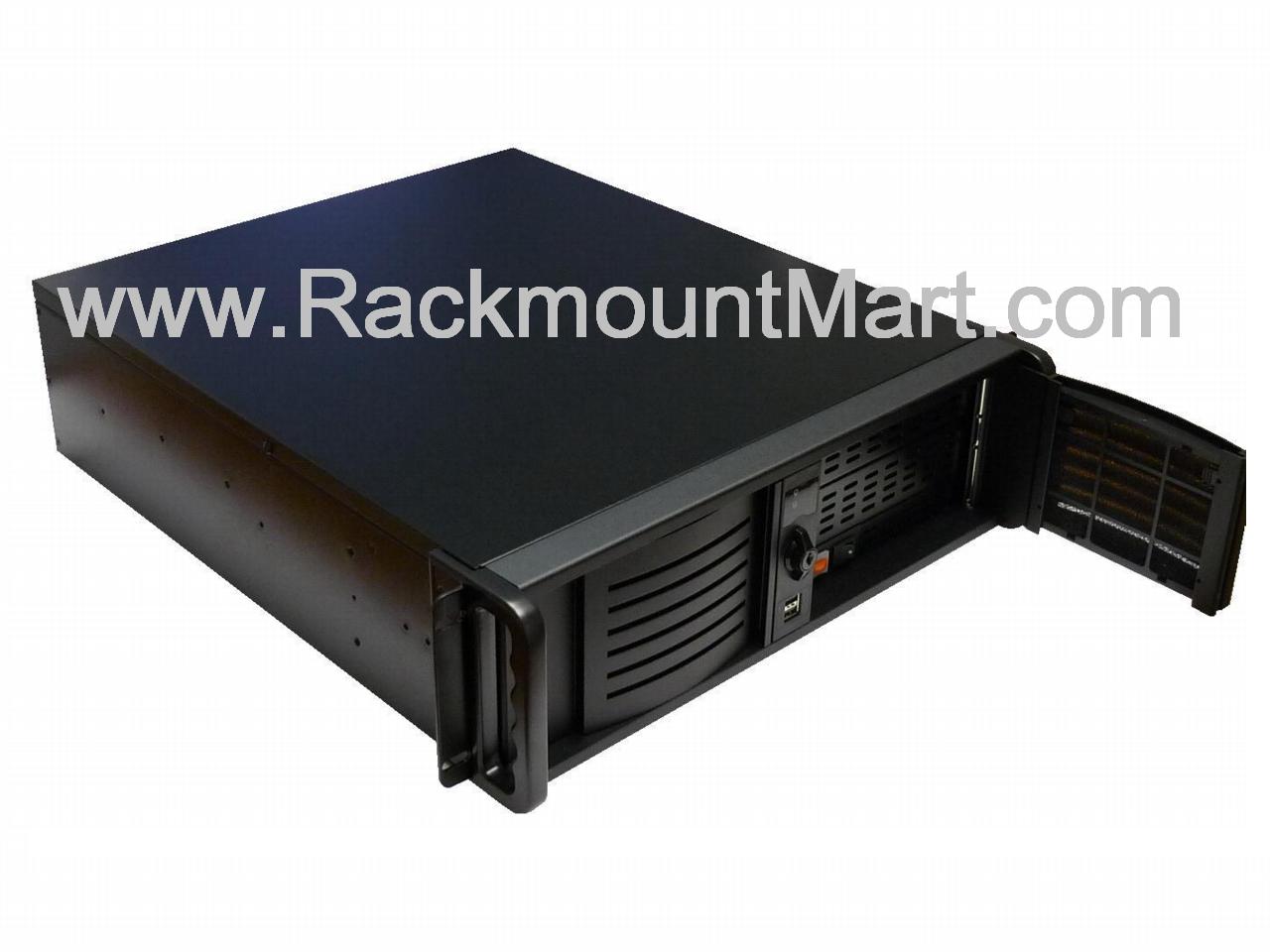

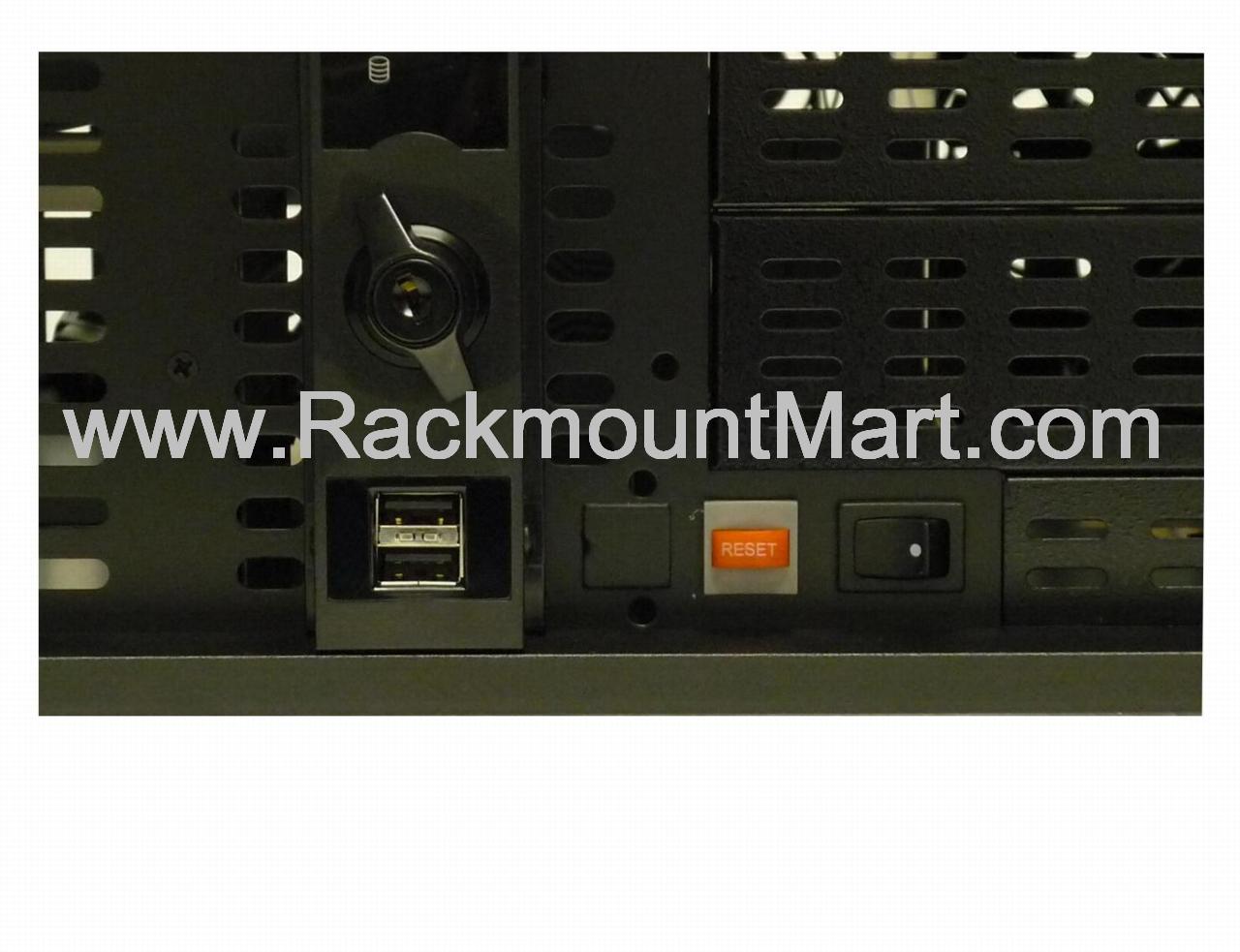

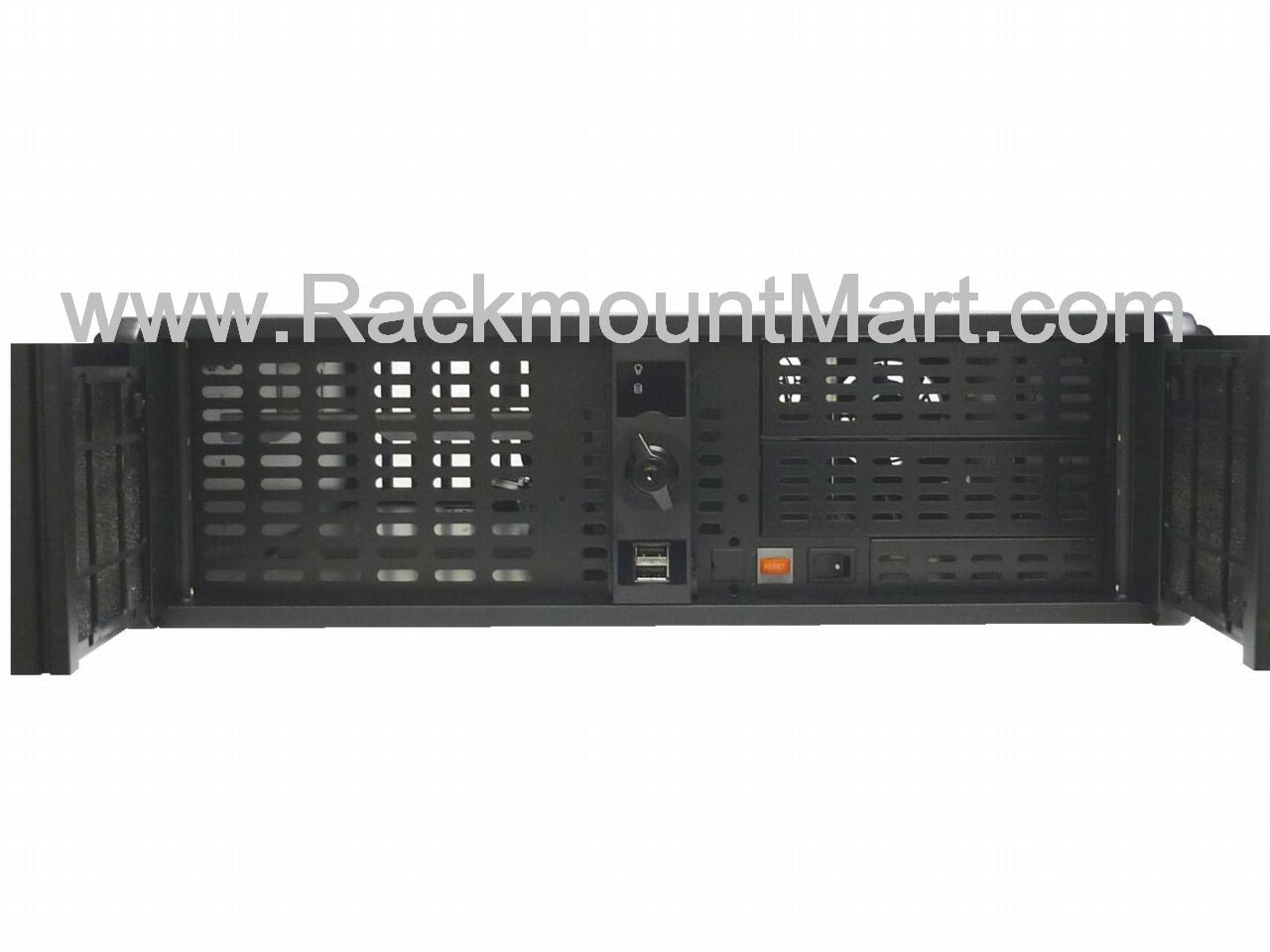

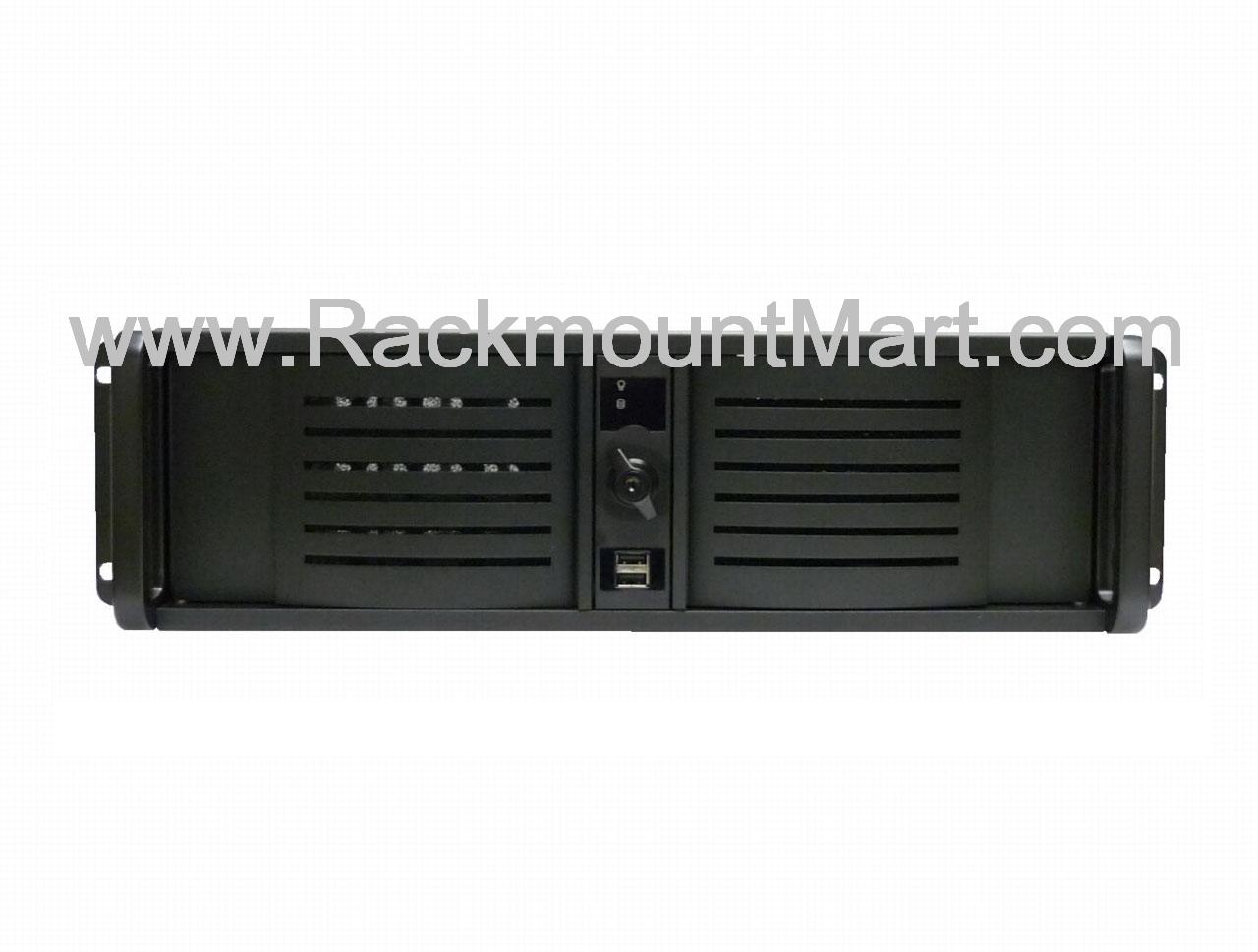

  More photos:





Ordering information
Part Number  Description
RM3022-0  3U Rackmount Chassis w/ 3 external and 4 internal Drive Bays, Case only.
