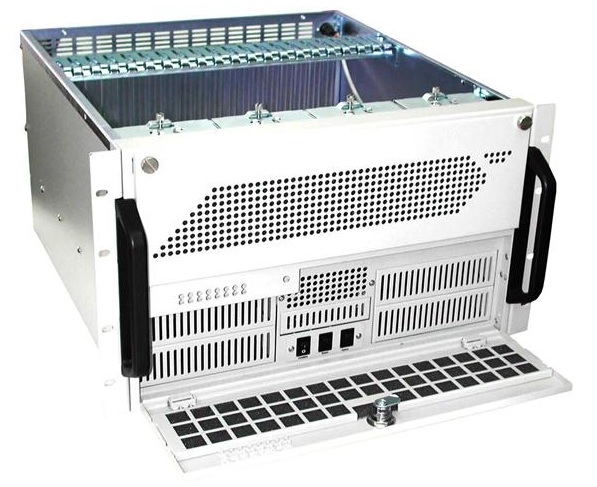

6U Rackmount Chassis :  Part # RM6004
Option 1 : ATX Version

       *click on  photo for enlarged view


Option 2 : Backplane(SR) Version

        *click on  photo for enlarged view



Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 4x 5.25" & 2x 3.5" HDD
Power Supply: PS/2 Size Single up to 700W or Horizontal Redundant up to 550W or Mini Redundant up to 500W ATX P/S (Rear Installation)
Cooling Units: Hot Swappable 4x (90mm = 51CFM ea.) Fans
Expansion Slot: 19/20 Slots
Connector Port (front): 2 X USB Ports
Buttons: Power ON/OFF Momemtary or AT (Pushbutton), System Reset, Buzzer Reset
Front Door(s): Single Door With 1 Thumb Twist Keylock
Air Filter: Inside Front Door (Washable)
Dimensions(W x H x D): 483 x 267 x 463mm (19" x 10.5" x 18.2")
Weight: 25.3 kgs / 55.8 lbs
Cu. ft.: 5.8
Carton Size: 61 x 41.8 x 64.7 (24" x 16.5" x 25.5")
Humidity: 5% - 95% Non-condensing
