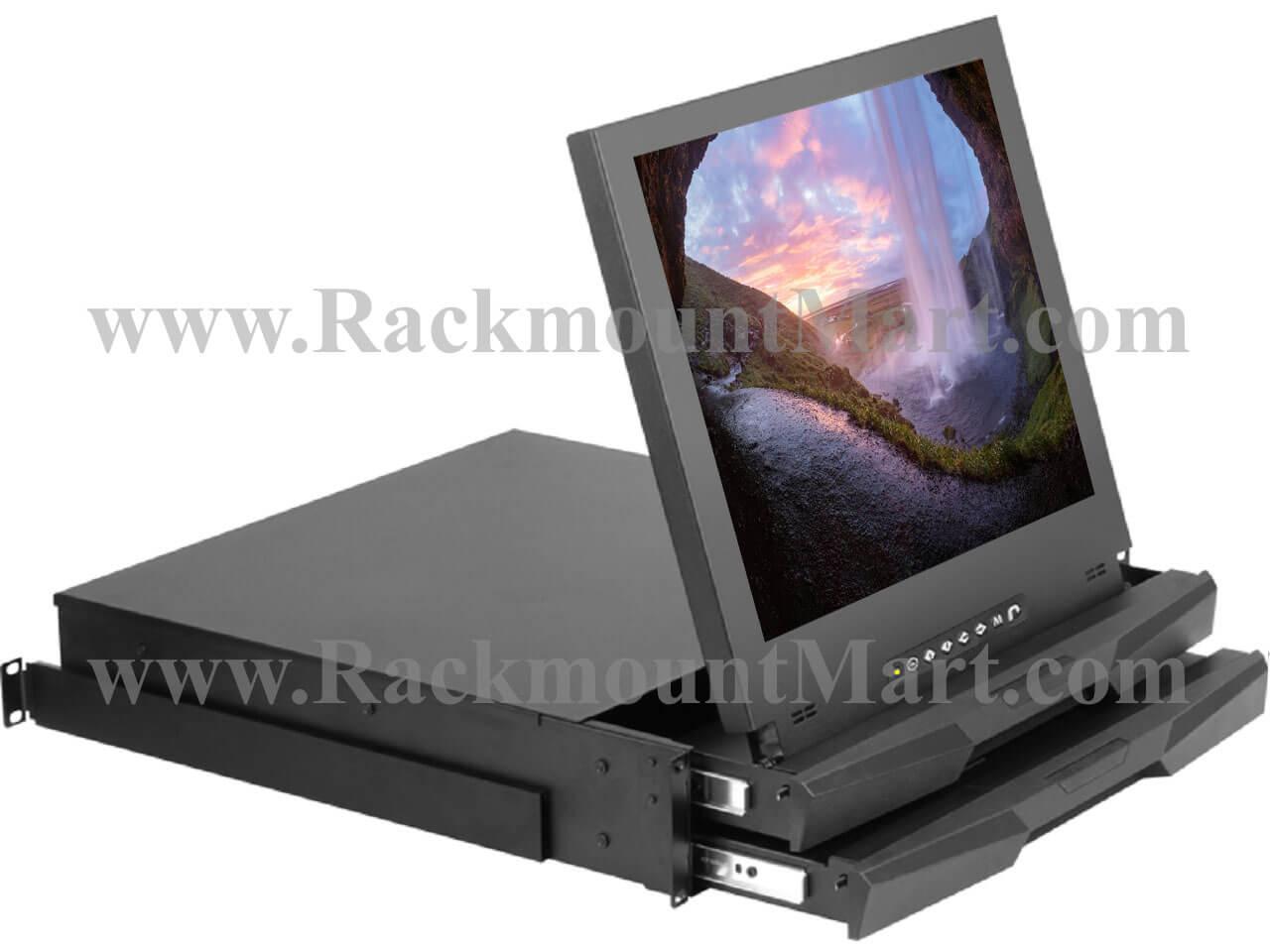

2U SHORT DEPTH Rack KVM Console with Industrial LCD Monitor Keyboard
Model  LCD2U17-03


NOVA Industrial Grade 17 Inch LED 2U SHORT DEPTH Dual Slide Rackmount KVM Console
TAA Compliant

   Optional DB-15 KVM / CAT6 KVM / DVI KVM / Multi-User Matrix KVM
      Optional 1 / 2 / 3 / 4 Simultaneous Users by Local / Remote Access VIA CAT6 or Over IP

                                              Only 18.9" / 480mm Deep, fits  23.6" / 600mm deep cabinet
   Space saving design : Dual Slides enable viewing through closed glass doors of Rack Enclosure

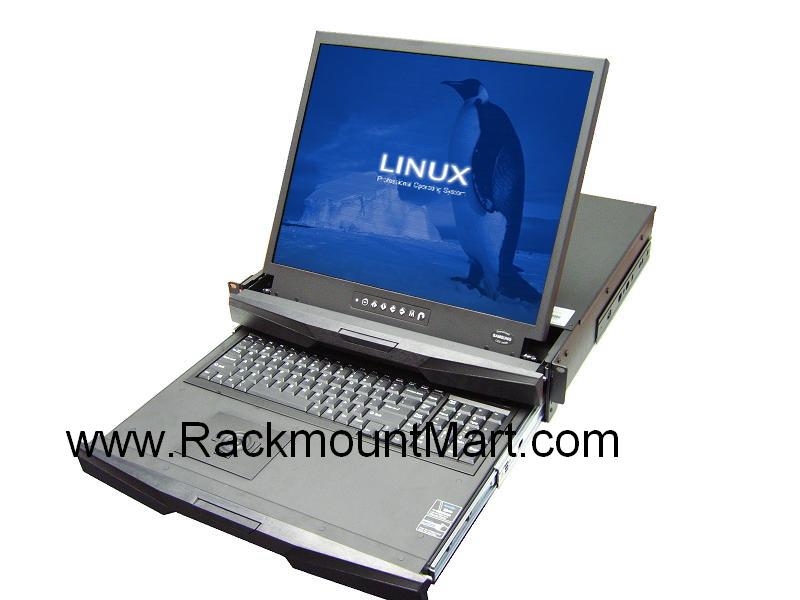

    Rack Console LCD2U17-03-n


*Click for enlarged view

   Features & Benefits    Other Options
LCD Screen

LCD Type

Industrial Grade TFT LCD Panel

Display Size

17 inch diagonal

Resolutions

1280 x 1024

Backlight

LED

Contrast ratio

1000 : 1

Brightness

250 cd/ m2

Active area

338 x 270 (mm)

Panel color

16.7 M

Viewing angle

160° x 160°

Signal Input

VGA

LCD MTBF

50,000 hrs

Keyboard & Pointing Device

Model n / b

Standard Windows Keyboard  with/ Numeric Keypad & Touchpad or Trackball

Model Mn / Mb
(MAC)

Optional MAC Keyboard and Hot-Keys with Numeric Keypad & Touchpad or Trackball

Model Sn / Sb
(SUN)

Optional SUN Keyboard with HotKeys, Touchpad or Trackball

Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Screen on : Max. 25 Watt
Power saving mode : Max 4 Watt
Power button on : Max 1 Watt
Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity 5~90%, non condensing
Shock 10G peak acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration
Mechanical
Dimensions

441.6(W) x 480(D) x 88(H) mm /
17.4(W) x 18.9(D) x 3.5(H) inch

Product Weight Single Port KVM: 43lbs / 19.5kgs
Multi-Port KVM: 45 lbs/ 20.5kgs
Regulatory Approval
  FCC, CE, RoHS3,
REACH & TAA Compliant
ISO 9001, ISO 14001
                              SUN VERSION / SUN KVM
Model LCD2U17-04 Click here for details.
    Dimension

*Click for enlarged view

     Construction

*Click for enlarged view


Product Sheet

User Manual

Free Ground Shipping *Click for details

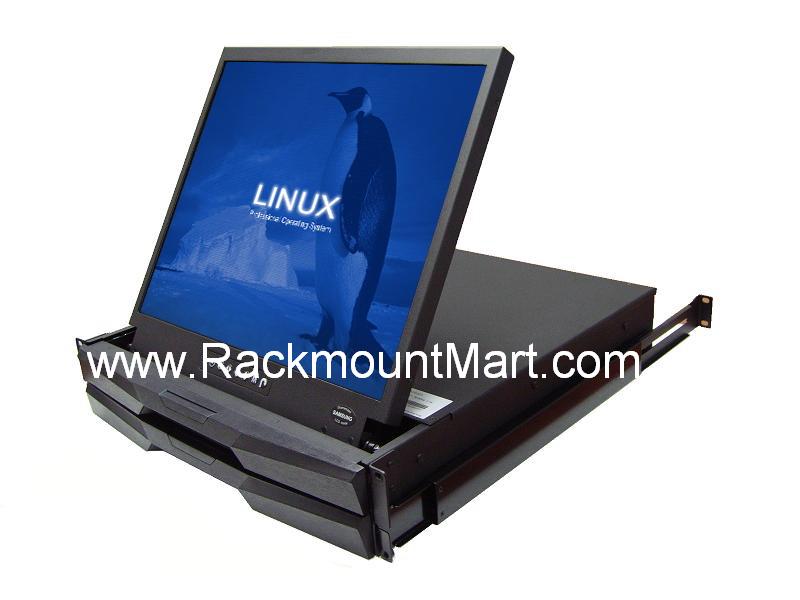

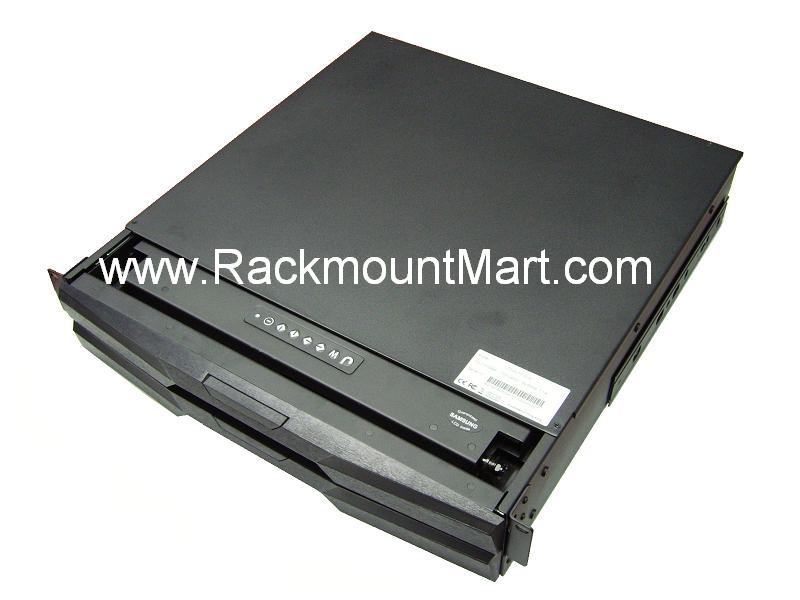

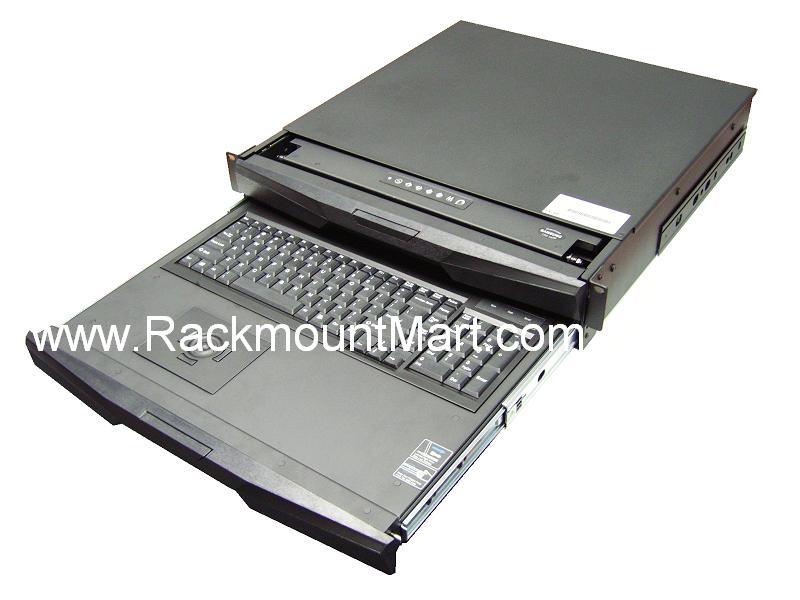

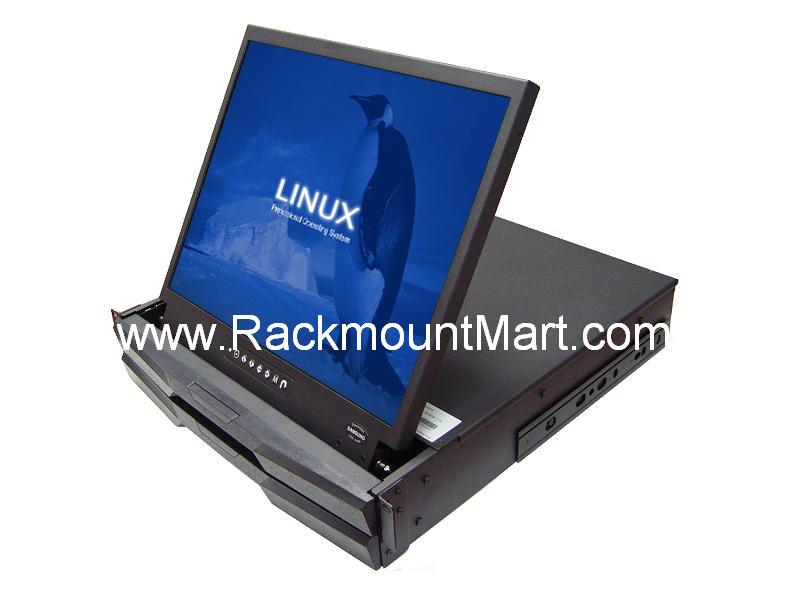

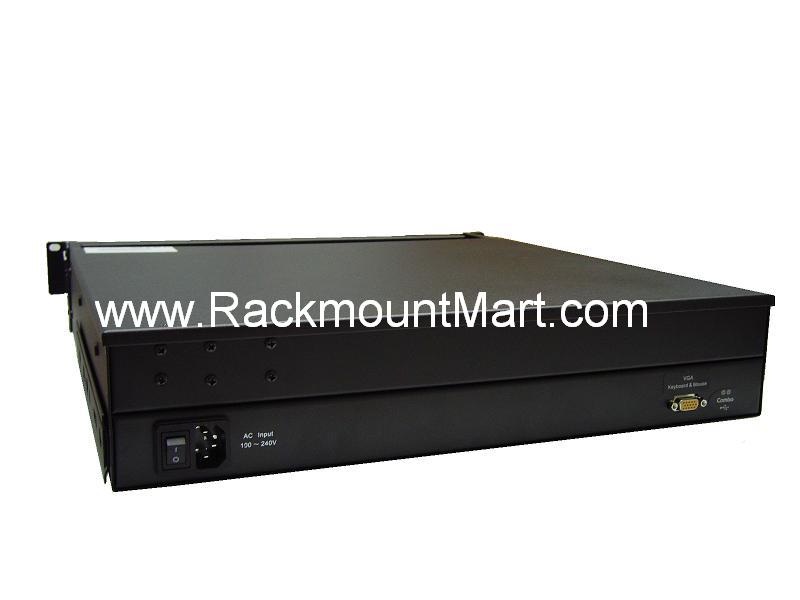

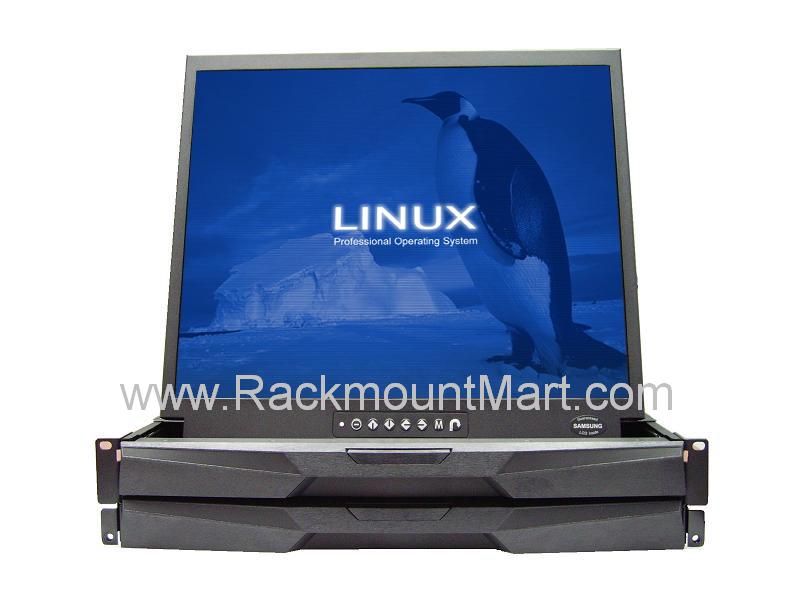

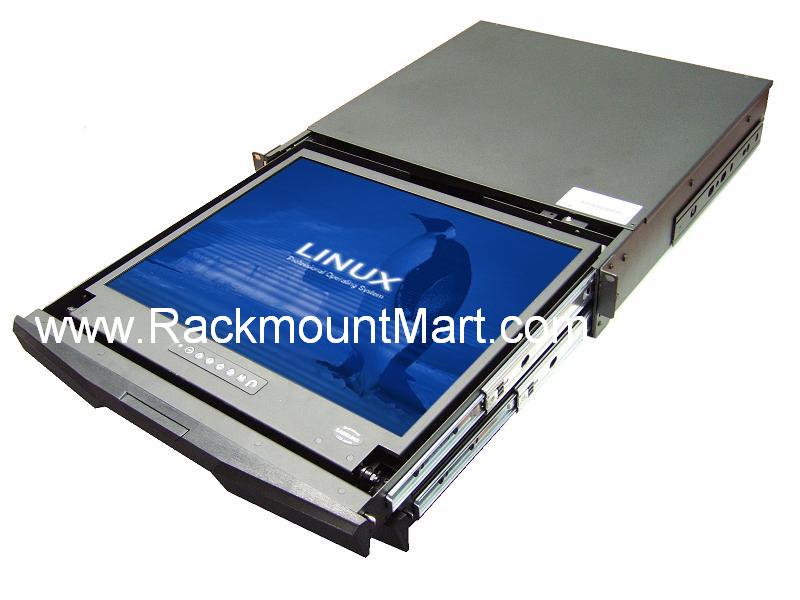

  Gallery

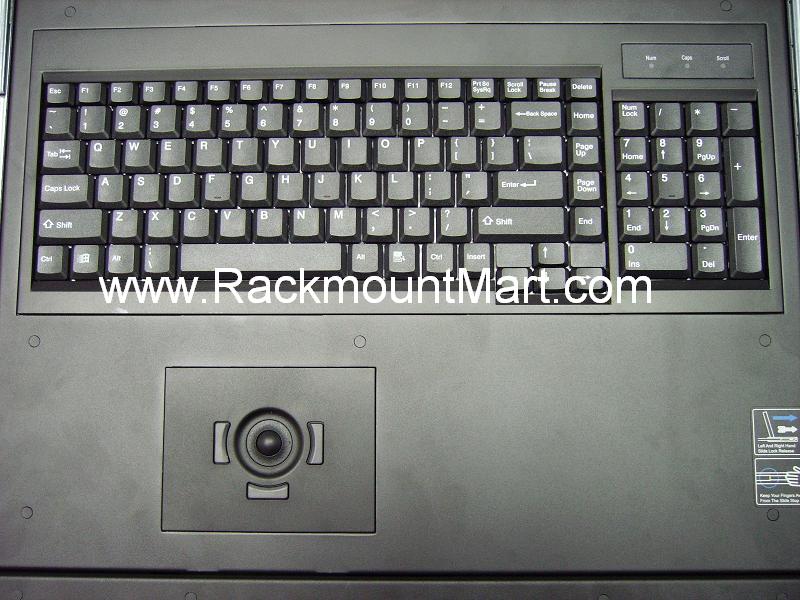

Trackball Version w/ 8-port combo kvm option MAC keyboard Version w/ 12 DVI-D kvm option

Port Type KVM Version No. of Port Cascade Capacity No. of Console User Manual with Product Specification
DB-15 KVM ( 1 Active User )
DB-15 PS2 KVM 8 Up to 8 level 1 x Local Console User Manual w/ Product spec.
DB-15 Combo USB/PS2 KVM 8 / 16 Up to 8 level 1 x Local Console User Manual w/ Product spec.
DB-15 Combo USB/PS2 KVM 8 / 16 Up to 8 level 1 x Local Console +
  1 x Remote Console ( Via CAT6 )
User Manual w/ Product spec.
DB-15 Combo USB/PS2 KVM 8 / 16 Up to 8 level 1 x Local Console +
  1 x Remote Console ( Over IP )
User Manual w/ Product spec.
CAT6 KVM ( 1 Active User )
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console User Manual w/ Product spec.
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console +
  1 x Remote Console( Via CAT6 )
User Manual w/ Product spec.
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console +
  1 x Remote Console ( Over IP )
User Manual w/ Product spec.
DVI-D KVM ( 1 Active User )
DVI-D USB & Audio KVM
**External Speakers Only**
12 1 level 1 x Local Console User Manual w/ Product spec.
Matrix KVM ( 2 ~ 4 Active Users )
DB-15 Matrix DB-15 KVM 8 / 16 Up to 8 level 1 x Local Console +
(1, 2 or 3) x Remote Console ( Via CAT 6
)
User Manual w/ Product spec.
DB-15 Matrix DB-15 KVM 8 / 16 Up to 8 level 1 x Local Console +
( 1 or 2 ) x Remote Cosnole ( Via CAT 6 ) +
( 1 or 2 ) x Remote Console ( Over IP )
User Manual w/ Product spec.
Cat6 Matrix CAT 6 KVM 16/32 Up to 8 level 1 x Local Console +
(1, 2 or 3) x Remote Console
(Via CAT6 )
User Manual w/ Product spec.
Cat6 Matrix CAT 6 KVM 16/32 Up to 8 level 1 x Local Console +
( 1 or 2 ) x Remote Cosnole ( Via CAT 6 ) +
( 1 or 2 ) x Remote Console ( Over IP )
User Manual w/ Product spec.

Back to top

 Ordering Information

DB-15 KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
 LOCAL CONSOLE ONLY
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number
1 Local Console / Single Port Combo KVM 1
 1 x Combo KVM cable
Touchpad LCD2U17-03-n (u)
Trackball  LCD2U17-03-b (u)
1 Local Console / MultiPort PS2 KVM 8
 8 x  PS/2 KVM cable
Touchpad LCD2U17-03-8KVM-n
Trackball  LCD2U17-03-8KVM-b
1 Local Console / MultiPort Combo KVM 8
8 x Combo KVM cable
Touchpad LCD2U17-03-8KVM-n-u
Trackball

LCD2U17-03-8KVM-b-u

16
16 x Combo KVM cable
Touchpad LCD2U17-03-16KVM-n-u
Trackball

LCD2U17-03-16KVM-b-u

 LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number
1 Local Console + 1 Remote Console (Via CAT6 ) / MultiPort Combo KVM 8
 8 x  Combo KVM cable
Touchpad LCD2U17-03-8KVM2-n
Trackball  LCD2U17-03-8KVM2-b
16
16 x Combo KVM cable
Touchpad LCD2U17-03-16KVM2-n
Trackball  LCD2U17-03-16KVM2-b
1 Local Console + 1 Remote Console (Over IP) /
MultiPort Combo KVM
8
 8 x  Combo KVM cable
Touchpad LCD2U17-03-8KVM2IP-n
Trackball  LCD2U17-03-8KVM2IP-b
16
16 x Combo KVM cable
Touchpad LCD2U17-03-16KVM2IP-n
Trackball  LCD2U17-03-16KVM2IP-b
CAT 6 KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
 LOCAL CONSOLE ONLY
No. of Console /
KVM Choice
No. of
KVM port
Dongle Keyboard Part Number
1 Local Console / MultiPort CAT6 KVM 8
Optional
Touchpad LCD2U17-03-U8KVM-n
Trackball  LCD2U17-03-U8KVM-b
16
Optional
Touchpad LCD2U17-03-U16KVM-n
Trackball

LCD2U17-03-U16KVM-b

32
Optional
Touchpad LCD2U17-03-U32KVM-n
Trackball

LCD2U17-03-U32KVM-b

 LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice
No. of
KVM port
Dongle Keyboard Part Number
1 Local Console + 1 Remote Console (Via CAT6 ) / MultiPort Combo KVM 8
Optional
Touchpad LCD2U17-03-U8KVM2-n
Trackball  LCD2U17-03-U8KVM2-b
16
Optional
Touchpad LCD2U17-03-U16KVM2-n
Trackball

LCD2U17-03-U16KVM2-b

32
Optional
Touchpad LCD2U17-03-U32KVM2-n
Trackball

LCD2U17-03-U32KVM2-b

1 Local Console + 1 Remote Console (Over IP) /
MultiPort Combo KVM
8
Optional
Touchpad LCD2U17-03-U8KVM2IP-n
Trackball  LCD2U17-03-U8KVM2IP-b
16
Optional
Touchpad LCD2U17-03-U16KVM2IP-n
Trackball

LCD2U17-03-U16KVM2IP-b

32
Optional
Touchpad LCD2U17-03-U32KVM2IP-n
Trackball

LCD2U17-03-U32KVM2IP-b

DVI KVM : 1 Active User
 LOCAL CONSOLE ONLY
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number
1 Local Console / MultiPort DVI-D KVM 12
 6 x  DVI-D KVM cable
Touchpad LCD2U17-03-12DVI-n
Trackball  LCD2U17-03-12DVI-b
Matrix DB-15 KVM : 2~4 Active Users
Local Console & Remote Consoles ( either Via CAT6 or Over IP)
 2 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number
1 Local Console + 1 Remote Console (Via CAT6 ) /
Matrix DB-15 KVM
8
 8 x  Combo KVM cable
Touchpad LCD2U17-03-M82-n
Trackball  LCD2U17-03-M82-b
16
16 x Combo KVM cable
Touchpad LCD2U17-03-M162-n
Trackball  LCD2U17-03-M162-b
 3 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number
1 Local Console + 2 Remote Consoles (Via CAT6 ) /
Matrix DB-15 KVM
8
 8 x  Combo KVM cable
Touchpad LCD2U17-03-M83-n
Trackball  LCD2U17-03-M83-b
16
16 x Combo KVM cable
Touchpad LCD2U17-03-M163-n
Trackball  LCD2U17-03-M163-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix DB-15 KVM
8
 8 x  Combo KVM cable
Touchpad LCD2U17-03-M83IP-n
Trackball  LCD2U17-03-M83IP-b
16
16 x Combo KVM cable
Touchpad LCD2U17-03-M163IP-n
Trackball  LCD2U17-03-M163IP-b
 4 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number
1 Local Console + 3 Remote Consoles (Via CAT6 ) /
Matrix DB-15 KVM
8
 8 x  Combo KVM cable
Touchpad LCD2U17-03-M84-n
Trackball  LCD2U17-03-M84-b
16
16 x Combo KVM cable
Touchpad LCD2U17-03-M164-n
Trackball  LCD2U17-03-M164-b
1 Local Console + 2 Remote Consoles (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix DB-15 KVM
8
 8 x  Combo KVM cable
Touchpad LCD2U17-03-M84IP-n
Trackball  LCD2U17-03-M84IP-n
16
16 x Combo KVM cable
Touchpad LCD2U17-03-M164IP-n
Trackball  LCD2U17-03-M164IP-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 2 Remote Consoles (Over IP) /
Matrix DB-15 KVM
8
 8 x  Combo KVM cable
Touchpad LCD2U17-03-M84IP2-n
Trackball  LCD2U17-03-M84IP2-b
16
16 x Combo KVM cable
Touchpad LCD2U17-03-M164IP2-n
Trackball  LCD2U17-03-M164IP2-b
Matrix CAT6 KVM : 2~4 Active Users
Local Console & Remote Consoles ( either Via CAT6 or Over IP)
 2 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
 Dongle Keyboard Part Number
1 Local Console + 1 Remote Console (Via CAT6 ) /
Matrix CAT6 KVM
16
Optional
Touchpad LCD2U17-03-MU162-n
Trackball  LCD2U17-03-MU162-b
32
Optional
Touchpad LCD2U17-03-MU322-n
Trackball  LCD2U17-03-MU322-b
 3 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
 Dongle Keyboard Part Number
1 Local Console + 2 Remote Consoles (Via CAT6 ) /
Matrix CAT6 KVM
16
Optional
Touchpad LCD2U17-03-MU163-n
Trackball  LCD2U17-03-MU163-b
32
Optional
Touchpad LCD2U17-03-MU323-n
Trackball  LCD2U17-03-MU323-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix CAT6 KVM
16
Optional
Touchpad LCD2U17-03-MU163IP-n
Trackball  LCD2U17-03-MU163IP-b
32
Optional
Touchpad LCD2U17-03-MU323IP-n
Trackball  LCD2U17-03-MU323IP-b
 4 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
 Dongle Keyboard Part Number
1 Local Console + 3 Remote Consoles (Via CAT6 ) /
Matrix CAT6 KVM
16
Optional
Touchpad LCD2U17-03-MU164-n
Trackball  LCD2U17-03-MU164-b
32
Optional
Touchpad LCD2U17-03-MU324-n
Trackball  LCD2U17-03-MU324-b
1 Local Console + 2 Remote Consoles (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix CAT6 KVM
16
Optional
Touchpad LCD2U17-03-MU164IP-n
Trackball  LCD2U17-03-MU164IP-b
32
Optional
Touchpad LCD2U17-03-MU324IP-n
Trackball  LCD2U17-03-MU324IP-n
1 Local Console + 1 Remote Console (Via CAT6 ) + 2 Remote Consoles (Over IP) /
Matrix CAT6 KVM
16
Optional
Touchpad LCD2U17-03-MU164IP2-n
Trackball  LCD2U17-03-MU164IP2-b
32
Optional
Touchpad LCD2U17-03-MU324IP2-n
Trackball  LCD2U17-03-MU324IP2-b
Part Number                                Description
Optional Keyboard & Pointing Devices
-Mn
Change Standard Windows Keyboard to MAC keyboard with touchpad
-Mb
Change Standard Windows Keyboard to MAC keyboard with trackball
-Sn
Change Standard Windows Keyboard to SUN keyboard with touchpad
-Sb
Change Standard Windows Keyboard to SUN keyboard with trackball
Optional Video/Audio Inputs
-DVI
VGA + DVI-D
-HDMI
VGA + HDMI
-SDI
VGA + SDI
-AV3.0
VGA + HDMI w/ speaker
-BNC
VGA + DVI-D + BNC
-AV
VGA + DVI-D + RCA
-SPK
VGA + DVI-D + Audio with Speaker
Optional Touch screen
-TRS
Resistive 1-Point Touch Screen with Serial Controller
-TRB
Resistive 1-Point Touch Screen with USB Controller
-TCS
Projective Capacitive 1-Point Touch Screen with Serial Controller
-TCB Projective Capacitive 1-Point Touch Screen with USB Controller
Optional DC Power
-DC12 Change to 12V DC power supply
-DC24 Change to 24V DC power supply
-DC48 Change to 48V DC power supply
-DC110
Change to 110V DC power supply
-DC125
Change to 125V DC power supply
-DC250
Change to 250V DC power supply
Optional Dongles
LCD-A2001
VGA-USB Dongle
LCD-A2002
VGA-PS/2 Dongle
LCD-A2003
DVI-USB Dongle
LCD-A2004
HDMI -USB Dongle
LCD-A2005
DisplayPort -USB Dongle
LCD-A2006
USB-C / USB Dongle
Optional Cables
LCD-A3011 6-ft DVI-USB KVM cable
LCD-A3012 6-ft HDMI-USB KVM cable
LCD-A3004
6-ft DVI Console Cable
LCD-A3005
6-ft DVI KVM Cable
LCD-A3006
15-ft DVI KVM Cable
LCD-A3001
6-ft Combo PS/2 USB KVM Cable
LCD-A3002
10-ft Combo PS/2 USB KVM Cable
LCD-A3003
15-ft Combo PS/2 USB KVM Cable
LCD-A1014
6-ft USB 3-in-1 KVM Cable
LCD-A1015
10-ft USB 3-in-1 KVM Cable
LCD-A1016
15-ft USB 3-in-1 KVM Cable
LCD-A1005
10-ft PS/2 3-in-1 KVM Cable
LCD-A1006
15-ft PS/2 3-in-1 KVM Cable
LCD-A1007
33-ft PS/2 3-in-1 KVM Cable
LCD-A1019
6-ft Cascade Cable

Back to top




Toll Free : 1-888-865-6888    Fax : 510-226-8968    Email :  sales@RackmountMart.com




Home    |   Buy Online    About Us  |    Contact Us    |    Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Technology  Inc is not responsible for any typographical errors. Specifications subject to change without notice.  Legal.
