2 U Rackmount Chassis : Part # RM2012

Material: Heavy-duty cold-rolled steel. Inside: zinc-plated with bright chromate, Outside: texture-coated
Dimension: 19"(W) x 25.6"(D) x 3.5"(H)
Cooling: 4x 80mm ball-bearing fans + 2x 60mm ball-bearing fans on front panel
Power Supply: 300W or 400W w/ PFC, also available in 300W redundant power supply
PCI Extension: 3 full height and length slots with optional riser cards.
Air Filter: Removable and washable
Controls: Power on/off and system reset
Indicators: Power and HDD LED's
System Boards: SUN MICRO's SPARCengine Ultra AXi motherboards.
Speaker: 0.4W built-in
Drive Bay: 1x5.25" + 1x3.5" FDD bays, 6x hot-swap drive bays for 1" IDE or SCA HDD
Temperature: 0°C (32°F) ~ 50°C (122°F)
Humidity: 5%~95% non-condensing

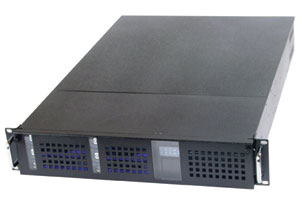

More photo - (click on the picture for enlarged view)

FEATURES: 6x1" hot-swap drive bays, 1 + 1 redundant power supply, bays for CD-ROM + FDD, full feature 2U rackmount chassis. This chassis is tailored to fit Sun's Netra AX1105-500 and Ultra-sparc AXI Motherboards.

APPLICATIONS: Ideal low-profile 2U rackmount chassis for data-intensive mission critical applications

BENEFITS: 6x1" hot-swap drives will permit up to RAID 5 for maximum data integrity and protection, fault tolorance could be secured with Rackmount Mart's redundant power solutions

Ordering information

Part Number Description

RM2012-IDE 2U Rackmount Chassis, 6x IDE, Black, NO P.S.

RM2012-SCSI 2U Rackmount Chassis, 6x SCSI, Black, NO P.S.

RM2012-IDE-30PFC 2U Rackmount Chassis, 6x IDE, Black, w/300W P.S. w/PFC

RM2012-SCSI-30PFC 2U Rackmount Chassis, 6x SCSI, Black, w/300W P.S. w/PFC

RM2012-IDE-40PFC 2U Rackmount Chassis, 6x IDE, Black, w/400W P.S. w/PFC

RM2012-SCSI-40PFC 2U Rackmount Chassis, 6x SCSI, Black, w/400W P.S. w/PFC

RM2012-IDE-R30 2U Rackmount Chassis, 6x IDE, Black, w/300W redundant P.S.

RM2012-SCSI-R30 2U Rackmount Chassis, 6x SCSI, Black, w/300W redundant P.S.
