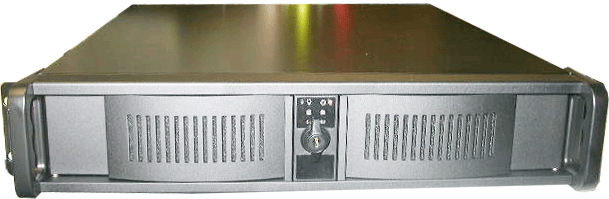

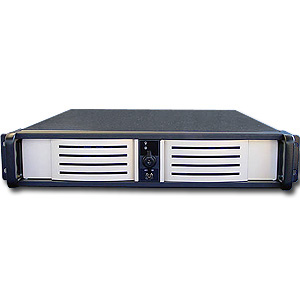

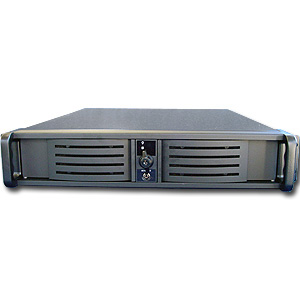

2 U Rackmount Chassis : Part # RM2017

Click on the above photo for enlarged view

Drive Bays :	(1 x 3.5” + 1 x 5.25”) + (1 x 5.25” + 1 x Slim CD-ROM)
Mainboard Type :	ATX ( 12” x 9.6” )

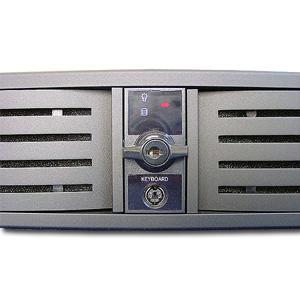

Indicators :	LEDs for Power ON/OFF, HDD, Fan & Alarm
Switches :	Power ON/OFF, System & Alarm Reset
Cooling :	1 x 60mm Ball Bearing Fans
Air Filter :	Removable & Washable
PCI Slot	3 x PCI Slots (Standard) 1 x AGP + 2 x PCI Slots or 1 x AGP + 1 x PCI Slots (Optional)

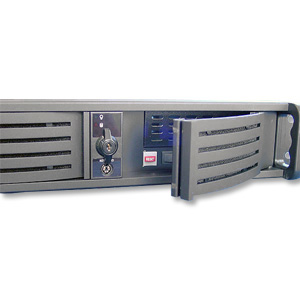

Security :	Both Front Doors Are Lockable
Dimensions ( WxDxH ) :	482.6 x 528.3 x 88.9 (mm),(19.0” x 20.8” x 3.5”)
Speaker :	0.4W Built-In
Fan & Temp.	Detecting Board For System Environment Monitoring (Optional )
Material Of Front Bezel :	Aluminum Alloy With Hard Anodized Treatment
Material Of Handle :	Aluminum Alloy
Material Of Main Chassis :	1.2mm SECC Zinc-Coated Steel ( Japan Made )
Color Of Main Chassis :	Black ( Standard ) or Beige/Silver
Front connector:	USB 2.0 x 2 Connector at Front
Power Supply (PSU) :	350w/460w or 2x350w Power Supply
Measurement :	541 (W)x 660 (D)x 191(H) (mm) / (21.3” x 26.0” x 7.5”)

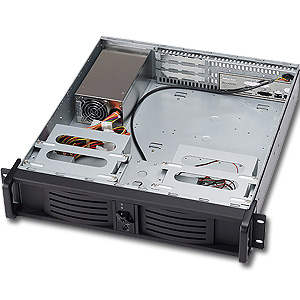

More photos - (click on the pictures for enlarged view)

;

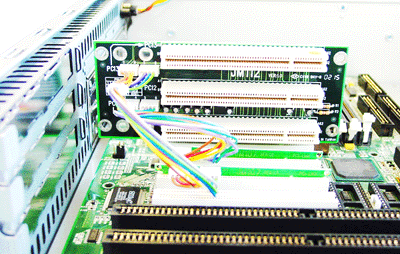

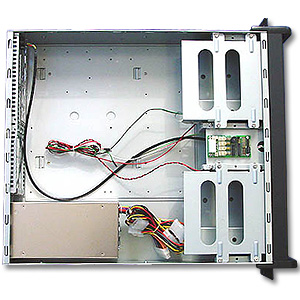

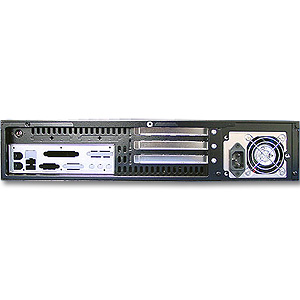

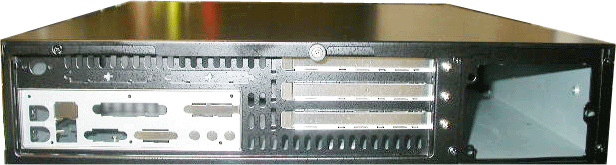

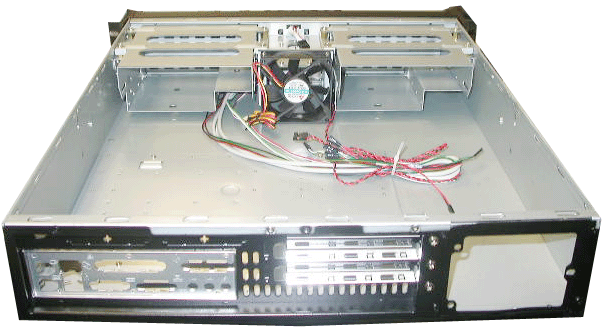

top back PCI Slot

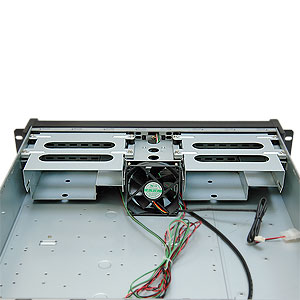

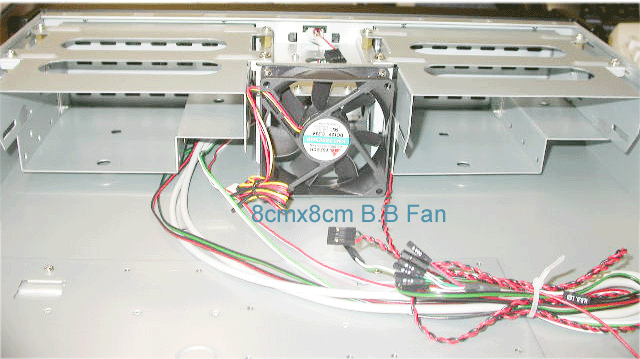

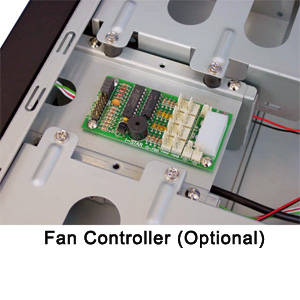

Cooling fan Optional Temp detector

Ordering information

Part Number Description

RM2017-35 2U Rackmount Chassis, w/350W P.S.

RM2017-46 2U Rackmount Chassis, w/460W P.S.

RM2017-R35 2U Rackmount Chassis, w/350WRedundant P.S.
