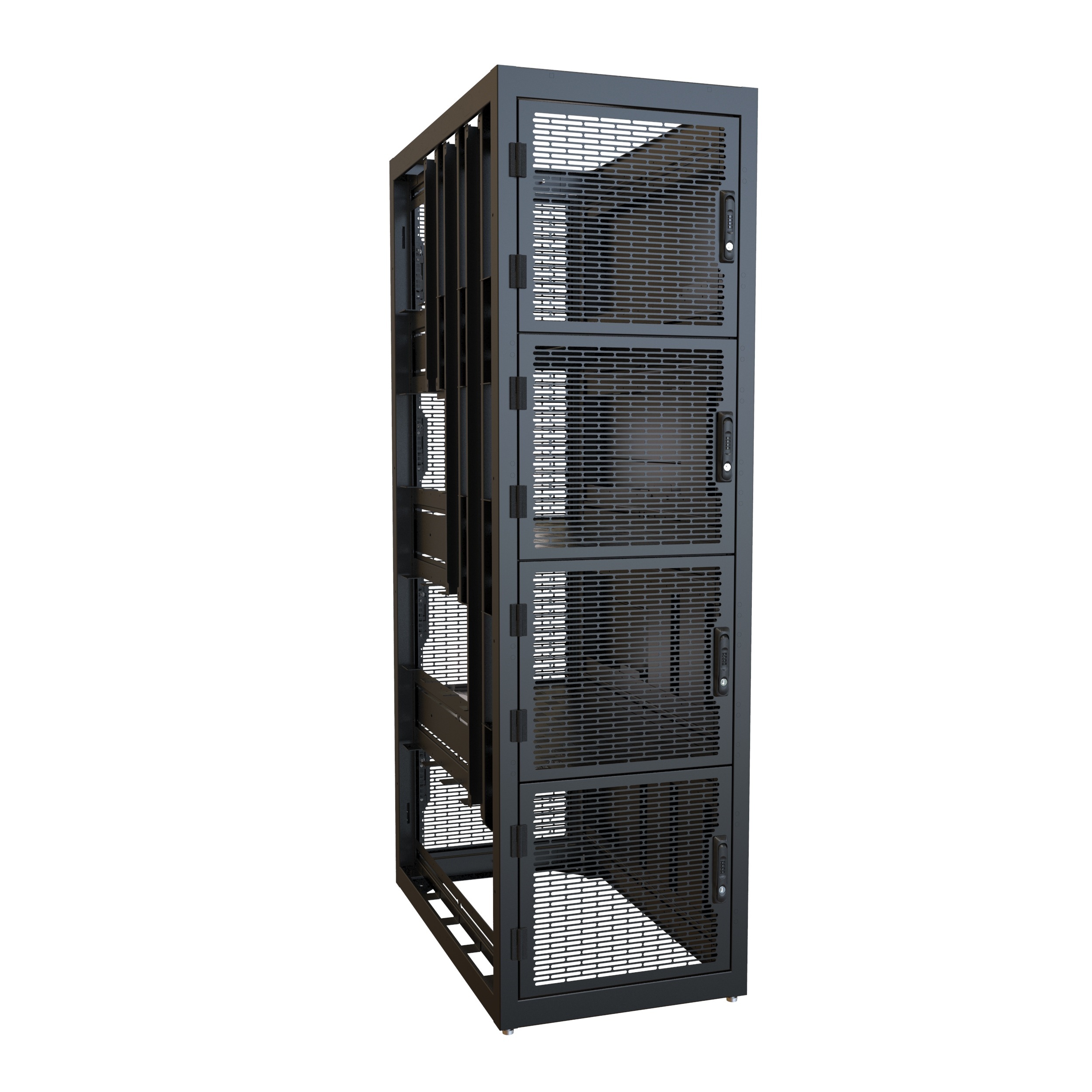

SERVER RACK CABINET
NAICS CODE: 334112 / SIC CODE 3572


   Standard EIA heights, widths, and depths of the Server Racks ( Inside dimensions) :
   Widths : 19"
(Widely used EIA standard) , 23" ( Used for Telco )
   Depths:  20", 23", 24", 28", 31", 32" , 33" , 35" , 35.14", 39", 47"
   Heights: 8u, 11u, 12u, 15u, 16u, 17u, 20u, 22u, 23u, 24u, 25u, 27u, 28u, 29u, 30u, 32u, 33u, 34u, 36u, 37u, 38u,
               40u, 42u, 43u, 45u, 47u


SELECT BY INSIDE DEPTH :  20" ~ 25"   26" ~ 31"   32" ~ 37"
  38" ~ 43"   44" ~ 47"

SELECT BY INSIDE HEIGHT  :  12U or Shorter   13U ~ 17U   18U ~ 22U
  23U ~ 27U   28U ~ 32U   33U ~ 37U
  38U ~ 42U   43U ~ 47U

Rack U
Model Width Depth Height
    Overall Effective Overall Effective
P/N Price mm inch mm inch mm inch mm inch mm inch
8U
CR1201 $580 621 24.44" 819 32.25" 718 28" 519 20.42" 356  14"
CR1201-C $320 588 23.13" 762 30"     519 20.42" 356  14"
11U
CR1002 $831.6 600 24" 800 32" 718 28" 762 30" 489 19"
CR1010 $924.75 600 24" 914 36" 819 32" 762 30" 489 19"
12U
CR1046 $656.1 600 24" 800 32" 787 31" 686 27" 533 21"
CR1050  $706.05 600 24" 914 36" 889 35" 686 27" 533 21"
CR1202 $640 621 24.44" 819 32.25" 718 28"  696 27.42" 533 21"
CR1202-C $360 588 23.13" 762 30"     696 27.42" 533  21"
15U
CR1003 Special
$831
600 24" 800 32" 718 28" 940 37" 673 27"
CR1030 $974.7 600 24" 914 36" 819 32" 940 37" 673 27"
16U
CR1047 $683.78 600 24" 800 32" 787 31" 889 35" 711 28"
CR1051 $742.5 600 24" 914 36" 889 35" 889 35" 711 28"
CR5001 $446 600 24" 600 24" 508 20" 864 34" 711 28"
CR5007 $474 600 24" 813 32" 718 28" 864 34" 718 28"
CR5013 $501 600 24" 914 36" 813 32" 864 34" 718 28"
17U
CR1659 Starting @
$350.5
600 24" 670 26" 600 24" 910 36" 845 33"
CR1660
Old p/n: CR1060
Starting @
$403.7
600 24" 870 34" 800 31" 910 36" 845 33"
CR1691
Old p/n: CR1091
Starting @
$434.9
600 24" 1070 42" 1000 39" 910 36" 845 33"
20U
CR1020 $959.18 600 24" 800 32" 718 28" 1143 45" 889 35"
CR1031 $1036.8 600 24" 914 36" 819 32" 1143 45" 889 35"
CR5008 $522 600 24" 813 32" 718 28" 1092 43" 889 35"
CR5014 $562 600 24" 914 36" 813 32" 1092 43" 889 35"
22U
CR1661
Old p/n: CR1061
$495 600 24" 670 26" 600 24" 1132 45" 1067 42"
CR1662
Old p/n: CR1062
Starting @
$419.3
600 24" 870 34" 800 31" 1132 45" 1067 42"
CR1692
Old p/n: CR1092
Starting @
$462.8
600 24" 1070 42" 1000 39" 1132 45" 1067 42"
CR1203 $680 600 24" 958 37.73" 893  35.14" 1152 45.36" 978 38.50"
CR1203-A $460 600 24" 958 37.73" 893  35.14" 1152 45.36" 978 38.50"
CR1204 $840 600 24" 970 38.2" 893  35.14" 1152 45.36" 978 38.50"
23U
CR1041 $739.8 600 24" 800 32" 787 31" 1187 47" 1022 40"
CR1043 $801.9 600 24" 914 36" 889 35" 1187 47" 1022 40"
24U
CR3001 $652 600 24" 600 24"     1218 48" 1067 42"
CR1012 $897.75 600 24" 600 24" 517 20" 1321 52" 1092 43"
CR1004 $1016.55 600 24" 800 32" 718 28" 1321 52" 1092 43"
CR1011 $1098.9 600 24" 914 36" 819 32" 1321 52" 1092 43"
CR3002 $899 600 24" 1066 42"     1218 48" 1067 42"
CR4824 $644 600 23.62" 800 31.5" 718 28" 1245 49"
Rack U
Model Width Depth Height
    Overall Effective Overall Effective
P/N Price mm inch mm inch mm inch mm inch mm inch
25U
CR1021 $784.35 600 24" 600 24" 584 23" 1321 52" 1111 44"
CR1023 $870.75 600 24" 914 36" 889 35" 1321 52" 1111 44"
CR1029 $966.6 600 24" 1016 40" 978 39" 1321 52" 1111 44"
27U
CR1693
Old p/n: CR1093
Starting @
$440.5
600 24" 870 34" 800 31" 1354 53" 1289 51"
CR1018   600 24" 970 38" 900 35" 1354 53" 1289 51"
CR1694
Old p/n: CR1094
Starting @
$485.1
600 24" 1070 42" 1000 39" 1354 53" 1289 51"
CR1205 $740 600 24" 958 37.73" 893 35.14" 1377 54.2" 1200 47.25"
CR1205-A $500 600 24" 958 37.73" 893 35.14" 1377 54.2" 1200 47.25"
CR1206 $920 600 24" 970 38.2" 893 35.14" 1377 54.2" 1200 47.25"
28U
CR5015 $670 600 24" 914 36" 813 32" 1473 58" 1245 49"
29U
CR1005 $1075.95 600 24" 800 32" 718 28" 1549 61" 1295 51"
CR1032 $1159 600 24" 914 36" 800 32" 1549 61" 1295 51"
30U
CR1048  $904.5 600 24" 800 32" 787 31" 1524 60" 1334 53"
CR1052 $961.88 600 24" 914 36" 889 35" 1524 60" 1334 53"
32U
CR3003 $848 600 24" 600 24"     1574 62" 1422 56"
CR3004 $1024 600 24" 800 32"     1574 62" 1422 56"
CR3005 $1085 600 24" 1066 42"     1574 62" 1422 56"
33U
CR1033   600 24" 914 36" 819 32" 1727 68" 1473 58"
34U
CR5004 $607.5 600 24" 600 24" 508 20" 1676 66" 1524 60"
CR5010 $675 600 24" 813 32" 718 28" 1676 66" 1524 60"
36U
CR1042 $965.93 600 24" 800 32" 787 31" 1829 72" 1600 63"
CR1053 $1020.6 600 24" 914 36" 889 35" 1829 72" 1600 63"
37U
CR1695
Old p/n: CR1095
Starting @
$518.6
600 24" 870 34" 800 31" 1798 71" 1733 68"
CR1681
Old p/n: CR1081
Starting @
$552
600 24" 870 34" 800 31" 1798 71" 1733 68"
CR1063   600 24" 970 38" 900 35" 1798 71" 1733 68"
CR1696
Old p/n: CR1096
Starting @
$552
600 24" 1070 42" 1000 39" 1798 71" 1733 68"
CR1682
Old p/n: CR1082
Starting @
$585.5
600 24" 1070 42" 1000 39" 1798 71" 1733 68"
CR1207 $800 600 24" 958 37.73" 893 35.14" 1821 71.7" 1645 64.75"
CR1207-A $580 600 24" 958 37.73" 893 35.14" 1821 71.7" 1645 64.75"
CR1208 $1020 600 24" 970 38.2" 893 35.14" 1821 71.7" 1645 64.75"
Rack U
Model Width Depth Height
    Overall Effective Overall Effective
P/N Price mm inch mm inch mm inch mm inch mm inch
38U
CR1001 $1053 600 24" 600 24" 517 20" 1930 76" 1702 67"
CR1006 $1185.3 600 24" 800 32" 718 28" 1930 76" 1702 67"
CR1008 $1270.35 600 24" 914 36" 819 32" 1930 76" 1702 67"
CR5011 $742 600 24" 813 32" 718 28" 1880 74" 1702 67"
CR5017 $782 600 24" 914 36" 813 32" 1880 74" 1702 67"
40U
CR3006 $966 600 24" 600 24"     1930 76" 1780 70"
CR3007 $978 600 24" 800 32"     1930 76" 1780 70"
42U
CR1007 $1246.05 600 24" 800 32" 718 28" 2134 84" 1880 74"
CR1697
Old p/n: CR1097
Starting @
$563.2
600 24" 870 34" 800 31" 2020 80" 1955 77"
CR1683
Old p/n: CR1083
Starting @
$596.6
600 24" 870 34" 800 31" 2020 80" 1955 77"
CR1009 $1355.4 600 24" 914 36" 819 32" 2134 84" 1880 74"
CR1026 $1568.7 600 24" 914 36" 832 33" 2134 84" 1829 72"
CR1027 $1713.15 600 24" 914 36" 832 33" 2134 84" 1829 72"
CR1028 $1781.33 600 24" 914 36" 832 33" 2134 84" 1829 72"
CR1064   600 24" 975 38" 900 35" 2020 80" 1955 77"
CR1025 $1466.1 600 24" 1016 40" 832 33" 2134 84" 1880 74"
CR1015   600 24" 1070 42" 1000 39" 2020 80" 1955 77"
CR1616
Old p/n: CR1016
Starting @
$591.1
600 24" 1070 42" 1000 39" 2020 80" 1955 77"
CR1684
Old p/n: CR1084
Starting @
$624.5
600 24" 1070 42" 1000 39" 2020 80" 1955 77"
CR1017   600 24" 1275 50" 1200 47" 2020 80" 1955 77"
CR1209 $860 600 24" 958 37.73" 893 35.14" 2042 80.4" 1867 73.50"
CR1209-A $620 600 24" 958 37.73" 893 35.14" 2042 80.4" 1867 73.50"
CR1210 $1120 600 24" 970 38.2" 893 35.14" 2042 80.4" 1867 73.50"
Rack U
Model Width Depth Height
    Overall Effective Overall Effective
P/N Price mm inch mm inch mm inch mm inch mm inch
43U
CR1022 $947.7 600 24" 600 24" 584 23" 2134 84" 1911 75"
CR1049 $1034.1 600 24" 800 32" 718 28" 2134 84" 1911 75"
CR1045 $1089.45 600 24" 914 36" 889 35" 2134 84" 1911 75"
CR1024 $1165.05 600 24" 1016 40" 978 39" 2134 84" 1911 75"
CR1054 $1295 800 31.5" 813 32" 711 28" 2134 84" 1911 75"
CR5012 $796 600 24" 813 32" 718 28" 2083 82" 1911 75"
CR5018 $838 600 24" 914 36" 813 32" 2083 82" 1911 75"
45U
CR3008 $1040 600 24" 600 24"     2150 85" 2000 79"
CR3009 $1074 600 24" 800 32"     2150 85" 2000 79"
47U
CR1698
Old p/n: CR1098
Starting @
$635.7
600 24" 870 34" 800 31" 2242 88" 2177 86"
CR1685
Old p/n: CR1085
Starting @
$669.1
600 24" 870 34" 800 31" 2242 88" 2177 86"
CR1066 Special
$852
600 24" 1070 42" 1000 39" 2242 88" 2177 86"
CR1699
Old p/n: CR1099
Starting @
$669.1
600 24" 1070 42" 1000 39" 2242 88" 2177 86"
CR1686
Old p/n: CR1086
Starting @
$702.6
600 24" 1070 42" 1000 39" 2242 88" 2177 86"
CR1067 N/A 600 24" 1275 50" 1200 47" 2242 88" 2177 86"
