STEEL FRAME RACK - 2 POST RACK & 4 POST RACK
Overview :
(click on photo below for enlarged
view)

|

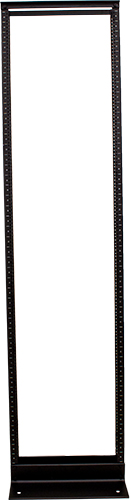

2 POST RACK - GENERAL FEATURES:
- Heavy duty plinth,
allows you to bolt on ground , or install on
castors
- One pair of angle support for post and
plinth
- 50 pcs M6
bolt screws with washer
- 50 pcs M5
self-tapping screws
- 50 pcs M6 square
nuts
- Easy assembly
Specification :
- One pair of post
frame
- One pair of angle
support for post and plinth
- Specifications :
-
Overall
Width: base to base = 22 1/8" ,
post to post
= 20 1/8"
- Depth
(base): 29 3/8"
- Height: 15U= 30.75", 31U = 58.75" ,
20U = 39.5" 36U =
67.5" , 40U = 74.5" , 45U =
83.25"
- Hole
to hole width: 19" , Maximum equipment
width: 17 11/16"
- Useable
height: 15U=26.25", 20U =35", 31U = 54.25" ,
36U =63" , 40U = 70" , 45U = 78.75"
|
|


* Click
on above picture for a detailed View
|
4 POST RACK - GENERAL FEATURES:
- Heavy duty plinth,
allows you to bolt on ground
- 50 pcs M6 bolt
screws with washer
- 50 pcs M5
self-tapping screws
- 50 pcs M6 square
nuts
- Maximum depth 29"
(base), 22.5" (post to post), 16.5" (for rail)
- Design by heavy
duty metal, allows you to install your system
server, not just for cabling
- Allows you to
connect more racks side by side
- Easy assembly
4 Posts -
- Two pairs of post
frame
- Two pairs of angle
support for post and plinth
- Depth connection
brackets
- Allows you to
install a sliding rail on you server, not just
stack them
- Specifications :
1.
For Base depth= 29.5"
-
Overall Width: base to base = 22 1/8" , post
to post = 20 1/8"
- Depth (base): 29 3/8" , post to
post = 22.75"
- Height: 15U = 30.75" , 20U=39.5" , 31U =
58.75" , 36U = 67.5" , 40U = 74.5"
, 45U = 83.25"
- Hole to hole width: 19" ,
Maximum equipment' width: 17 11/16"
- Useable height: 15U = 26.25" ,
20U=35", 31U = 54.25" , 36U = 63" , 40U =
70" , 45U = 78.75"
- Maximum length of sliding rail's
brackets: 16.5"
2.For Base depth=
35.5"
-
Overall Width: base to base = 22 1/8" , post
to post = 20 1/8"
- Depth (base to base = 35 3/8" ,
post to post = 28.75"
- Height: 15U = 30.75" , 31U =
58.75" , 36U = 67.5" , 40U = 74.5"
, 45U = 83.25"
- Hole to hole width: 19" ,
Maximum equipment' width: 17 11/16"
- Useable height: 15U = 26.25" ,
31U = 54.25" , 36U = 63" , 40U =
70" , 45U = 78.75"
- Maximum length of sliding rail's
brackets: 22.5"
|
|
|
2
Post Steel Frame Rack |
|
Part # / Photo |
|
AR2014
 |
15U 2 Post Steel Frame Rack , 29 3/8"
Base deep
Dimension : 21 1/8"(w) x 29 3/8"(d) x
30.75"(h)
Color : Black or White
Price : $218.5 |
AR2018
 |
20U 2 Post Steel Frame Rack , 29 3/8"
Base deep
Dimension : 21 1/8"(w) x 29 3/8"(d) x
39.5"(h)
Color : Black or White
Price : $240.5 |
AR2001
 |
31U 2 Post Steel Frame Rack , 29 3/8"
Base deep
Dimension : 21 1/8"(w) x 29 3/8"(d) x
58.75"(h)
Color : Black or White
Price : $253.5 |
AR2002
 |
36U 2 Post Steel Frame Rack , 29 3/8"
Base deep
Dimension : 21 1/8"(w) x 29 3/8"(d) x
67.5"(h)
Color : Black or White
Price : $279.5 |
AR2003
 |
40U 2 Post Steel Frame Rack , 29 3/8"
Base deep
Dimension : 21 1/8"(w) x 29 3/8"(d) x
74.5"(h)
Color : Black or White
Price : $309.5 |
AR2004
 |
45U 2 Post Steel Frame Rack , 29 3/8"
Base deep
Dimension : 21 1/8"(w) x 29 3/8"(d) x
78.75"(h)
Color : Black or White
Price : $336.5 |
|
|
4
Post Steel Frame Rack |
|
|
Depth = 29.5" |
|
Part # / Photo |
|
AR2015
 |
15U 4 Post Steel Frame Rack , 29.5"
Base deep , 22" Post Deep
Dimension : 20.1/8"(w) x 29.5"(d) x
30.75"(h)
Color : Black or White
Price : $314.6 |
AR2016
 |
20U 4 Post Steel Frame Rack , 29.5"
Base deep , 22" Post Deep
Dimension : 20.1/8"(w) x 29.5"(d) x 39.5"(h)
Color : Black or White
Price : $348.4 |
AR2005
 |
31U 4 Post Steel Frame Rack , 29.5"
Base deep , 22" Post Deep
Dimension : 20.1/8"(w) x 29.5"(d) x
58.75"(h)
Color : Black or White
Price : $374.4 |
AR2006
 |
36U 4 Post Steel Frame Rack , 29.5"
Base deep , 22" Post Deep
Dimension : 20.1/8"(w) x 29.5"(d) x
67.50"(h)
Color : Black or White
Price : $400.4 |
AR2007
 |
40U 4 Post Steel Frame Rack , 29.5"
Base deep , 22" Post Deep
Dimension : 20.1/8"(w) x 29.5"(d) x
74.50"(h)
Color : Black or White
Price : $435.5 |
AR2008
 |
45U 4 Post Steel Frame Rack , 29.5"
Base deep , 22" Post Deep
Dimension : 20.1/8"(w) x 29.5"(d) x
83.25"(h)
Color : Black or White
Price : $474.5 |
|
|
Depth = 35.5" |
|
Part # / Photo |
|
AR2009
 |
15U 4 Post Steel Frame Rack , 35.5"
Base deep , 28.75" Post Deep
Dimension : 22.1/8"(w) x 35.5"(d) x
30.75"(h)
Color : Black or White
Price : $348.4 |
AR2017
 |
20U 4 Post Steel Frame Rack , 35.5"
Base deep , 28.75" Post Deep
Dimension : 22.1/8"(w) x 35.5"(d) x 39.5"(h)
Color : Black or White
Price : $383.5 |
AR2010
 |
31U 4 Post Steel Frame Rack , 35.5"
Base deep , 28.75" Post Deep
Dimension : 22.1/8"(w) x 35.5"(d) x
58.75"(h)
Color : Black or White
Price : $409.5 |
AR2011
 |
36U 4 Post Steel Frame Rack , 35.5"
Base deep , 28.75" Post Deep
Dimension : 22.1/8"(w) x 35.5"(d) x
67.50"(h)
Color : Black or White
Price : $435.5 |
AR2012
 |
40U 4 Post Steel Frame Rack , 35.5"
Base deep , 28.75" Post Deep
Dimension : 22.1/8"(w) x 35.5"(d) x
74.50"(h)
Color : Black or White
Price : $474.5 |
AR2013
 |
45U 4 Post Steel Frame Rack , 35.5"
Base deep , 28.75" Post Deep
Dimension : 22.1/8"(w) x 35.5"(d) x
83.25"(h)
Color : Black or White
Price : $513.5 |
|
|
|
