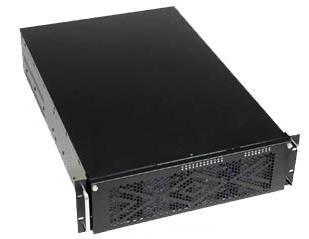

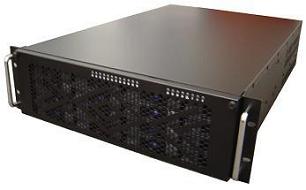

   3 U Rackmount  :  Part # RM3009








*click on the pictures for enlarged view

EIA RS-310C 19" Rackmount Standard

Construction:

Heavy Duty Cold Rolled Electroplated Steel

Color:

Black

System Boards:

Pentium 4, Dual Xeon, AMD 64, Dual Opteron

Motherboard Size:

Support EATX M/B (Max. to 12" x 13")

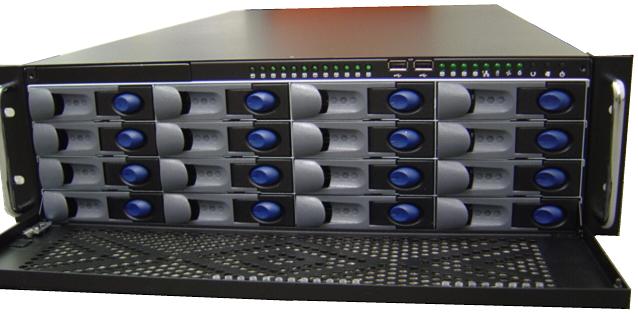

Drive Bays:

1x slim CDROM, 16x hotswap drive carrier

Drive Interface:

SATA, U320, SATA-Multilane

Power Supply:

(Rear Chassis Installation) 2U Single or 2U Redundant Power Supply

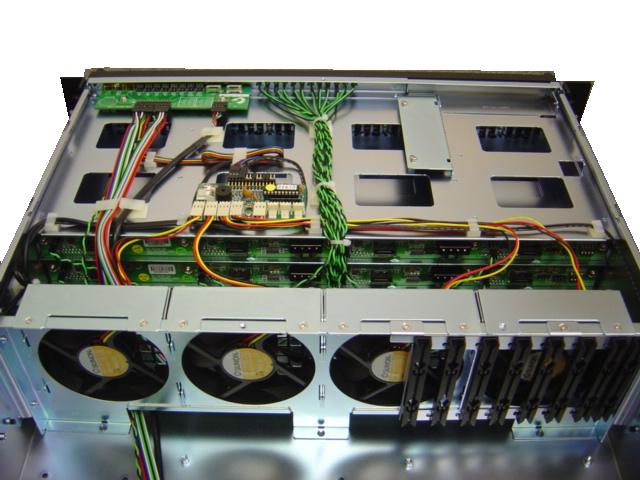

Cooling Units:

4x (92mm = 51CFM ea.), 1x (60mm = 23.5CFM ea.) Heavy Duty Ball Bearing Fans

Thermal Management Card:

Installed

Expansion Slot:

7 x Vertical Full Length PCI Slots

Connector Port (front): 2x USB

Indicators:

LEDs for Power, 16x HDD Activity, 3x LAN, Fan Failure, Temperature Warning

Buttons:

Power On/Off & System Reset Dimple Button

Front Door(s):

Removable Single Door with 2x Thumbscrew

Dimensions:

(W x H x D):

483 x 133 x 650mm (19" x 5.2" x 25.6")

Humidity:

5% - 95% Non-condensing

Product Applications:

NAS, SAN, File Server

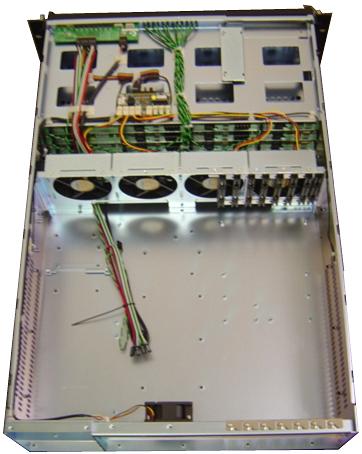

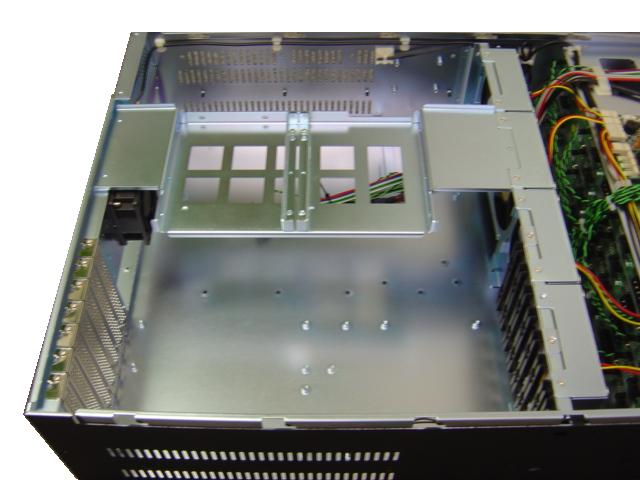

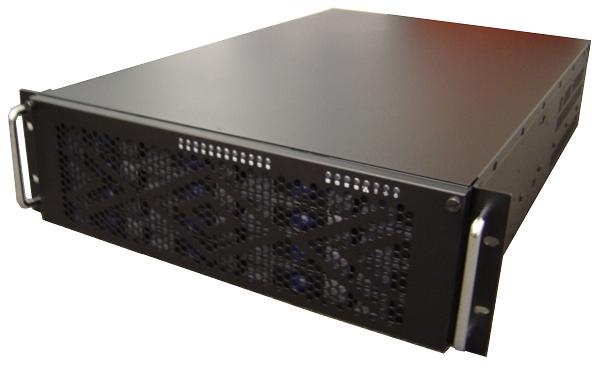

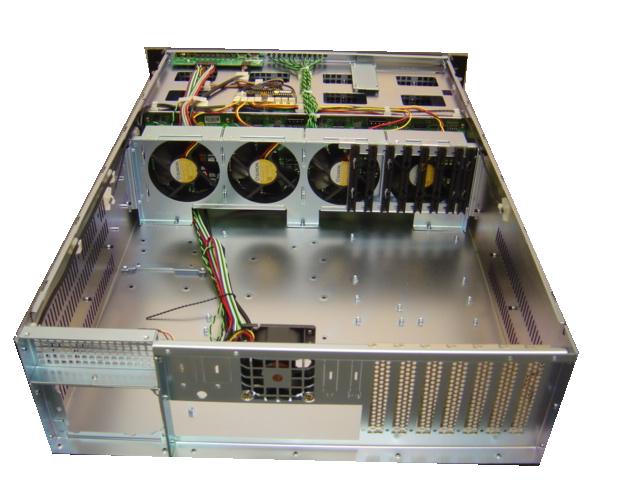

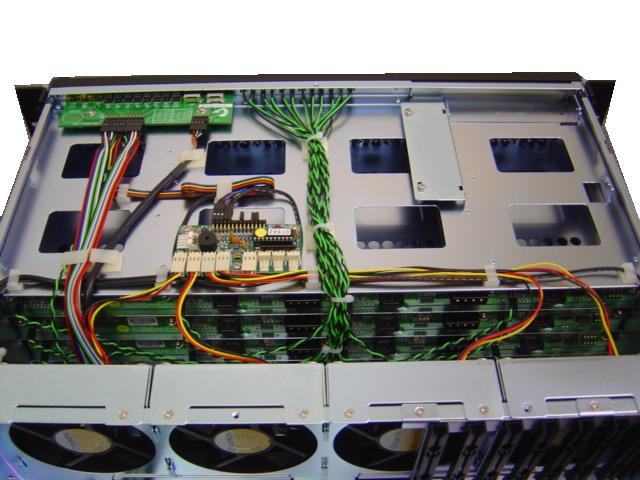

  More photos - (click on the picture for  enlarged view )
