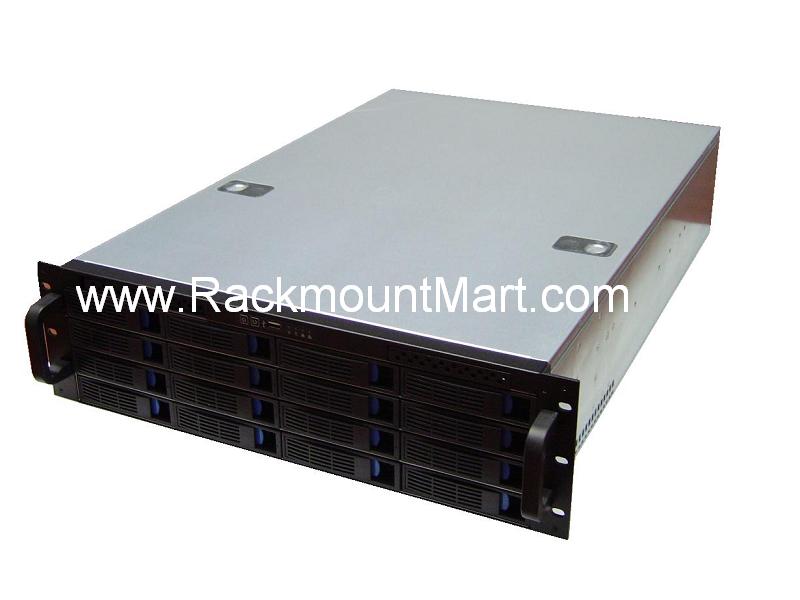

3U Rackmount Chassis with 16 Hot-swap Bays:  Part # RM3018






   19" Rackmount Standard
Color: Black and Silver
System Boards: Pentium 4, Pentium D, Dual Xeon, AMD 64, Dual Opteron
Motherboard Size: Support ATX M/B (Max. to 12" x 13")
Drive Bays: 16 x hot-swappable SATA/SAS drive bays, 1 x slim CD-ROM bay, 1 x slim FDD bay, 1 x HDD bay
Power Supply: Standard ATX power supply
Cooling Units: 4 x 80mm middle fans &
2 x 60mm rear fans
Front Door: Single Door With Thumb Twist Keylock
Expansion Slot: 4 x Vertical Full Height PCI Slots
Connector Port (front): 1 x USB
Indicators: LEDs for Power, HDD Activity, & LAN
Buttons: Power On/Off & System Reset Switches
Dimensions:
(W x H x D)		 430mm x 650mm x 130.1mm
(16.9" x 25.5" x 5.1)
Humidity: 5% - 95% Non-condensing
Product Applications: Multipurpose Server


Features :
- 3U rackmount design
- Sixteen hot-swappable SATA (I or II) / SAS drive bays
- Four internal SFF-8087 Mini SAS connectors support up to sixteen 3.5" hot swappable SATA (I or II) or SAS hard disk drives
- Hot-swappable HDD tray with special designed power-off and lock mechanism
- 1 x slim CD-ROM bay,1 x FDD bay, 16 x 3.5" hot-swappable drive bays, 1 x 3.5" drive bay
- Six ball-bearing cooling fans for better ventilation
- Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")
- Screwless top cover

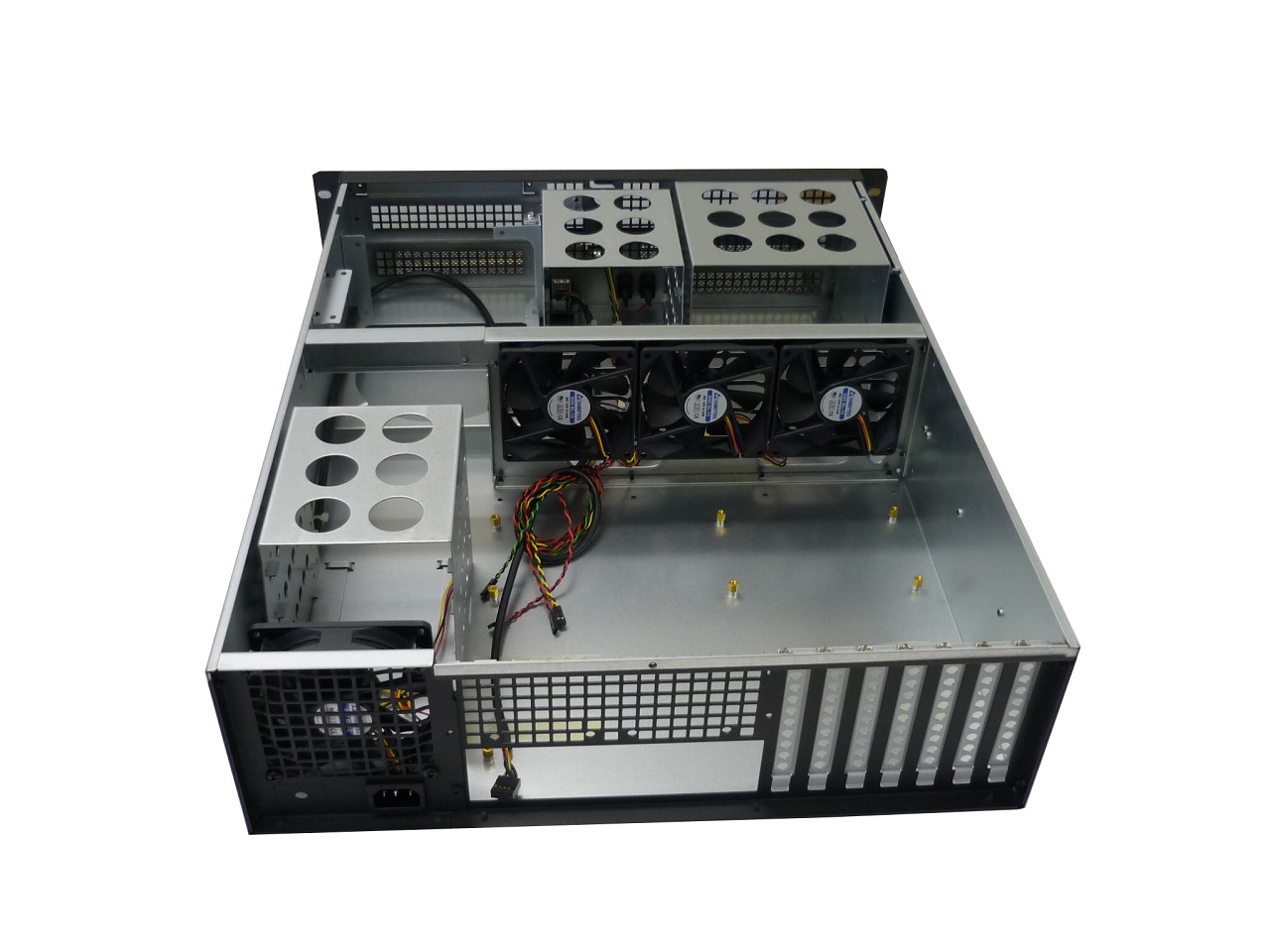

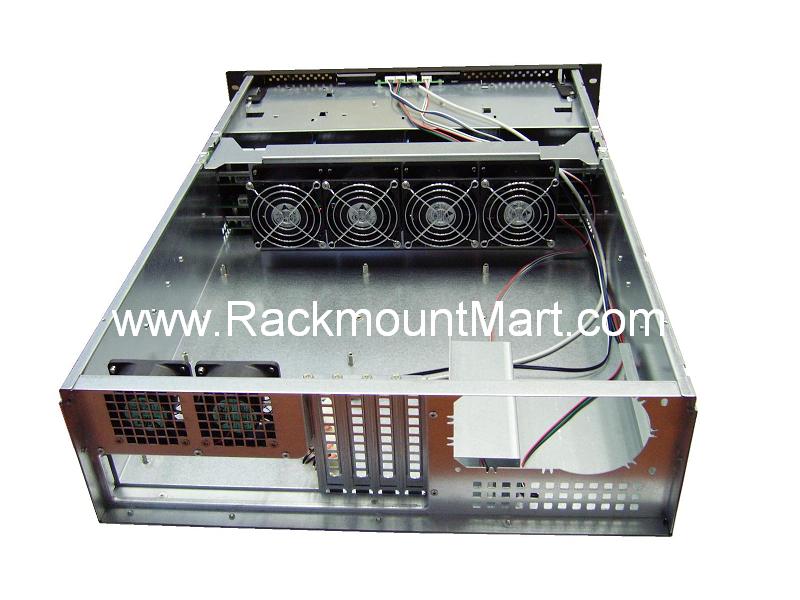

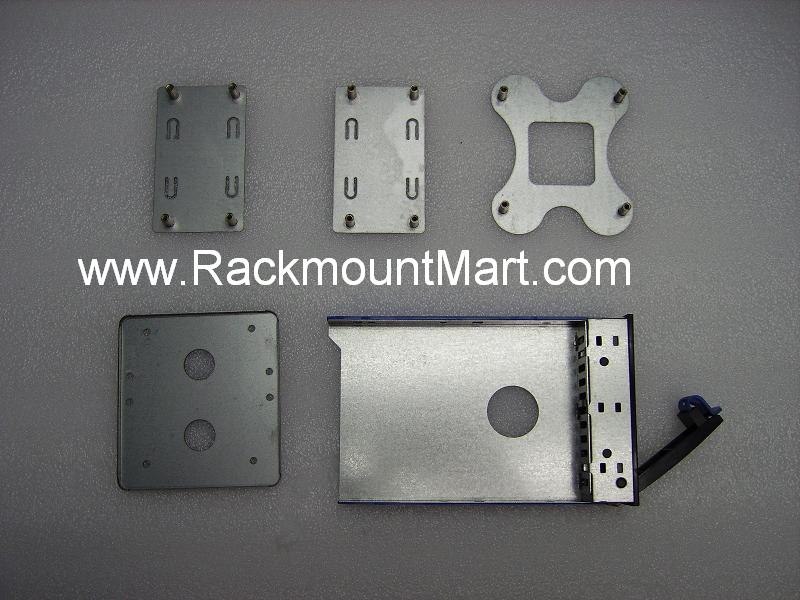

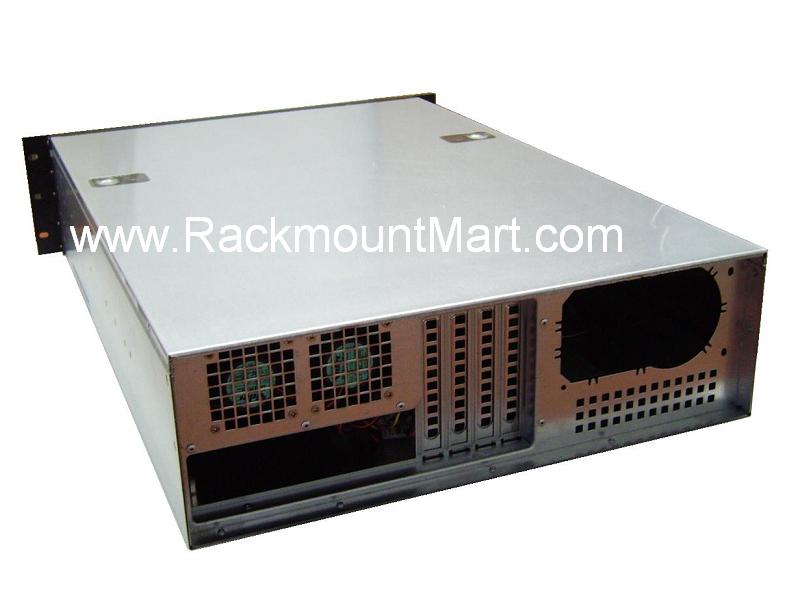

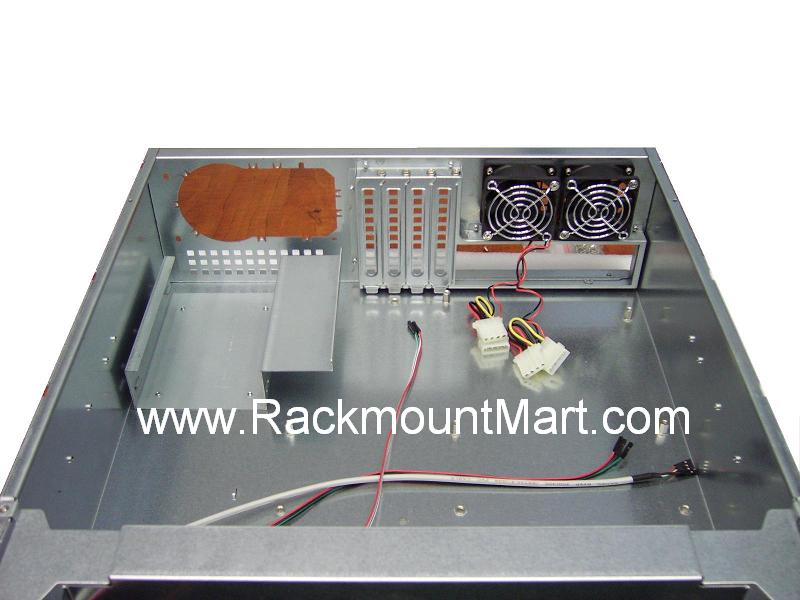

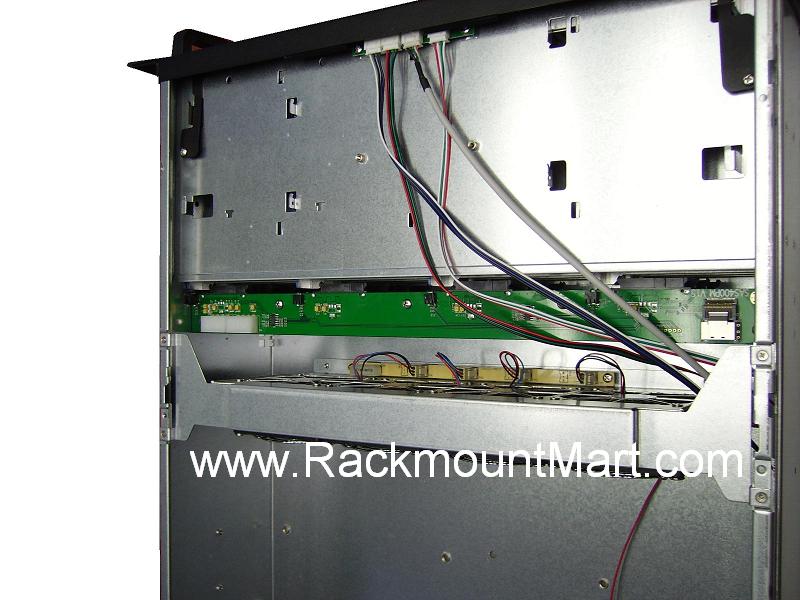

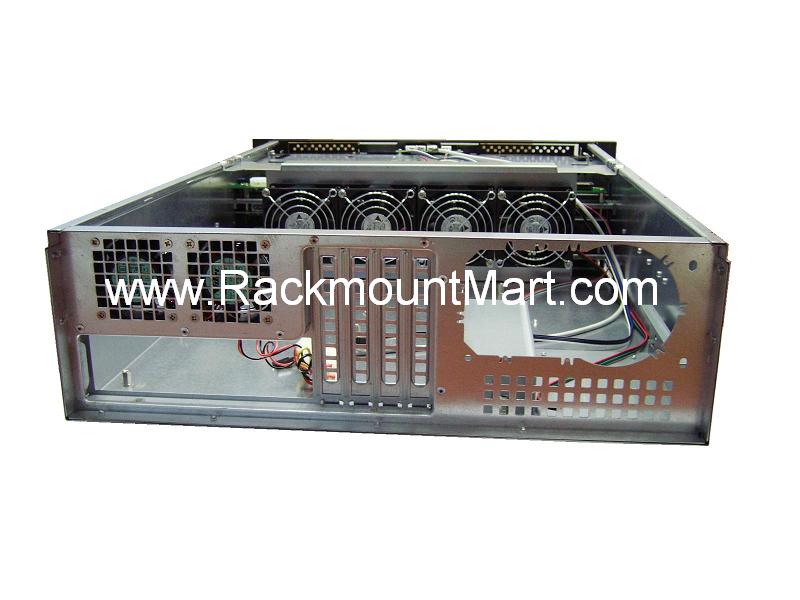

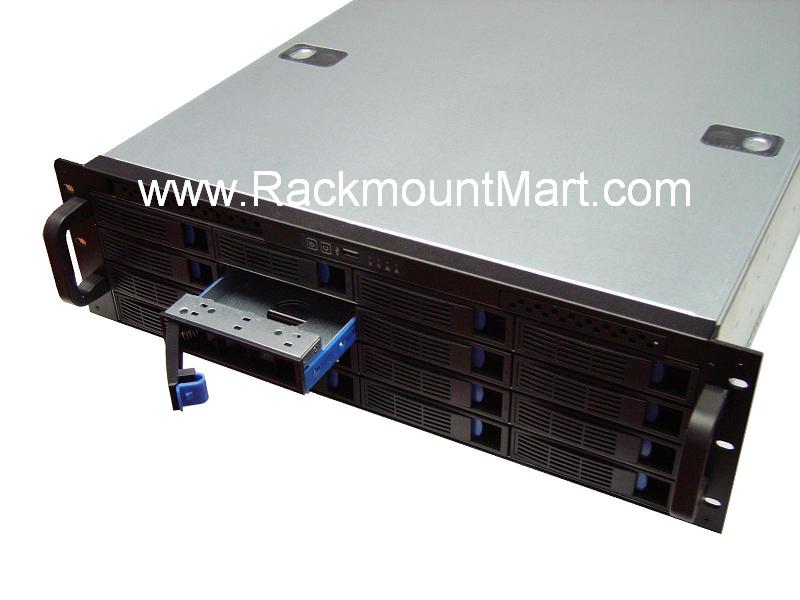

  More photos (click to enlarge )

Ordering information
Part Number  Description
RM3018     Price : $356  3U Rackmount Chassis w/ 16 Hot-swap Bays ,  Black & Silver, Case only.
RM3018-50 Price : $444  3U Rackmount Chassis w/ 16 Hot-swap Bays ,  Black & Silver, w/ 500W P.S.
RM3018-60 Price : $474  3U Rackmount Chassis w/ 16 Hot-swap Bays ,  Black & Silver, w/ 600W P.S.
RM3018-80 Price : $551  3U Rackmount Chassis w/ 16 Hot-swap Bays ,  Black & Silver, w/ 800W P.S.
RM3018-90 Price : $609  3U Rackmount Chassis w/ 16 Hot-swap Bays ,  Black & Silver, w/ 900W P.S.
RM3018-100 Price : $633  3U Rackmount Chassis w/ 16 Hot-swap Bays ,  Black & Silver, w/ 1000W P.S.
