Industrial Flat Panel Display
:
Part #
ID-12P-LED
12.1" Open Frame TFT LCD with LED backlight Industrial Flat Panel
Display
|
LCD with LED backlight Panel |
|
LED Type |
Grade A Industrial
TFT LCD with LED backlight Panel |
|
Display Size |
12.1 inch diagonal
(246.0H x 184.5V) |
|
Resolutions
|
800 x 600 |
|
Display Color |
262,144 color |
|
Brightness
|
450
cd/m2
|
|
Contrast
ratio
|
700
: 1 (Typical) |
|
Response Time
|
Tr=10 / Tf=25ms |
|
Pixel
pitch
|
0.307 x 0.307 mm |
|
Viewing
angle
|
160 (H) x 140 (V) degree |
|
OSD Control |
Brightness,
Contrast, Phase & Color, H & V
position,
Auto-tune & Recall |
|
LED MTBF |
50,000
hrs |
|
Signal Input |
-Input Video Signal : Analog RGB
-Video Level :
Analog: 0.7Vp-p
-Sync Type :
Separate H/V, Composite H/V
-Input Connector : D-Sub
15 pin VGA analog |
|
Power Supply |
External type,110 ~ 220 VAC at 50 or 60Hz via
AC adapter (12V), 12V DC
Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE
|
|
Mounting |
VESA-mount, Panel-mount, Wall-mount &
Bracket mount |
|
OPTIONS |
|
Optional Video Input |
Video
Input : S-Video and Composite
Input Connectors : RCA,
S-video
Input Connectors : RCA-BNC adapter
Details
|
|
Optional Touch Screen |
Details
|
|
Optional DC Power |
48V / 24V / 12V DC Power
Details
Input Range:10~36V(DC-12V, DC-24V model)
36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety : Continuous short circuit
protection |
|
Mechanical |
|
Material
|
1.2mm Steel |
|
Dimension |
341.7 x 62.2 x 253 mm
(WxDxH) |
|
Product Weight |
3 kg |
|
Environmental |
|
Temperature
|
0 to 50
Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage) |
|
Relative Humidity
|
5~90%, non
condensing |
|
Shock
|
10G peak
acceleration
(11ms duration) |
|
Vibration |
5~500Hz, 1G RMS random vibration |
|
Safety Approval |
CE,
FCC |
|
Package Content |
|
Package Content |
LCD with LED backlight Monitor x 1 , VGA Cable (Male
to Male) x
1, DC 12V adapter x1 , Power
cord x 1, Mounting Bracket x 1 pair, CD disc,
User Manual x
1 |
|
Front View of ID-12P-LED

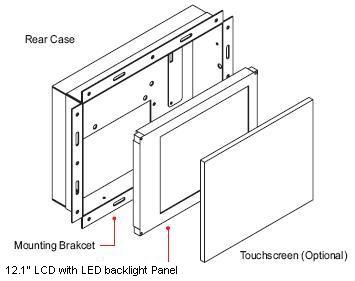

Construction

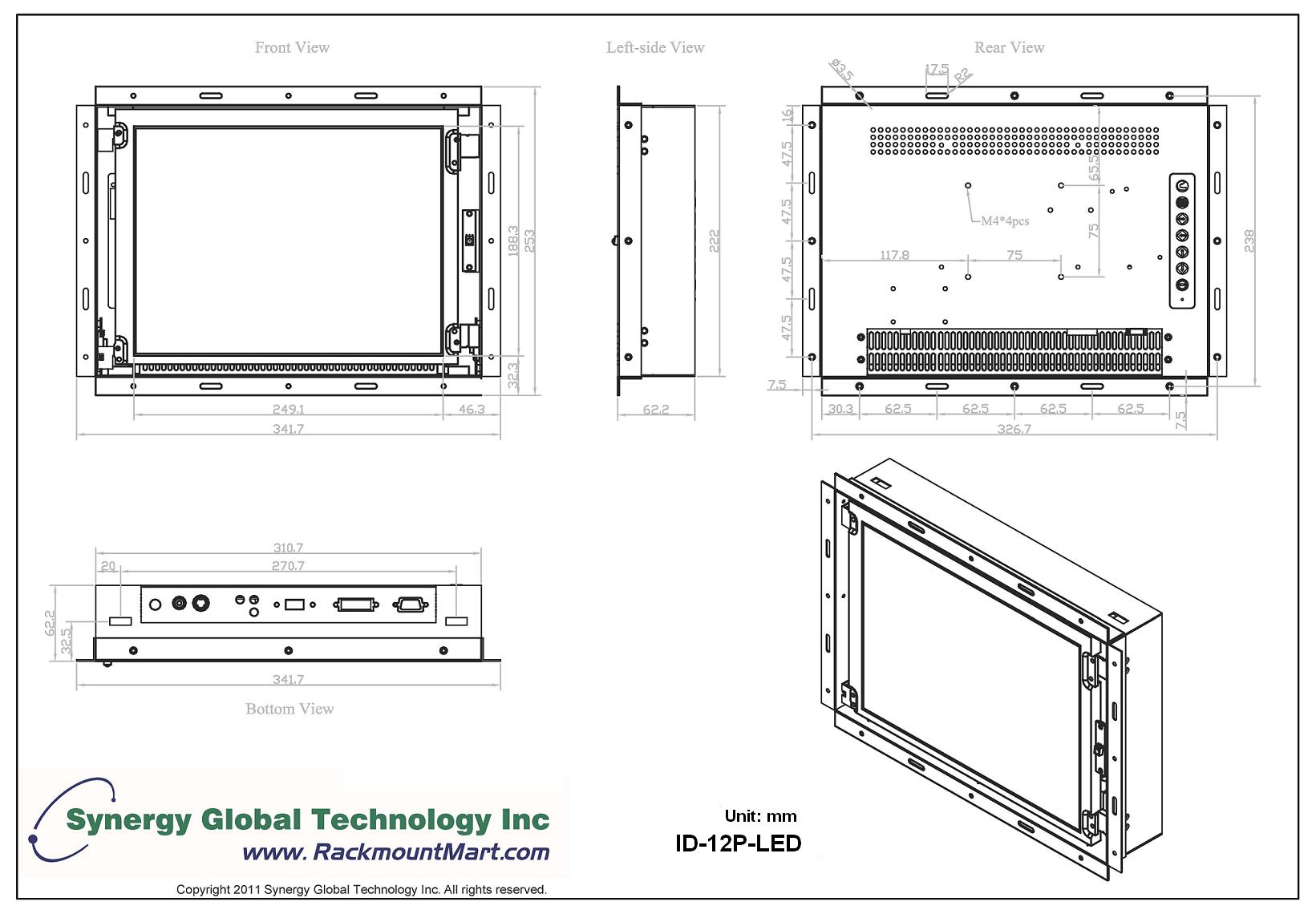

Front / Rear / Top / Side Views & Dimensions
*click on above picture for enlarged view
|
|
More photos (click to enlarge )
|
FEATURES :
- 12.1" industrial TFT LCD with LED backlight panel support 800 x 600 pixels
- 450 cd/m2 industrial brightness
- OSD control keys to optimize the display
- Low power consumption
- Modularized design
- Optional video input (S-Video & RCA input)
- Optional with touch screen and DC power input
- Low power consumption
- Universal open frame kits
- Universal-mount, OEM mounting
APPLICATIONS :
- Industrial automation LCD with LED backlight panel
- Embedded display Unit
- Gaming, lottery & amusement display
- Touch screen display panel
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and
Instrumentation
Diagram for I/O Outlet
Ordering
information :
|
Part # |
Description |
|
WITHOUT NEMA 4 / IP65 |
ID-12P-LED
Price : $442 |
Standard Version -
12.1" Open Frame TFT LCD with LED backlight Display |
ID-12PAV-LED
Price : $503 |
Version w/option -
12.1" Open Frame TFT LCD with LED backlight Display +
S-Video & Composite video(RCA) |
ID-12PBNC-LED
Price : $503 |
Version w/option -
12.1" Open Frame TFT LCD with LED backlight Display +
S-Video & Composite video(BNC) |
ID-12PDC12-LED
Price : $543 |
Version w/option -
12.1" Open Frame TFT LCD with LED backlight Display + 12v DC Power |
ID-12PDC24-LED
Price : $543 |
Version w/option -
12.1" Open Frame TFT LCD with LED backlight Display + 24v DC Power |
ID-12PDC48-LED
Price : $543 |
Version w/option -
12.1" Open Frame TFT LCD with LED backlight Display + 48v DC Power |
ID-12PTRS-LED
Price : $638 |
Version w/option -
12.1" Open Frame TFT LCD with LED backlight Display +
Resistive Touch screen
& serial controller |
ID-12PTRB-LED
Price : $638 |
Version w/option -
12.1" Open Frame TFT LCD with LED backlight Display +
Resistive Touch screen
& USB controller |
ID-12PTCS-LED
Price : $726 |
Version w/option -
12.1" Open Frame TFT LCD with LED backlight Display +
Capacitive Touch
screen & serial controller |
ID-12PTCB-LED
Price : $726 |
Version w/option -
12.1" Open Frame TFT LCD with LED backlight Display +
Capacitive Touch
screen & USB controller |
-AV
Price : $61 |
Add Composite video(RCA) + S-video |
-BNC
Price : $61 |
Add Composite video(BNC) + S-video |
-TV
Price : $101 |
Add TV tuner with remote controller |
-12VDC
Price : $101 |
Add 12V DC Power |
-24VDC
Price : $101 |
Add 24V DC Power |
-48VDC
Price : $101 |
Add 48V DC Power |
-SPK
Price : $68 |
Add Audio input |
-RM
Price : $54 |
Add Remote controller |
